Model # MLG19PDDWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MLG19PDDWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

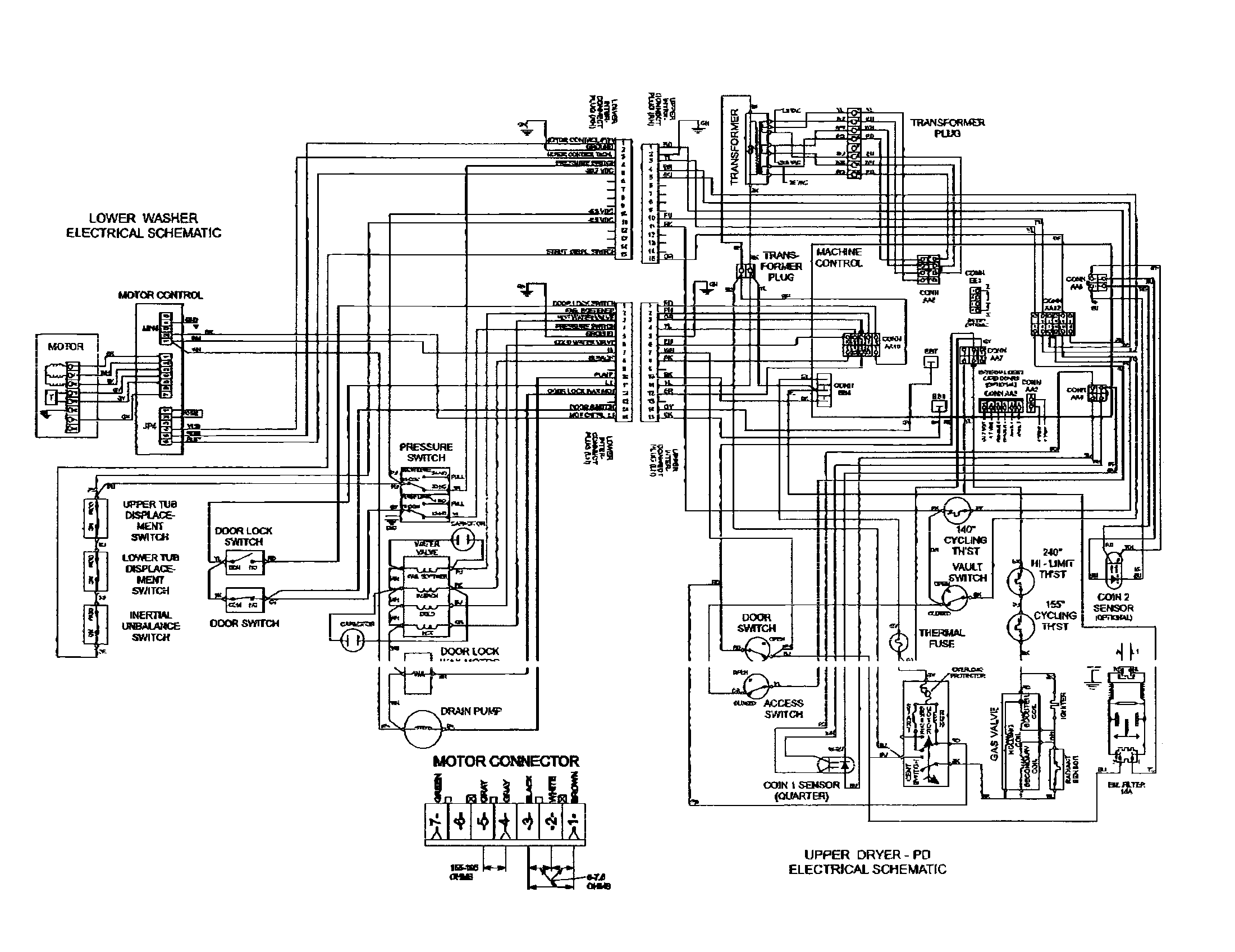

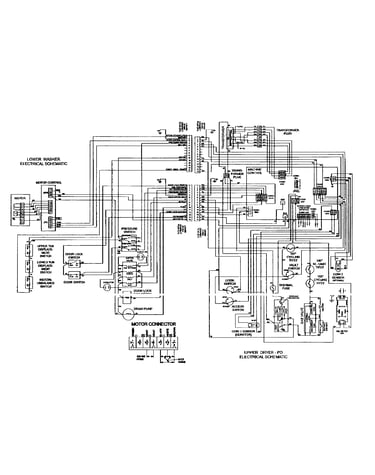

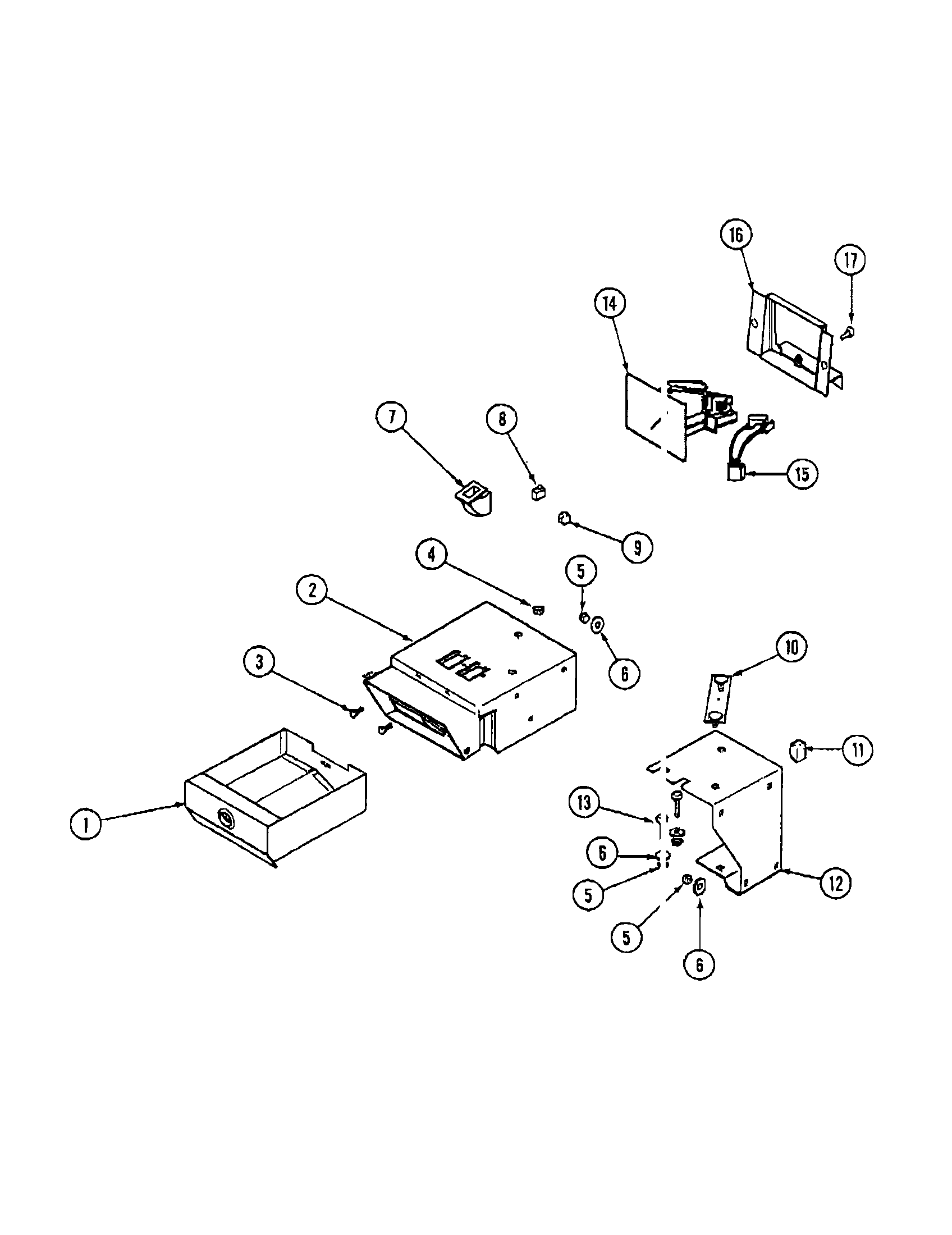

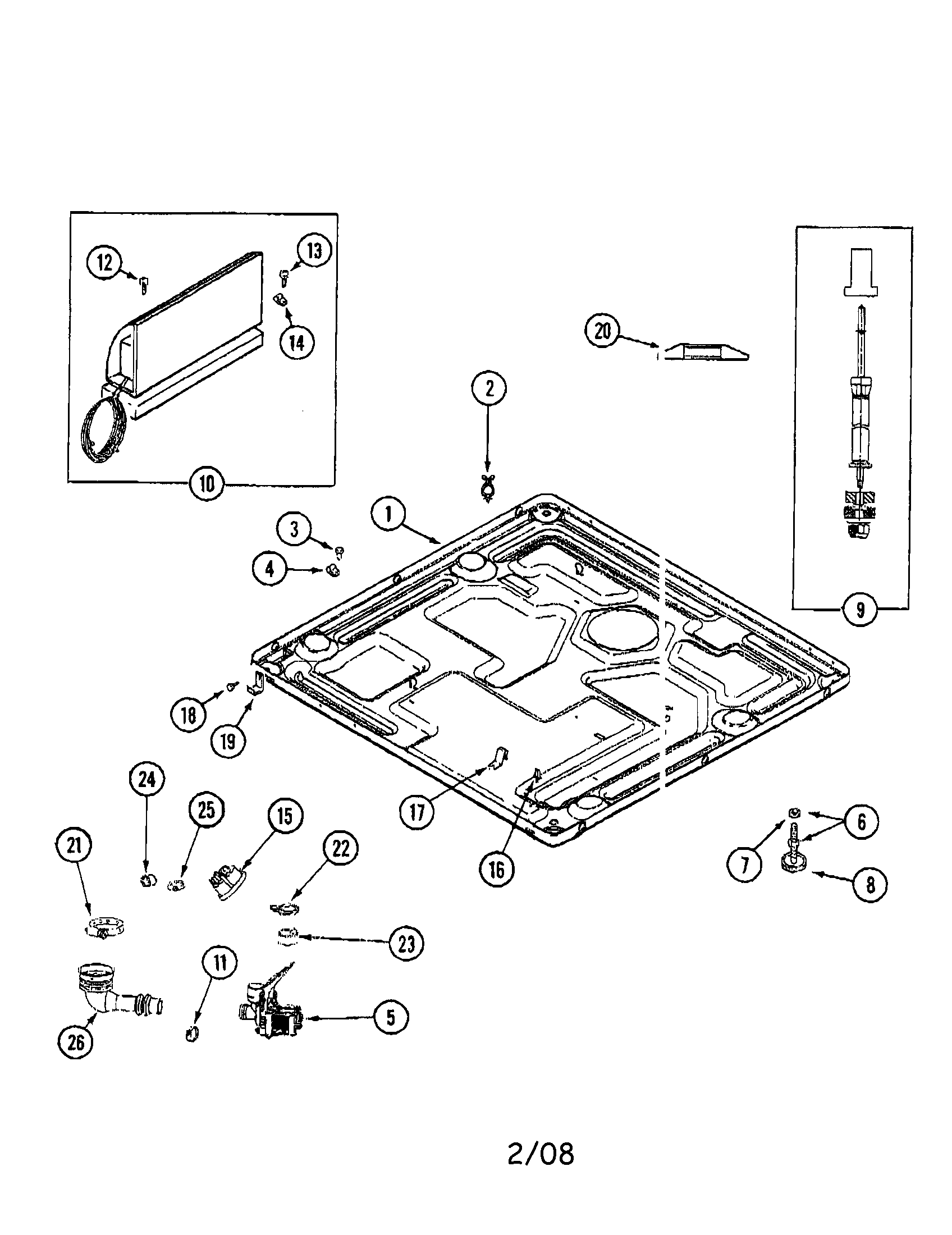

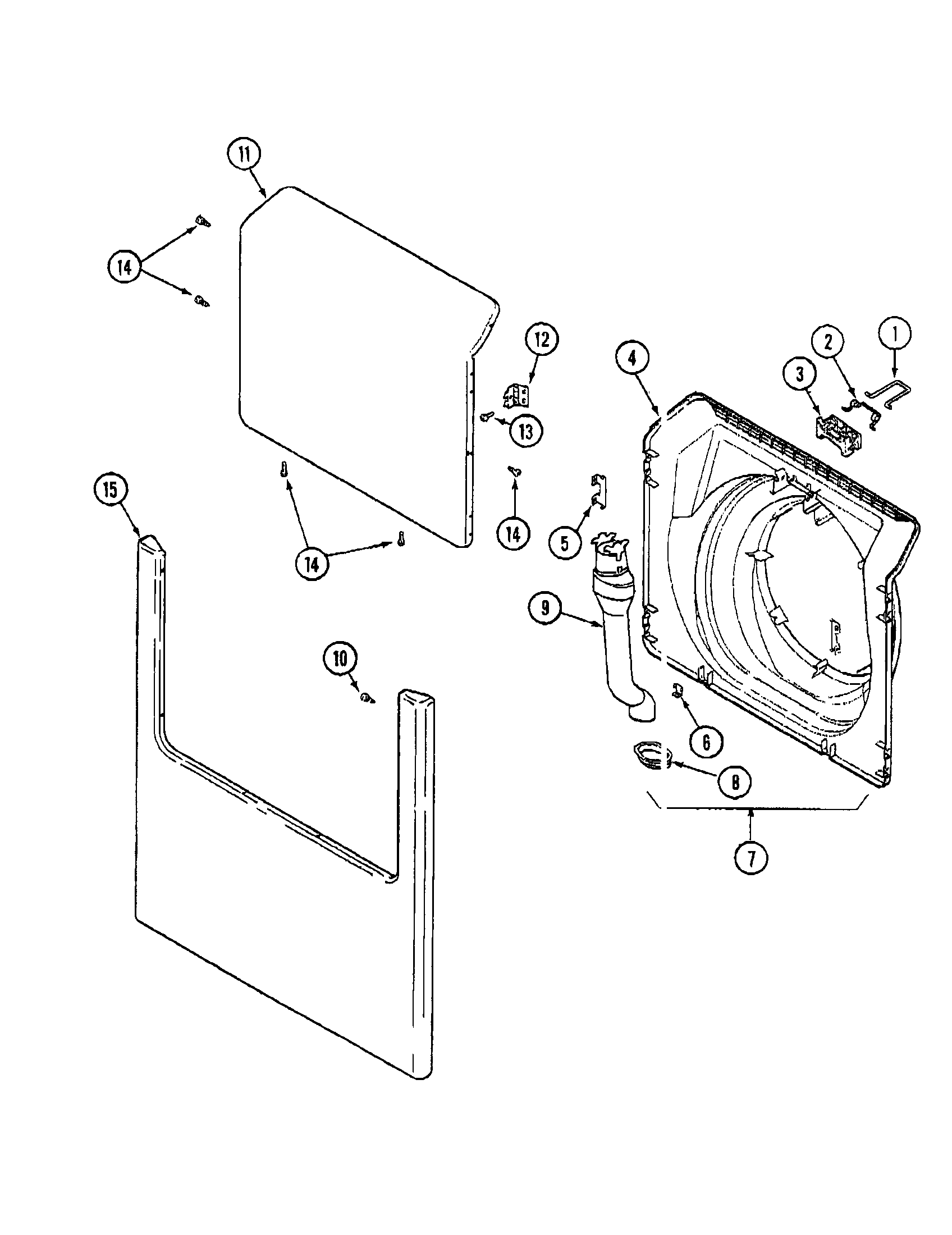

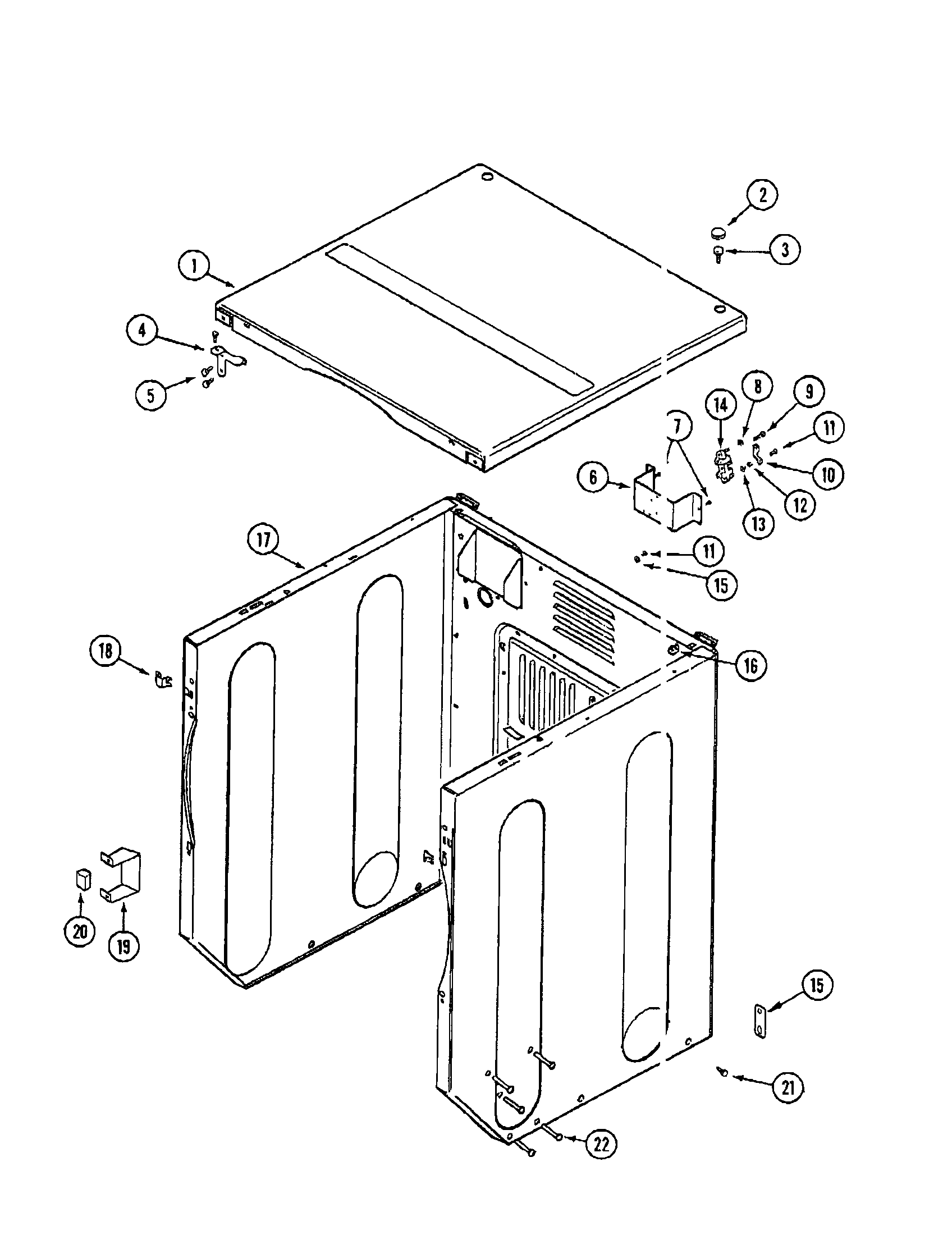

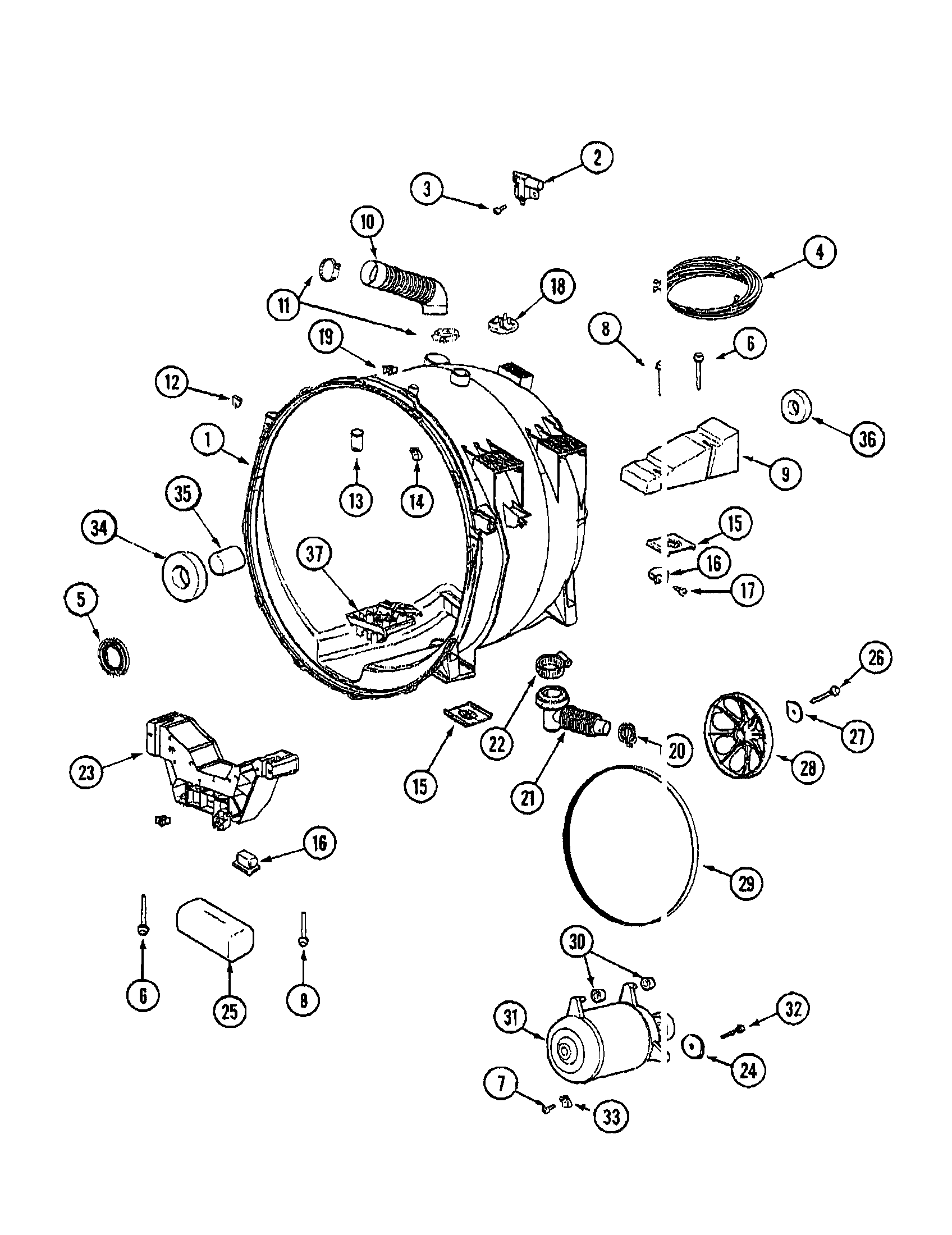

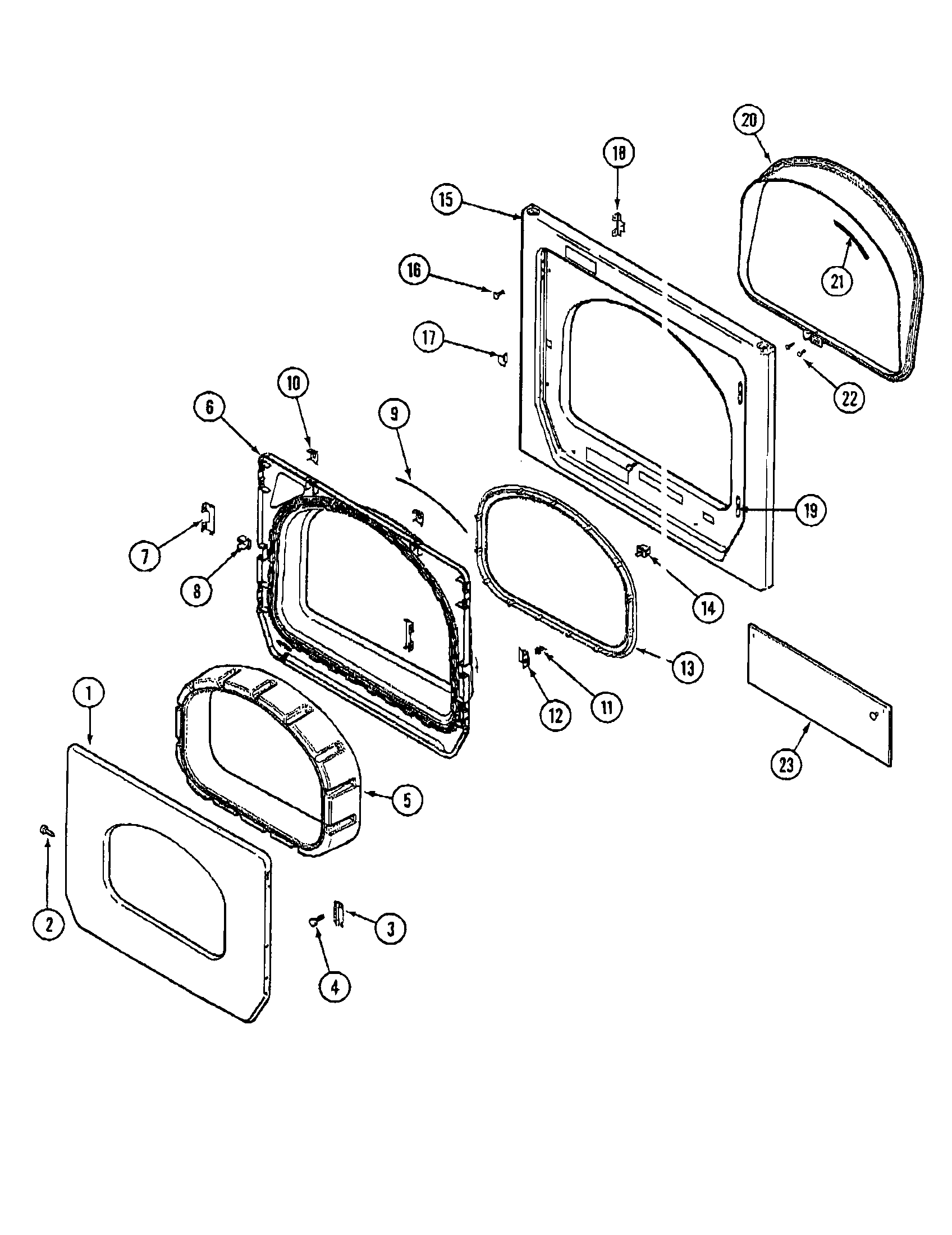

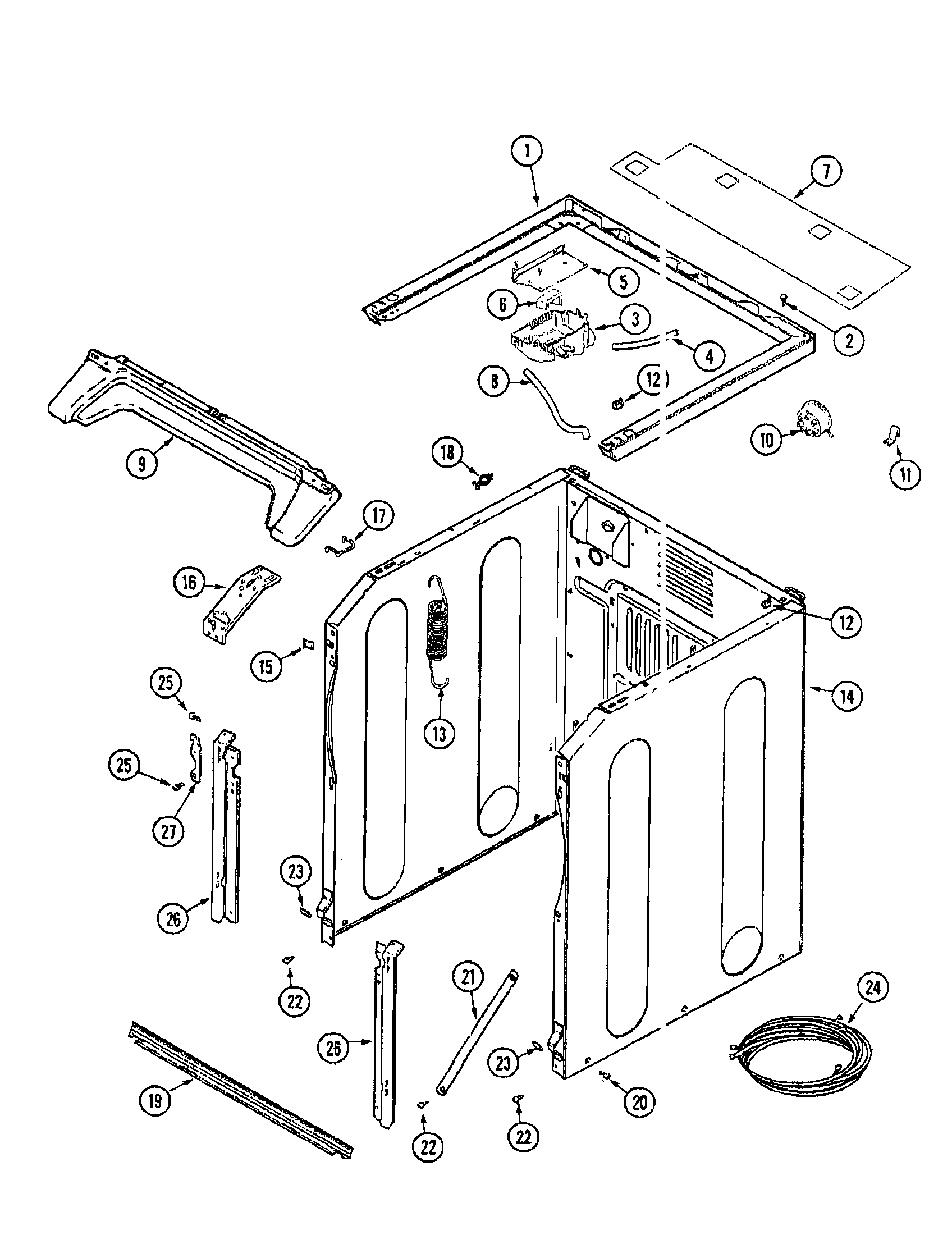

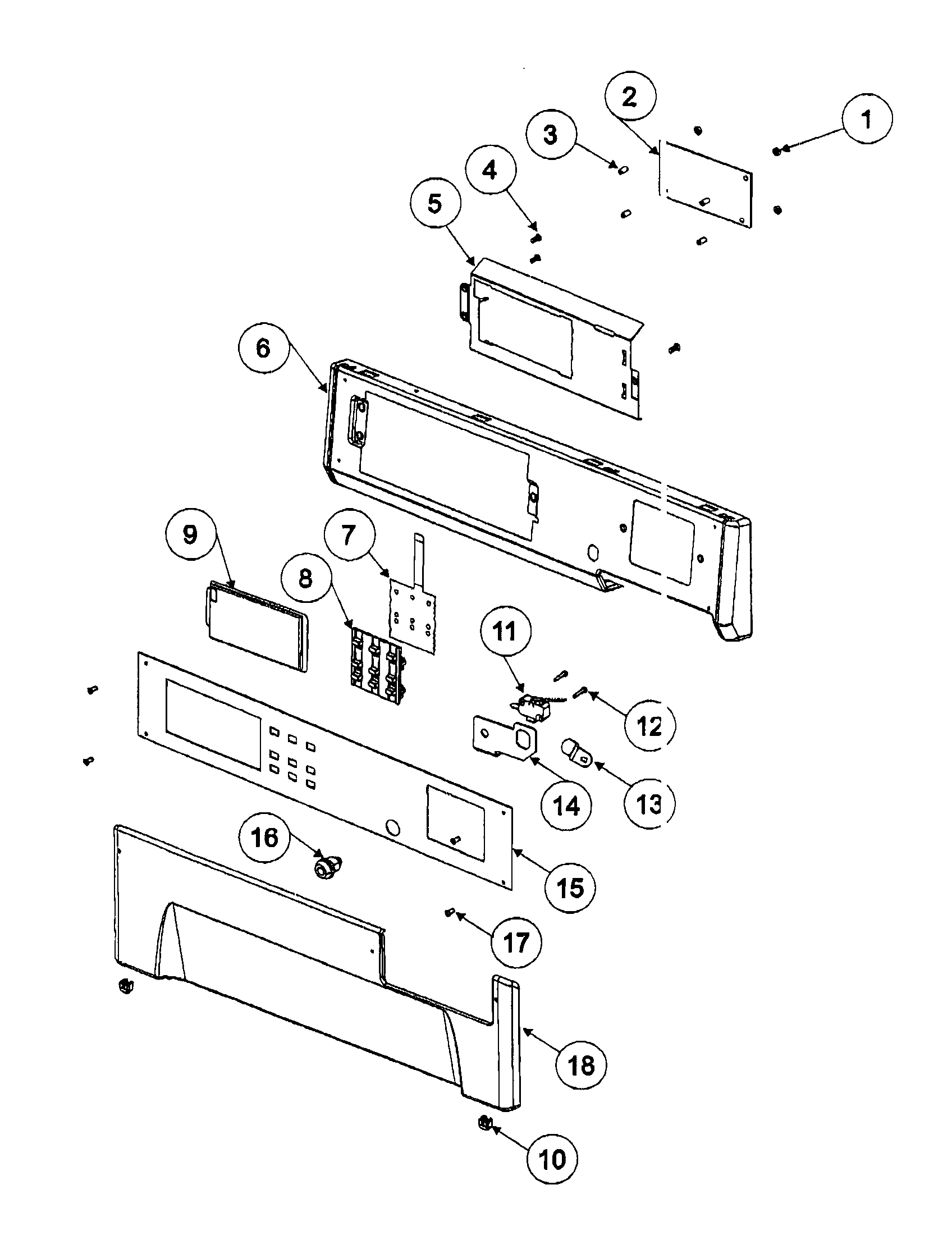

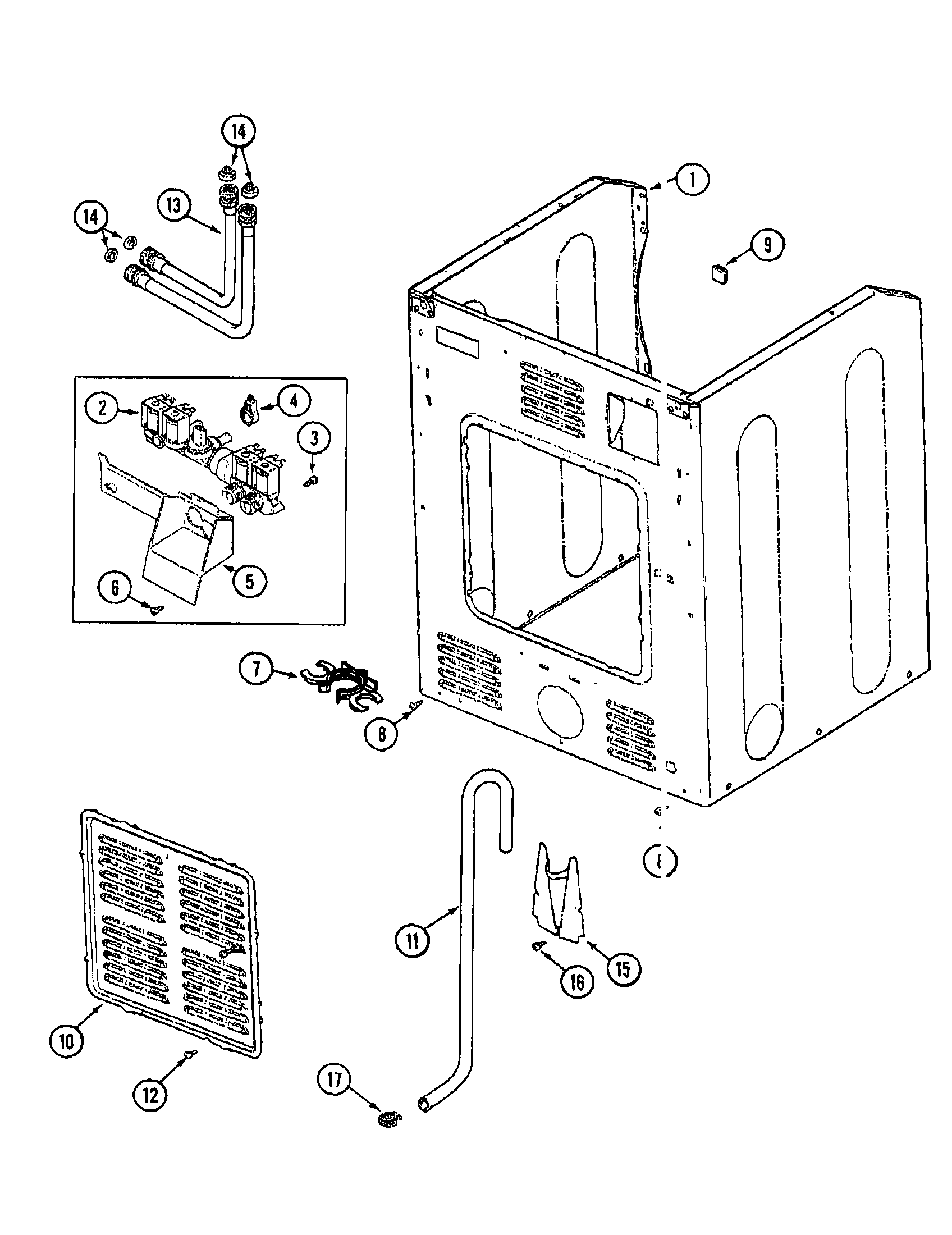

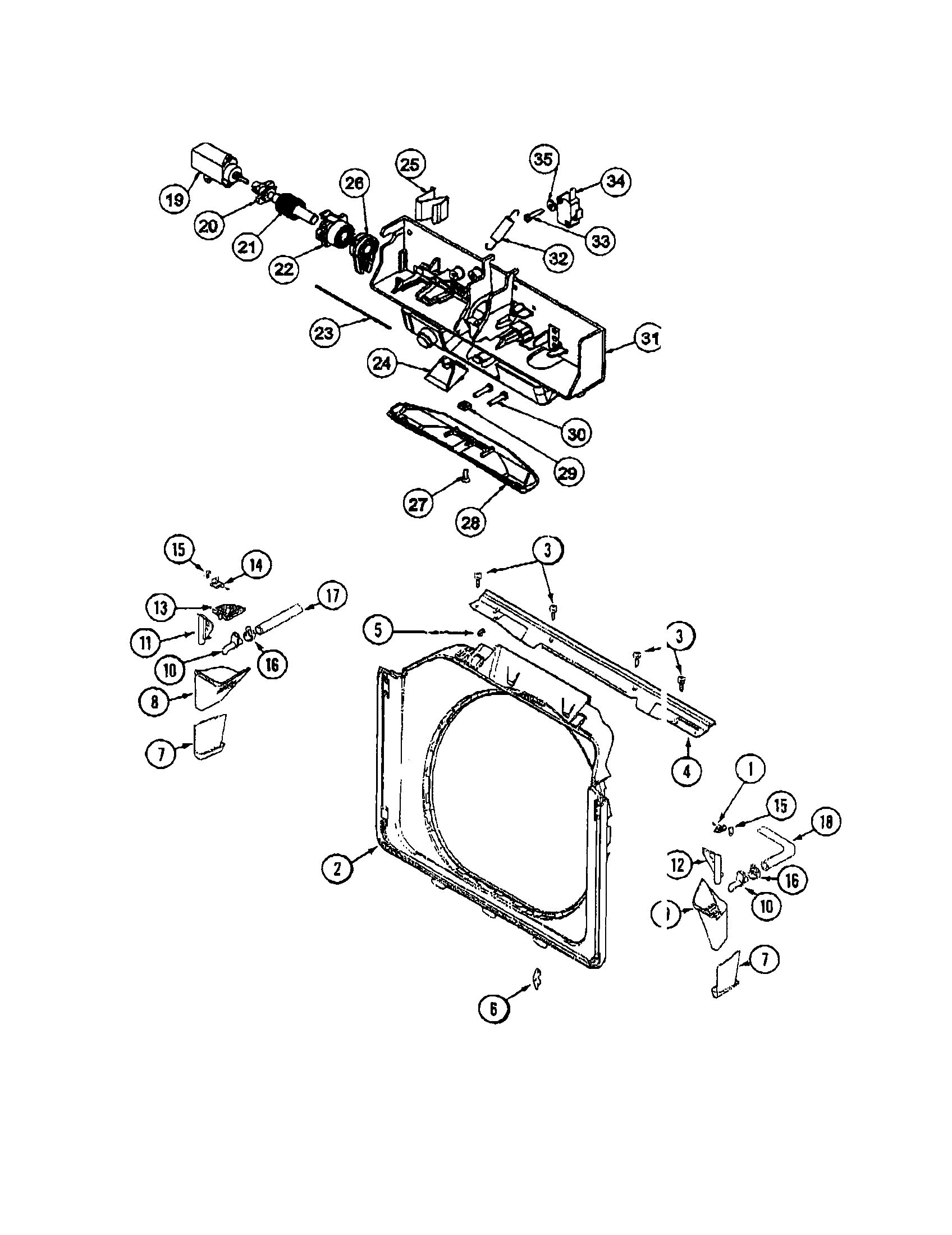

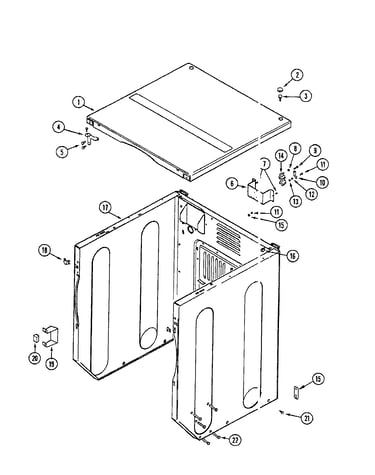

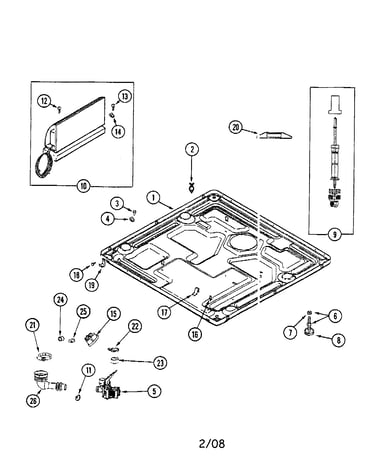

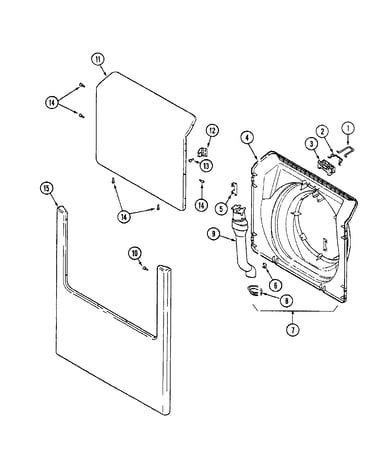

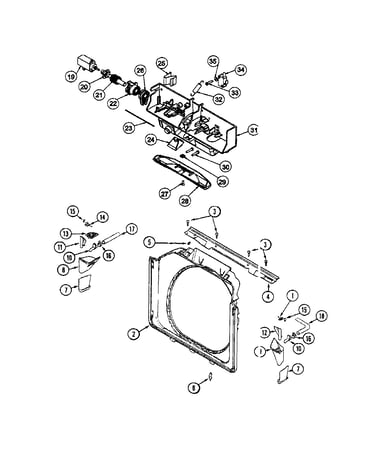

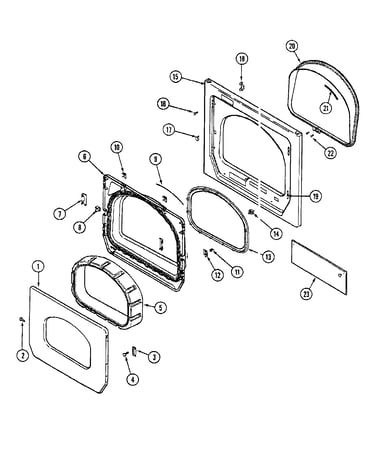

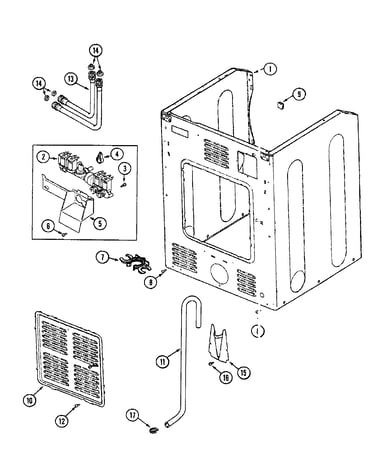

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 347 parts  |
Second Coil 306105
#8

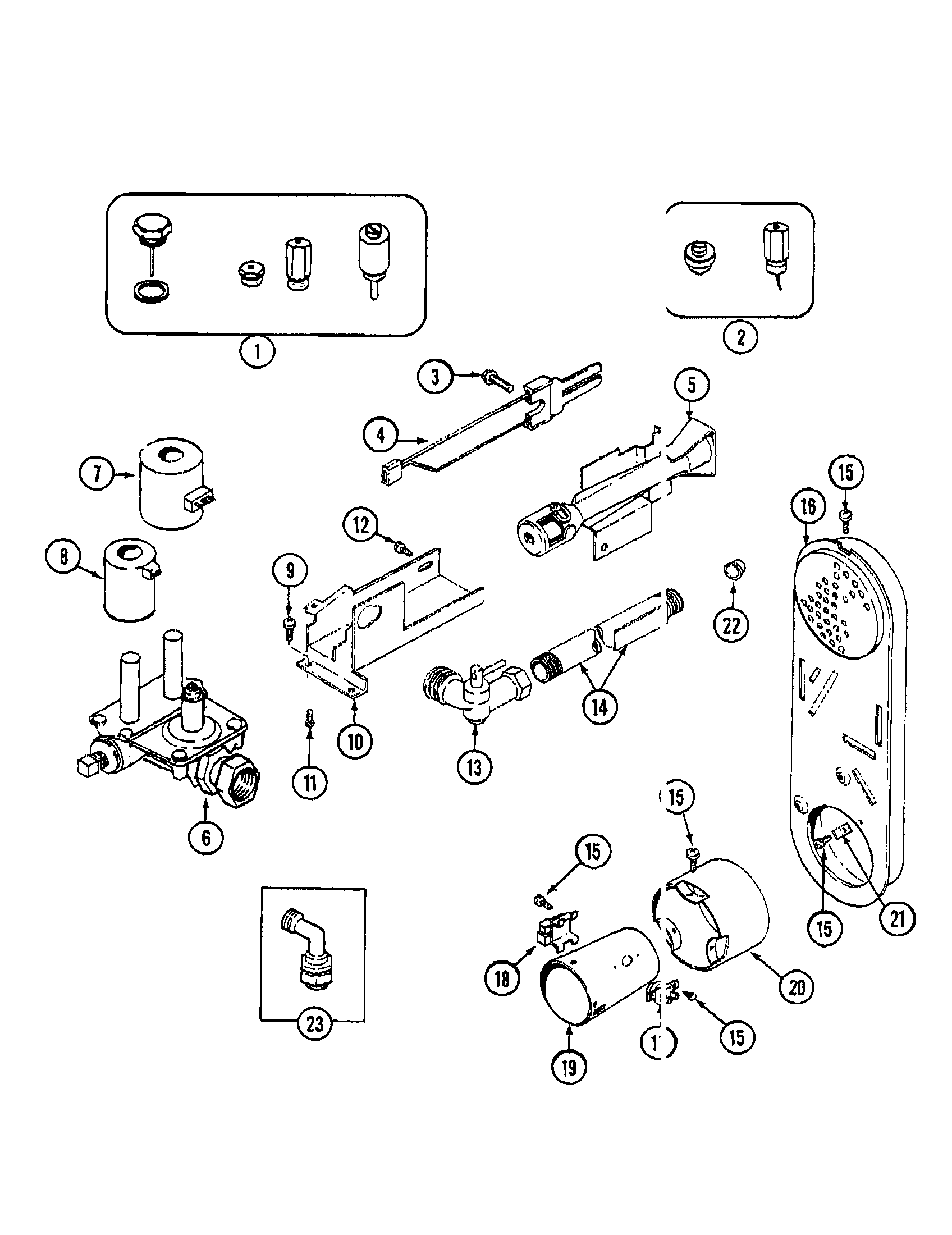

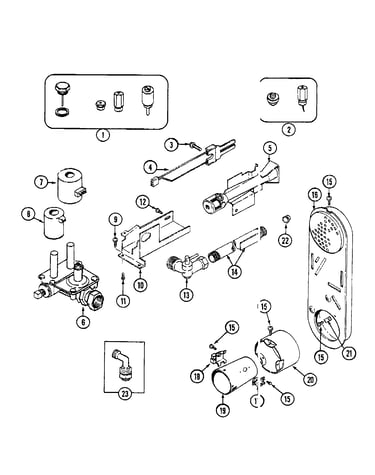

Gas valve (dryer) diagram

Second coil

Part #306105

Replaced by #279834

?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Holding Coil 306106
#7

Gas valve (dryer) diagram

Holding coil

Part #306106

Replaced by #279834

?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Bearing & Ro Y303373
#21

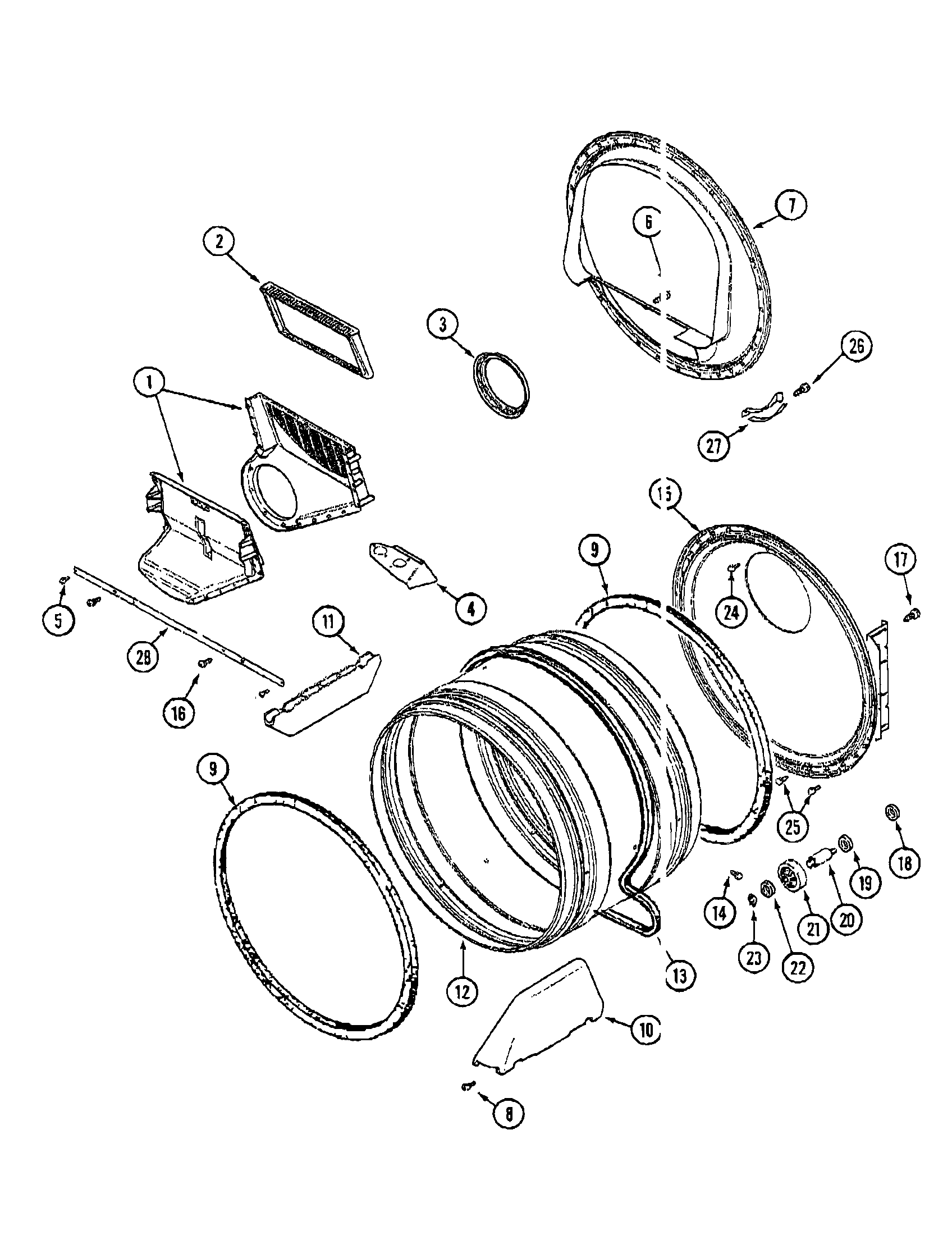

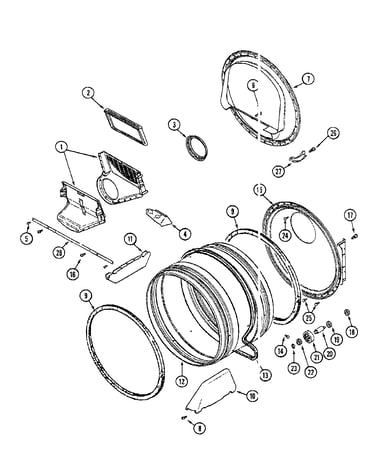

Tumbler (dryer) diagram

Bearing & ro

Part #Y303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces Y303373. Substitute parts can look different from the original.
BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Dryer Drum Belt 33002535
#13

Tumbler (dryer) diagram

Dryer drum belt

Part #33002535

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33002535. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Radiant Sensor Y303377
#18

Gas valve (dryer) diagram

Radiant sensor

Part #Y303377

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley 33001783
#21

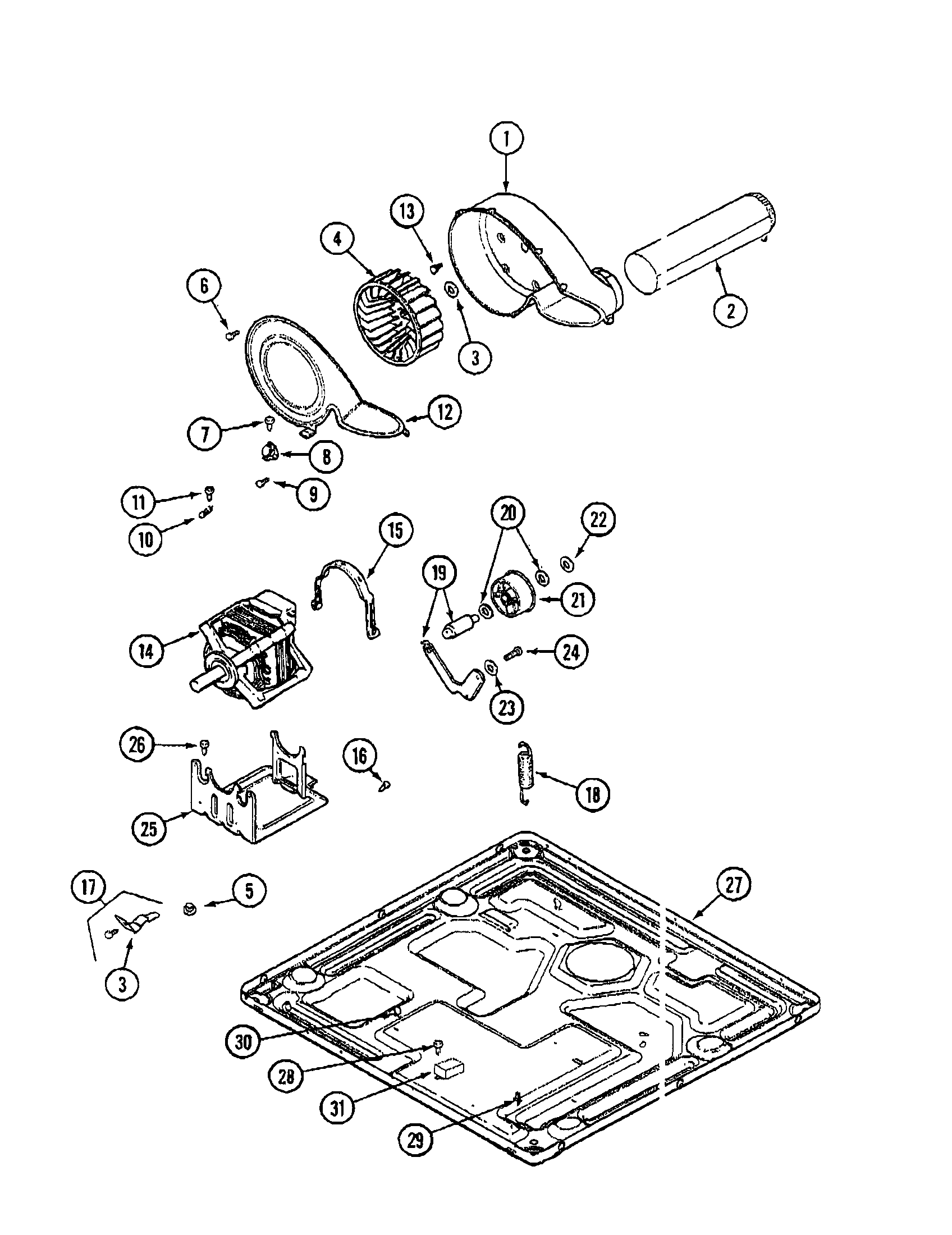

Motor drive (dryer) diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Hose Clamp 22003073
#23

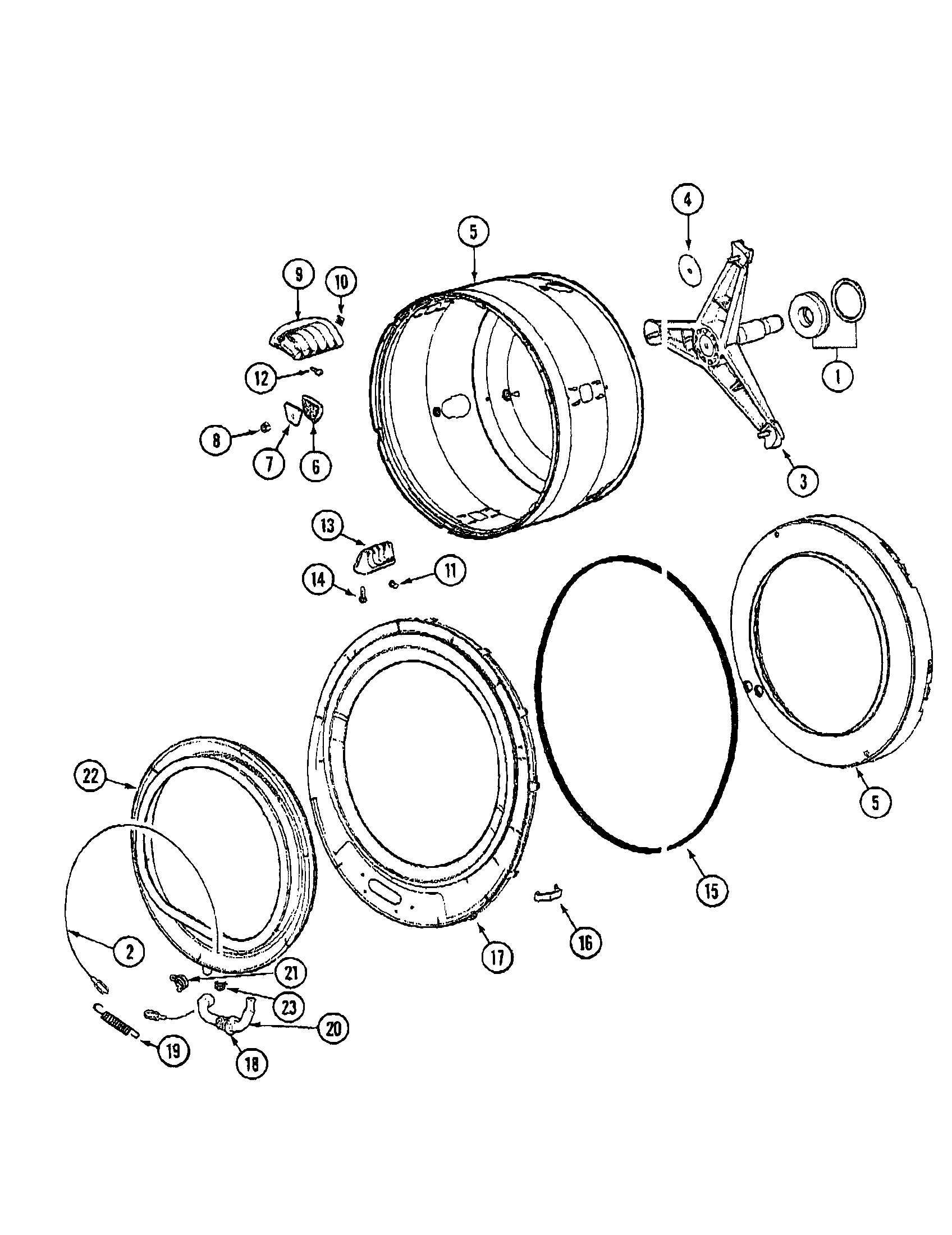

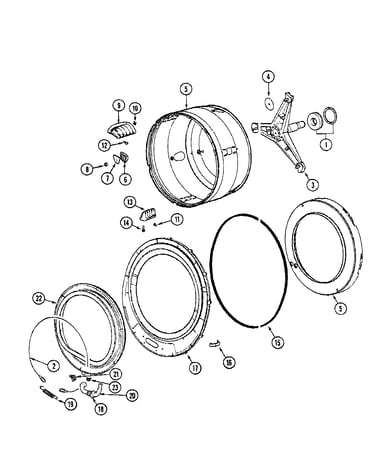

Spinner/outer tube cover (washer) diagram

Hose clamp

Part #22003073

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Drain Hose Clamp 22003072
#21

Spinner/outer tube cover (washer) diagram

Dishwasher drain hose clamp

Part #22003072

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003072. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cycling Thermostat 303392
#8A

Motor drive (dryer) diagram

Cycling thermostat

Part #303392

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 303392. Substitute parts can look different from the original.
BEST SELLER
$55.47 |
10% OFF Phone Price : $61.47
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#27

Tumbler (dryer) diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
