Model # DW1800LW1 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire DW1800LW1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

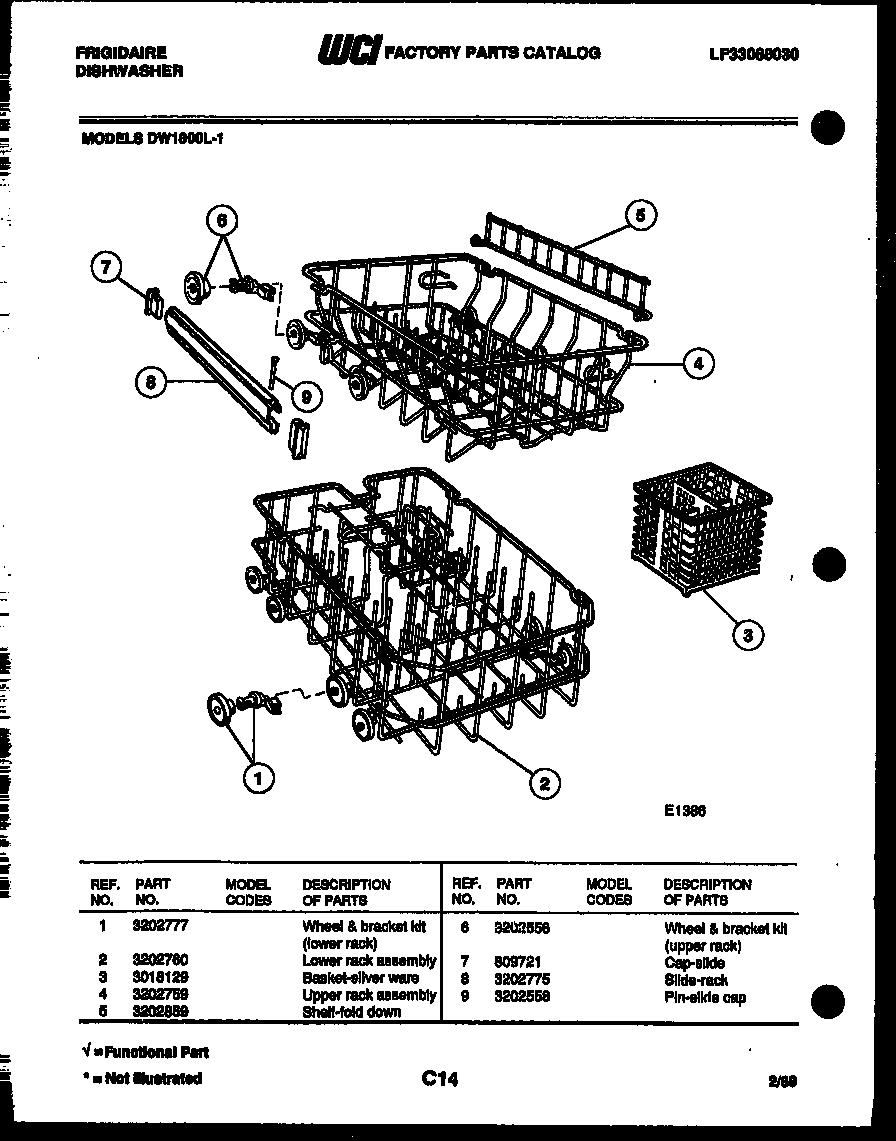

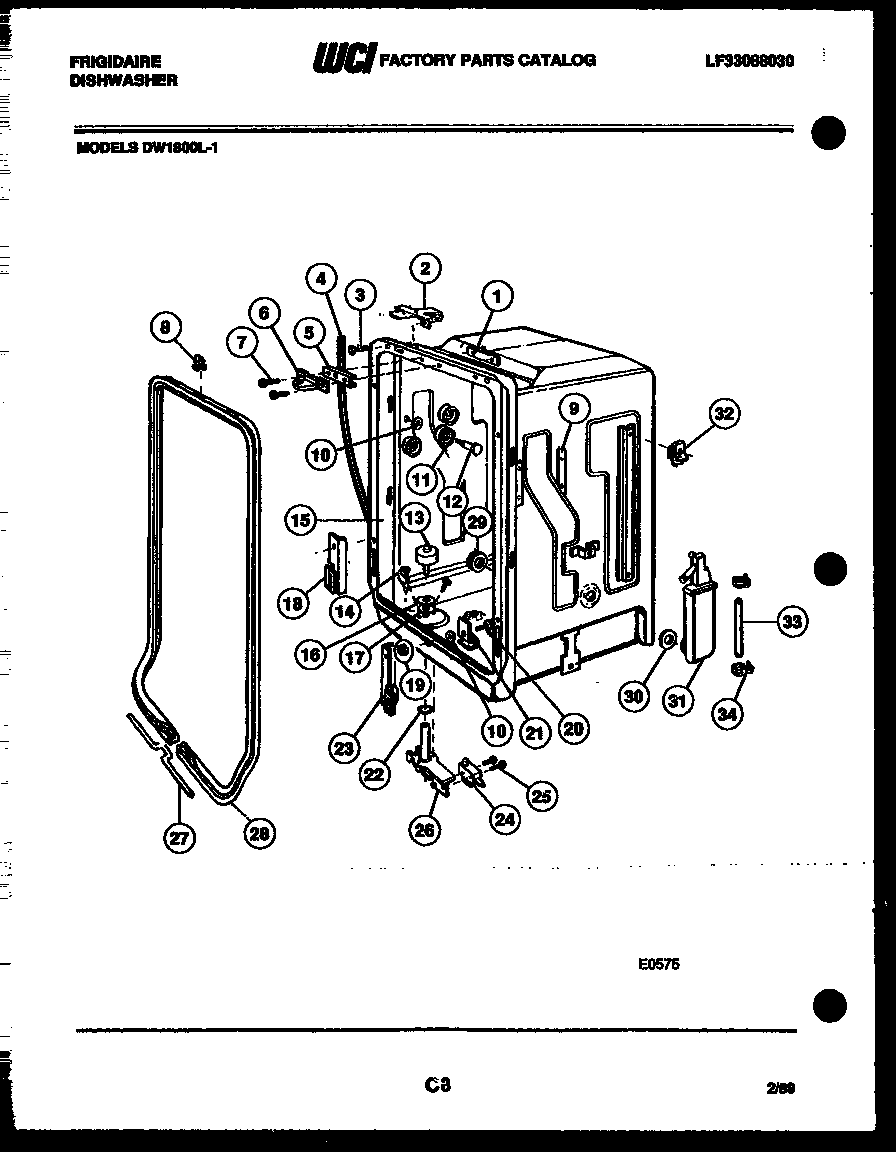

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Nut 3018118
#24

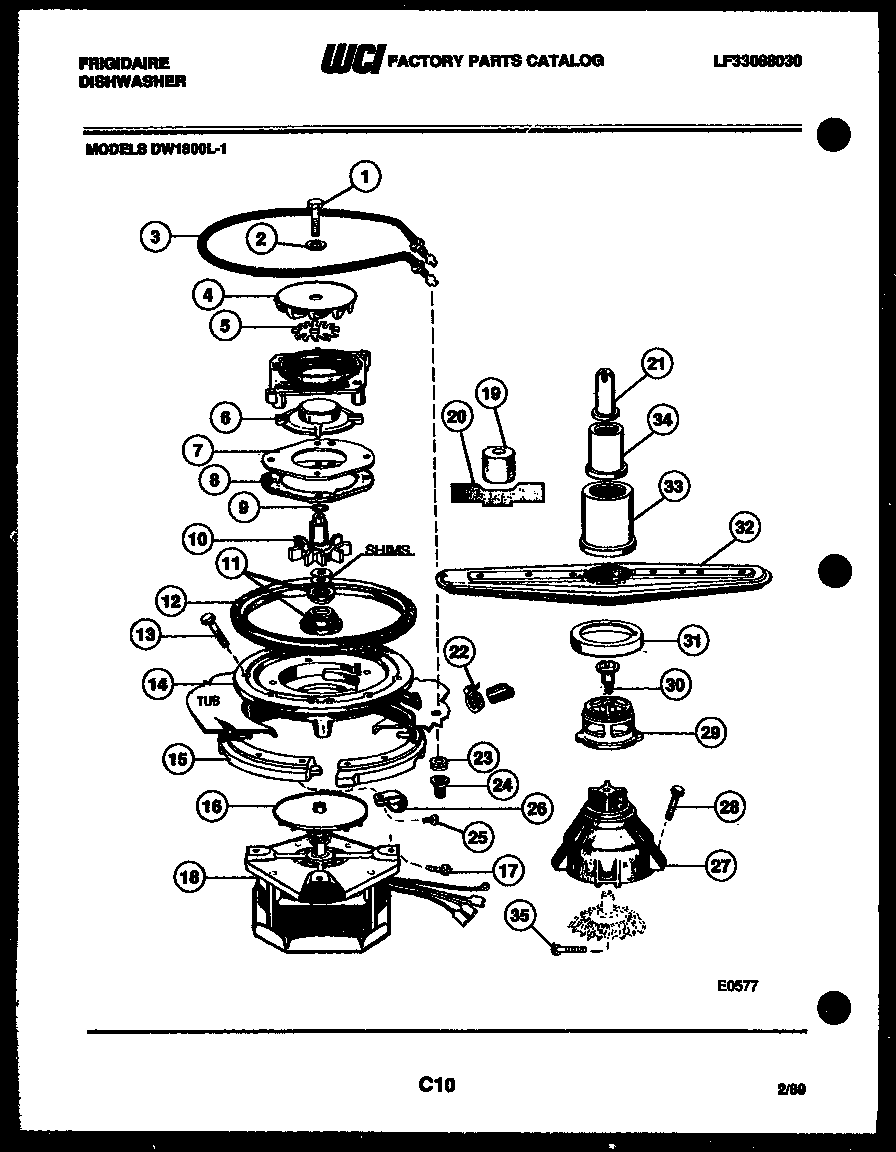

Motor pump parts diagram

Nut

Part #3018118

Replaced by #154106202

?
Manufacturer substitution
This part replaces 3018118. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Nut 3018052
#37

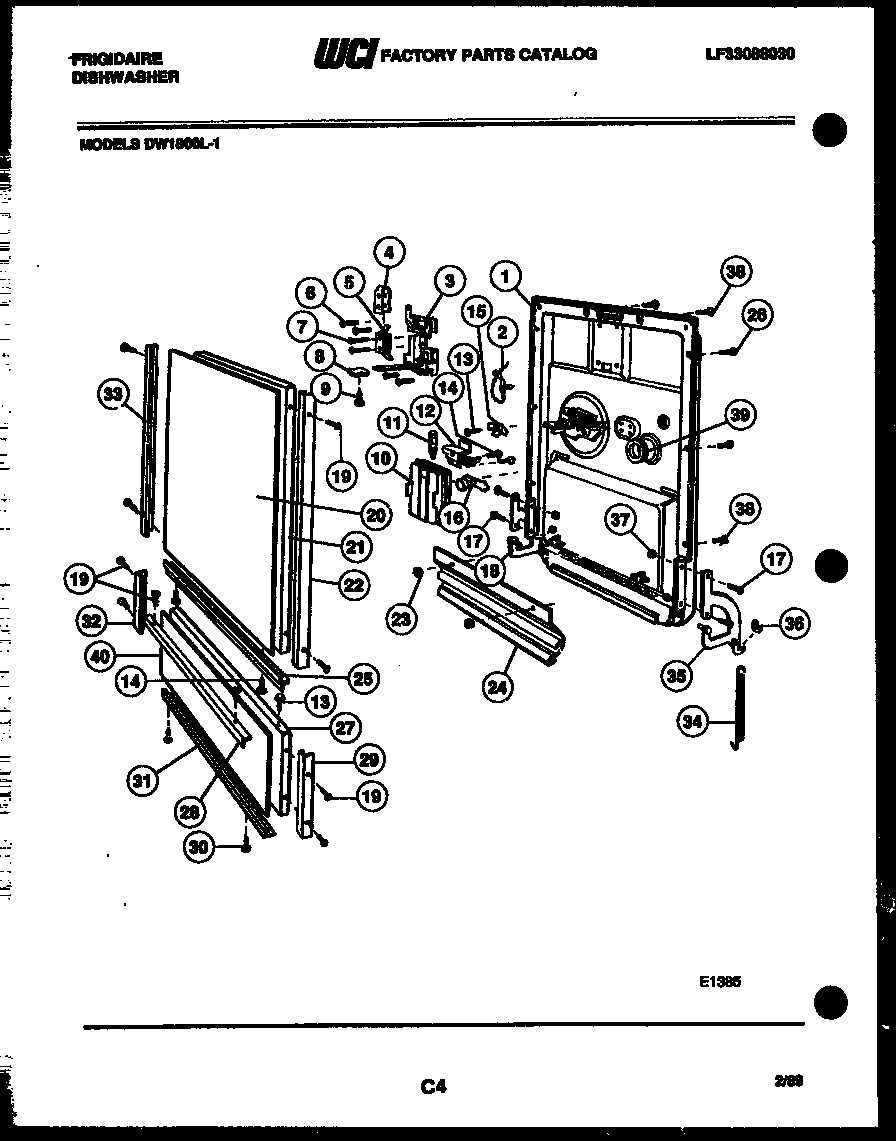

Door parts diagram

Nut

Part #3018052

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 3018052. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Nut 3018143
#14

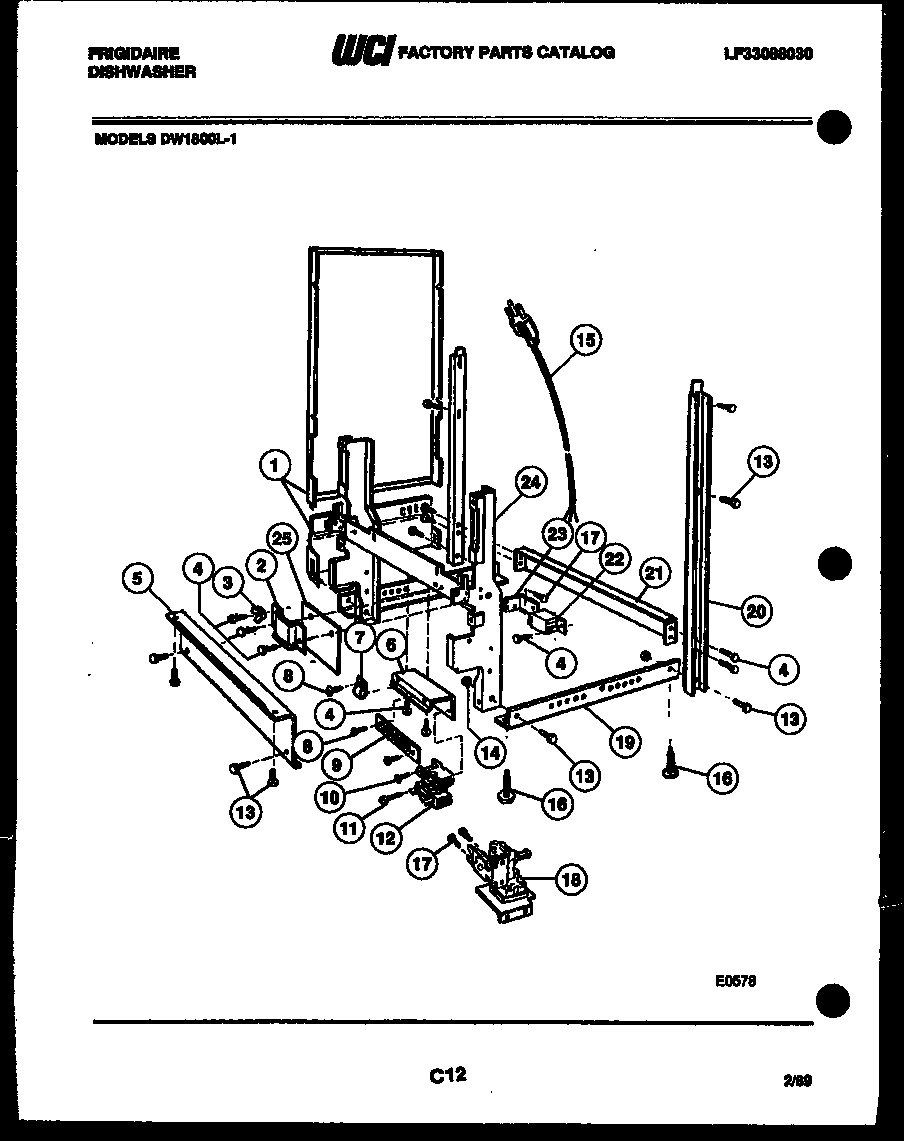

Power dry and motor parts diagram

Nut

Part #3018143

This item is not returnable
$2.49
In Stock
Screw 3018062
#19

Door parts diagram

Screw

Part #3018062

This item is not returnable
$2.16
In Stock
Seal 3018096

#NI

All parts diagram

Seal

Part #3018096

Replaced by #5304469950

?
Manufacturer substitution
This part replaces 3018096. Substitute parts can look different from the original.
$86.64 |
6% OFF Phone Price : $92.64
In Stock
Clamp 3018031
Clamp

Part #3018031

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 3018031. Substitute parts can look different from the original.
$11.20
In Stock
Holder 3202536
#2

Door parts diagram

Holder

Part #3202536

Replaced by #5300809075

?
Manufacturer substitution
This part replaces 3202536. Substitute parts can look different from the original.
This item is not returnable
$3.00
In Stock
Screw 3018046
#30

Door parts diagram

Screw

Part #3018046

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 3018046. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Clamp 3018030
#17

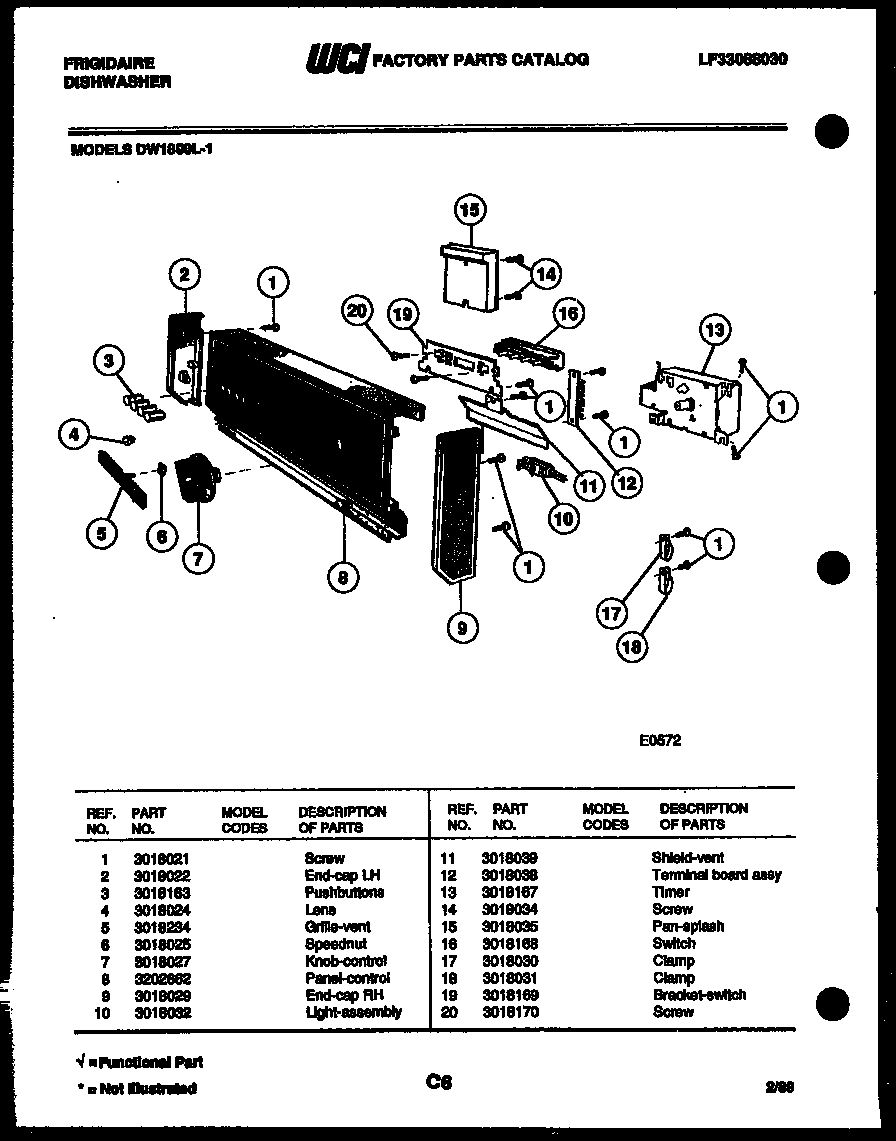

Console and control parts diagram

Clamp

Part #3018030

Replaced by #5300805584

?
Manufacturer substitution
This part replaces 3018030. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Spring 3014677
#4

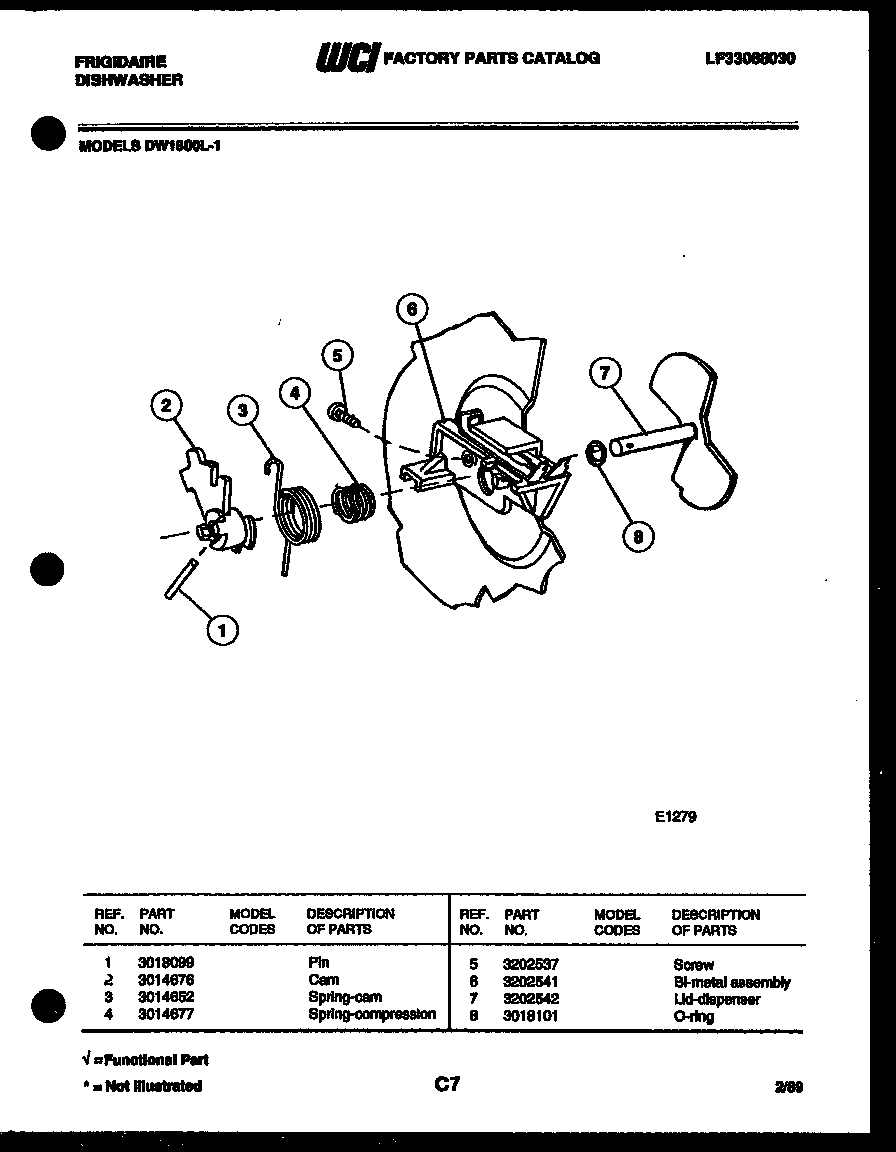

Cam diagram

Spring

Part #3014677

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 3014677. Substitute parts can look different from the original.
$29.93
In Stock
