Model # DP-550CJ Official Brother word processor parts reference list

Here are the diagrams and repair parts for Official Brother DP-550CJ word processor parts reference list, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

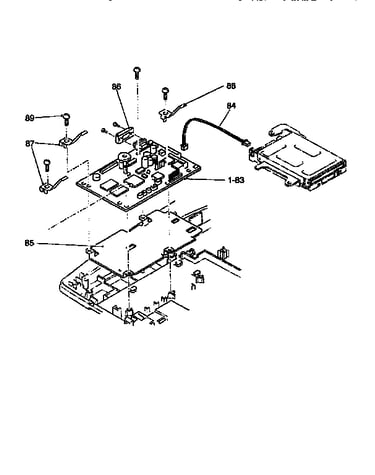

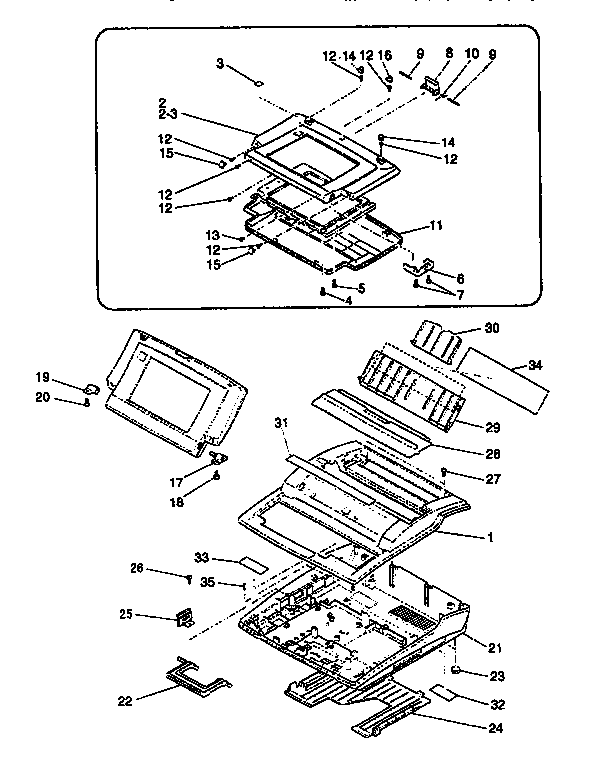

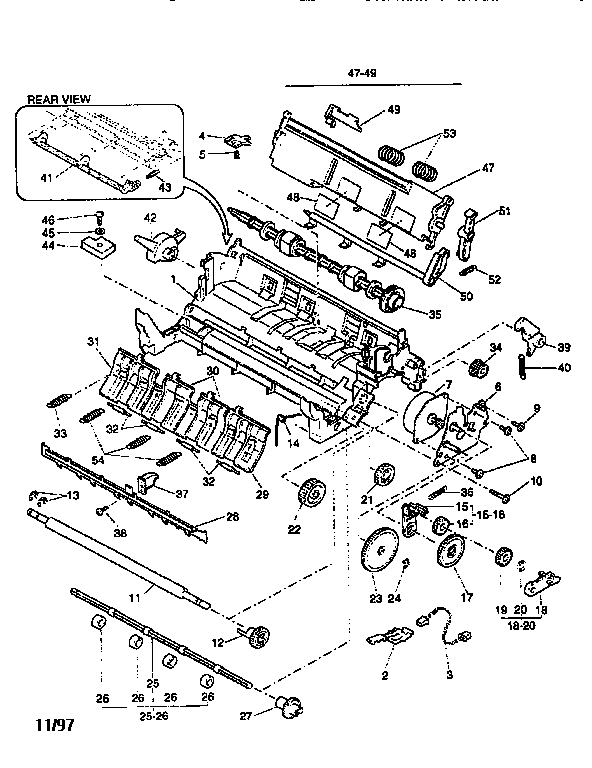

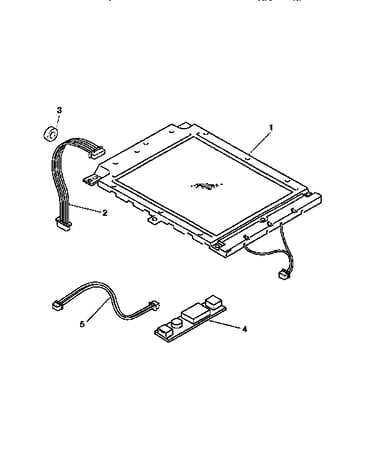

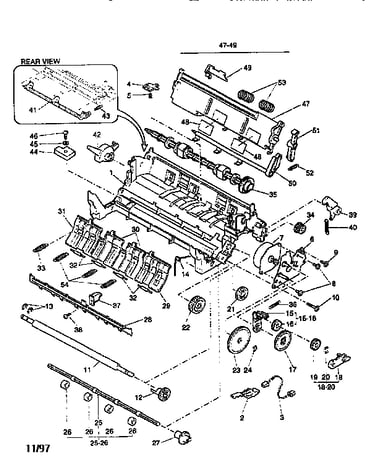

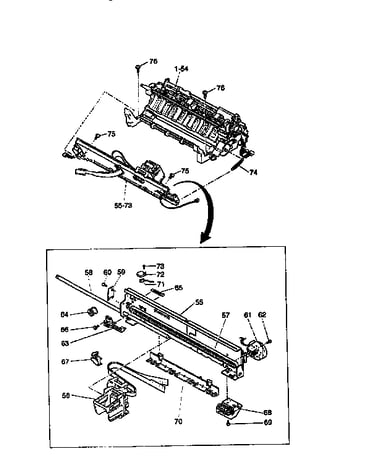

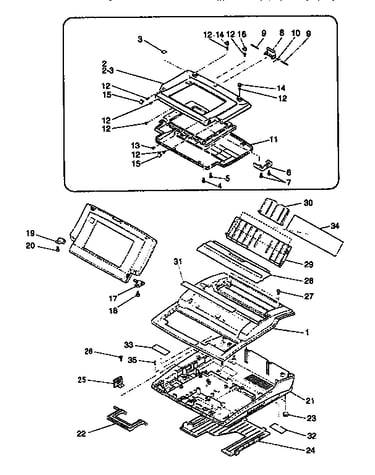

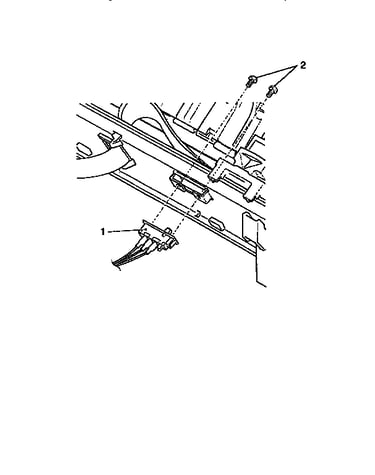

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Ic 74hcu04 US3421000
#69

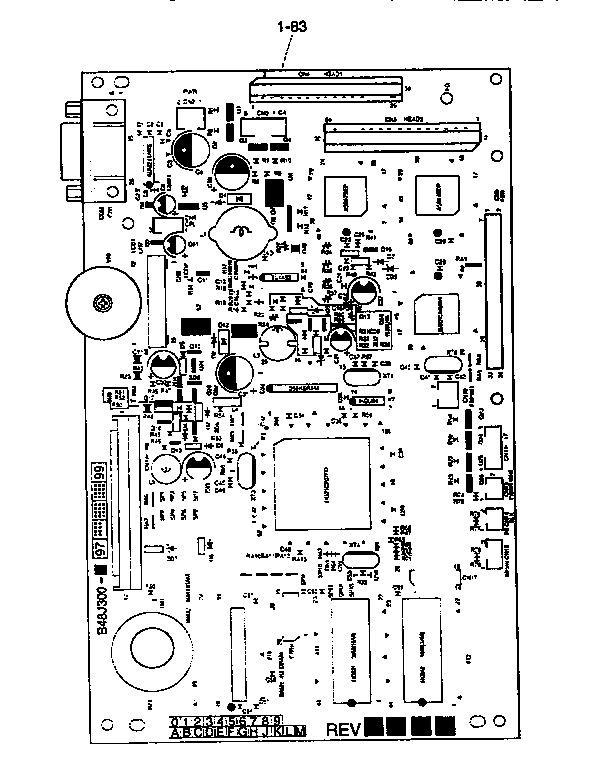

Main pcb (functional code 53t-402-102) diagram

Ic 74hcu04

Part #US3421000

The manufacturer no longer makes this part, and there's no substitute part

Res Fc 12k 094123225
#39

Main pcb (functional code 53t-402-102) diagram

Res fc 12k

Part #094123225

The manufacturer no longer makes this part, and there's no substitute part

Resistor 094564025
#52

Main pcb (functional code 53t-402-102) diagram

Resistor

Part #094564025

The manufacturer no longer makes this part, and there's no substitute part

2200uf 25v Y42223092
#2

Power supply pcb (functional code 53t-402-104) diagram

2200uf 25v

Part #Y42223092

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Y43313097
#67

Main pcb (functional code 53t-402-102) diagram

Capacitor

Part #Y43313097

The manufacturer no longer makes this part, and there's no substitute part

Resistor 094102025
#44

Main pcb (functional code 53t-402-102) diagram

Resistor

Part #094102025

The manufacturer no longer makes this part, and there's no substitute part

El 47mfd US3422085
#68

Main pcb (functional code 53t-402-102) diagram

El 47mfd

Part #US3422085

The manufacturer no longer makes this part, and there's no substitute part

Res F 2.2k 094222225
#38

Main pcb (functional code 53t-402-102) diagram

Res f 2.2k

Part #094222225

The manufacturer no longer makes this part, and there's no substitute part

1000uf 10v Y41021091
#65

Main pcb (functional code 53t-402-102) diagram

1000uf 10v

Part #Y41021091

The manufacturer no longer makes this part, and there's no substitute part

Transistor US3099085
#10

Main pcb (functional code 53t-402-102) diagram

Transistor

Part #US3099085

The manufacturer no longer makes this part, and there's no substitute part
