Samsung
Washer

Model # WV55M9600AV/A5-02 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WV55M9600AV-A5-02 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |
Washer Drain Pump Motor DC31-00178D
Washer drain pump motor

Part #DC31-00178D

Replaced by #DC31-00187A

?
Manufacturer substitution
This part replaces DC31-00178D. Substitute parts can look different from the original.
BEST SELLER
$133.56 |
8% OFF Phone Price : $145.56
In Stock
Samsung Washer Inverter Control Board DC92-01531C
#21-6

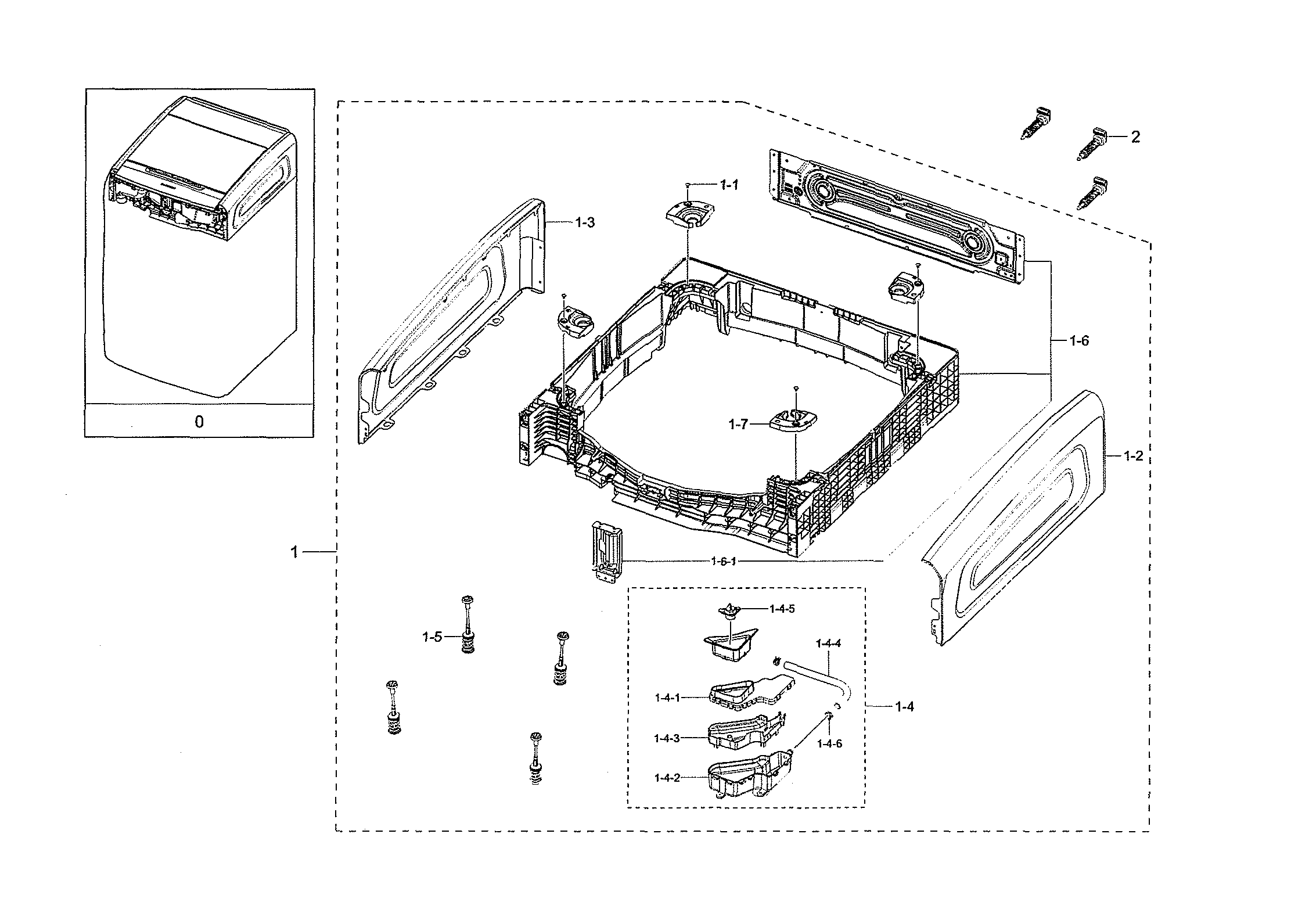

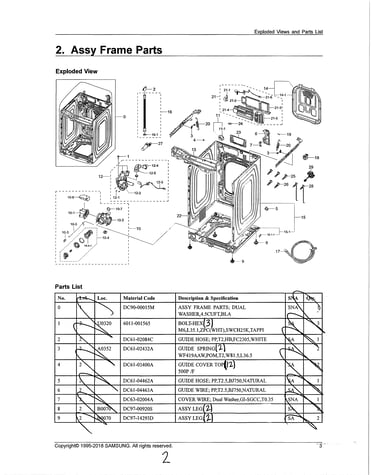

Frame diagram

Samsung washer inverter control board

Part #DC92-01531C

BEST SELLER
$209.37 |
5% OFF Phone Price : $221.37
In Stock
Asy Stator DC97-19994C
#3-4-1

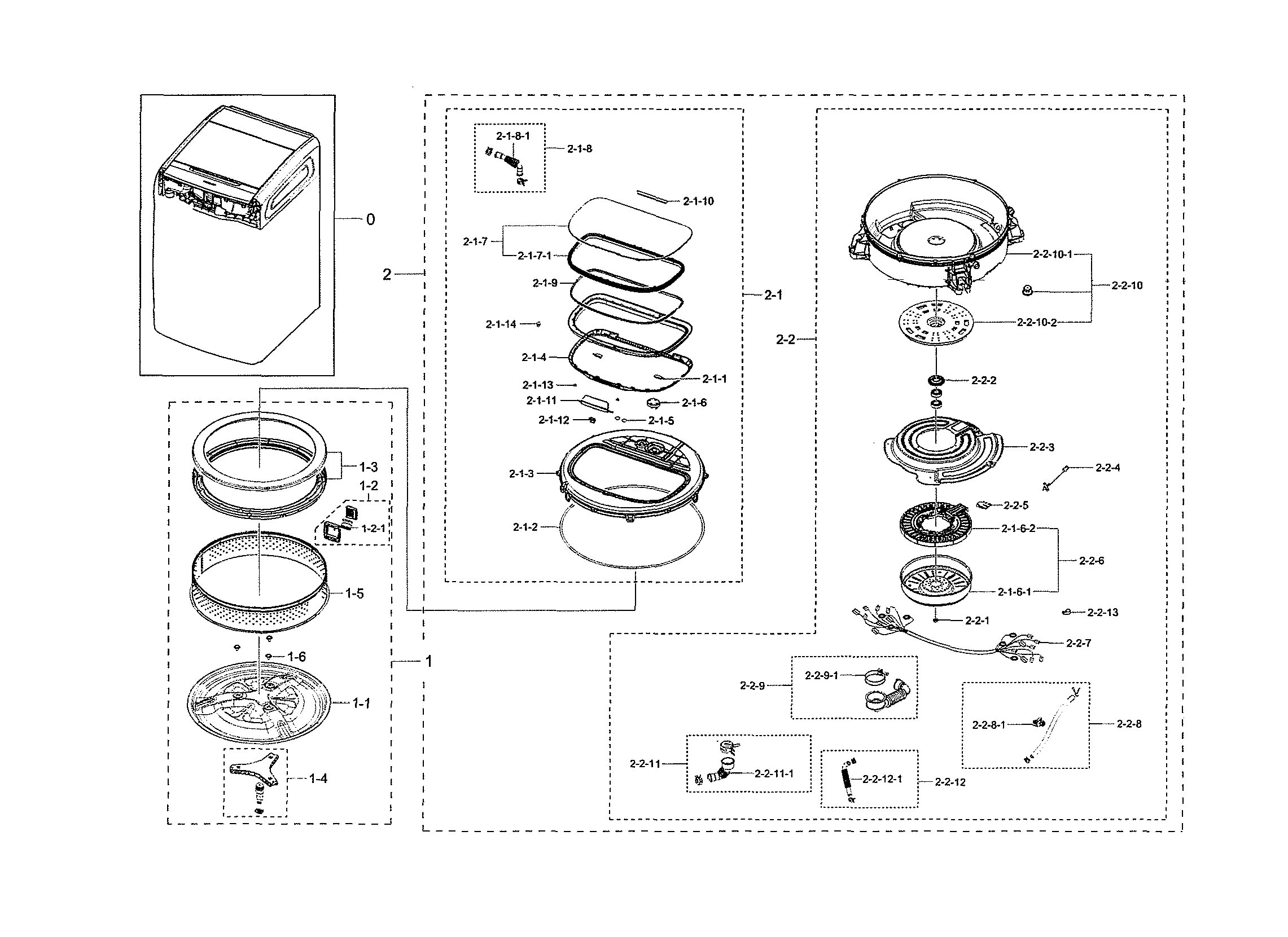

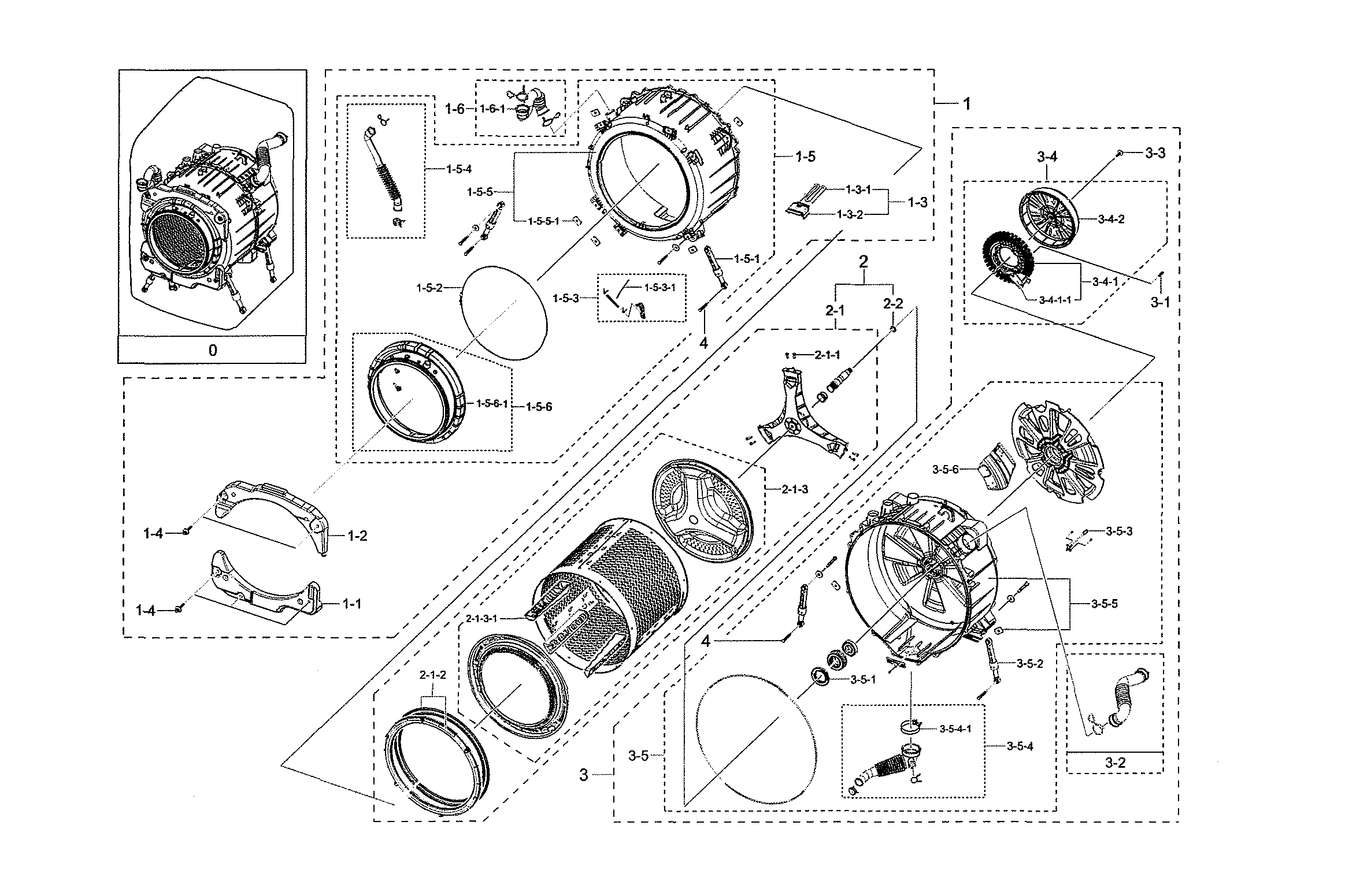

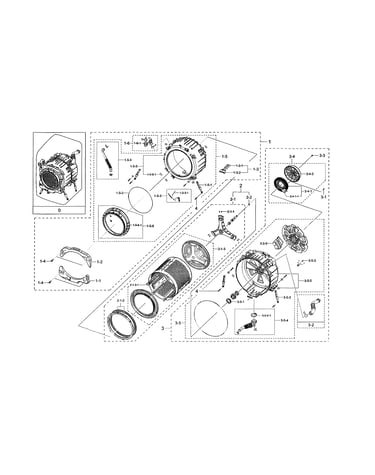

Tub & drum diagram

Asy stator

Part #DC97-19994C

Replaced by #DC31-00111A

?
Manufacturer substitution
This part replaces DC97-19994C. Substitute parts can look different from the original.
BEST SELLER
$207.53 |
5% OFF Phone Price : $219.53
In Stock
Washer Motor Rotor Position Sensor DC31-00098A
#3-4-1-1

Tub & drum diagram

Washer motor rotor position sensor

Part #DC31-00098A

BEST SELLER
$57.33 |
9% OFF Phone Price : $63.33
In Stock
Washer Lid Lock Assembly (replaces Dc34-00025a) DC34-00025E
#1-10-2

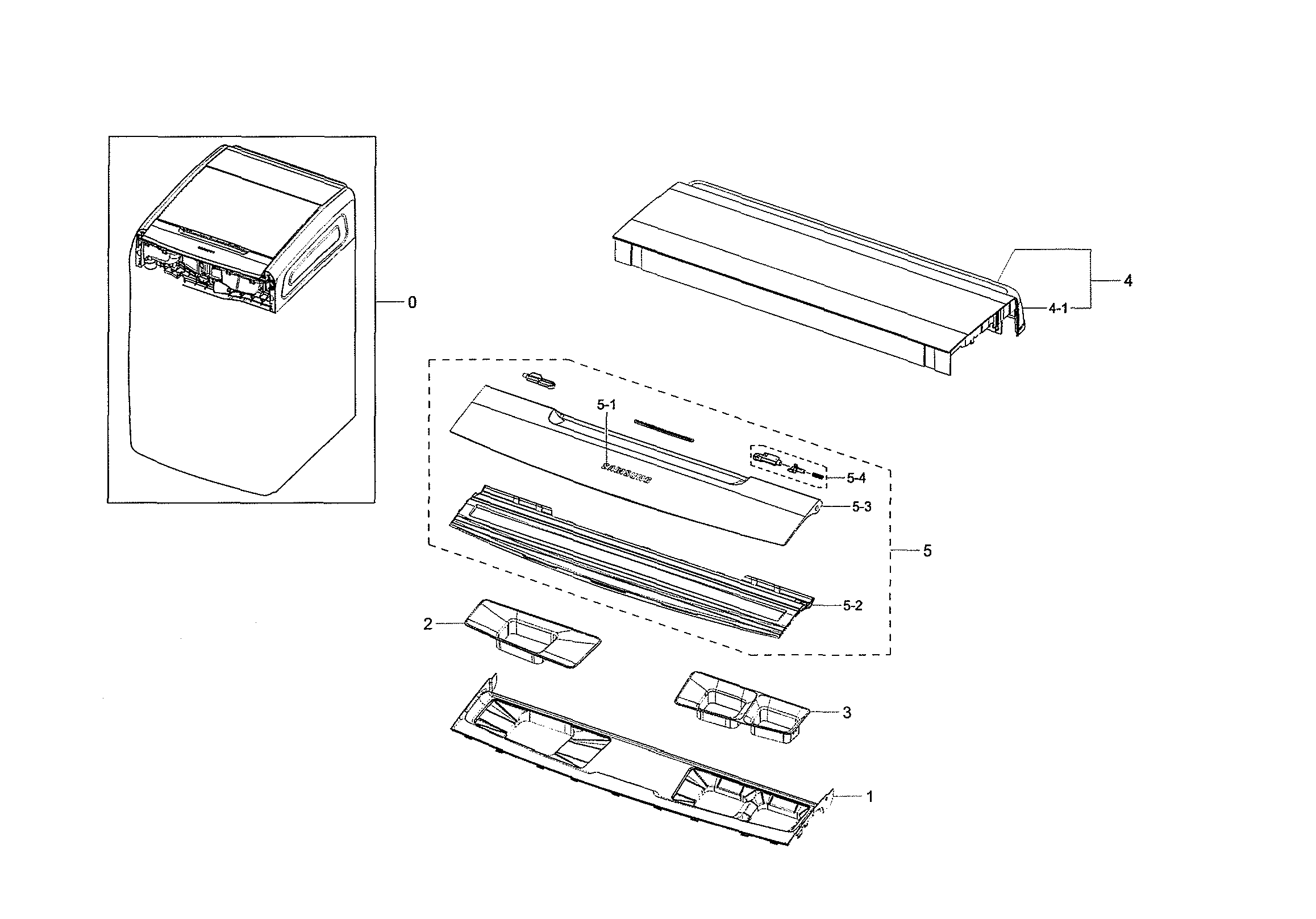

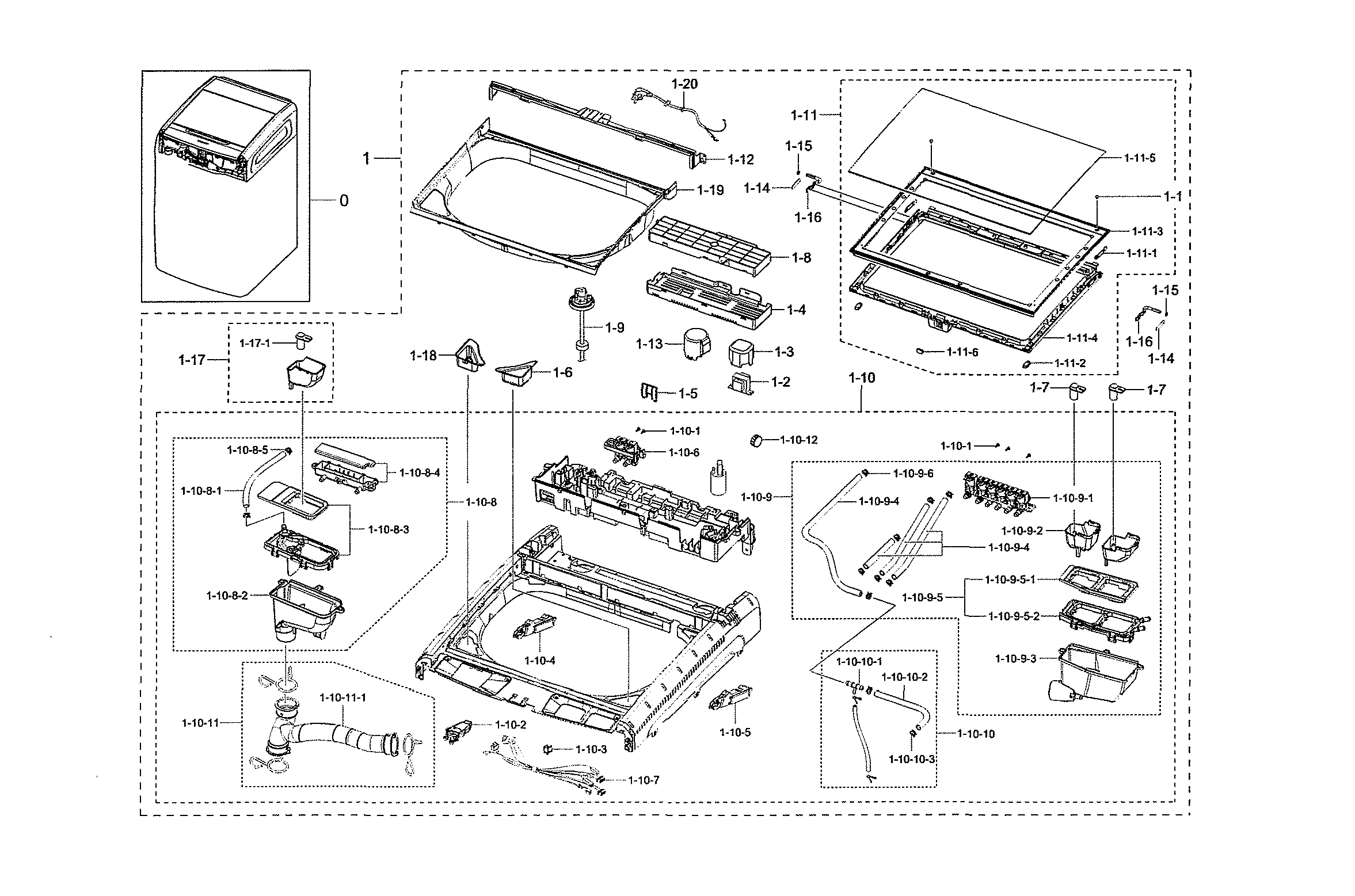

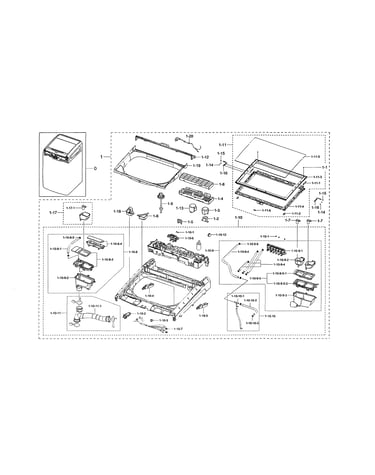

Dual module/top cover diagram

Washer lid lock assembly (replaces dc34-00025a)

Part #DC34-00025E

BEST SELLER
$127.32 |
9% OFF Phone Price : $139.32
In Stock
Washer Suspension Spring DC61-01257N
#20

Frame diagram

Washer suspension spring

Part #DC61-01257N

BEST SELLER
$32.65 |
16% OFF Phone Price : $38.65
In Stock
Washer Door Boot Spring Clamp DC97-04981F
#1-5-2

Tub & drum diagram

Washer door boot spring clamp

Part #DC97-04981F

BEST SELLER
$18.75 |
10% OFF Phone Price : $20.75
In Stock
Washer Water-level Pressure Switch DC96-01703G
Washer water-level pressure switch

Part #DC96-01703G

BEST SELLER
$53.72 |
10% OFF Phone Price : $59.72
In Stock
Washer Nut DC61-00201A
#1-5-5-1

Tub & drum diagram

Washer nut

Part #DC61-00201A

BEST SELLER
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Washer Water Inlet Valve DC33-01002A
#1-10-9-1

Dual module/top cover diagram

Washer water inlet valve

Part #DC33-01002A

BEST SELLER
$149.23 |
7% OFF Phone Price : $161.23
In Stock
