Electric Cooktop

Model # PHP9036DJ4BB Official GE electric counter unit

Here are the diagrams and repair parts for Official GE PHP9036DJ4BB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Element WB30X24600
#13

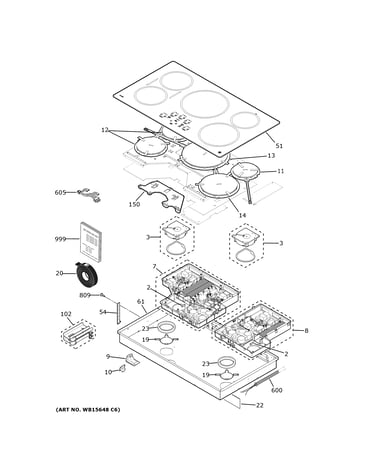

Control panel & cooktop diagram

Element

Part #WB30X24600

Replaced by #WB30X38227

?
Manufacturer substitution
This part replaces WB30X24600. Substitute parts can look different from the original.
$111.10
In Stock
Element WB30X21490
#12

Control panel & cooktop diagram

Element

Part #WB30X21490

Replaced by #WB30X38226

?
Manufacturer substitution
This part replaces WB30X21490. Substitute parts can look different from the original.
$100.60
In Stock
Induction Assembly WB27X27844
#8

Control panel & cooktop diagram

Induction assembly

Part #WB27X27844

Replaced by #WB27X33086

?
Manufacturer substitution
This part replaces WB27X27844. Substitute parts can look different from the original.
$372.30 |
$12.00 OFF Phone Price : $384.30
In Stock
Cooktop Main Top And User Interface Control WB62X26851
#51

Control panel & cooktop diagram

Cooktop main top and user interface control

Part #WB62X26851

Replaced by #WB62X38588

?
Manufacturer substitution
This part replaces WB62X26851. Substitute parts can look different from the original.
$501.67
In Stock
Element WB30X24233
#11

Control panel & cooktop diagram

Element

Part #WB30X24233

Replaced by #WB30X38225

?
Manufacturer substitution
This part replaces WB30X24233. Substitute parts can look different from the original.
$72.11
In Stock
Cooktop Gas Blower WB26X24235
#3

Control panel & cooktop diagram

Cooktop gas blower

Part #WB26X24235

$100.15 |
11% OFF Phone Price : $112.15
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Fan WB02X24262
#19

Control panel & cooktop diagram

Fan

Part #WB02X24262

$8.71
In Stock
Baffle WB02X26802
#22

Control panel & cooktop diagram

Baffle

Part #WB02X26802

$58.85 |
9% OFF Phone Price : $64.85
In Stock
Wire Harness WB18X24501
#605

Control panel & cooktop diagram

Wire harness

Part #WB18X24501

$98.06 |
11% OFF Phone Price : $110.06
In Stock
