Model # 11076490220 Official Kenmore electric dryer

Here are the diagrams and repair parts for Official Kenmore 11076490220 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Drum Belt 349533
#30

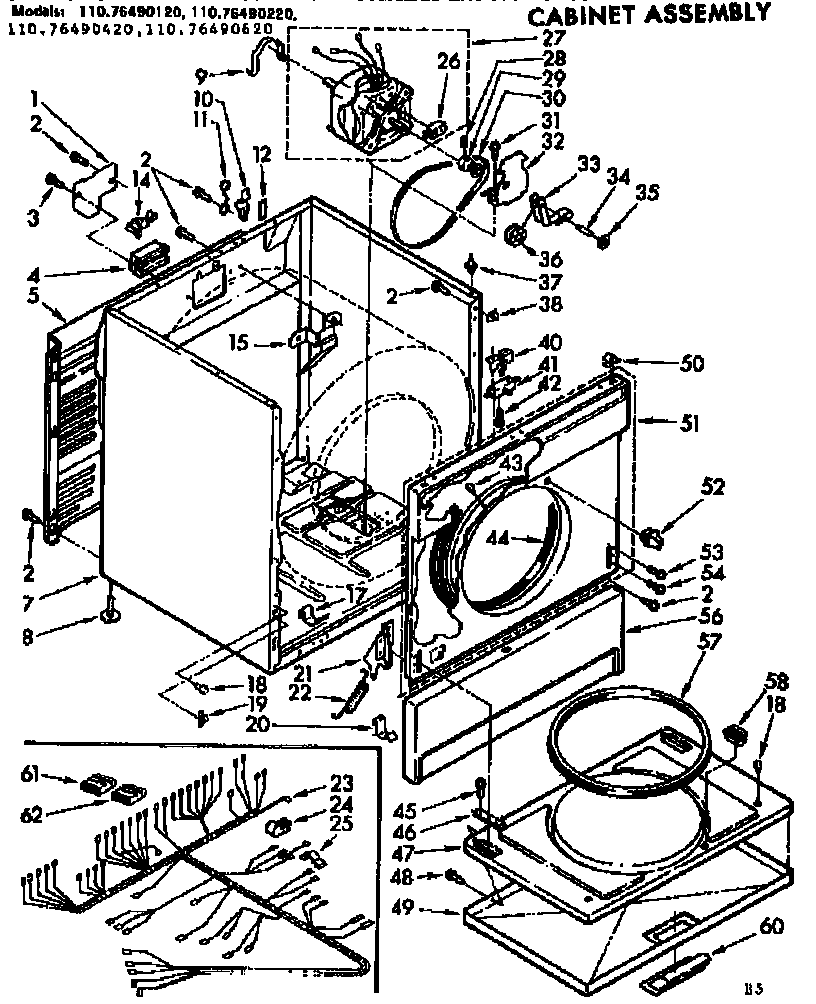

Cabinet assembly diagram

Drum belt

Part #349533

Replaced by #341241

?
Manufacturer substitution
This part replaces 349533. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Shaft Pulley 337407
#34

Cabinet assembly diagram

Shaft pulley

Part #337407

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Pulley 347226
#36

Cabinet assembly diagram

Pulley

Part #347226

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 347226. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Bracket 337510
#33

Cabinet assembly diagram

Bracket

Part #337510

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Switch 337351
#26A

Cabinet assembly diagram

Switch

Part #337351

Replaced by #279827

?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Motor 343234
#27A

Cabinet assembly diagram

Motor

Part #343234

Replaced by #279827

?
Manufacturer substitution
This part replaces 343234. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Blower Wheel 343939
#37

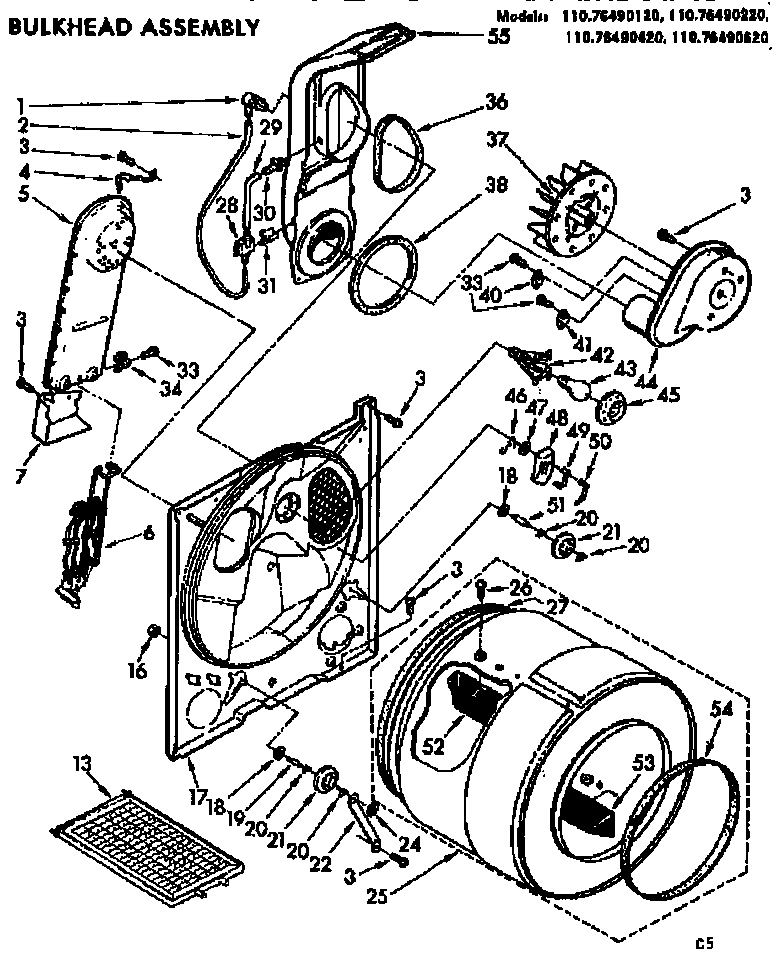

Bulkhead assembly diagram

Dryer blower wheel

Part #343939

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 343939. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Screen (white) 348851
#54A

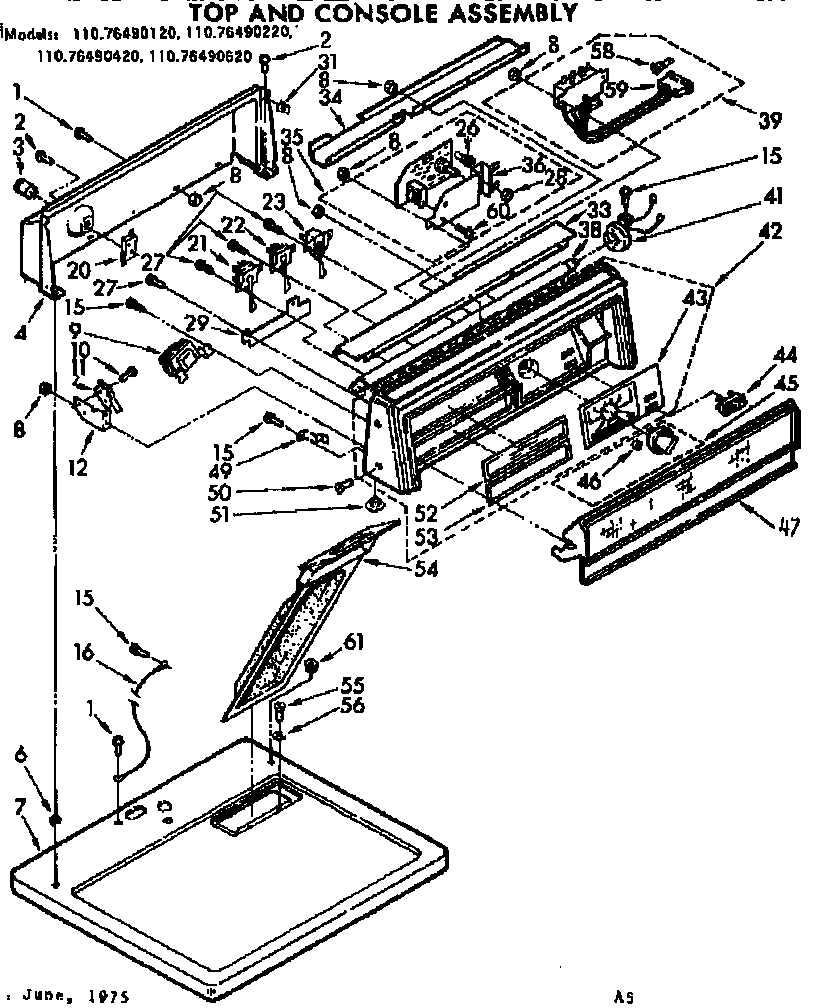

Top and console assembly diagram

Screen (white)

Part #348851

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 348851. Substitute parts can look different from the original.
BEST SELLER
$33.96 |
15% OFF Phone Price : $39.96
In Stock
Bulb 233056
#43

Bulkhead assembly diagram

Bulb

Part #233056

Replaced by #40A15

?
Manufacturer substitution
This part replaces 233056. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Heater Element 685942
#6

Bulkhead assembly diagram

Heater element

Part #685942

Replaced by #WP4391960

?
Manufacturer substitution
This part replaces 685942. Substitute parts can look different from the original.
BEST SELLER
$41.42 |
13% OFF Phone Price : $47.42
In Stock
