Whirlpool
Range Hood

Model # WVU37UC0FS1 Official Whirlpool hood/ventilation

Here are the diagrams and repair parts for Official Whirlpool WVU37UC0FS1 hood/ventilation, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Filter W11099755
#14A

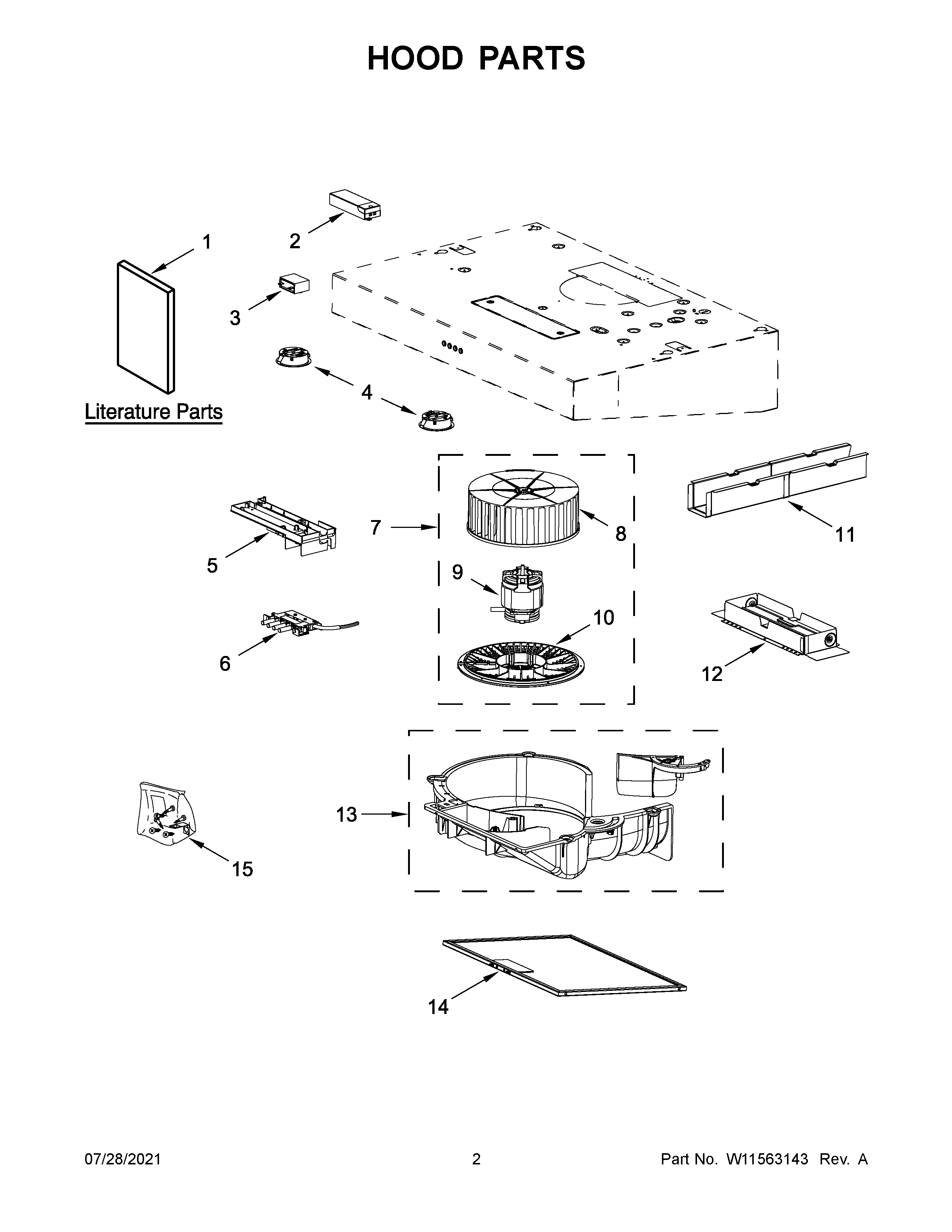

Hood parts diagram

Filter

Part #W11099755

Replaced by #W11100653

?
Manufacturer substitution
This part replaces W11099755. Substitute parts can look different from the original.
$69.32 |
8% OFF Phone Price : $75.32
In Stock
Driver, Led W11281878
#2

Hood parts diagram

Driver, led

Part #W11281878

Replaced by #W11282989

?
Manufacturer substitution
This part replaces W11281878. Substitute parts can look different from the original.
$99.59 |
11% OFF Phone Price : $111.59
In Stock
Casing-asm W11099741
#13

Hood parts diagram

Casing-asm

Part #W11099741

$178.11
In Stock
Box-cntrl W11099745
#5

Hood parts diagram

Box-cntrl

Part #W11099745

$44.40
In Stock
Box-termal W11099746
#11

Hood parts diagram

Box-termal

Part #W11099746

$33.11
In Stock
Capacitor W11099740
#3

Hood parts diagram

Capacitor

Part #W11099740

$40.44
In Stock
Range Hood Blower Motor W11099715
#9

Hood parts diagram

Range hood blower motor

Part #W11099715

$283.18 |
$12.00 OFF Phone Price : $295.18
In Stock
Cover W11099743
#10

Hood parts diagram

Cover

Part #W11099743

$33.11
In Stock
Hardware W11099760
#15

Hood parts diagram

Hardware

Part #W11099760

$27.91
In Stock
Blower Wheel W11099714
#8

Hood parts diagram

Blower wheel

Part #W11099714

$56.79 |
10% OFF Phone Price : $62.79
In Stock
