Model # GSS20DBMDWW Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE GSS20DBMDWW refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

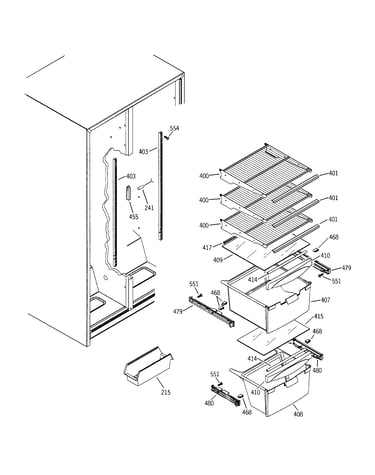

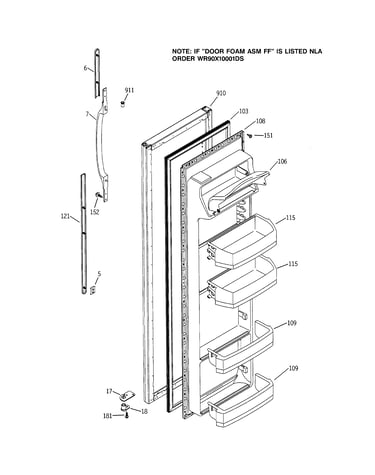

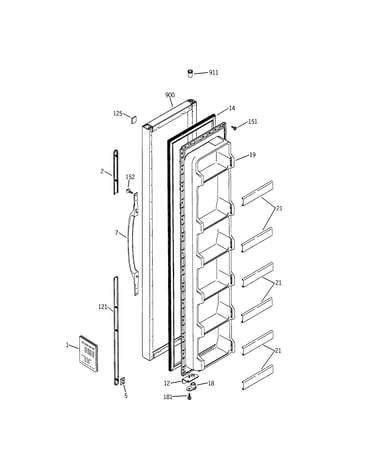

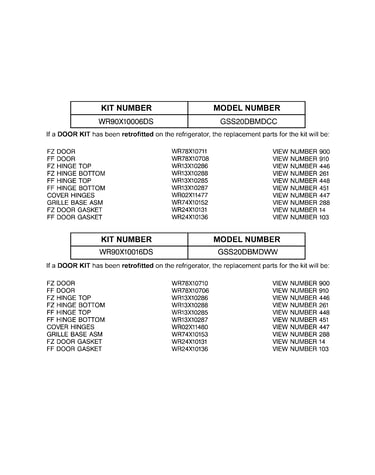

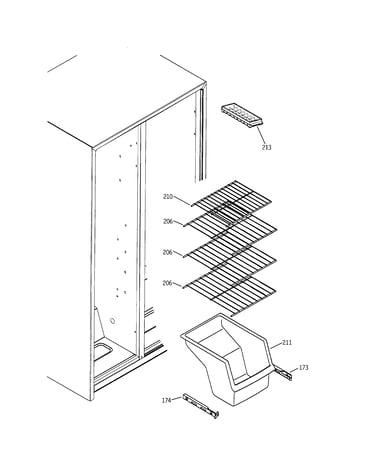

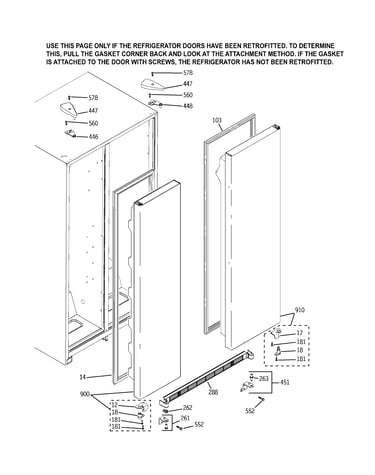

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Refrigerator Temperature Sensor WR50X10027
Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Damper & The WR50X10034
Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Dryer Filter WR86X0096
#740

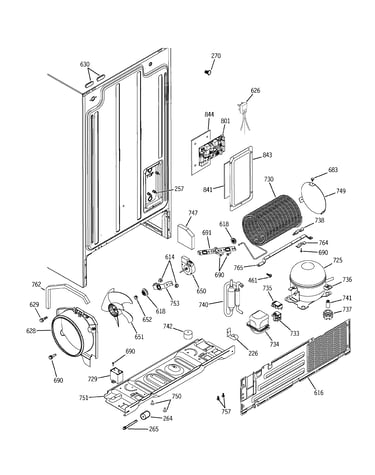

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Thermostat WR50X10015
#240

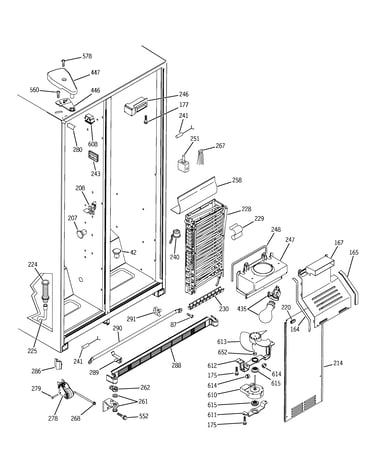

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Capacitor WR62X0079
#729

Sealed system & mother board diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$41.95 |
13% OFF Phone Price : $47.95
In Stock
Motor Dc Con WR60X10065
#650

Sealed system & mother board diagram

Motor dc con

Part #WR60X10065

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10065. Substitute parts can look different from the original.
BEST SELLER
$59.27 |
9% OFF Phone Price : $65.27
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$19.32
In Stock
Condenser Fan Blade WR60X10049
#651

Sealed system & mother board diagram

Condenser fan blade

Part #WR60X10049

Replaced by #WR60X24484

?
Manufacturer substitution
This part replaces WR60X10049. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
Damper & The WR60X10079
#426

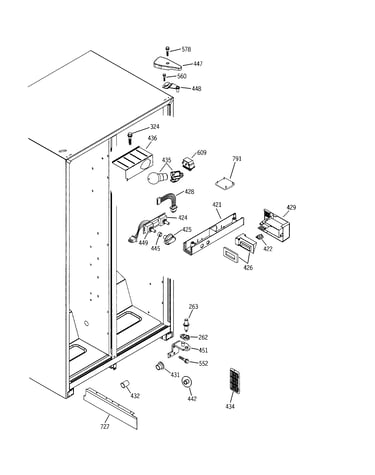

Fresh food section diagram

Damper & the

Part #WR60X10079

Replaced by #WR09X10050

?
Manufacturer substitution
This part replaces WR60X10079. Substitute parts can look different from the original.
BEST SELLER
$83.83 |
7% OFF Phone Price : $89.83
In Stock
