Model # 5648796380 Official Kenmore microwave/convection oven

Here are the diagrams and repair parts for Official Kenmore 5648796380 microwave/convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

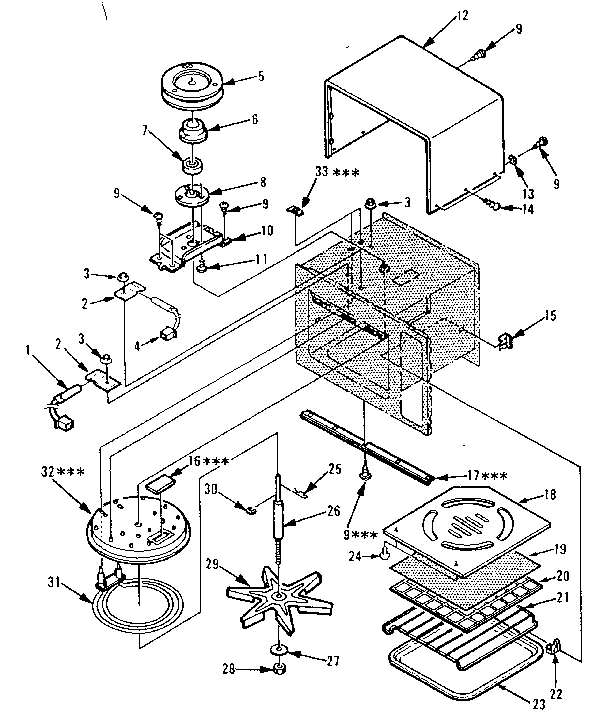

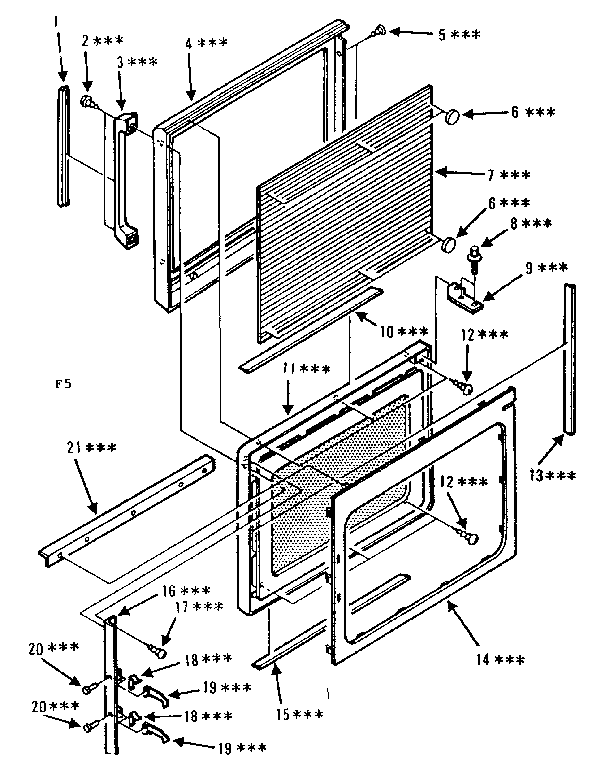

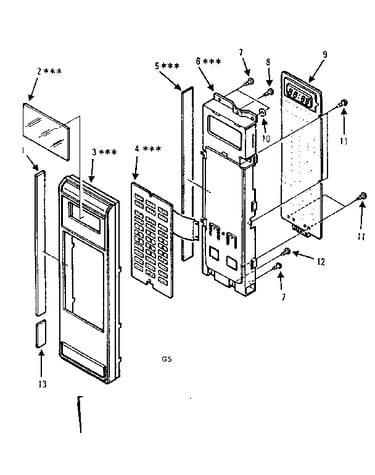

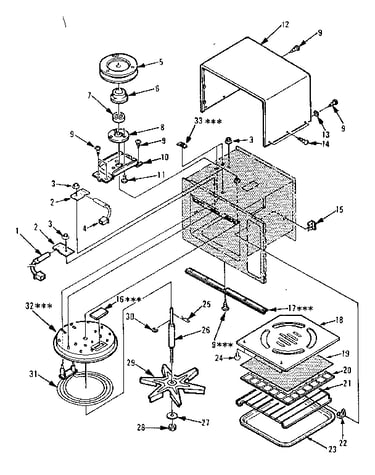

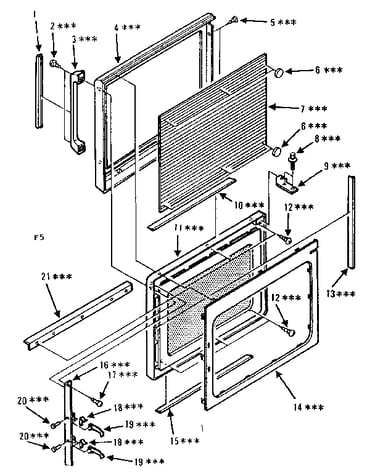

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Microwave Magnetron Thermostat 11532
#12

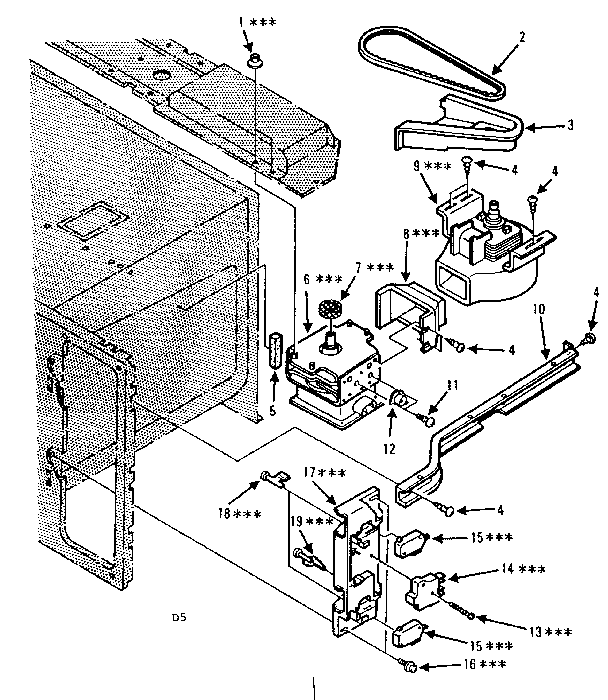

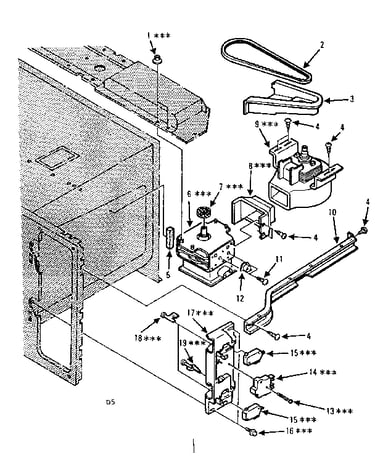

Switches and microwave parts diagram

Microwave magnetron thermostat

Part #11532

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#22

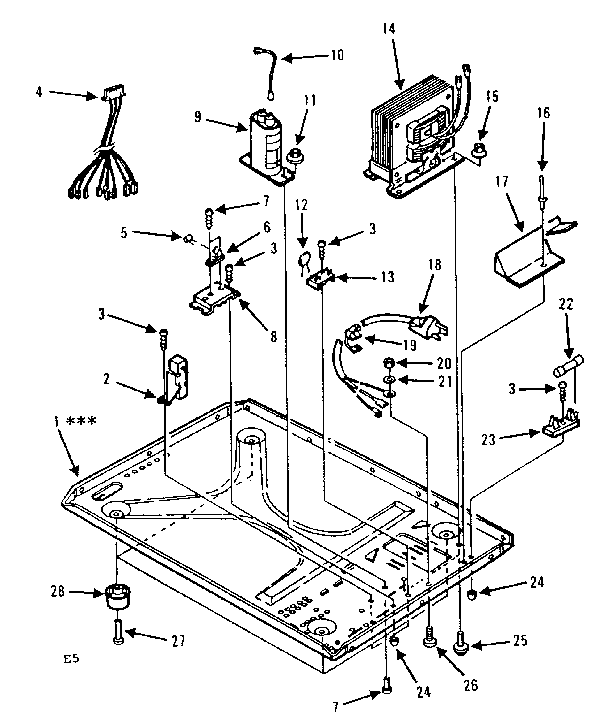

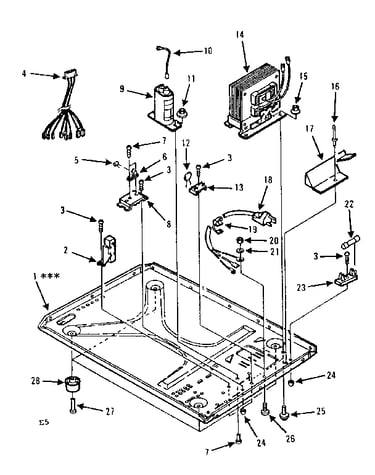

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 14281
#18

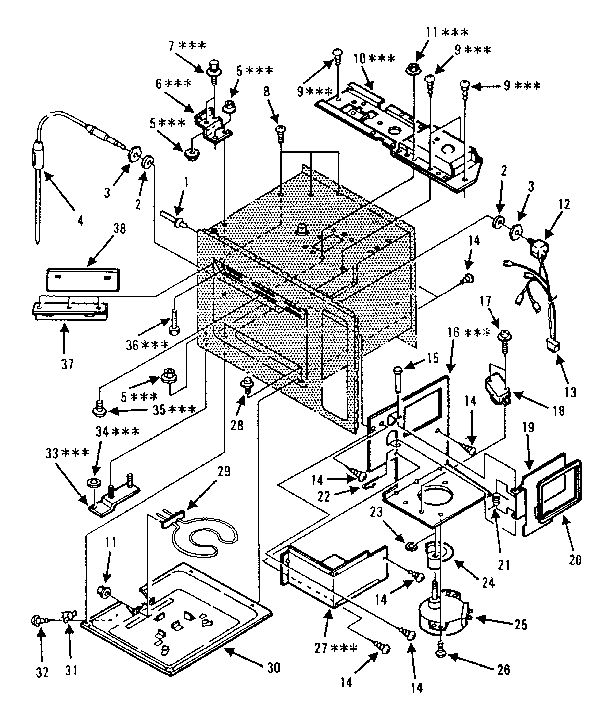

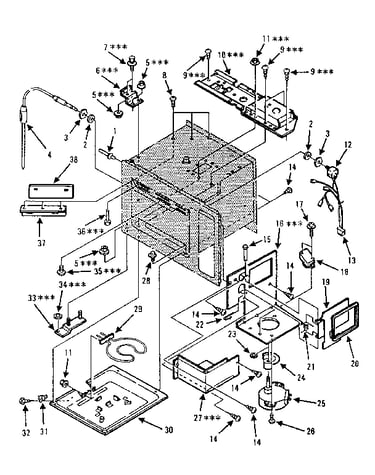

Cavity parts-c diagram

Micro-switch

Part #14281

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 14372
#9

Microwave parts diagram

Capacitor

Part #14372

The manufacturer no longer makes this part, and there's no substitute part

Thm Protectr 11494
#7

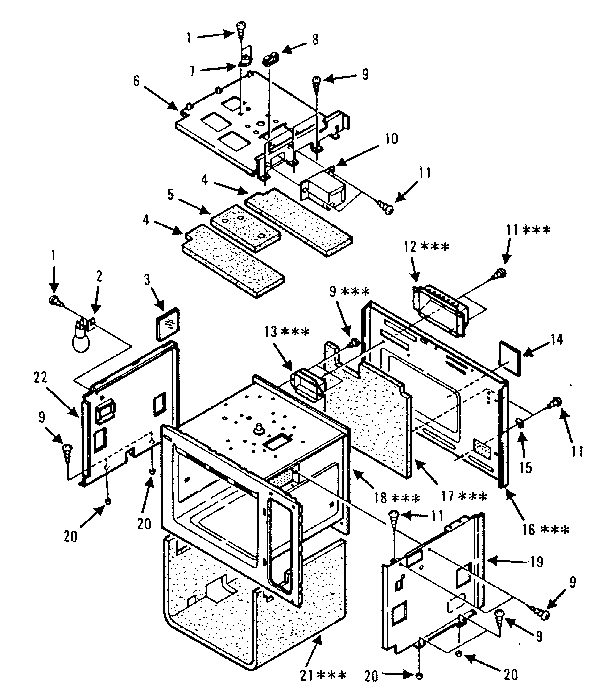

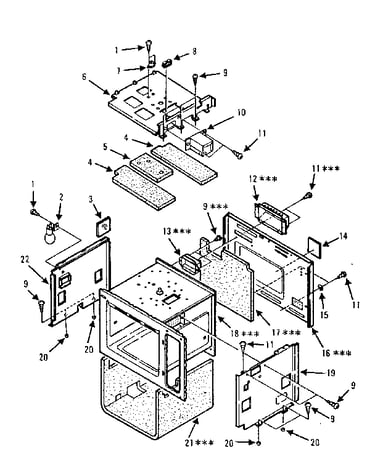

Cavity parts-a diagram

Thm protectr

Part #11494

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 11243
#15

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Magnetron 12664
#6

Switches and microwave parts diagram

Magnetron

Part #12664

The manufacturer no longer makes this part, and there's no substitute part

Air Seal 14365
#20

Cavity parts-c diagram

Air seal

Part #14365

The manufacturer no longer makes this part, and there's no substitute part

Bracket 13190
#13

Cavity parts-a diagram

Bracket

Part #13190

The manufacturer no longer makes this part, and there's no substitute part

Insulator 13596
#8

Cavity parts-a diagram

Insulator

Part #13596

The manufacturer no longer makes this part, and there's no substitute part
