Model # TCX22PACCCC Official GE refrigerator - c series

Here are the diagrams and repair parts for Official GE TCX22PACCCC refrigerator - c series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

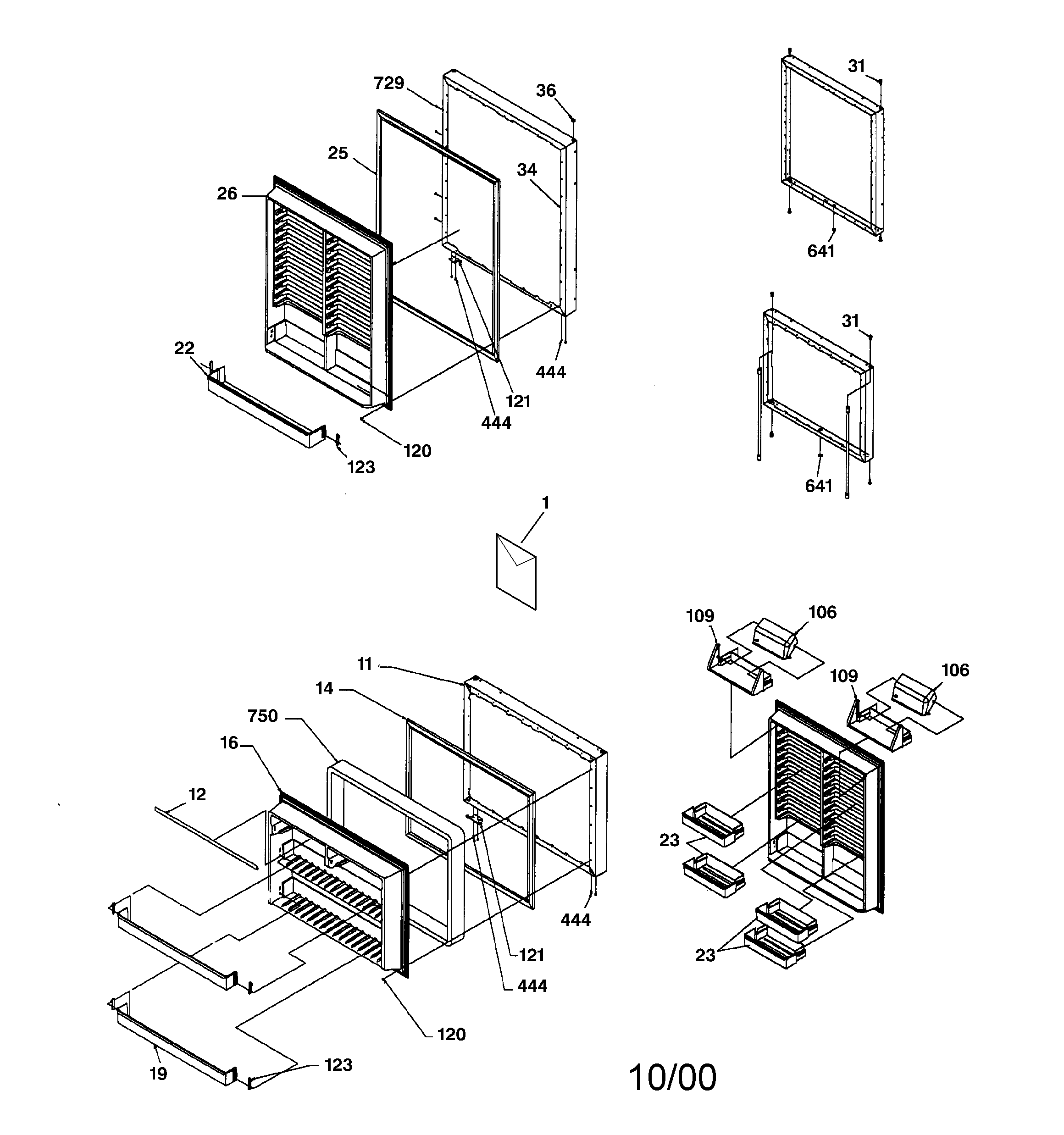

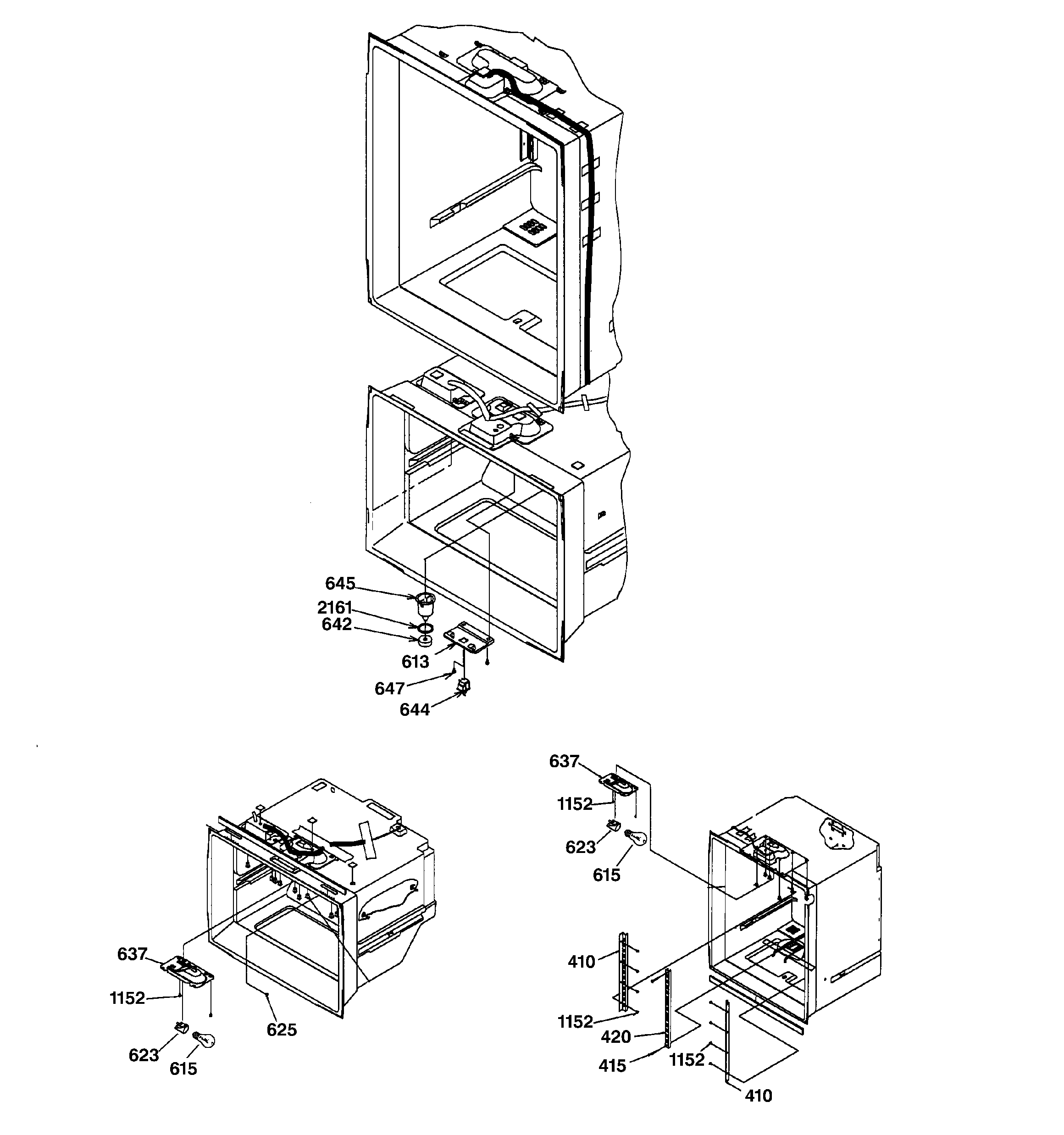

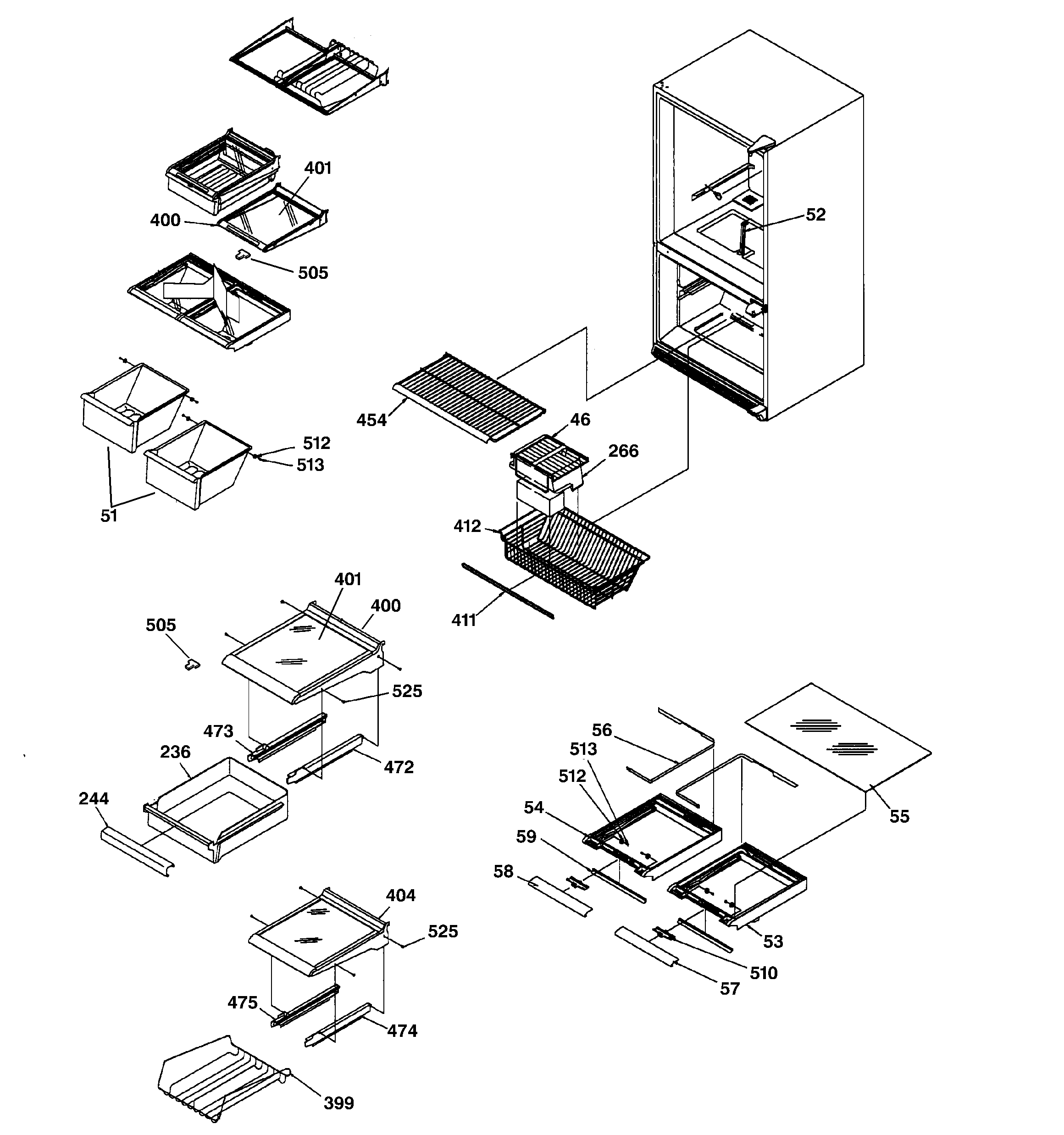

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Dryer Filter WR86X0096
#740

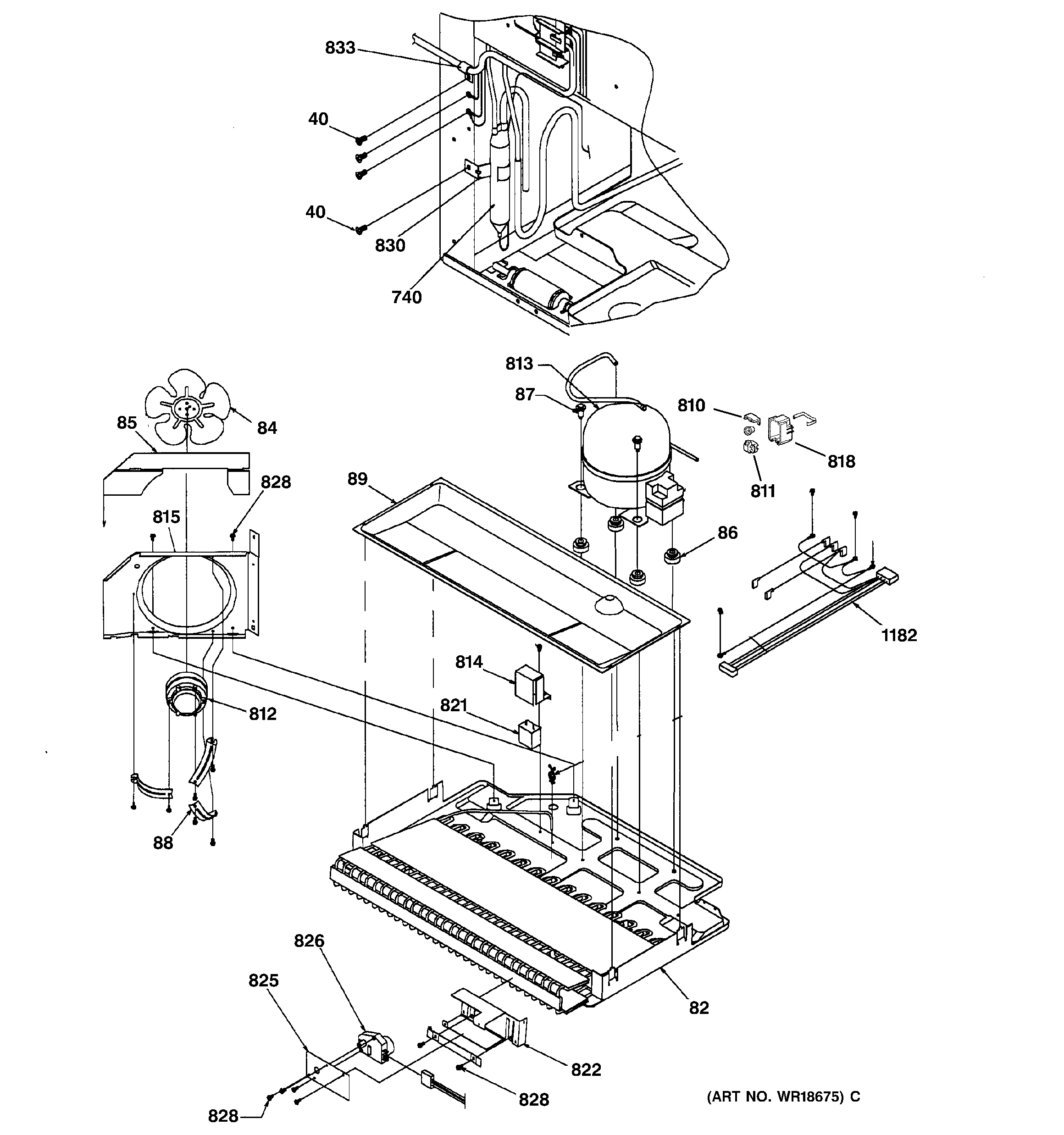

Machine compartment assembly diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Control WR09X0594
#826

Machine compartment assembly diagram

Refrigerator control

Part #WR09X0594

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0594. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Power Cord WR23X10077
#1730

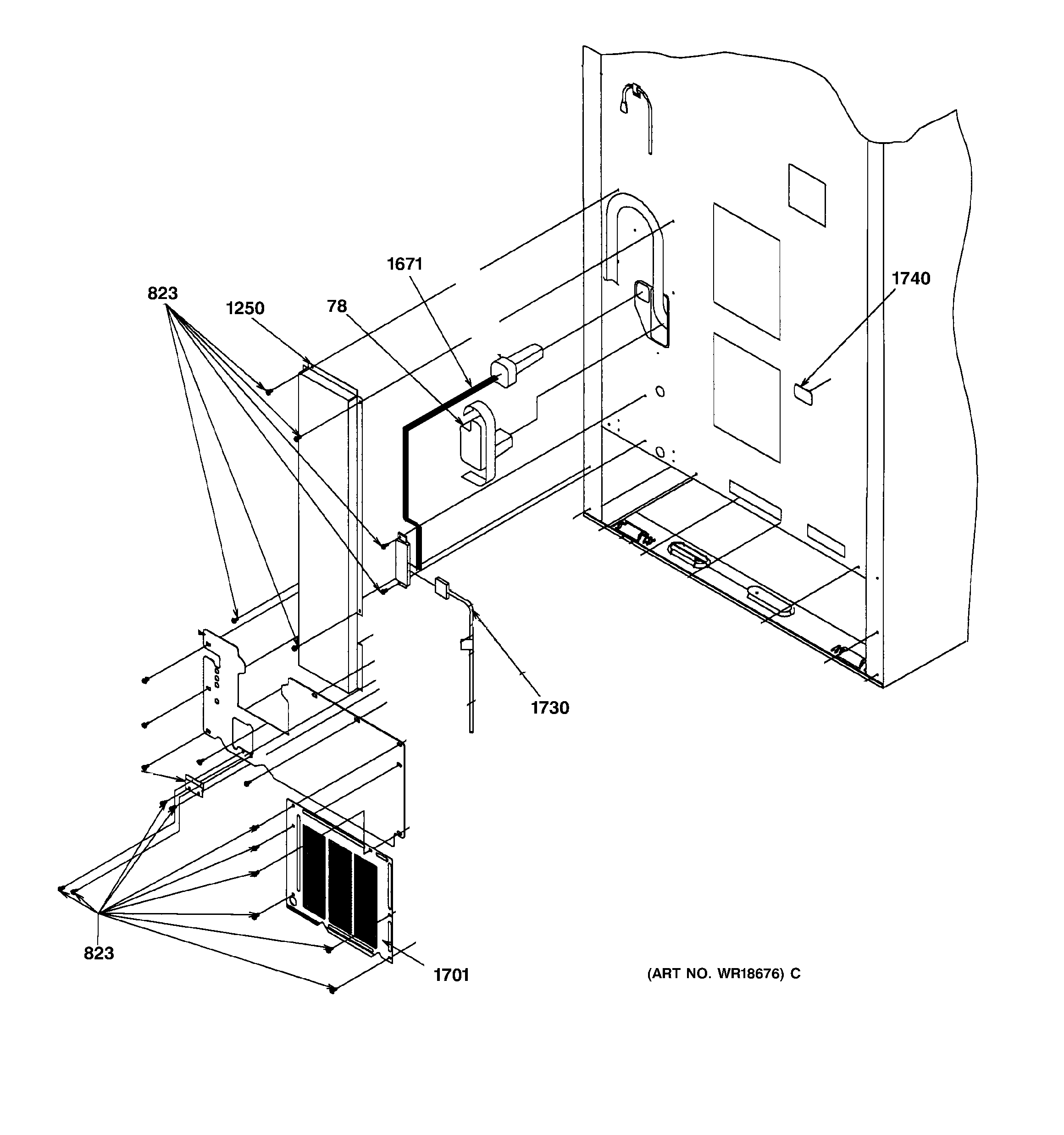

Cabinet back diagram

Refrigerator power cord

Part #WR23X10077

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X10077. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Handle Screw WR01X10179
#35

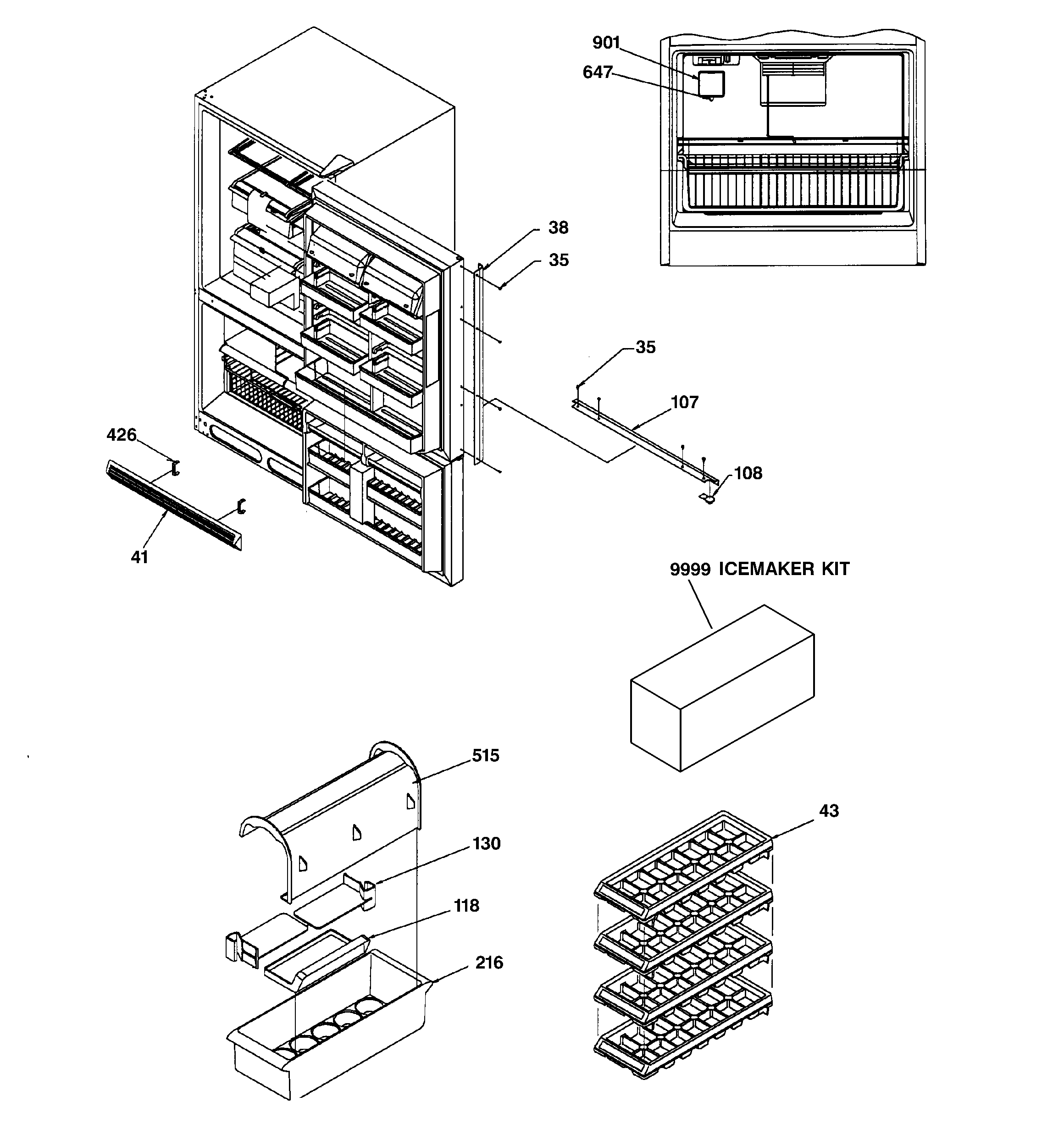

Door handles & accessories diagram

Refrigerator handle screw

Part #WR01X10179

This item is not returnable
$2.99
In Stock
Refrigerator Screw WR01X5593
#40

Machine compartment assembly diagram

Refrigerator screw

Part #WR01X5593

Replaced by #WE02X10011

?
Manufacturer substitution
This part replaces WR01X5593. Substitute parts can look different from the original.
$23.71
In Stock
Egg Bucket WR32X10089
#216

Door handles & accessories diagram

Egg bucket

Part #WR32X10089

Replaced by #WR32X1435

?
Manufacturer substitution
This part replaces WR32X10089. Substitute parts can look different from the original.
$25.91 |
19% OFF Phone Price : $31.91
In Stock
Lw Sd Asm WR85X0288
#79

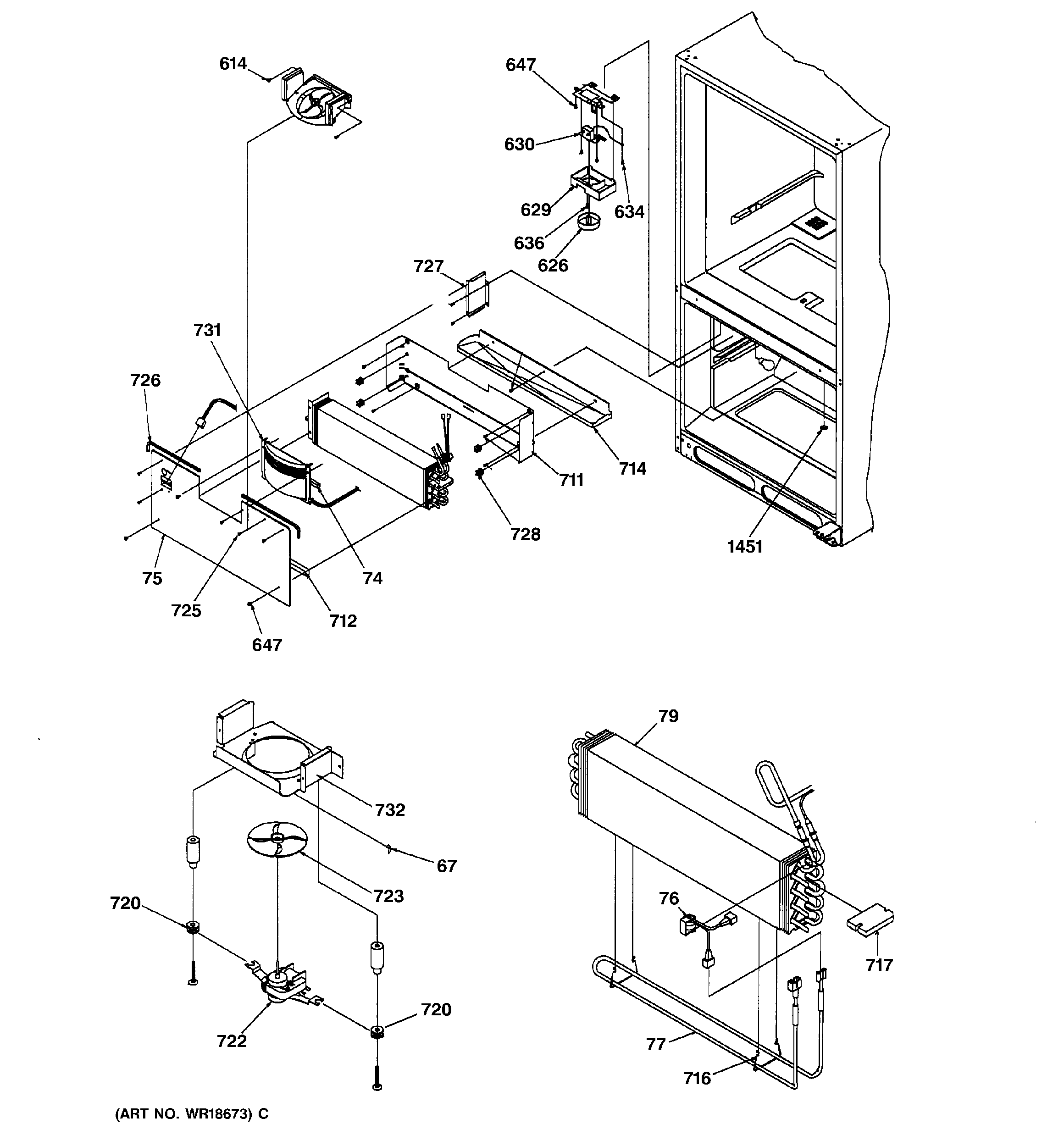

Evaporator & freezer control assemb diagram

Lw sd asm

Part #WR85X0288

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shim WR02X10507
#6

Control & light covers diagram

Refrigerator shim

Part #WR02X10507

The manufacturer no longer makes this part, and there's no substitute part

Shm Btm Hge WR02X9521
#113

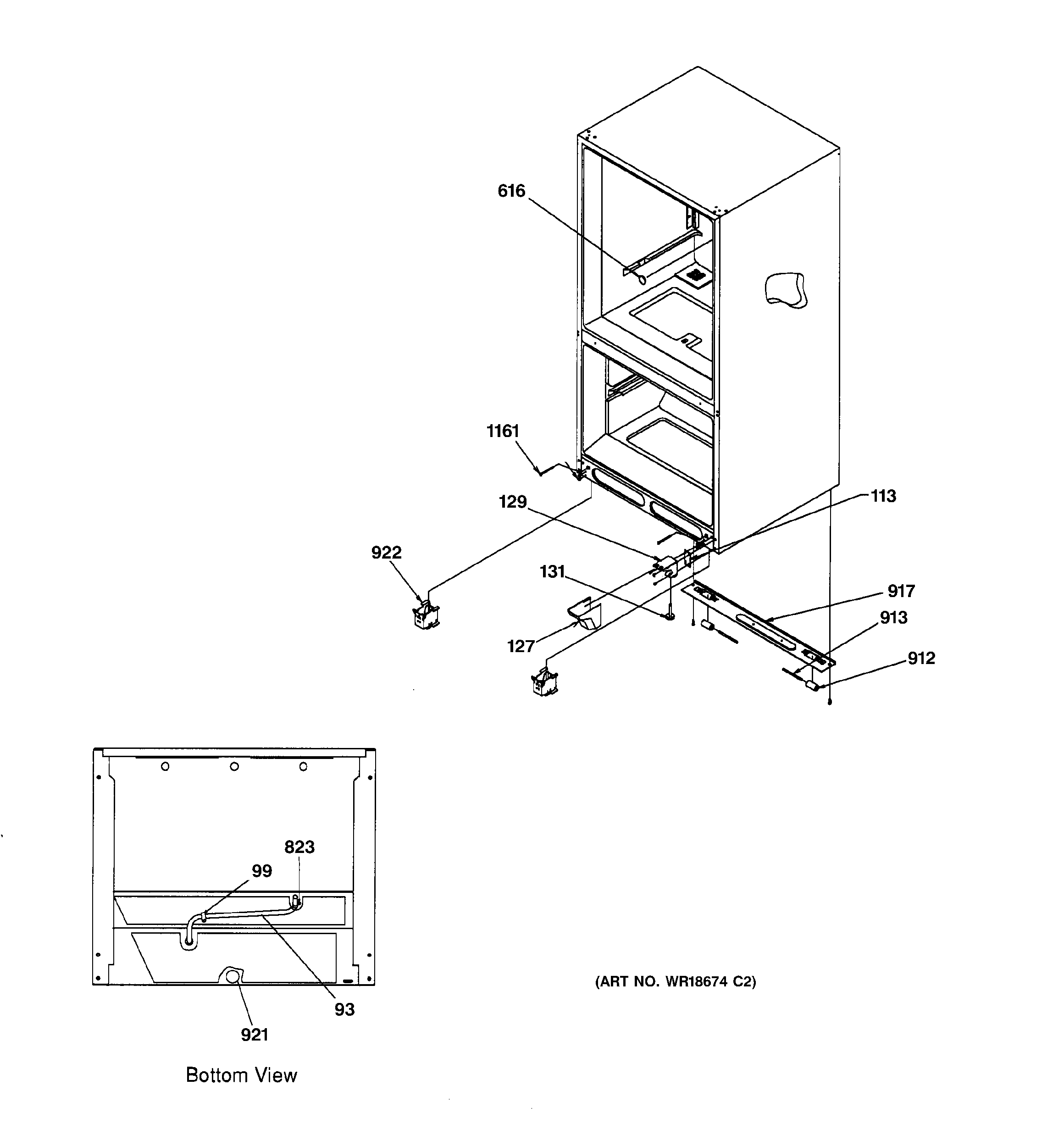

Insulation & roller assembly diagram

Shm btm hge

Part #WR02X9521

The manufacturer no longer makes this part, and there's no substitute part

Posipin,hinge Top WR13X10092
#105

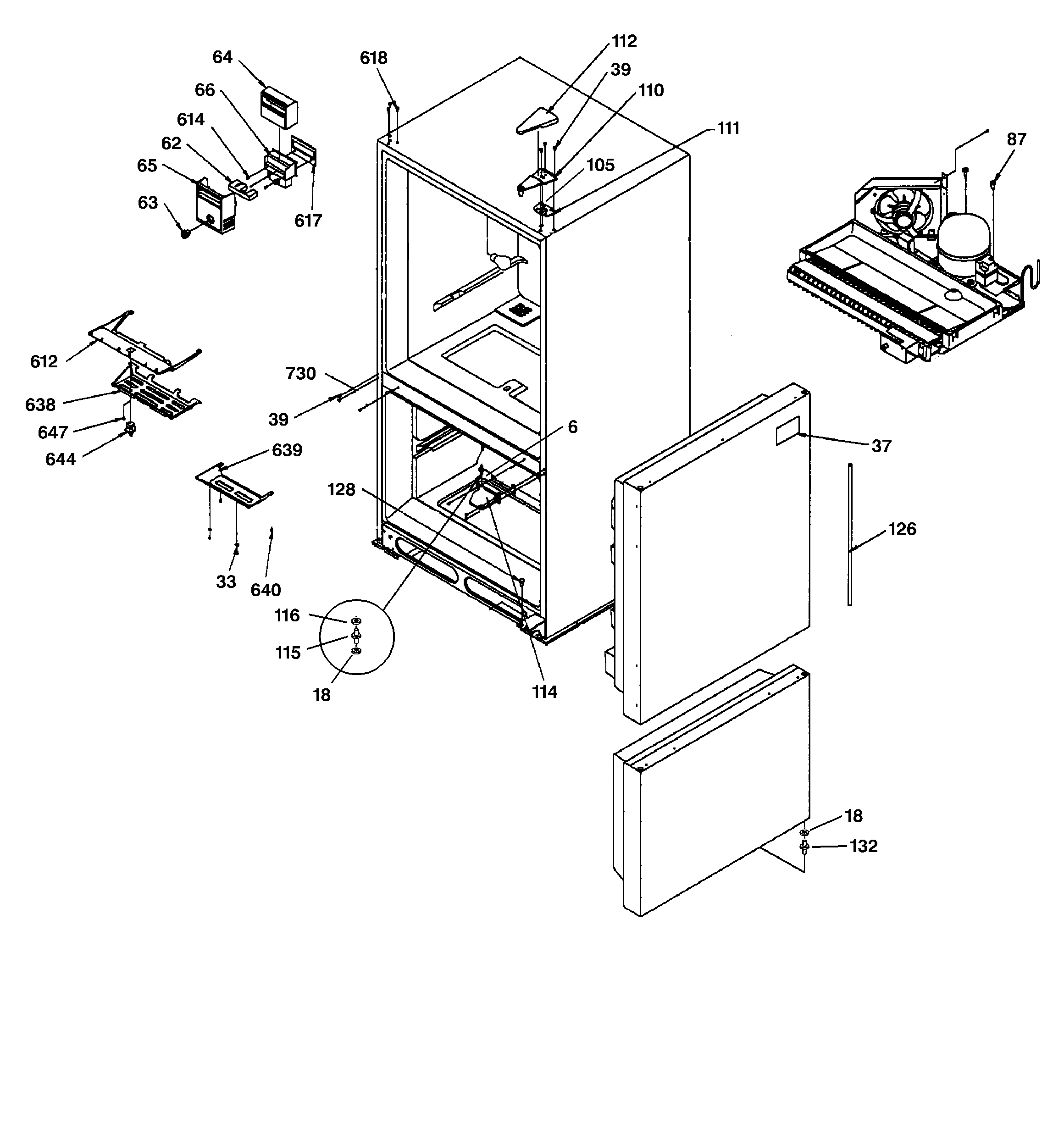

Control & light covers diagram

Posipin,hinge top

Part #WR13X10092

The manufacturer no longer makes this part, and there's no substitute part
