Model # PLCS389ECG Official Frigidaire dual-fuel range

Here are the diagrams and repair parts for Official Frigidaire PLCS389ECG dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

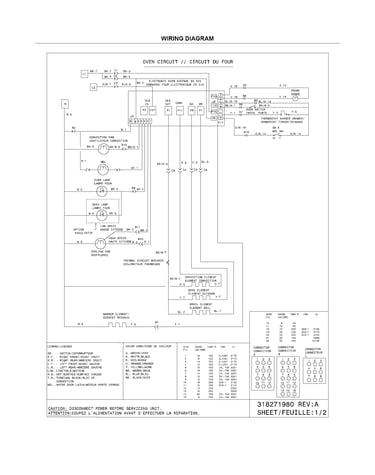

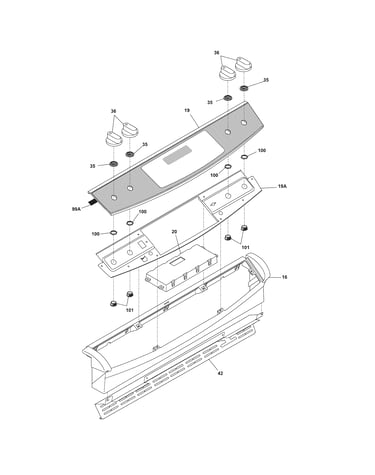

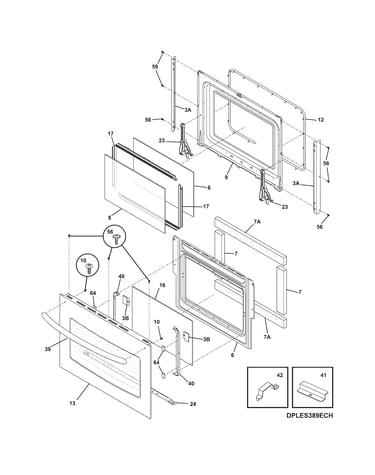

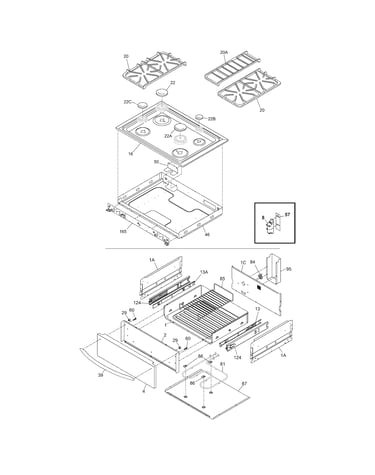

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |
Range Oven Light Bulb 5303013071
#15

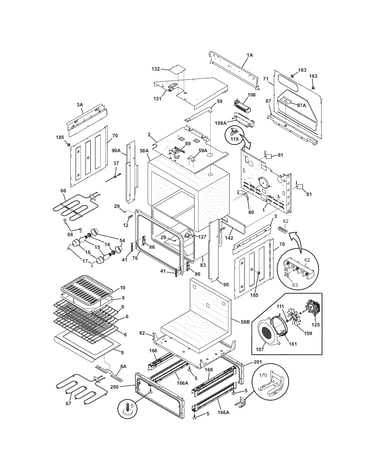

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Wall Oven Thermal Fuse 318004900
#119

Body diagram

Wall oven thermal fuse

Part #318004900

BEST SELLER
$59.15 |
9% OFF Phone Price : $65.15
In Stock
Fan Blade 318398300
#109

Body diagram

Fan blade

Part #318398300

Replaced by #318398302

?
Manufacturer substitution
This part replaces 318398300. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$116.83 |
9% OFF Phone Price : $128.83
In Stock
Nut Fan Retainer 318399800
#111

Body diagram

Nut fan retainer

Part #318399800

Replaced by #316136600

?
Manufacturer substitution
This part replaces 318399800. Substitute parts can look different from the original.
BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Range Sealed Burner Assembly 316206400
#10B

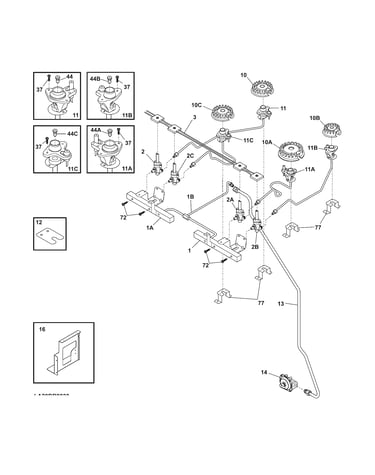

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
BEST SELLER
$58.89 |
9% OFF Phone Price : $64.89
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Oven Motor 318261211
#89

Body diagram

Oven motor

Part #318261211

Replaced by #318261229

?
Manufacturer substitution
This part replaces 318261211. Substitute parts can look different from the original.
BEST SELLER
$100.20 |
11% OFF Phone Price : $112.20
In Stock
