Model # 143535062 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143535062 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |

Breather Element Air Filter 28424
#40

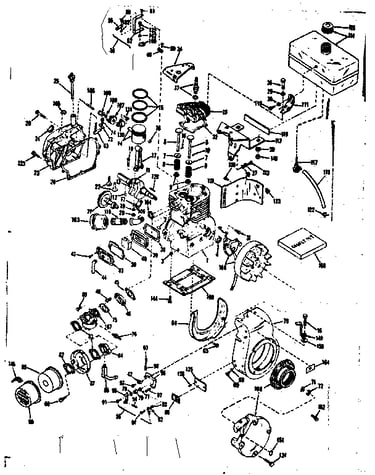

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#122

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#165

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31382
#169

Basic engine diagram

Gasket set

Part #31382

The manufacturer no longer makes this part, and there's no substitute part

Spring 27113
#5

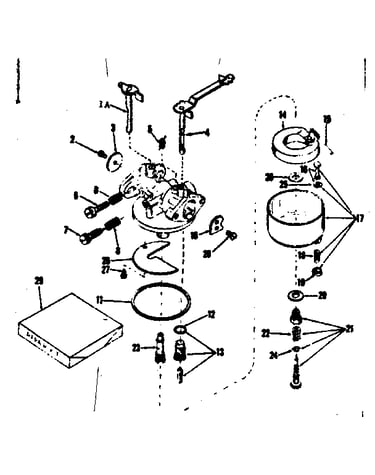

Carburetor diagram

Spring

Part #27113

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 650490
#71

Basic engine diagram

Flat washer

Part #650490

The manufacturer no longer makes this part, and there's no substitute part

Washer 8345
#30

Basic engine diagram

Washer

Part #8345

The manufacturer no longer makes this part, and there's no substitute part

Pin 20810
#10

Basic engine diagram

Pin

Part #20810

The manufacturer no longer makes this part, and there's no substitute part

Baffle 29536
#64

Basic engine diagram

Baffle

Part #29536

The manufacturer no longer makes this part, and there's no substitute part

Adj Bracket 30205
#55

Basic engine diagram

Adj bracket

Part #30205

The manufacturer no longer makes this part, and there's no substitute part
