KitchenAid
Bottom-Mount Refrigerator

Model # KBFS25EWMS10 Official KitchenAid refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBFS25EWMS10 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

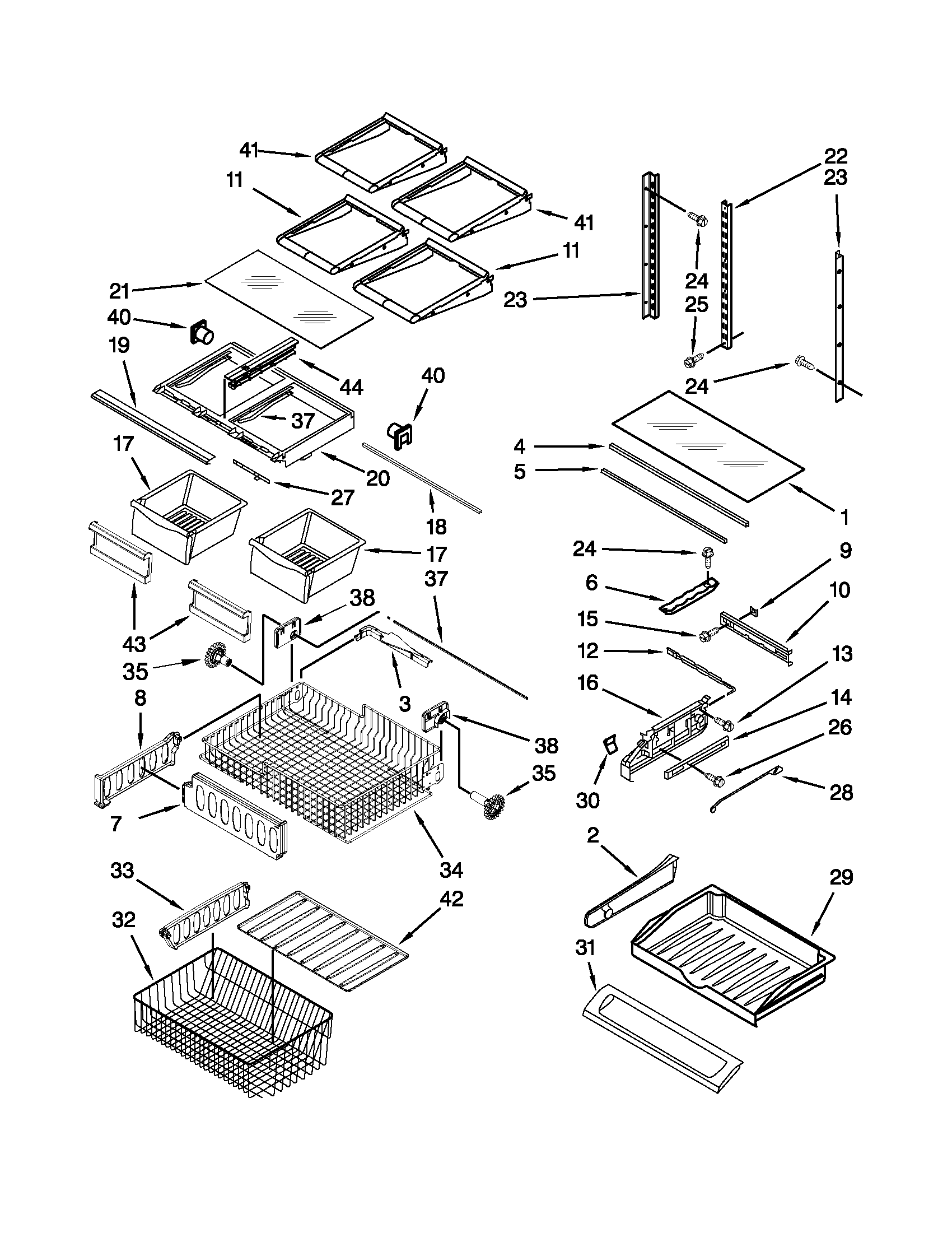

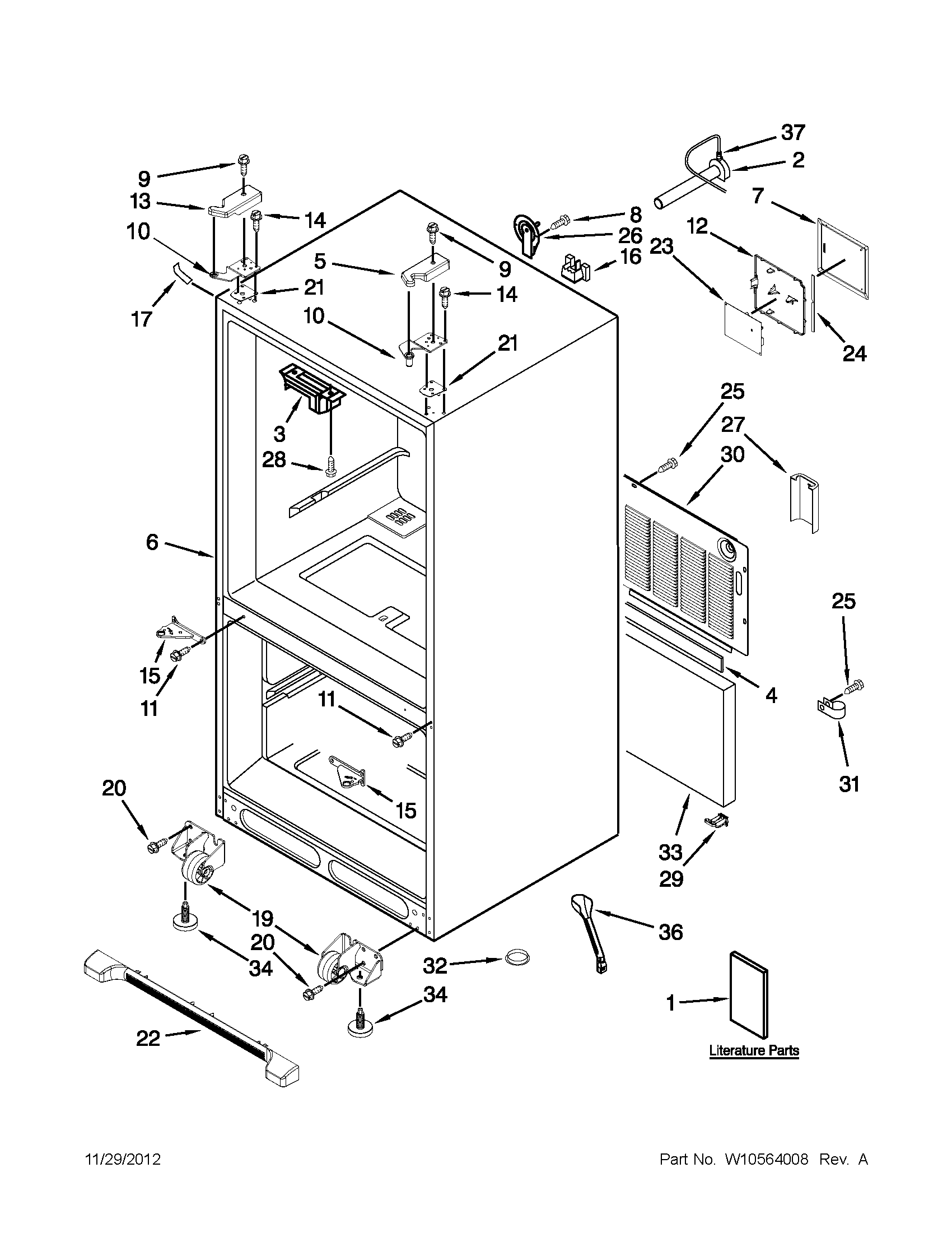

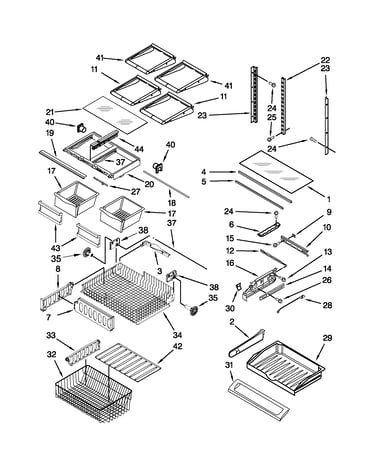

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Refrigerator Filter W10336197
#19

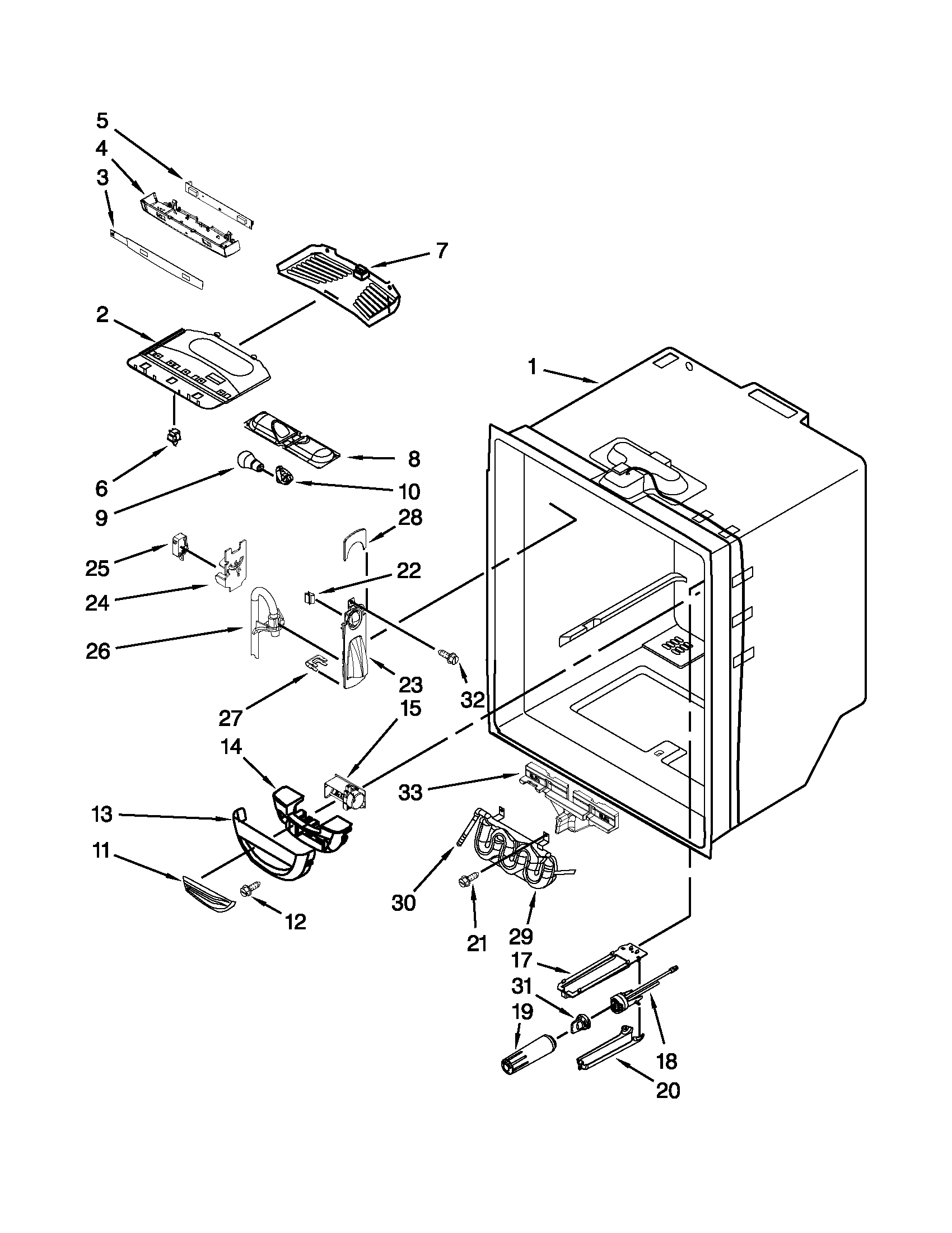

Refrigerator liner parts diagram

Refrigerator filter

Part #W10336197

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W10336197. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10177049
#27

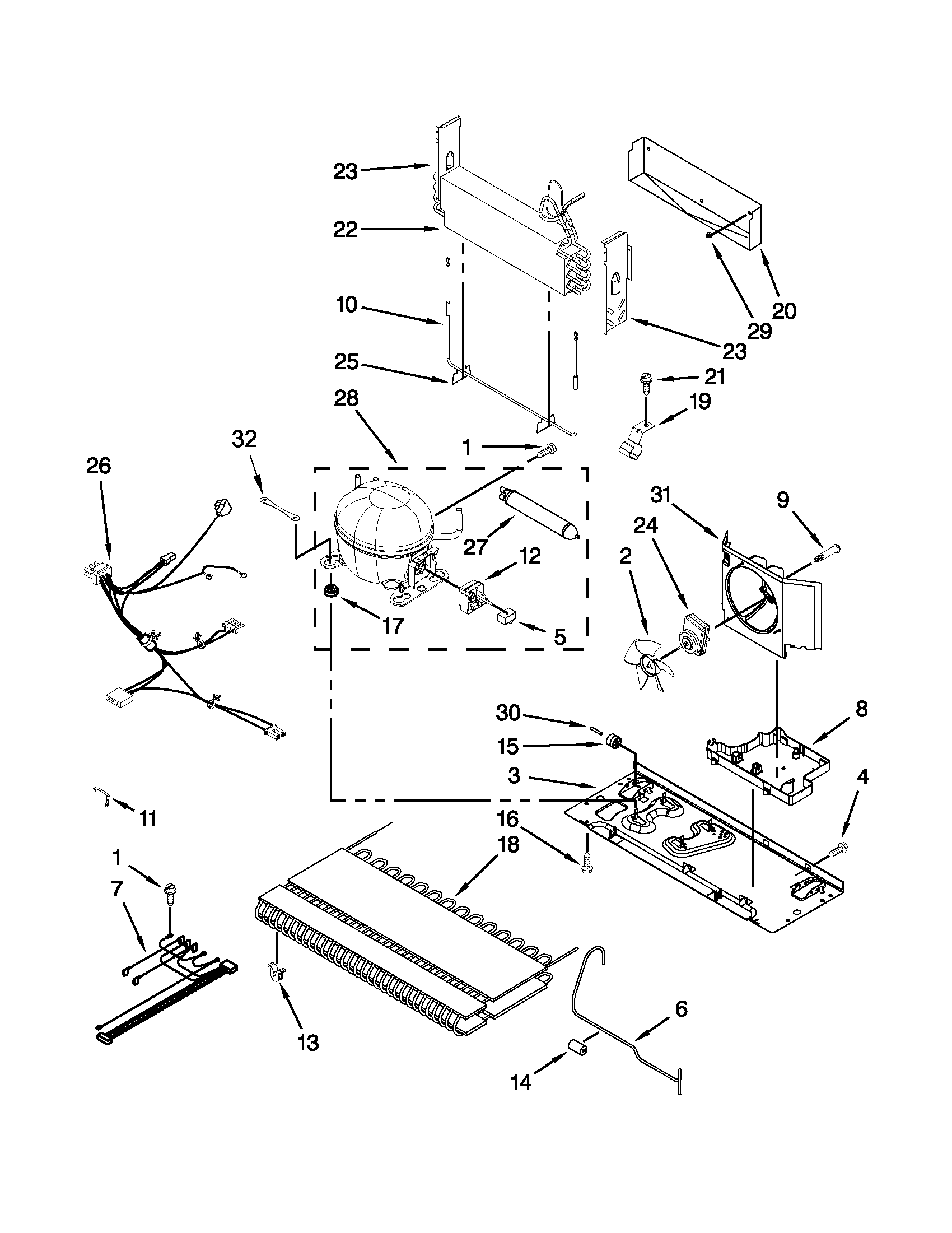

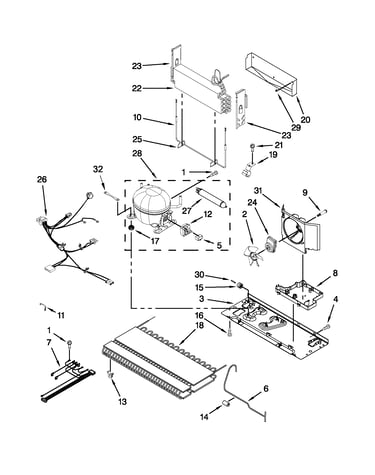

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker Assembly W10469286
#100

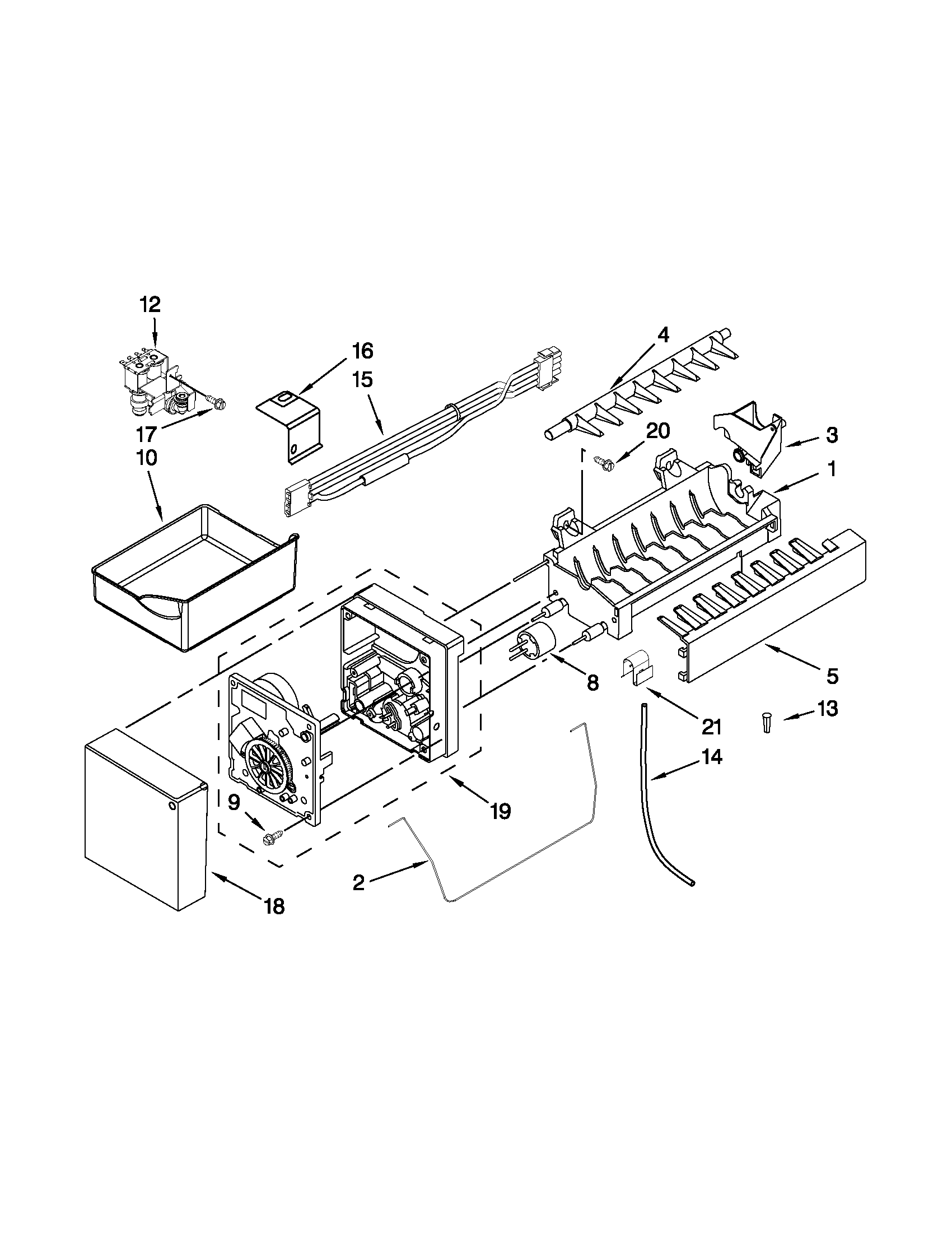

Ice maker diagram

Refrigerator ice maker assembly

Part #W10469286

Replaced by #W10884390

?
Manufacturer substitution
This part replaces W10469286. Substitute parts can look different from the original.
BEST SELLER
$92.98 |
6% OFF Phone Price : $98.98
In Stock
Refrigerator Light Bulb W10311505N
#9

Refrigerator liner parts diagram

Refrigerator light bulb

Part #W10311505N

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505N. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Light Bulb W10311505
#9

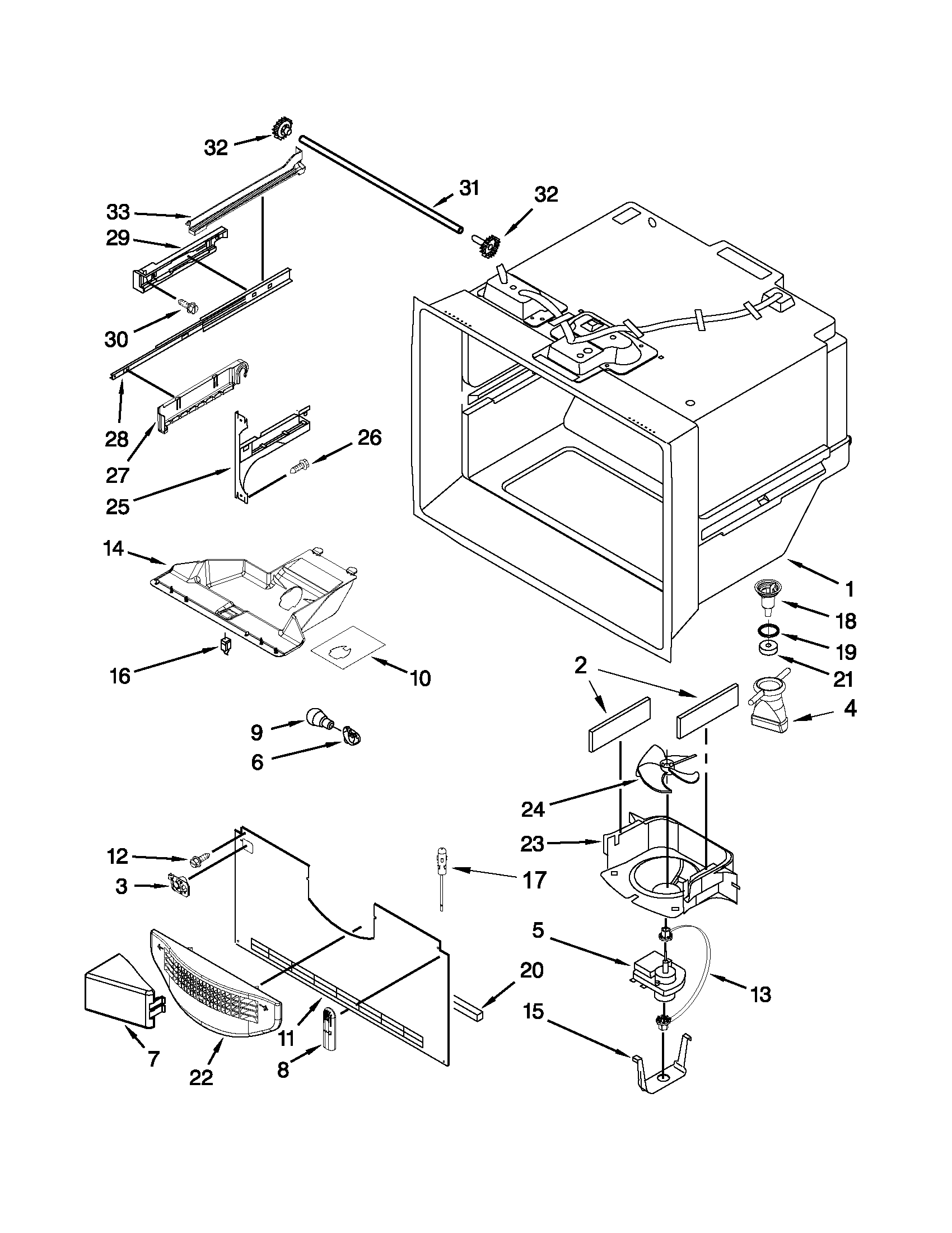

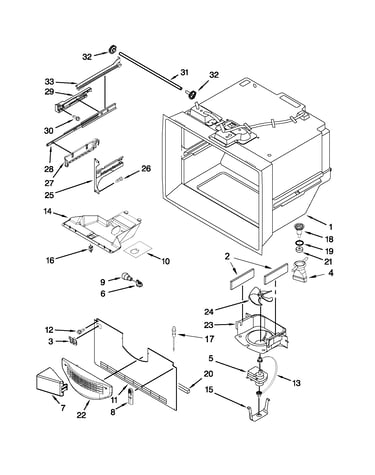

Freezer liner parts diagram

Refrigerator light bulb

Part #W10311505

Replaced by #40A15

?
Manufacturer substitution
This part replaces W10311505. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Thermistor 12791419SP
#17

Freezer liner parts diagram

Refrigerator thermistor

Part #12791419SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791419SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Switch C3680310V
#6

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Door Gasket W10443225
#8

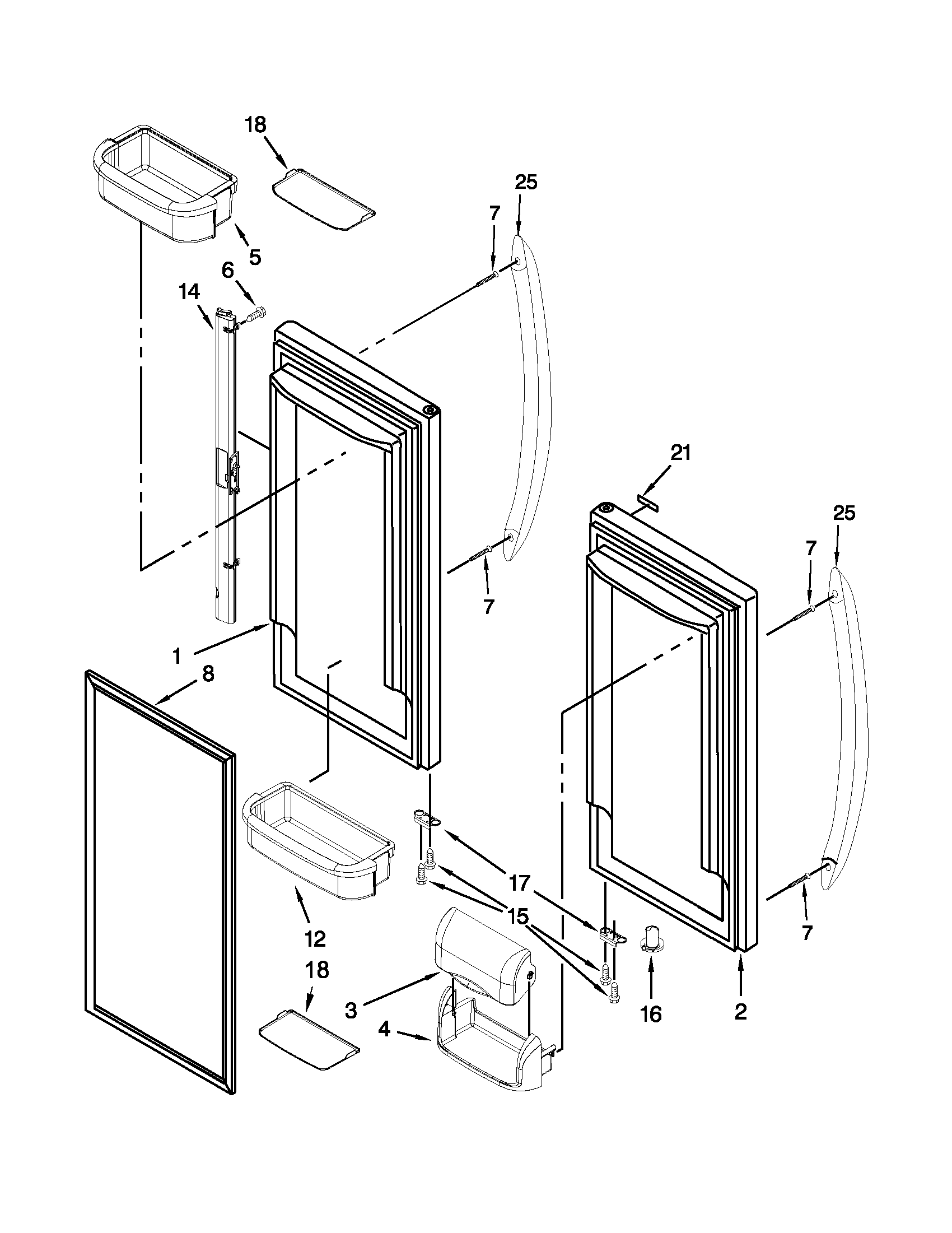

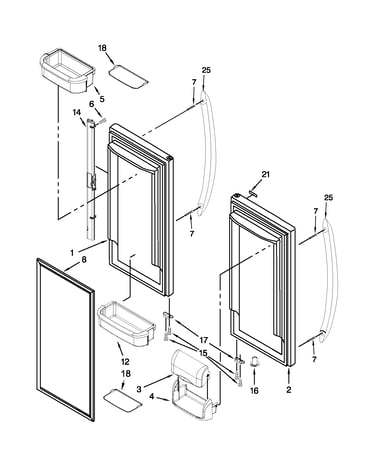

Refrigerator door diagram

Refrigerator door gasket

Part #W10443225

Replaced by #W10830162

?
Manufacturer substitution
This part replaces W10443225. Substitute parts can look different from the original.
BEST SELLER
$111.17 |
10% OFF Phone Price : $123.17
In Stock
Dacor Refrigerator Door Gasket W10443320
#3

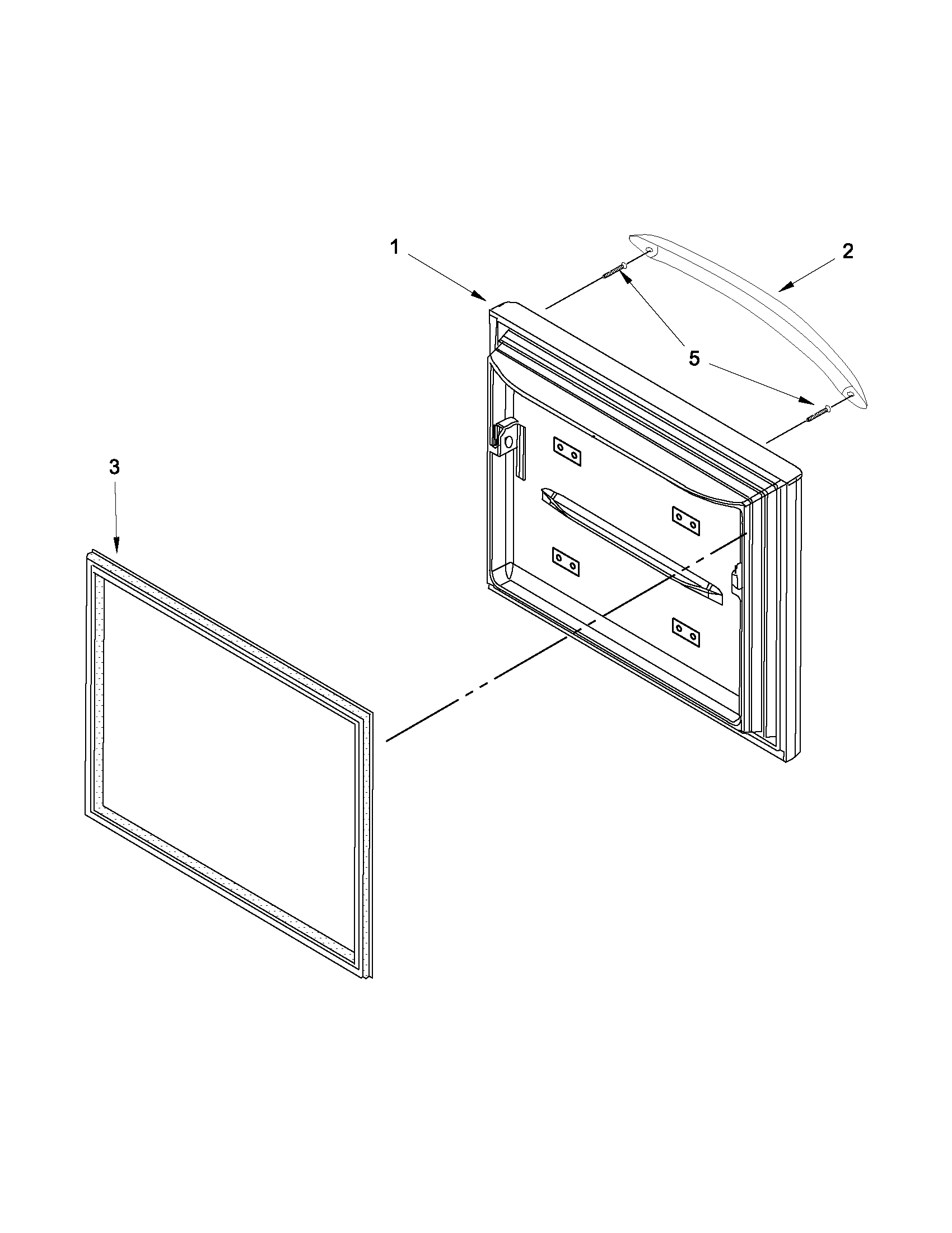

Freezer door diagram

Dacor refrigerator door gasket

Part #W10443320

BEST SELLER
$27.63 |
18% OFF Phone Price : $33.63
In Stock
Refrigerator Compressor W10445422
#28

Unit parts diagram

Refrigerator compressor

Part #W10445422

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10445422. Substitute parts can look different from the original.
BEST SELLER
$353.01 |
$12.00 OFF Phone Price : $365.01
In Stock
