Room Air Conditioner

Model # AGE14DAG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AGE14DAG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Compressor WJ98X10059
#100

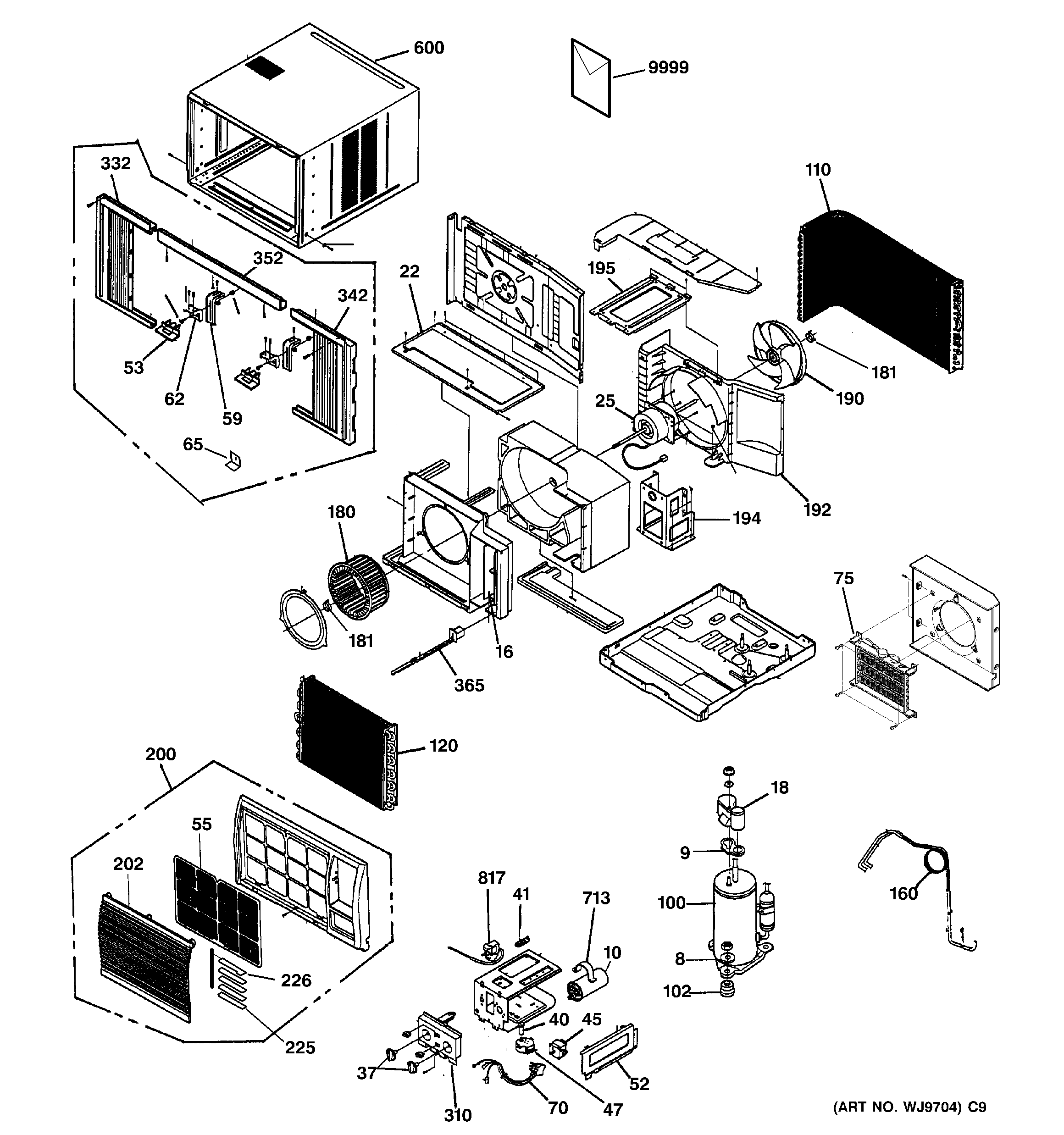

Room air conditioner diagram

Compressor

Part #WJ98X10059

$433.49
In Stock
Fan WJ73X10026
#190

Room air conditioner diagram

Fan

Part #WJ73X10026

$66.99
In Stock
Inlet Grille WJ71X10180
#202

Room air conditioner diagram

Inlet grille

Part #WJ71X10180

$19.99
In Stock
Agm14 + Use/ 49-7429
#9999

Room air conditioner diagram

Agm14 + use/

Part #49-7429

$17.99
In Stock
Shroud WJ76X10050
#192

Room air conditioner diagram

Shroud

Part #WJ76X10050

The manufacturer no longer makes this part, and there's no substitute part

Thermstat (t WJ28X10006
#817

Room air conditioner diagram

Thermstat (t

Part #WJ28X10006

The manufacturer no longer makes this part, and there's no substitute part

Brace WJ65X10025
#195

Room air conditioner diagram

Brace

Part #WJ65X10025

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X10029
#10

Room air conditioner diagram

Capacitor

Part #WJ20X10029

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch WJ26X10111
#45

Room air conditioner diagram

Rotary switch

Part #WJ26X10111

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Clamp WJ03X10015
#713

Room air conditioner diagram

Capacitor clamp

Part #WJ03X10015

The manufacturer no longer makes this part, and there's no substitute part
