Model # WSXH208A1WW Official GE washer

Here are the diagrams and repair parts for Official GE WSXH208A1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Hose-inlet H WH41X10009
#203

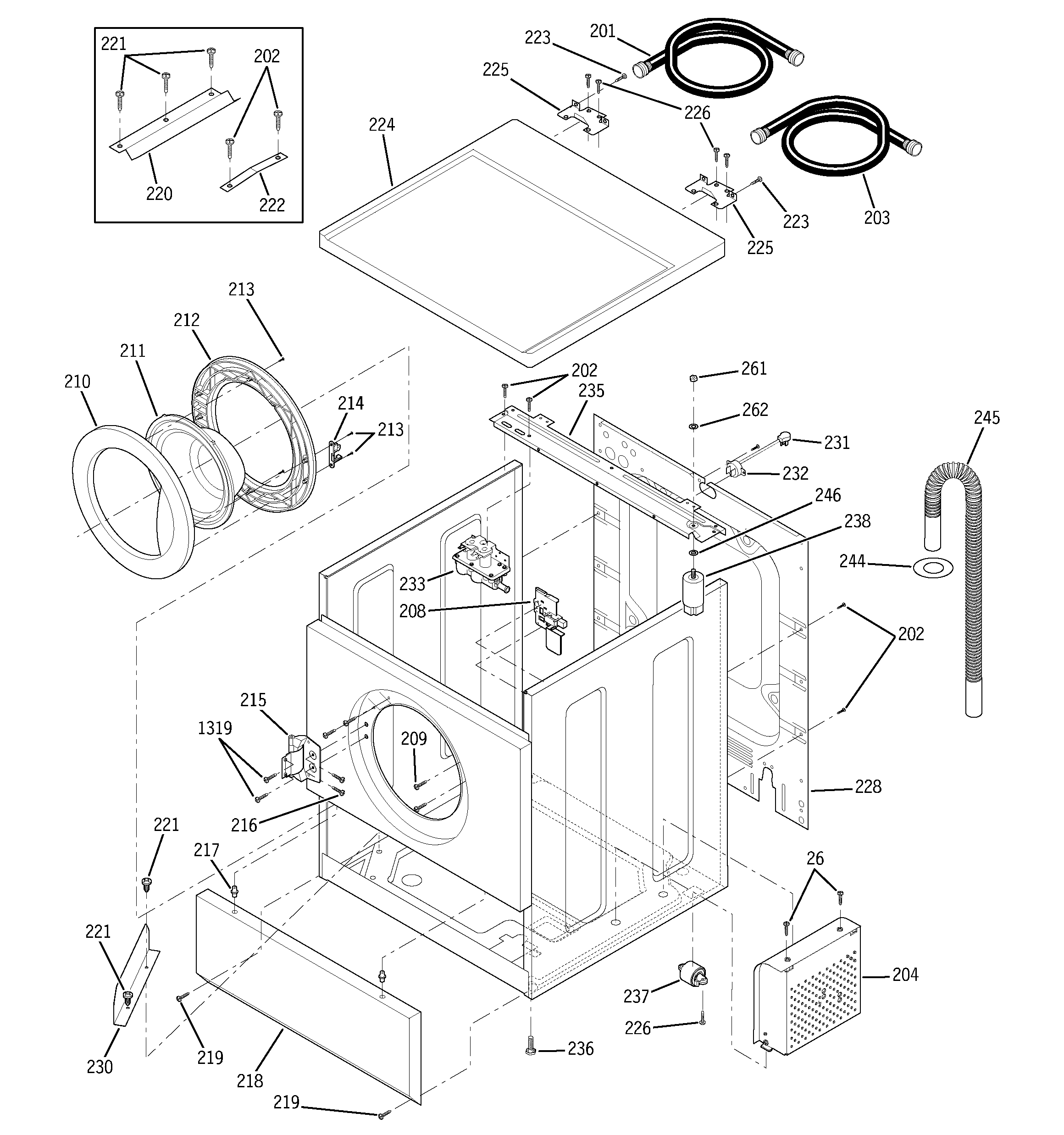

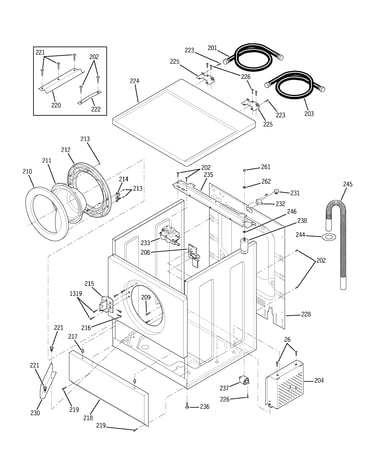

Cabinet, door & top diagram

Hose-inlet h

Part #WH41X10009

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X10009. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Hose-inlet C WH41X10008
#201

Cabinet, door & top diagram

Hose-inlet c

Part #WH41X10008

Replaced by #WH41X10207

?
Manufacturer substitution
This part replaces WH41X10008. Substitute parts can look different from the original.
This item is not returnable
$22.73 |
21% OFF Phone Price : $28.73
In Stock
Washer Timer WH12X10152
#18

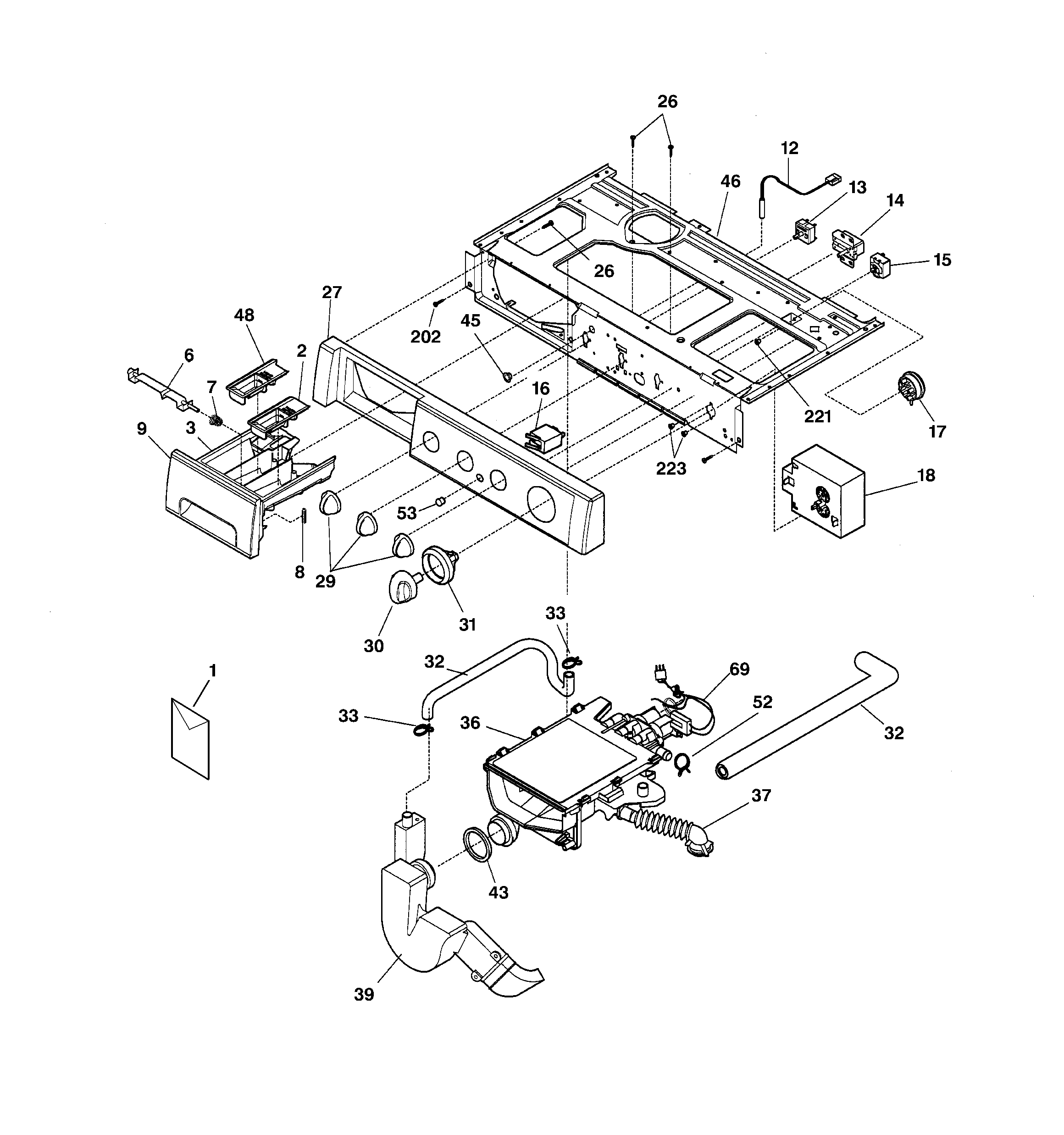

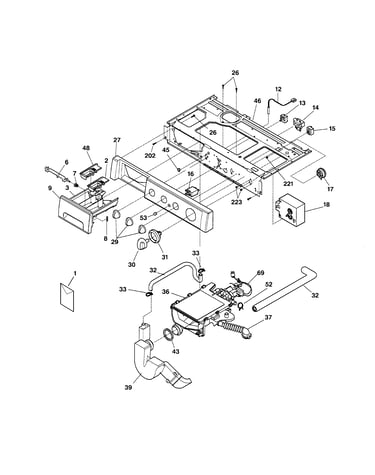

Control panel diagram

Washer timer

Part #WH12X10152

$213.33 |
5% OFF Phone Price : $225.33
In Stock
Washer Door Lock Assembly WH10X10003
#208

Cabinet, door & top diagram

Washer door lock assembly

Part #WH10X10003

Replaced by #WH10X27534

?
Manufacturer substitution
This part replaces WH10X10003. Substitute parts can look different from the original.
$329.99 |
$12.00 OFF Phone Price : $341.99
In Stock
Washer Spin Basket WH45X10006
#316

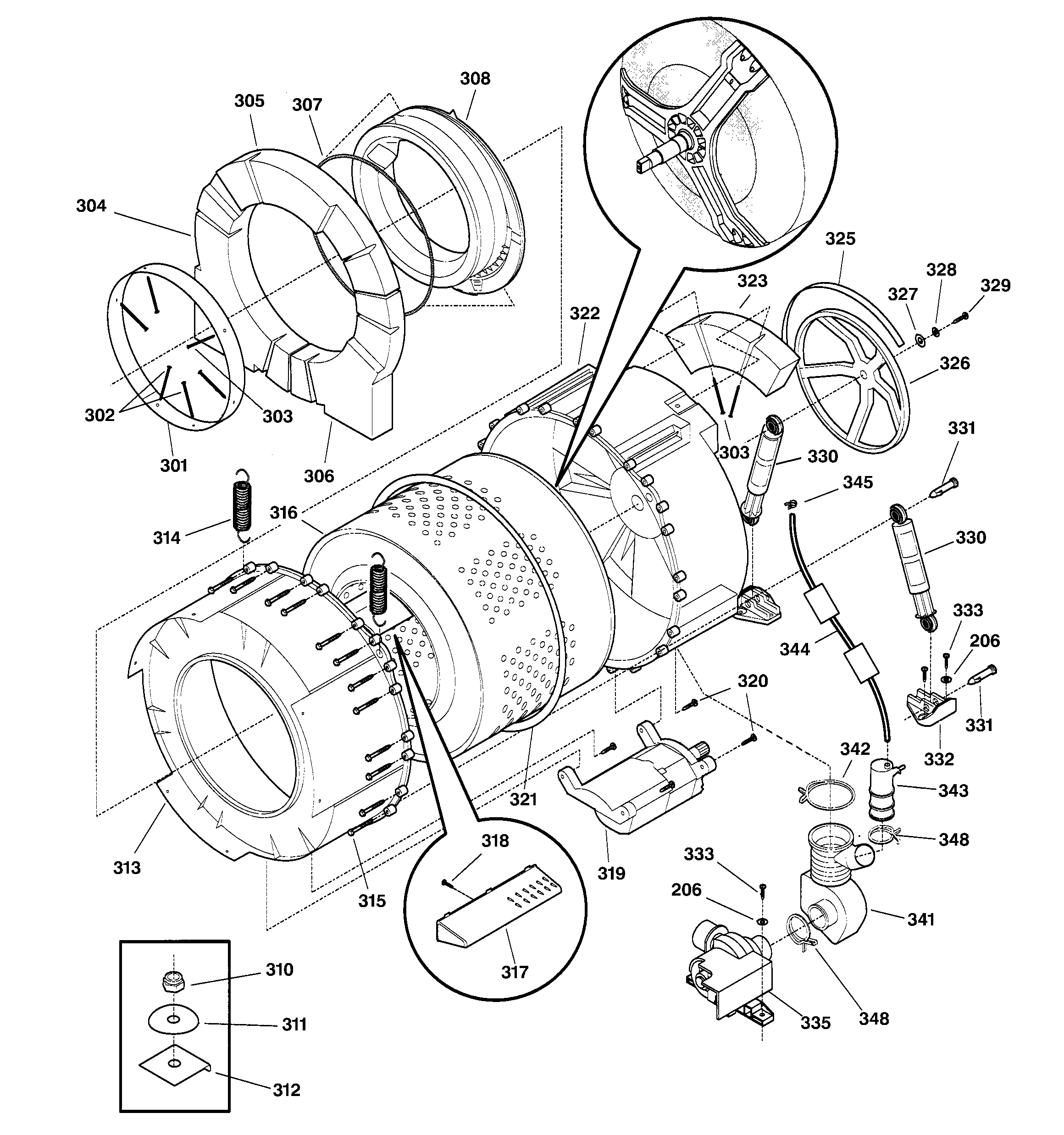

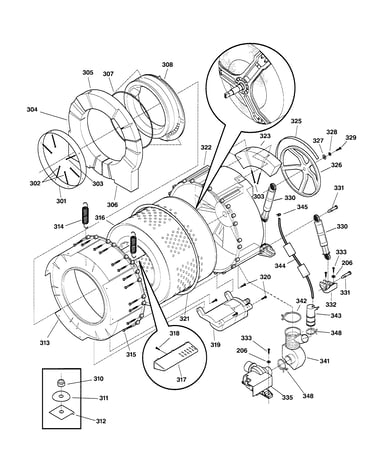

Tub & motor diagram

Washer spin basket

Part #WH45X10006

$1248.86 |
$12.00 OFF Phone Price : $1260.86
In Stock
Installation 31-2819
#1

Control panel diagram

Installation

Part #31-2819

This item is not returnable
$5.99
In Stock
Washer Suspension Spring WH01X10022
#314

Tub & motor diagram

Washer suspension spring

Part #WH01X10022

$56.06 |
10% OFF Phone Price : $62.06
In Stock
Washer Outer Rear Tub WH45X10007
#322

Tub & motor diagram

Washer outer rear tub

Part #WH45X10007

This item is not returnable
$424.61 |
33% OFF Was : $635.47
In Stock
Washer Shock Absorber (replaces Wh17x10019) WH17X10001
#330

Tub & motor diagram

Washer shock absorber (replaces wh17x10019)

Part #WH17X10001

$144.58 |
8% OFF Phone Price : $156.58
In Stock
Panel Screw WH02X10012
#219

Cabinet, door & top diagram

Panel screw

Part #WH02X10012

Replaced by #WR01X10693

?
Manufacturer substitution
This part replaces WH02X10012. Substitute parts can look different from the original.
$8.00
In Stock
