Model # FB4BNF042000 Official Carrier fan coil

Here are the diagrams and repair parts for Official Carrier FB4BNF042000 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Central Air Conditioner Air Handler Fan Control Board HK61EA006
#29

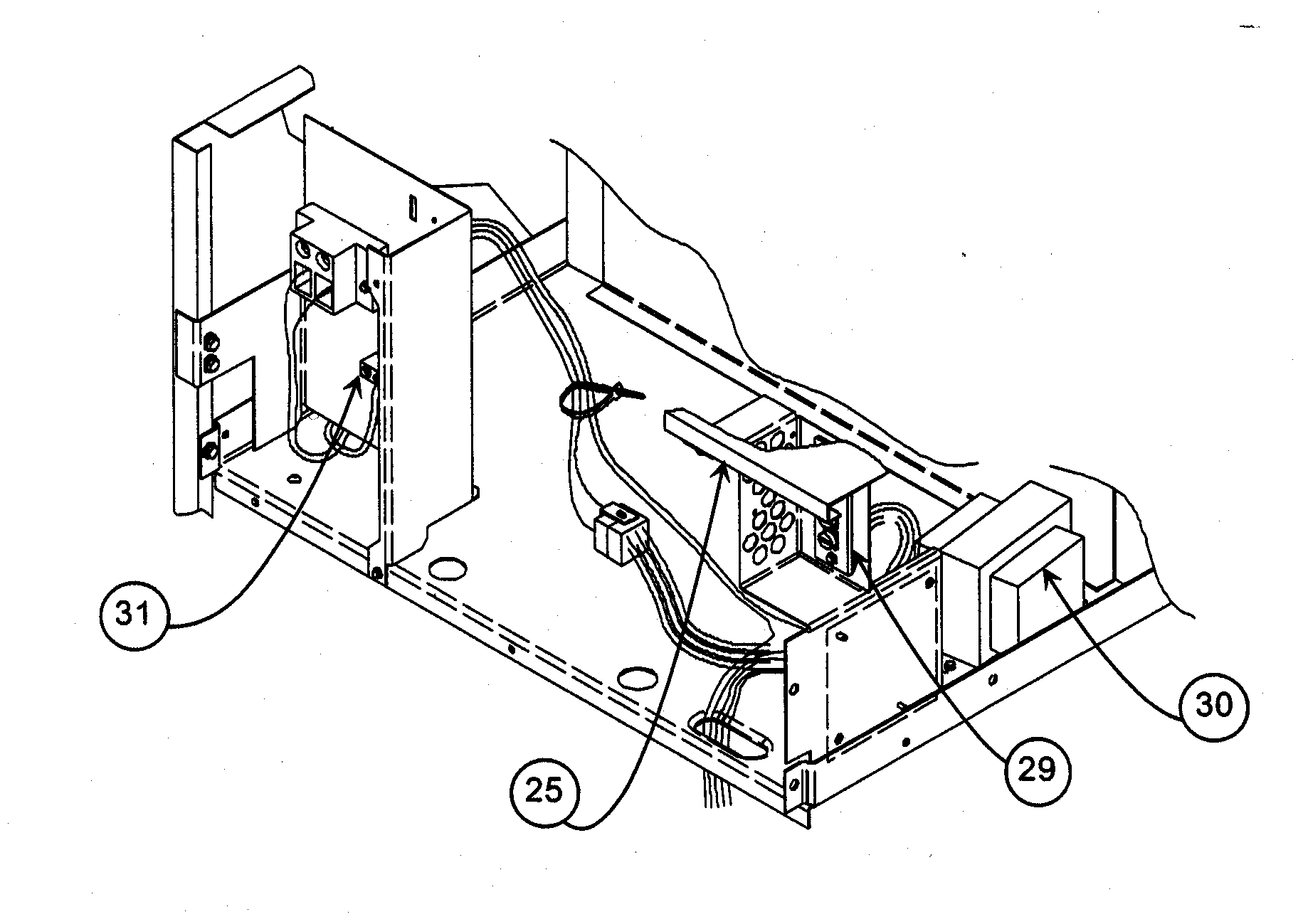

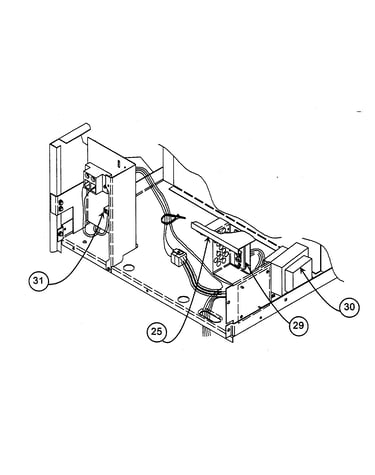

Control board diagram

Central air conditioner air handler fan control board

Part #HK61EA006

This item is not returnable
$93.96 |
6% OFF Phone Price : $99.96
In Stock
Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
#30

Control board diagram

Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

$114.94
In Stock
Bracket 314900-203
#6

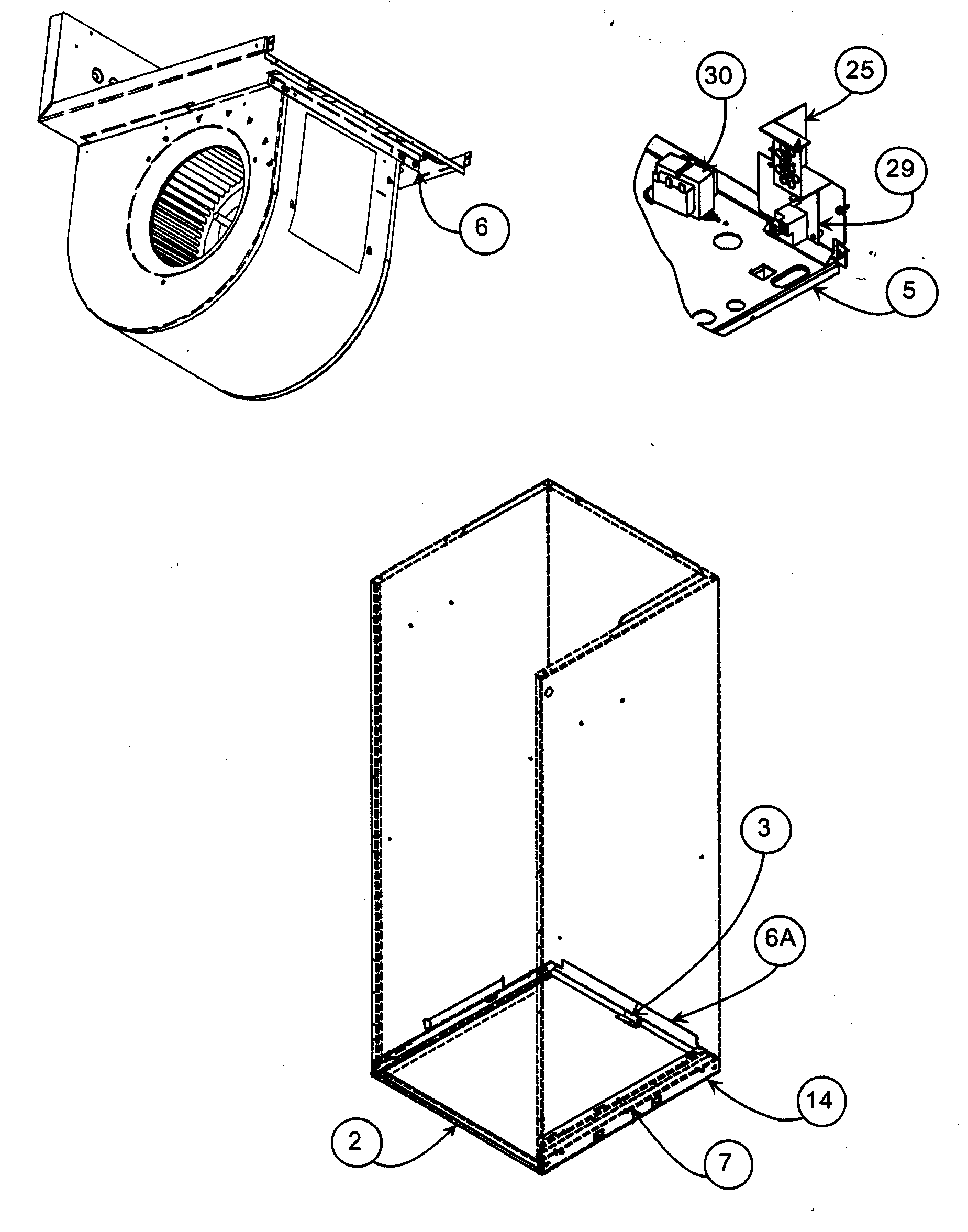

Blower assy diagram

Bracket

Part #314900-203

$17.49
In Stock
Payne Distr Liqd 319072-408
#49

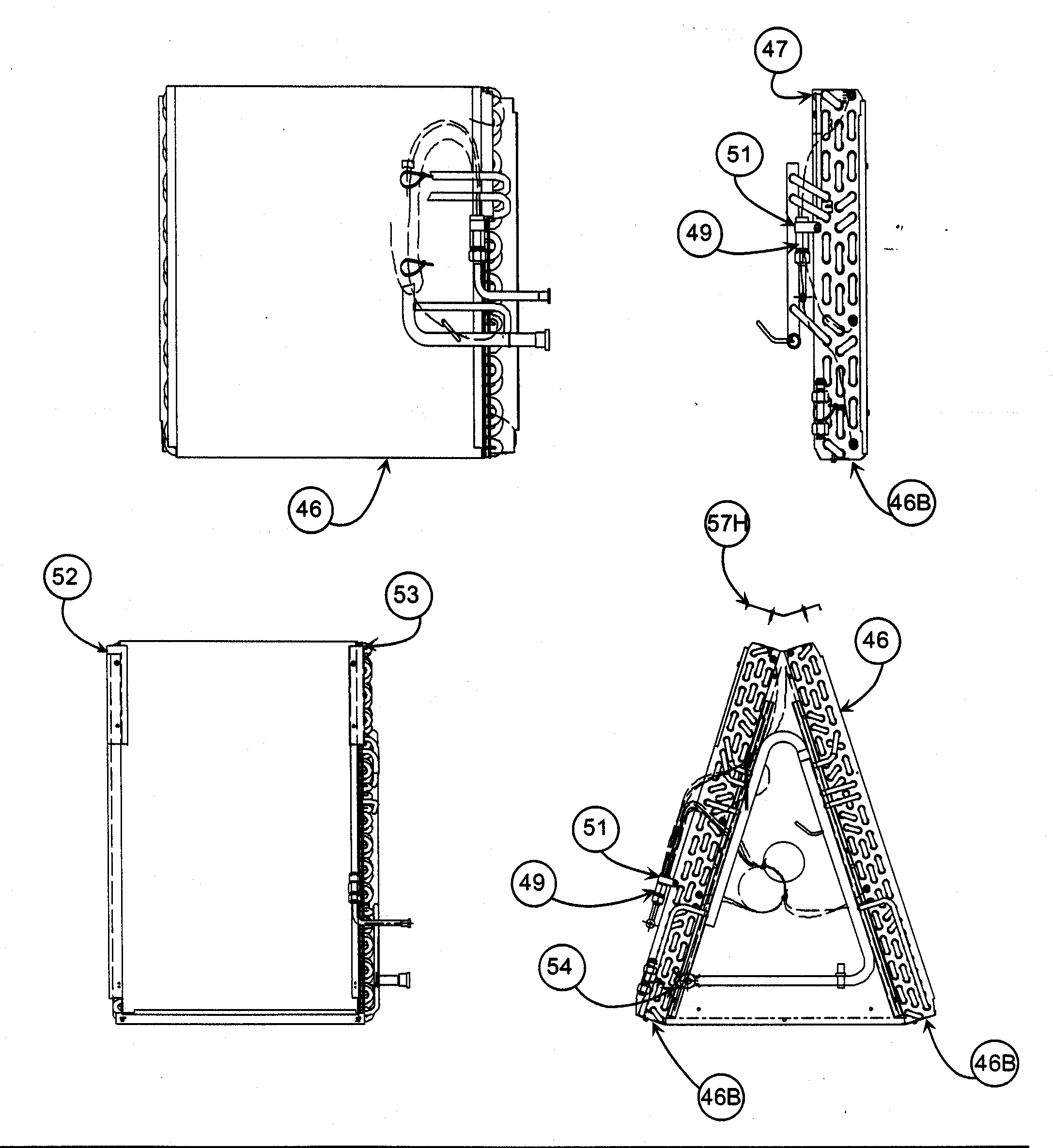

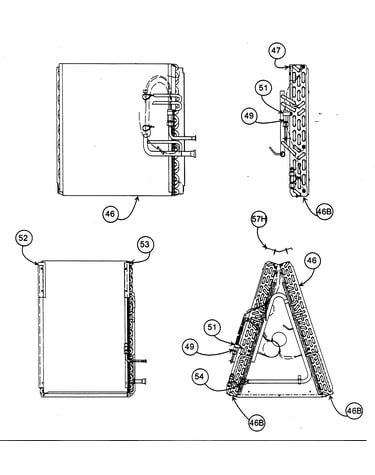

Coil assy diagram

Payne distr liqd

Part #319072-408

$160.76
In Stock
Channel 316808-301
#47

Coil assy diagram

Channel

Part #316808-301

This item is not returnable
$2.16
In Stock
Connector HY90AZ021
#31

Control board diagram

Connector

Part #HY90AZ021

$14.03
In Stock
Capactr Run P291-1003
#NI

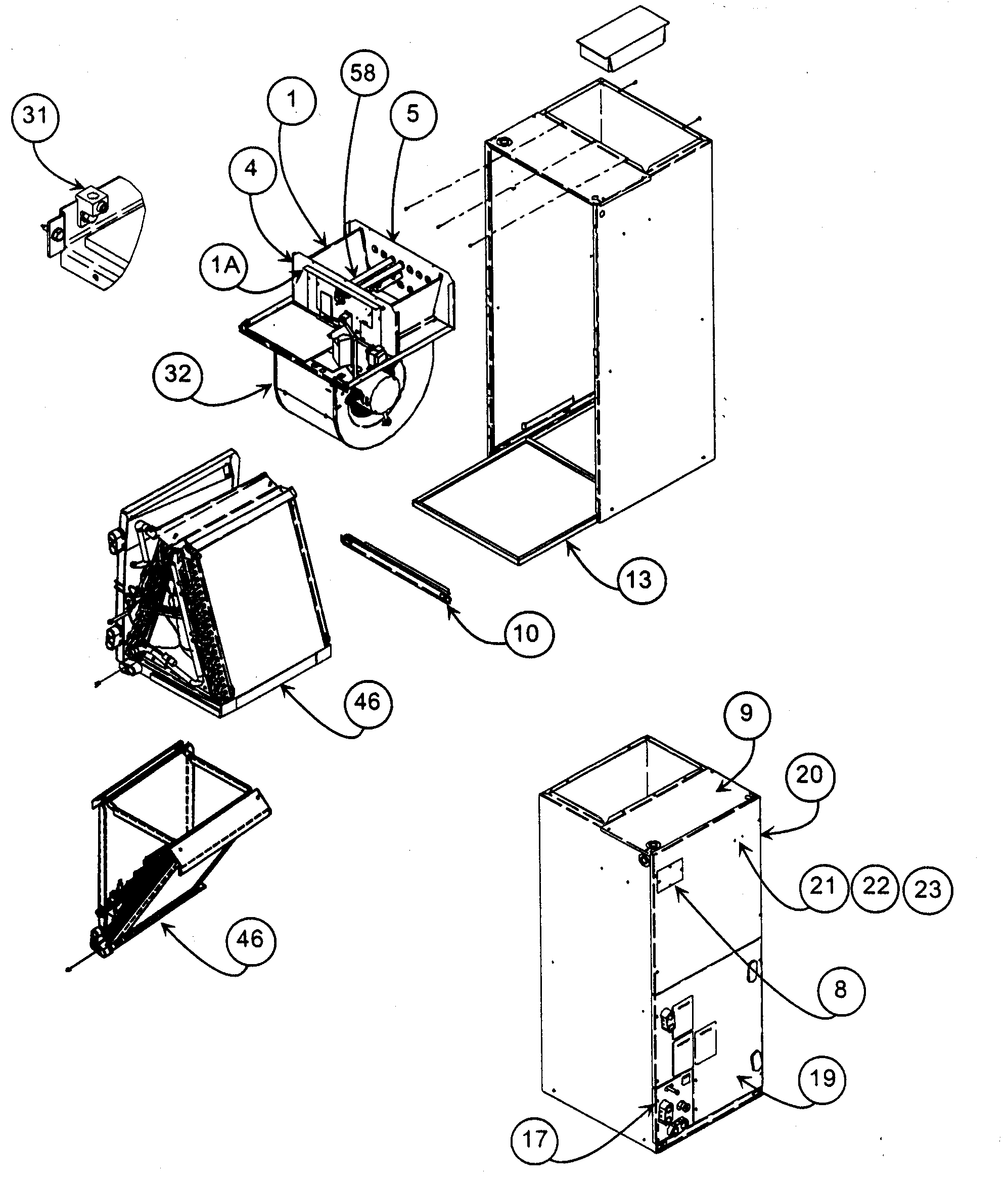

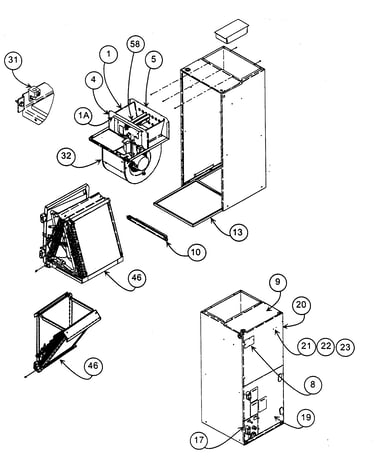

Casing assy diagram

Capactr run

Part #P291-1003

Replaced by #12908

?
Manufacturer substitution
This part replaces P291-1003. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Shield 314925-302
#46B

Coil assy diagram

Shield

Part #314925-302

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 312250-409
#23

Casing assy diagram

Nameplate

Part #312250-409

The manufacturer no longer makes this part, and there's no substitute part

Plate 314895-403
#4

Casing assy diagram

Plate

Part #314895-403

The manufacturer no longer makes this part, and there's no substitute part
