Dacor
Range Hood

Model # EHR3612SCH Official Dacor range hood

Here are the diagrams and repair parts for Official Dacor EHR3612SCH range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Range Hood Light Bulb 92348
#22

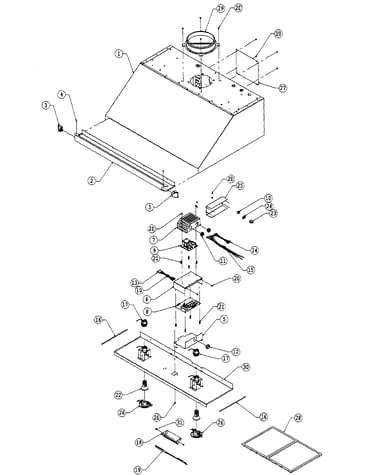

Range hood diagram

Range hood light bulb

Part #92348

$39.99
In Stock
Range Hood Light Bulb Trim Ring 62352
#26

Range hood diagram

Range hood light bulb trim ring

Part #62352

$44.99
In Stock
Range Hood Electronic Control Board 101618
#8

Range hood diagram

Range hood electronic control board

Part #101618

$81.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
#20

Range hood diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
#31

Range hood diagram

Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Plate 101642
#5

Range hood diagram

Plate

Part #101642

$15.99
In Stock
Me Harness 102507
#13

Range hood diagram

Me harness

Part #102507

$36.49
In Stock
Bushing 102429-01
#12

Range hood diagram

Bushing

Part #102429-01

This item is not returnable
$2.16
In Stock
Rocker Switch 102887
#23

Range hood diagram

Rocker switch

Part #102887

This item is not returnable
$2.99
In Stock
Switch Cap 103606
#24

Range hood diagram

Switch cap

Part #103606

This item is not returnable
$2.16
In Stock
