Model # 9119592590 Official Kenmore electric freestanding range
Here are the diagrams and repair parts for Official Kenmore 9119592590 electric freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

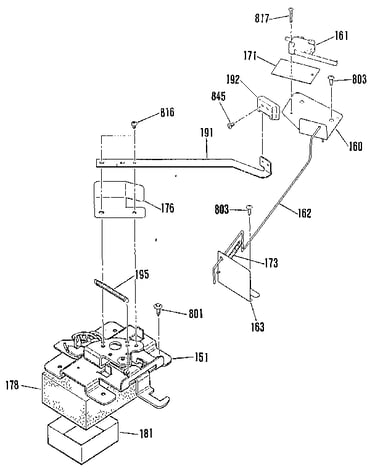

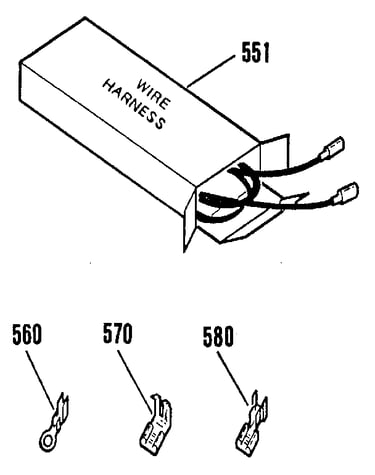

SELECT DIAGRAM
Browse Parts for
9119592590 Ranges
#253

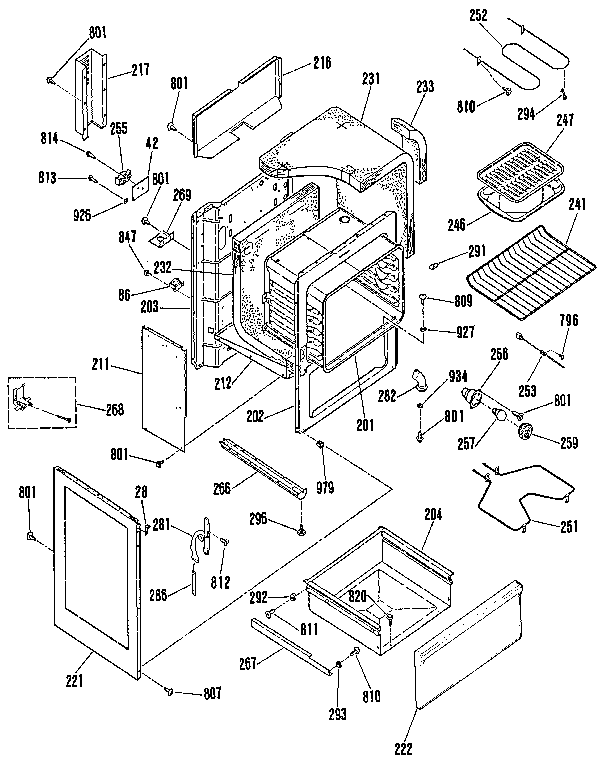

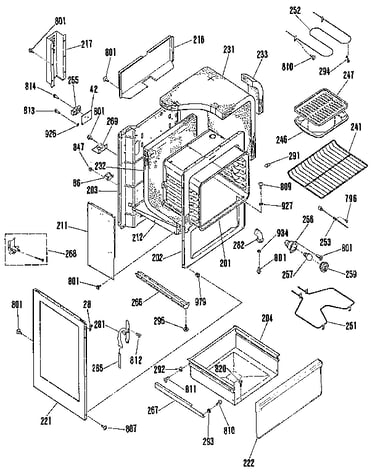

Body section diagram
Sensor
Part #WB20X0106
Replaced by #WB21X5301
?
Manufacturer substitution
This part replaces WB20X0106. Substitute parts can look different from the original.
$166.75 |
7% OFF Phone Price : $178.75
In Stock
#281A
Body section diagram
Hinge
Part #WB14X0103
Replaced by #WB14X103
?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
$42.04 |
12% OFF Phone Price : $48.04
In Stock
#281B
Body section diagram
Hinge
Part #WB14X0104
Replaced by #WB14X104
?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
$54.47 |
10% OFF Phone Price : $60.47
In Stock
#19B

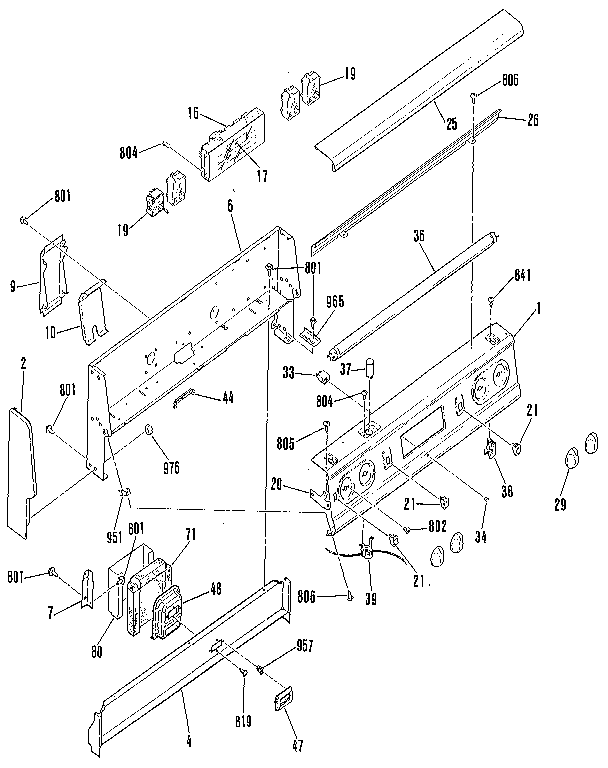

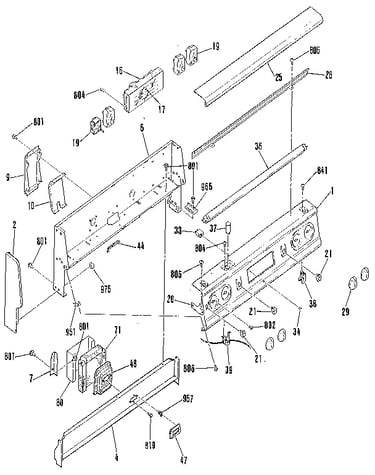

Backguard section diagram
Control
Part #WB23M0024
Replaced by #WB23M24
?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06 |
7% OFF Phone Price : $91.06
In Stock
#251
Body section diagram
Bake element
Part #WB44M0001
The manufacturer no longer makes this part, and there's no substitute part
#58

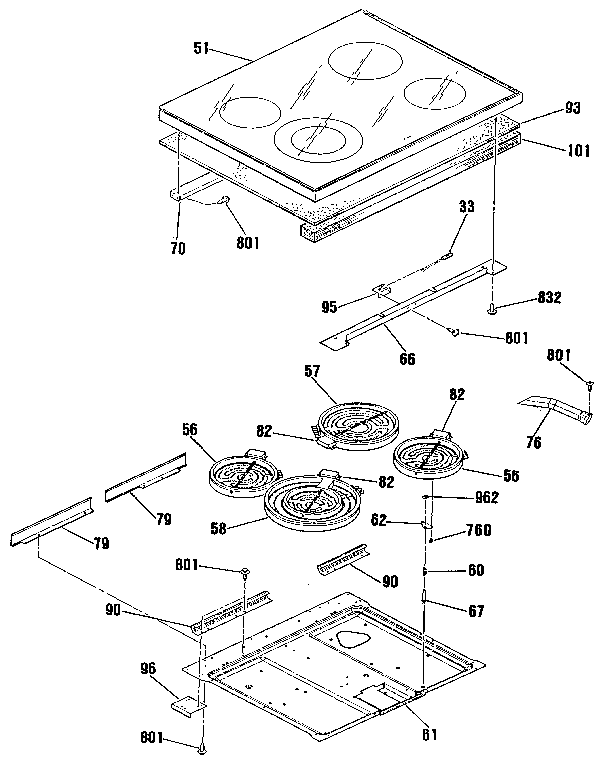

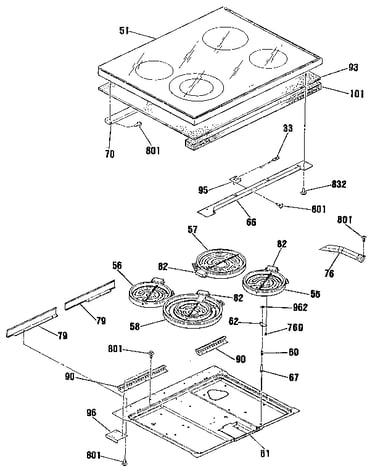

Main top section diagram
Sur ele 2400
Part #WB23M0010
Replaced by #WB30X38934
?
Manufacturer substitution
This part replaces WB23M0010. Substitute parts can look different from the original.
$270.65
In Stock
#132

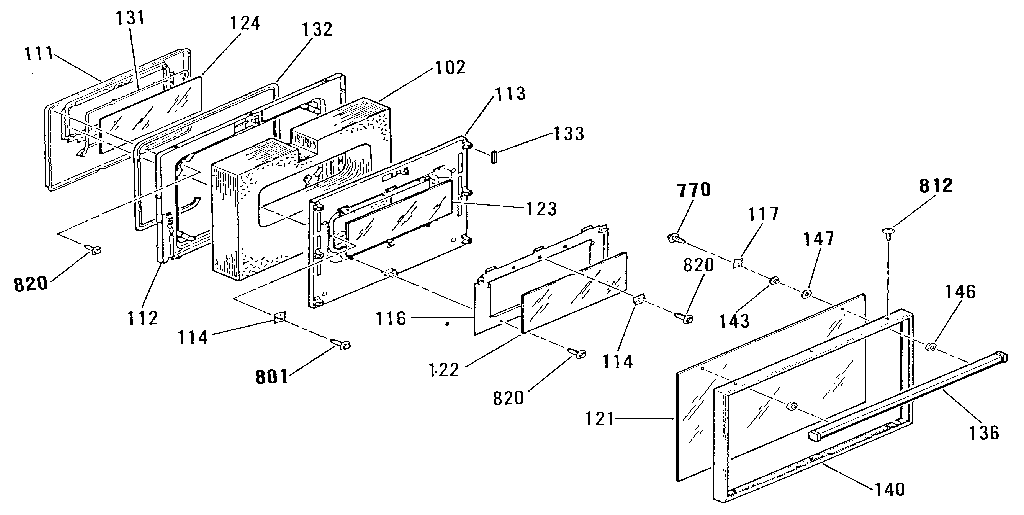

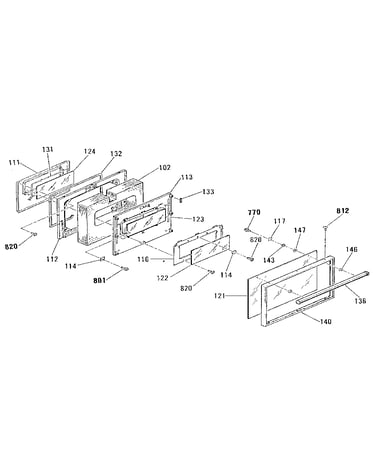

Oven door section diagram
Oven door gasket
Part #WB02K5221
Replaced by #WB2K5319
?
Manufacturer substitution
This part replaces WB02K5221. Substitute parts can look different from the original.
$196.51 |
6% OFF Phone Price : $208.51
In Stock
#19A
Backguard section diagram
Element control
Part #WB23M0023
Replaced by #WB23M23
?
Manufacturer substitution
This part replaces WB23M0023. Substitute parts can look different from the original.
$137.95 |
8% OFF Phone Price : $149.95
In Stock
#255
Body section diagram
Pwr ring hou
Part #WB17M0005
Replaced by #WB17X5095
?
Manufacturer substitution
This part replaces WB17M0005. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
#247
Body section diagram
Grid broil
Part #WB49X0627
Replaced by #WB48X10056
?
Manufacturer substitution
This part replaces WB49X0627. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
