Lawn & Garden Engine

Model # V60-70252H Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh V60-70252H 4-cycle engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

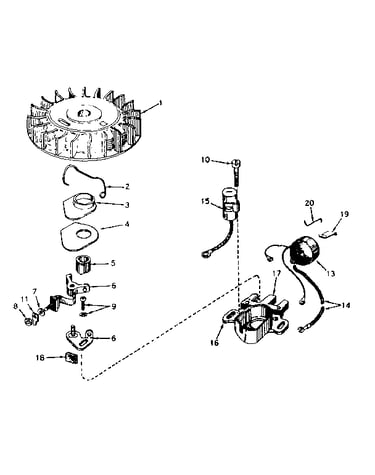

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
V60-70252H 4-Cycle Engine
Fuel Line 29774
#134

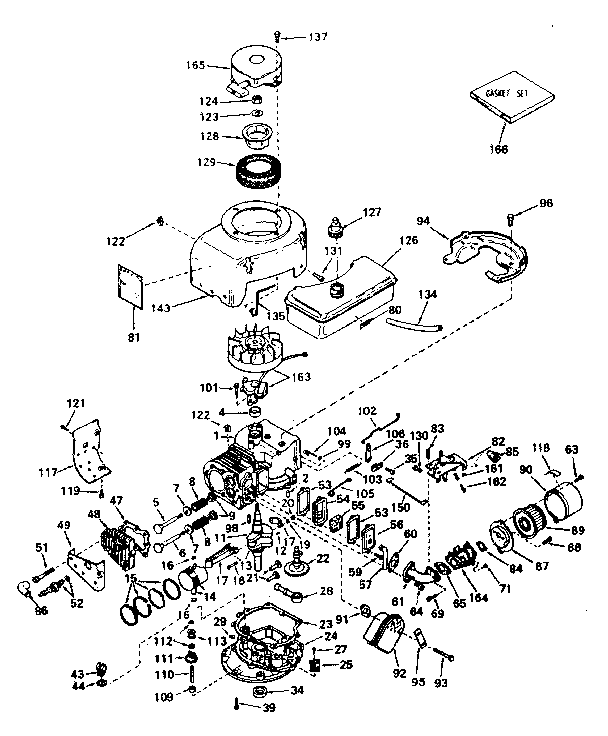

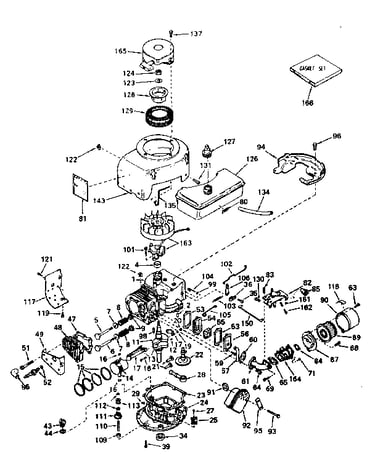

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#55

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#43

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#88

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#57

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Thrtle Sprng 631279
#2

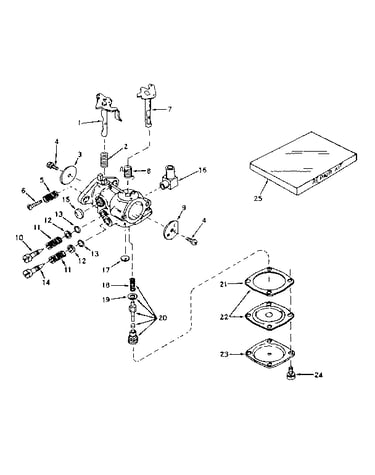

Carburetor no. 631451 diagram

Thrtle sprng

Part #631279

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

Carburetor no. 631451 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

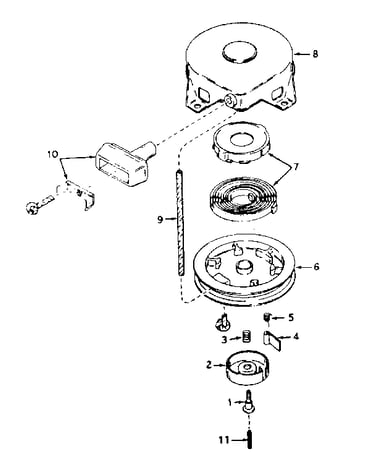

Rewnd Startr 590420
Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Body 31692
#90

Basic engine diagram

Body

Part #31692

The manufacturer no longer makes this part, and there's no substitute part

Knob 32410
#85

Basic engine diagram

Knob

Part #32410

The manufacturer no longer makes this part, and there's no substitute part
