GE
Range Hood

Model # UVH13013M2DS Official GE range hood

Here are the diagrams and repair parts for Official GE UVH13013M2DS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Harness Mc Interface Board WB18X33216
#39

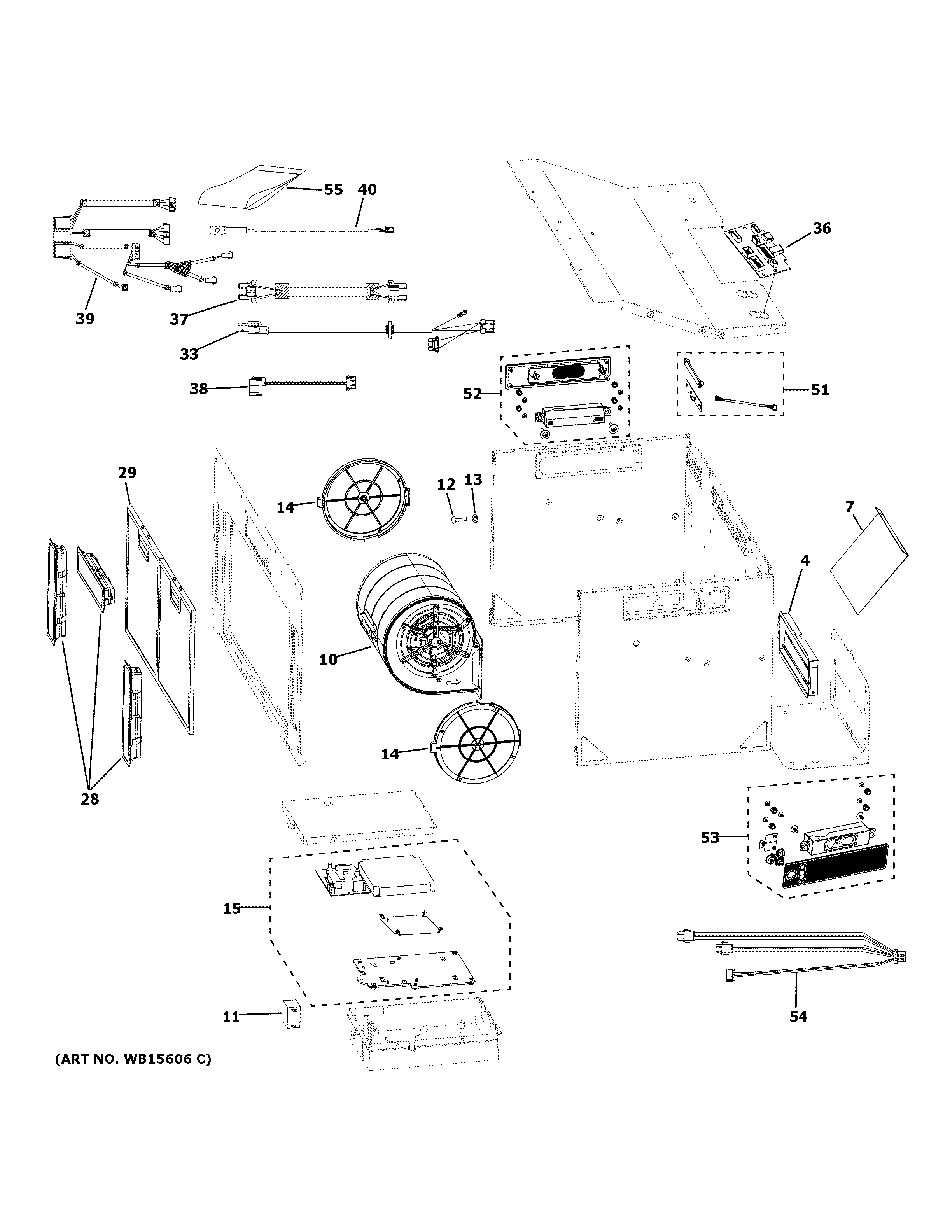

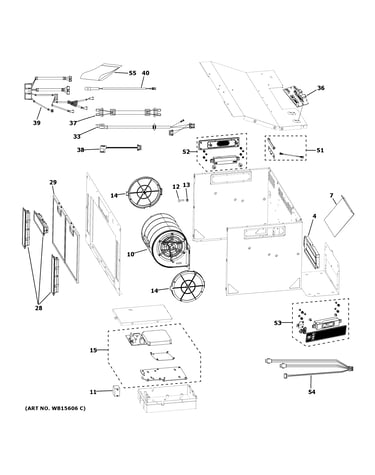

Hood assembly diagram

Harness mc interface board

Part #WB18X33216

$48.26 |
11% OFF Phone Price : $54.26
In Stock
Hardware Bag WB01X33199
#55

Hood assembly diagram

Hardware bag

Part #WB01X33199

$30.58
In Stock
Rj45 Harness Assembly WB18X33198
#38

Hood assembly diagram

Rj45 harness assembly

Part #WB18X33198

$11.66
In Stock
Speakers Left Assembly WB02X33204
#52

Hood assembly diagram

Speakers left assembly

Part #WB02X33204

$102.67
In Stock
Speakers Right Assembly WB02X33208
#53

Hood assembly diagram

Speakers right assembly

Part #WB02X33208

$101.11
In Stock
Motion And Light Sensor Assembly WB25X33200
#43

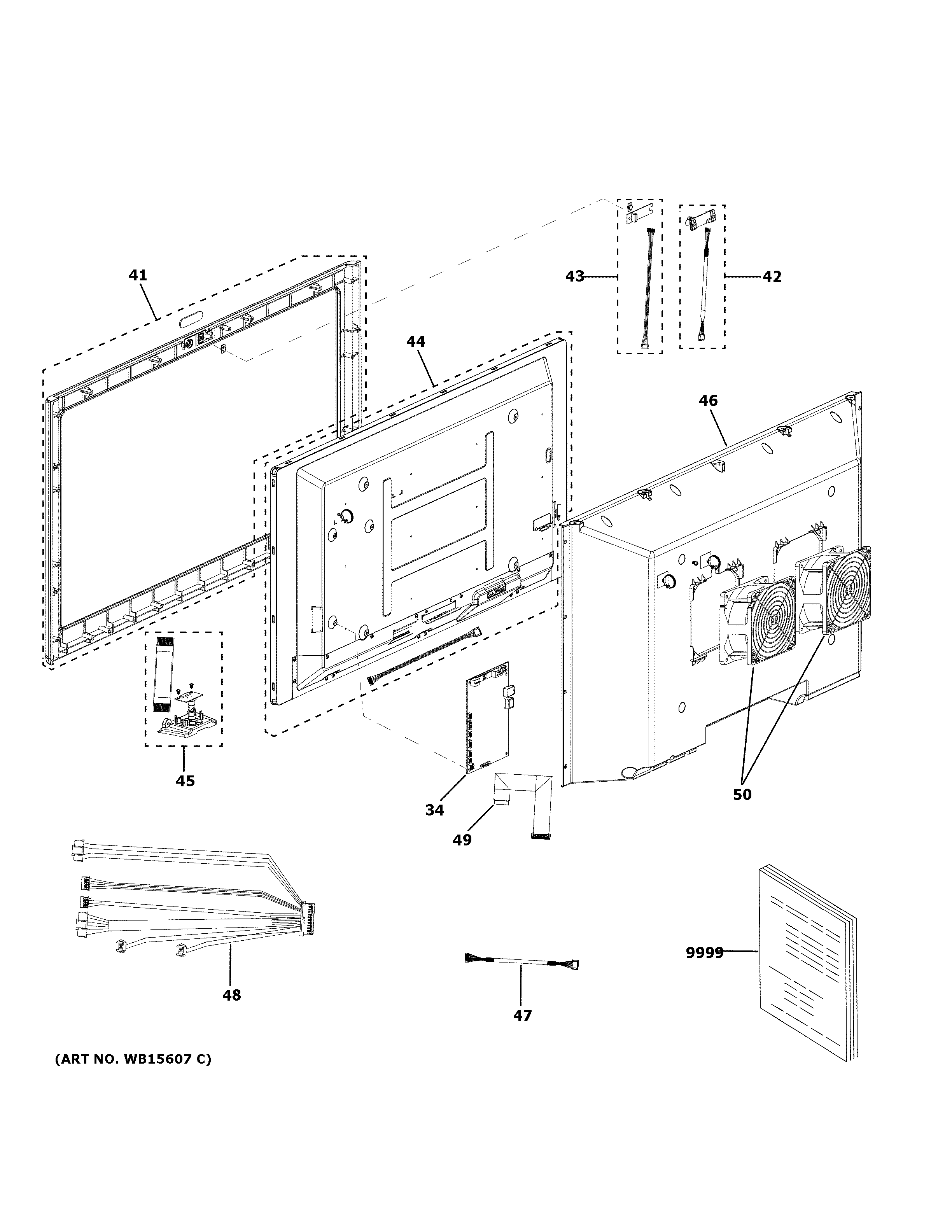

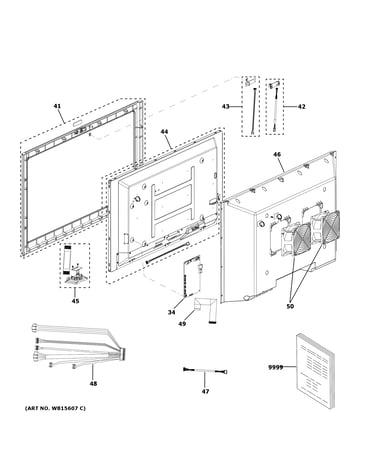

Touch screen assembly diagram

Motion and light sensor assembly

Part #WB25X33200

$152.06
In Stock
Pcb Microphone Assembly WB27X33190
#51

Hood assembly diagram

Pcb microphone assembly

Part #WB27X33190

$217.77
In Stock
Pcb Down Facing Camera Assembly WB27X33202
#45

Touch screen assembly diagram

Pcb down facing camera assembly

Part #WB27X33202

$351.27
In Stock
Spring Washer WB01X33195
#13

Hood assembly diagram

Spring washer

Part #WB01X33195

This item is not returnable
$5.00
In Stock
Blower Motor WB26X30510
#10

Hood assembly diagram

Blower motor

Part #WB26X30510

$248.84
In Stock
