Model # PDWF200P00WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDWF200P00WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

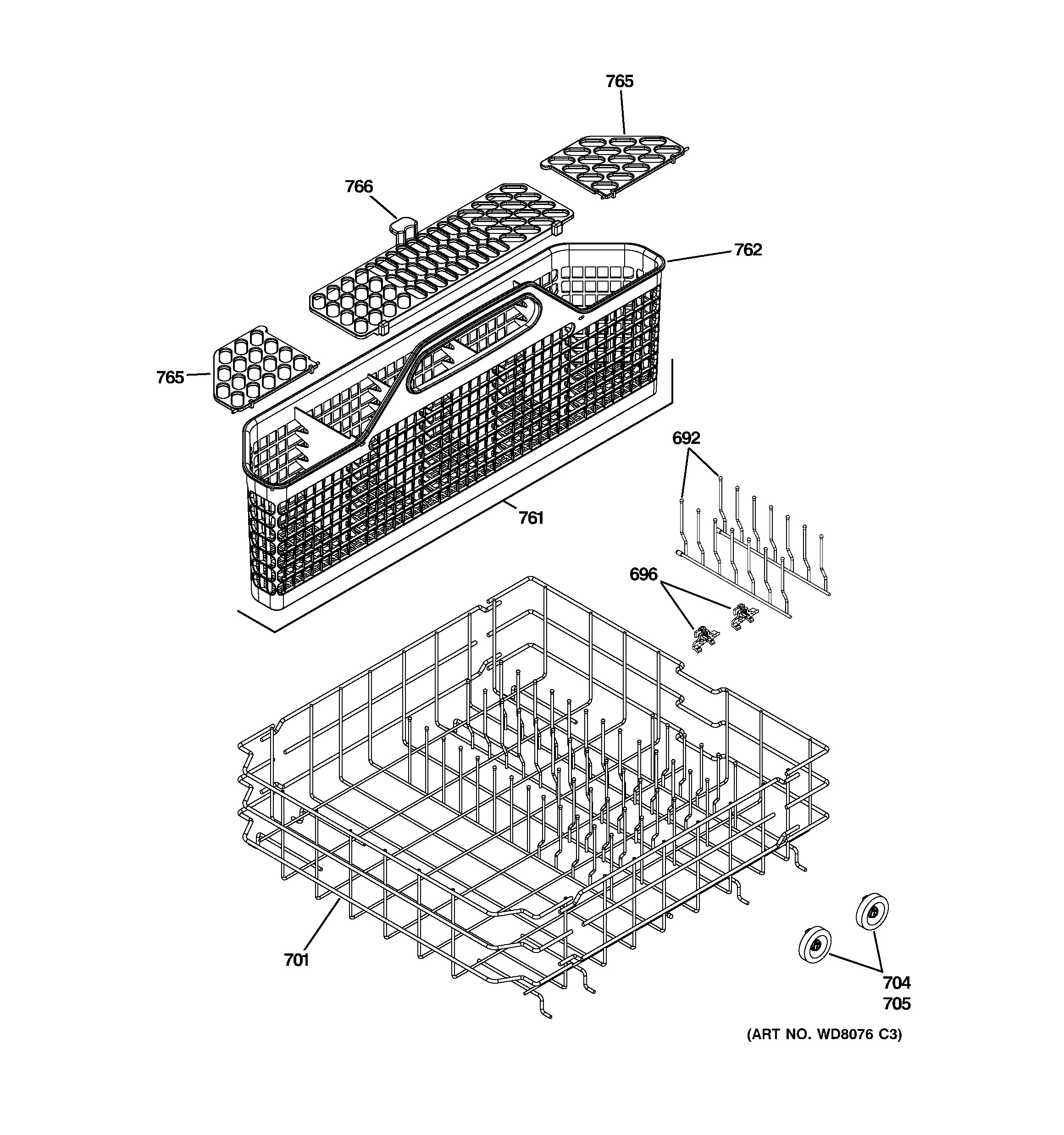

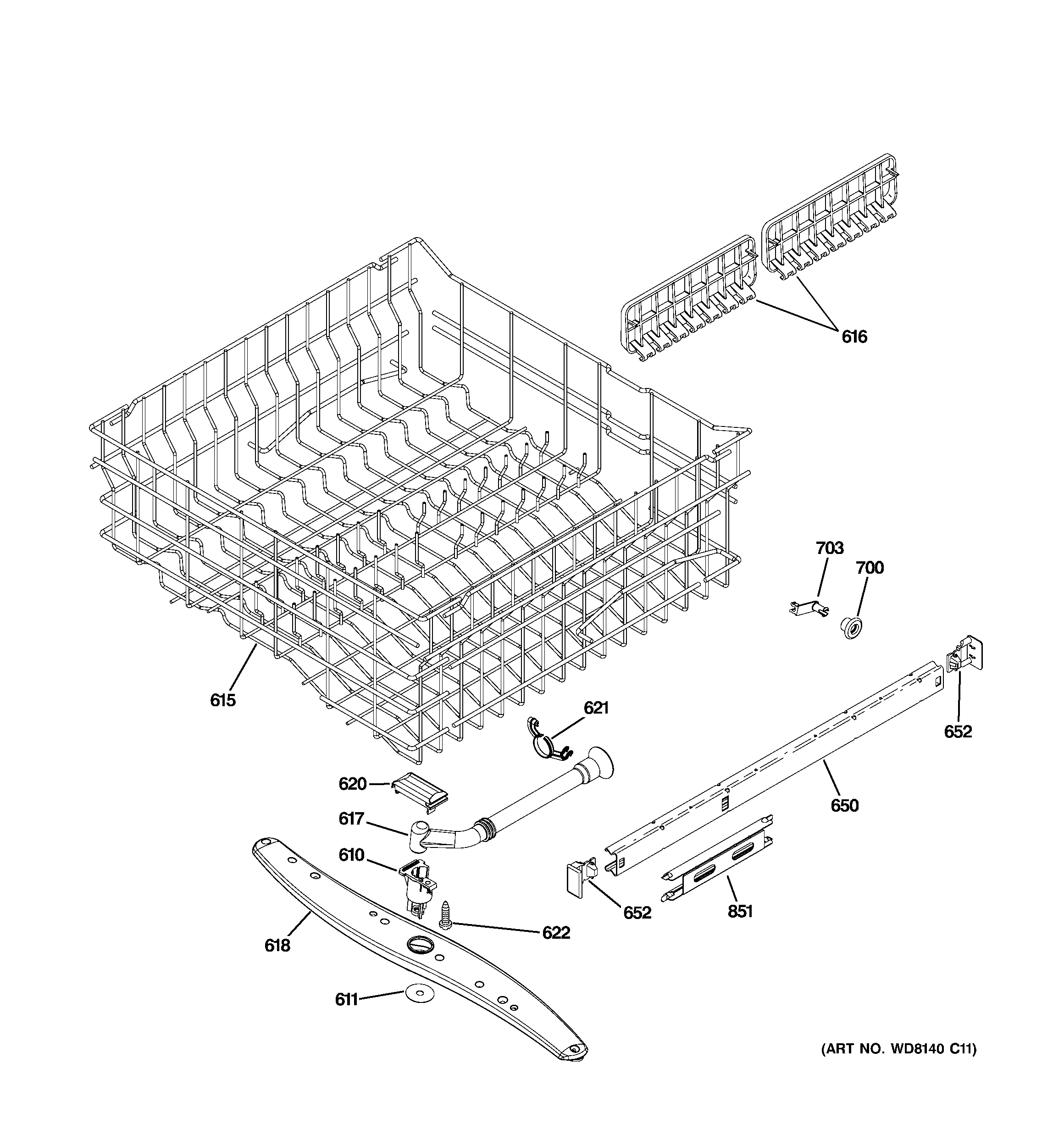

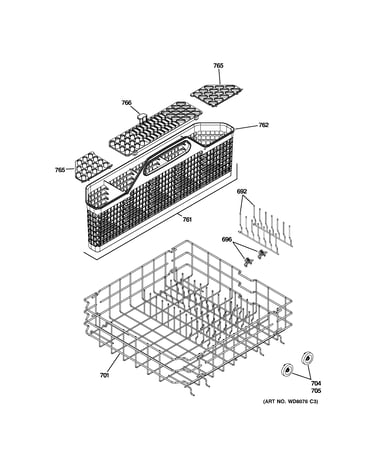

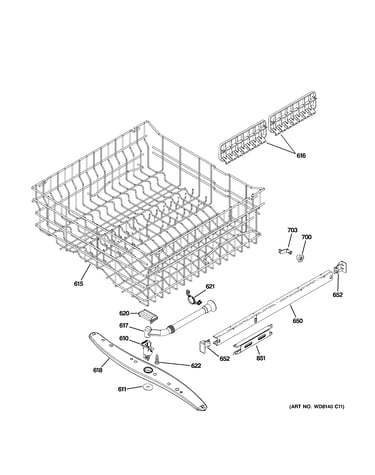

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Dishwasher Detergent Dispenser Assembly WD12X10163
#811

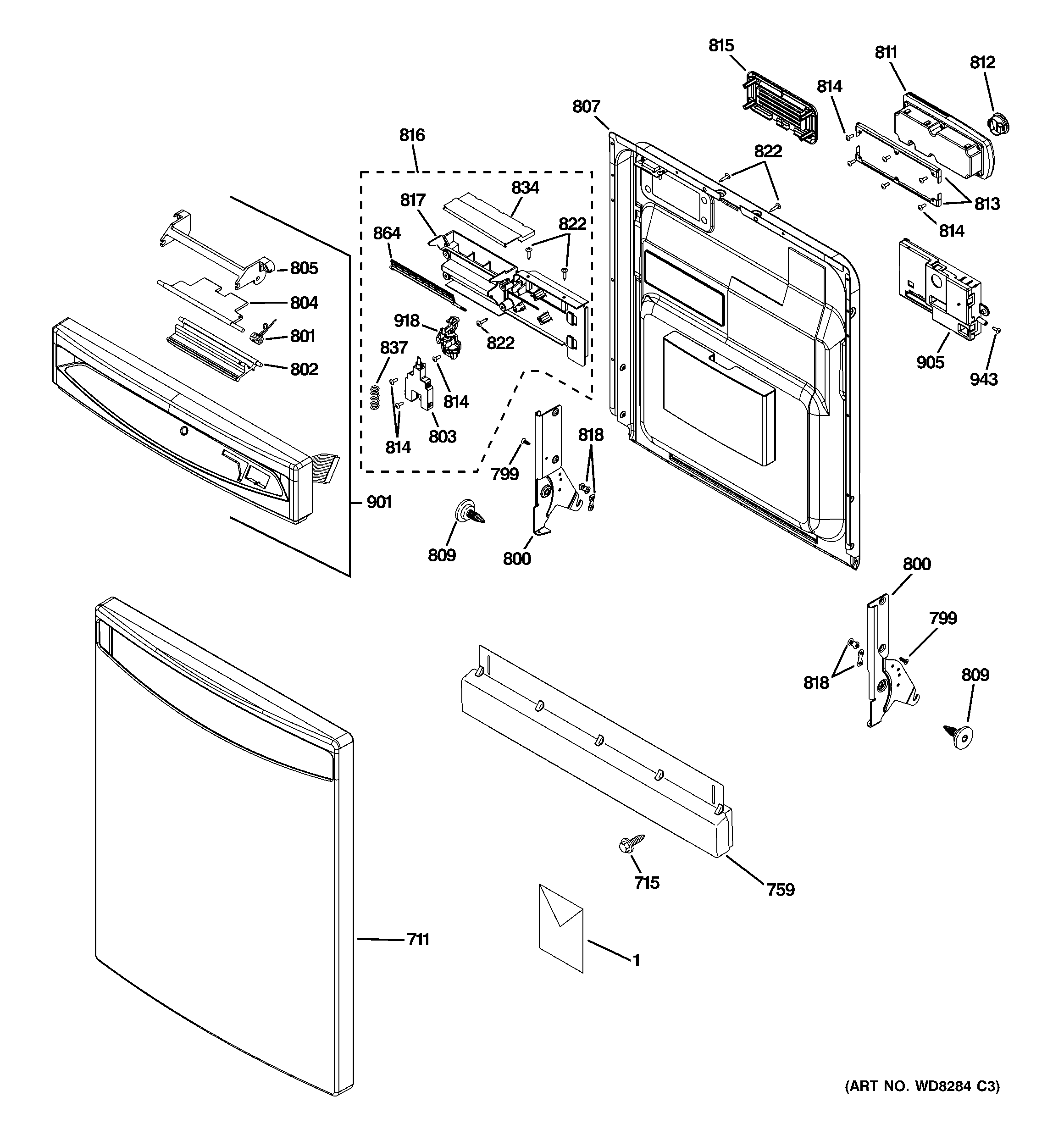

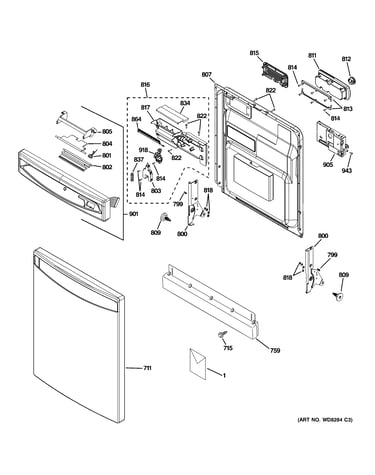

Escutcheon & door assembly diagram

Dishwasher detergent dispenser assembly

Part #WD12X10163

Replaced by #WD12X10237

?
Manufacturer substitution
This part replaces WD12X10163. Substitute parts can look different from the original.
BEST SELLER
$38.03 |
14% OFF Phone Price : $44.03
In Stock
Recess Sprng WR02X10585
#801

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
BEST SELLER
$7.91 |
11% OFF Phone Price : $8.91
In Stock
Mechanism Assembly WD26X10033
#310

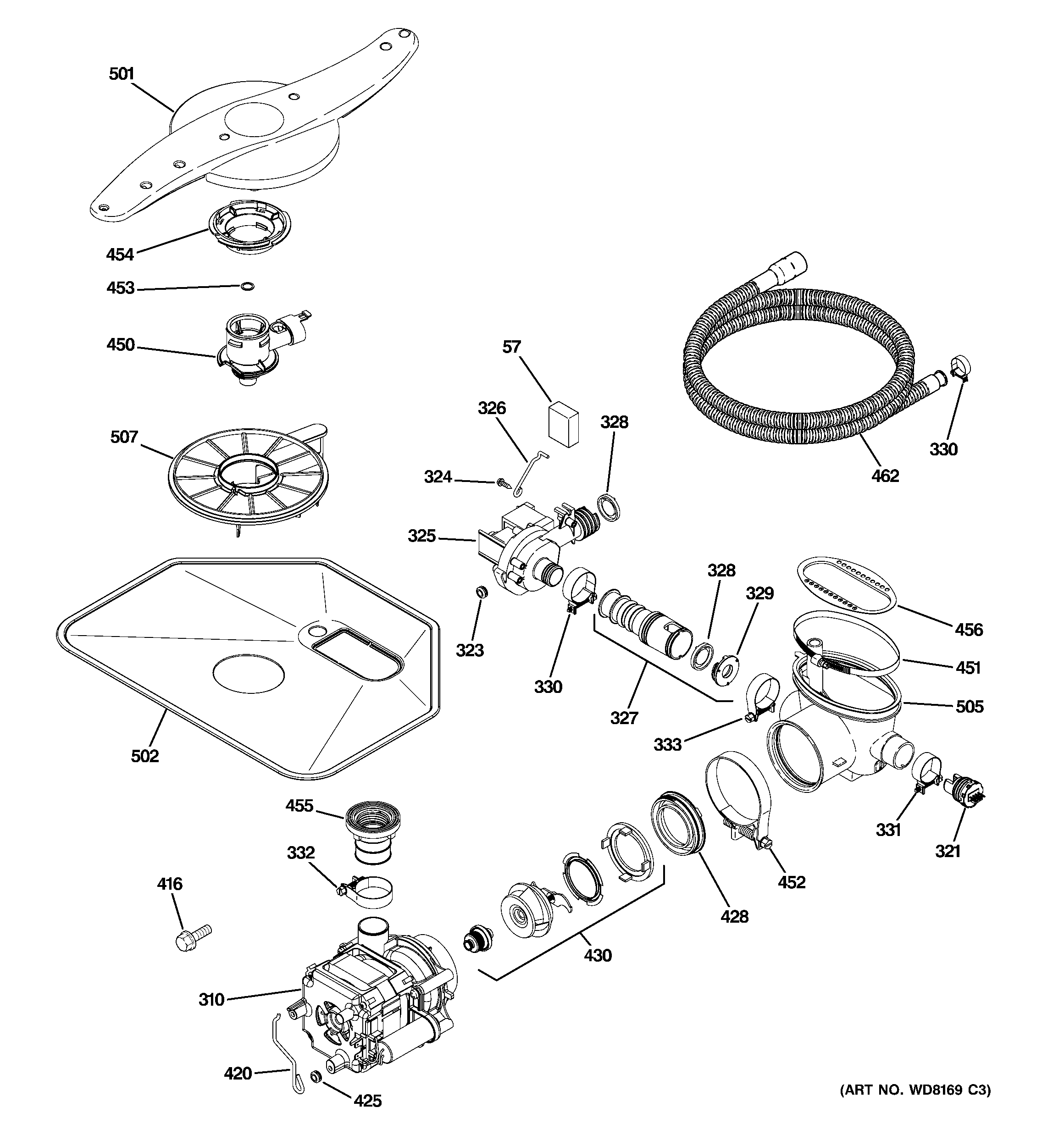

Motor-pump mechanism diagram

Mechanism assembly

Part #WD26X10033

Replaced by #WD26X10053

?
Manufacturer substitution
This part replaces WD26X10033. Substitute parts can look different from the original.
BEST SELLER
$276.05 |
$12.00 OFF Phone Price : $288.05
In Stock
Water Valve WD15X10011
#744

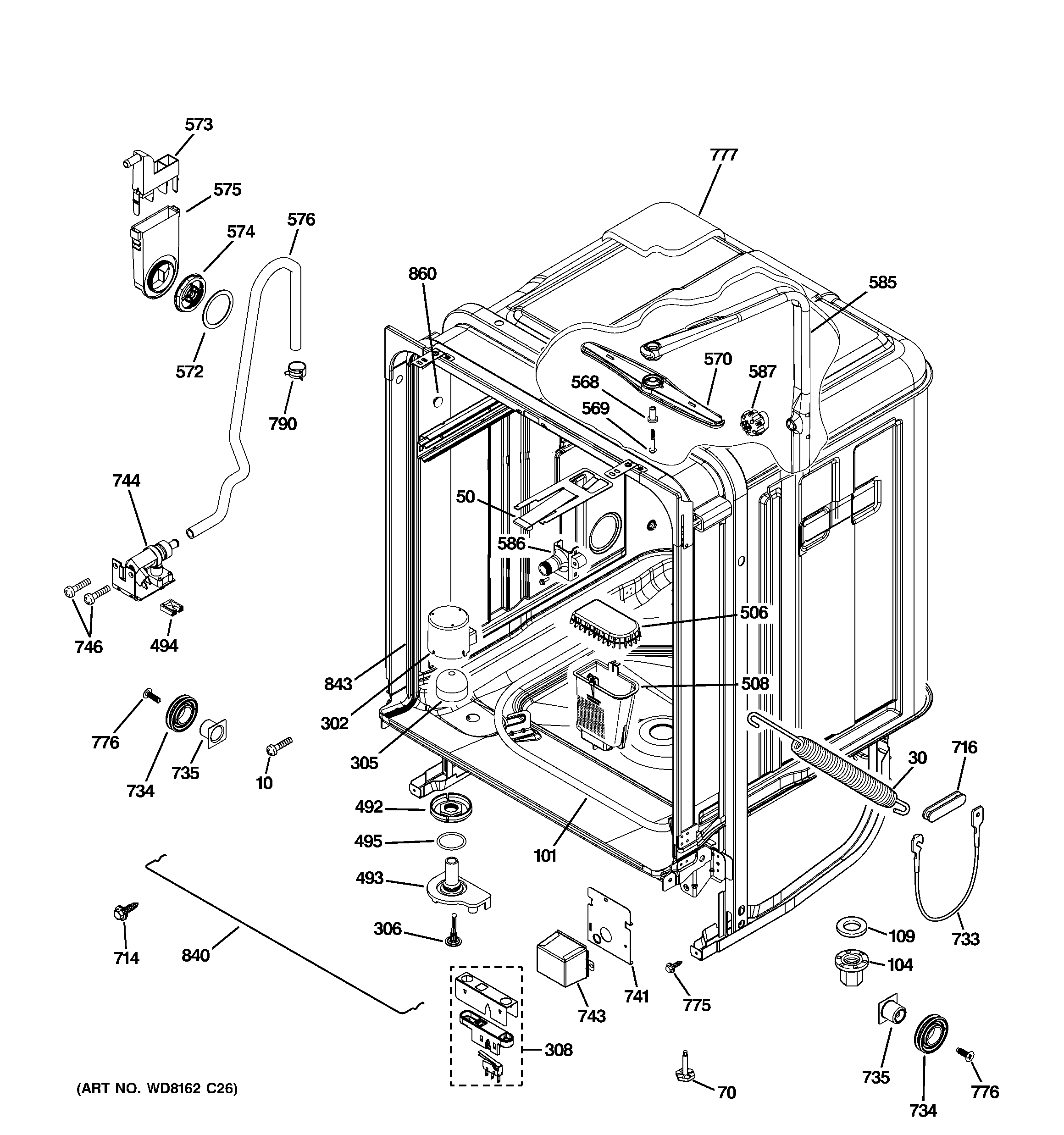

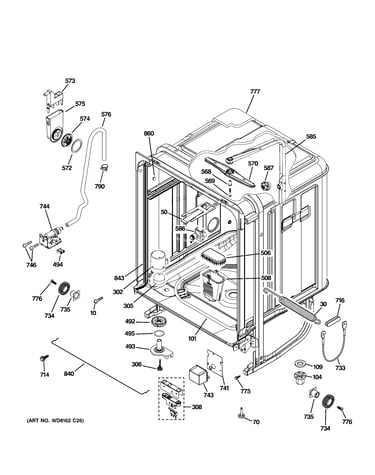

Body parts diagram

Water valve

Part #WD15X10011

Replaced by #WD15X10014

?
Manufacturer substitution
This part replaces WD15X10011. Substitute parts can look different from the original.
BEST SELLER
$33.34 |
15% OFF Phone Price : $39.34
In Stock
Dishwasher Tub Gasket WD08X10032
#843

Body parts diagram

Dishwasher tub gasket

Part #WD08X10032

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Dishwasher Pump Impeller Kit WD19X10038
#430

Motor-pump mechanism diagram

Dishwasher pump impeller kit

Part #WD19X10038

BEST SELLER
$46.86 |
11% OFF Phone Price : $52.86
In Stock
Dishwasher Door Hinge Arm Link WD14X10009
#716

Body parts diagram

Dishwasher door hinge arm link

Part #WD14X10009

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Sump Clamp WD01X1392
#452

Motor-pump mechanism diagram

Sump clamp

Part #WD01X1392

Replaced by #WD1X1392

?
Manufacturer substitution
This part replaces WD01X1392. Substitute parts can look different from the original.
BEST SELLER
$25.72 |
19% OFF Phone Price : $31.72
In Stock
Cable WD01X10235
#733

Body parts diagram

Cable

Part #WD01X10235

Replaced by #WD01X10393

?
Manufacturer substitution
This part replaces WD01X10235. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.03 |
12% OFF Phone Price : $16.03
In Stock
Dishwasher Sump Inlet WD18X10026
#505

Motor-pump mechanism diagram

Dishwasher sump inlet

Part #WD18X10026

$29.40 |
17% OFF Phone Price : $35.40
In Stock
