Mitsubishi
LCD Television

Model # LT-46265 Official Mitsubishi lcd television

Here are the diagrams and repair parts for Official Mitsubishi LT-46265 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Lens-sbl 761C866010
#NI

Cabinet parts diagram

Lens-sbl

Part #761C866010

The manufacturer no longer makes this part, and there's no substitute part

Pcb Pamp2 934C385001
#P7

Cabinet parts diagram

Pcb pamp2

Part #934C385001

The manufacturer no longer makes this part, and there's no substitute part

Ic Mcz5203 271P353010
#NI

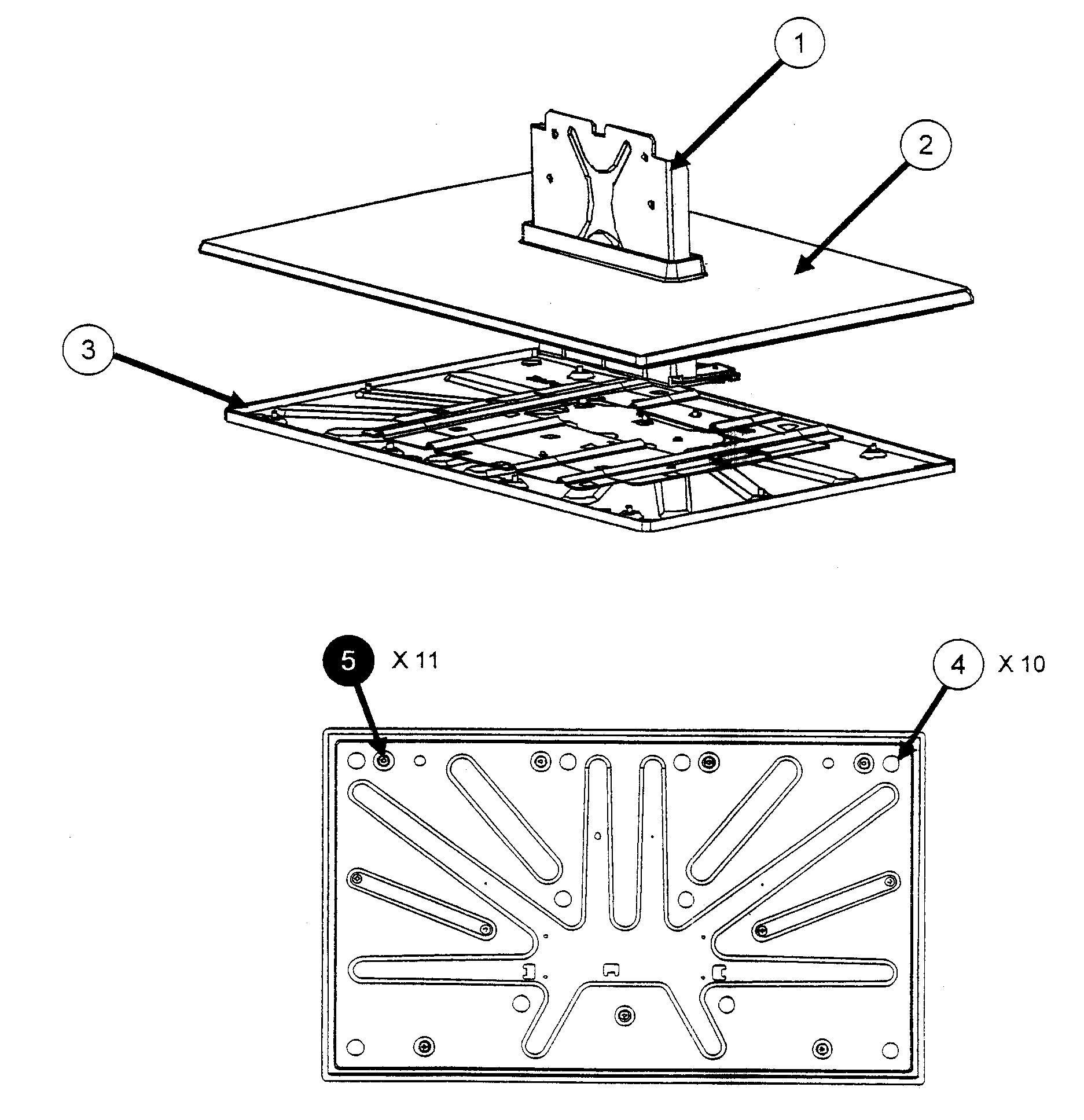

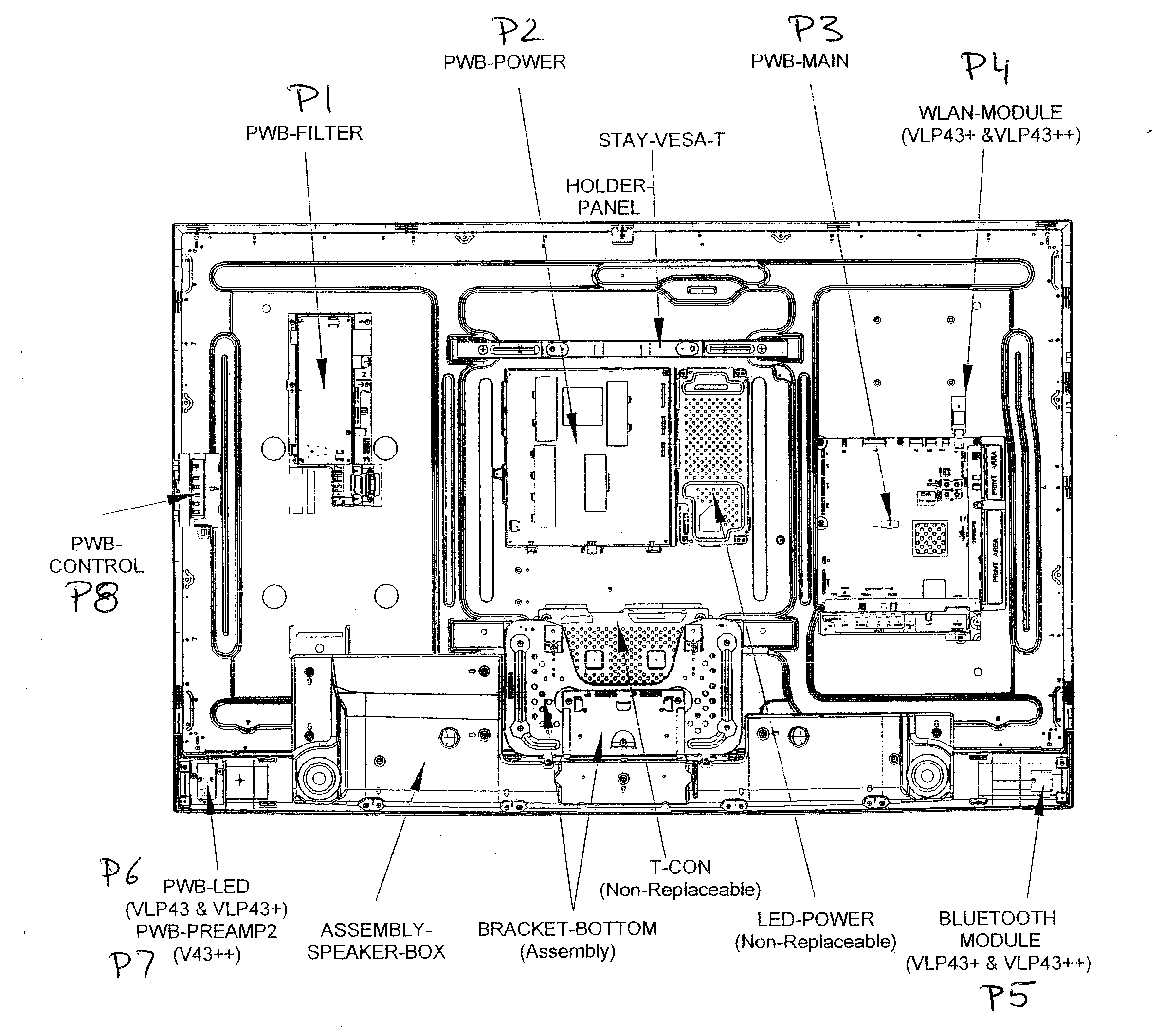

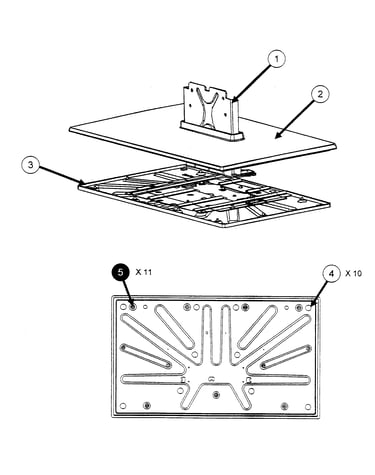

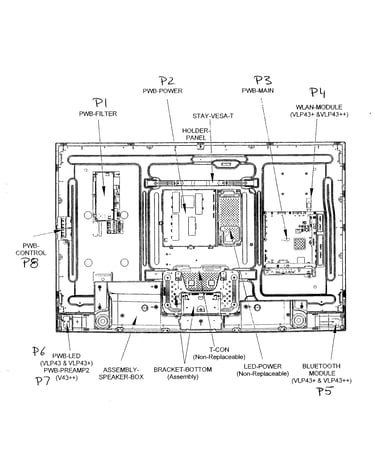

Lcd panel diagram

Ic mcz5203

Part #271P353010

The manufacturer no longer makes this part, and there's no substitute part

Line Filter 351P381010
#NI

Lcd panel diagram

Line filter

Part #351P381010

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer 350P881010
#NI

Lcd panel diagram

Power transformer

Part #350P881010

The manufacturer no longer makes this part, and there's no substitute part

Resistor Cement 109P273010
#NI

Lcd panel diagram

Resistor cement

Part #109P273010

The manufacturer no longer makes this part, and there's no substitute part

Guide Stand 852B206010
#NI

Lcd panel diagram

Guide stand

Part #852B206010

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb 934C386001
#P2

Lcd panel diagram

Power pcb

Part #934C386001

The manufacturer no longer makes this part, and there's no substitute part

Pcb Control 934C379001
#P8

Lcd panel diagram

Pcb control

Part #934C379001

The manufacturer no longer makes this part, and there's no substitute part

Ic Isl8014 271P323010
#NI

Lcd panel diagram

Ic isl8014

Part #271P323010

The manufacturer no longer makes this part, and there's no substitute part
