Model # RH4836XLB1 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool RH4836XLB1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Light Lens 8190212
#6

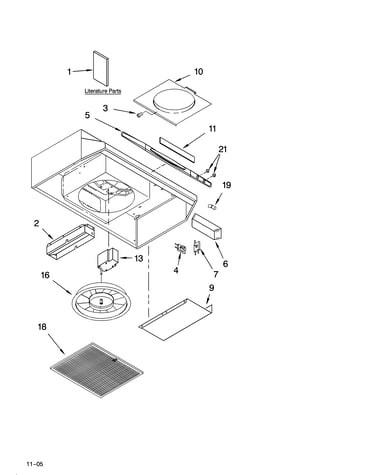

Range hood parts diagram

Light lens

Part #8190212

Replaced by #WP8190212

?
Manufacturer substitution
This part replaces 8190212. Substitute parts can look different from the original.
$53.29 |
10% OFF Phone Price : $59.29
In Stock
Range Hood Control Knob 8190218
#21

Range hood parts diagram

Range hood control knob

Part #8190218

$34.11
In Stock
Range Hood Light Switch 8190211
#7

Range hood parts diagram

Range hood light switch

Part #8190211

$87.69 |
6% OFF Phone Price : $93.69
In Stock
Fan Blade 8190053
#16

Range hood parts diagram

Fan blade

Part #8190053

Replaced by #WP8191110

?
Manufacturer substitution
This part replaces 8190053. Substitute parts can look different from the original.
$51.53
In Stock
Screw 8189871
#3

Range hood parts diagram

Screw

Part #8189871

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 8189871. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Filter 8190221
#18

Range hood parts diagram

Filter

Part #8190221

Replaced by #WP4396387

?
Manufacturer substitution
This part replaces 8190221. Substitute parts can look different from the original.
$16.07
In Stock
Filter 8190222
#21D

Range hood parts diagram

Filter

Part #8190222

Replaced by #WP4396388

?
Manufacturer substitution
This part replaces 8190222. Substitute parts can look different from the original.
$34.69 |
15% OFF Phone Price : $40.69
In Stock
Vent Grille 8190214
#5B

Range hood parts diagram

Vent grille

Part #8190214

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Hitch Pin 8190208
#21C

Range hood parts diagram

Range hood hitch pin

Part #8190208

The manufacturer no longer makes this part, and there's no substitute part

Molding 8190220
#11A

Range hood parts diagram

Molding

Part #8190220

The manufacturer no longer makes this part, and there's no substitute part
