Model # DWSR405GB0CC Official GE gas dryer

Here are the diagrams and repair parts for Official GE DWSR405GB0CC gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

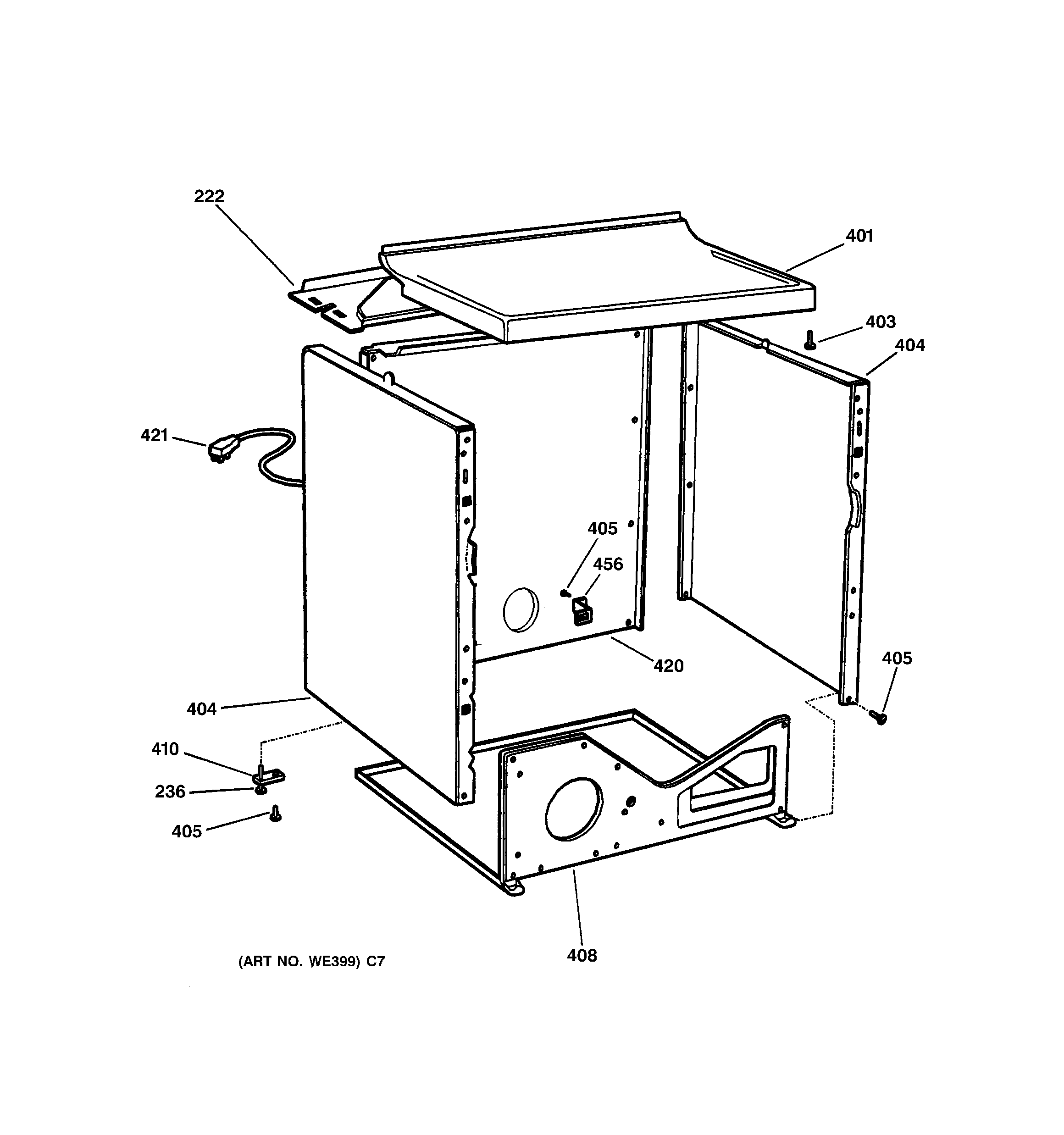

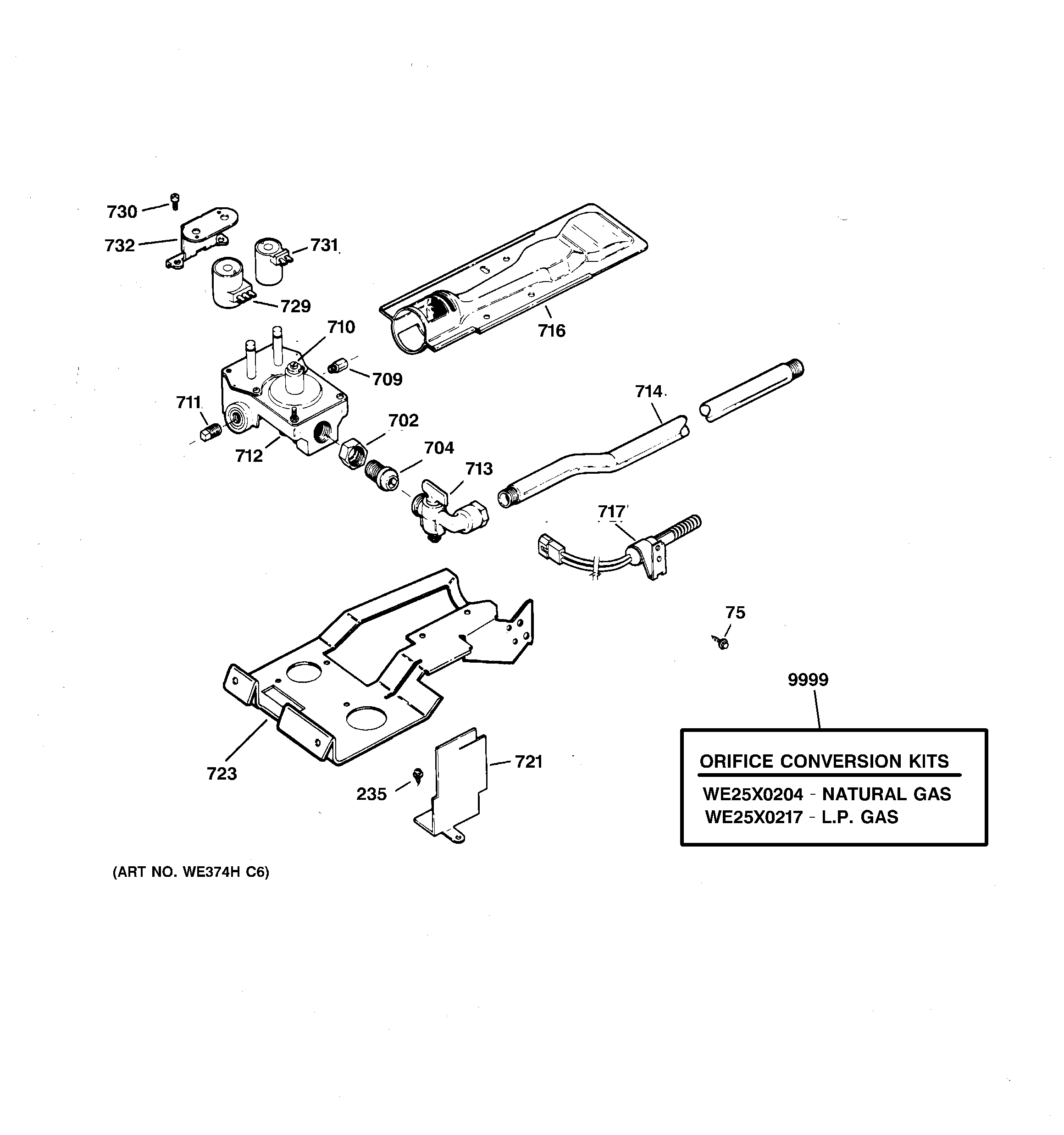

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Slide Drum WE01M0333
#316

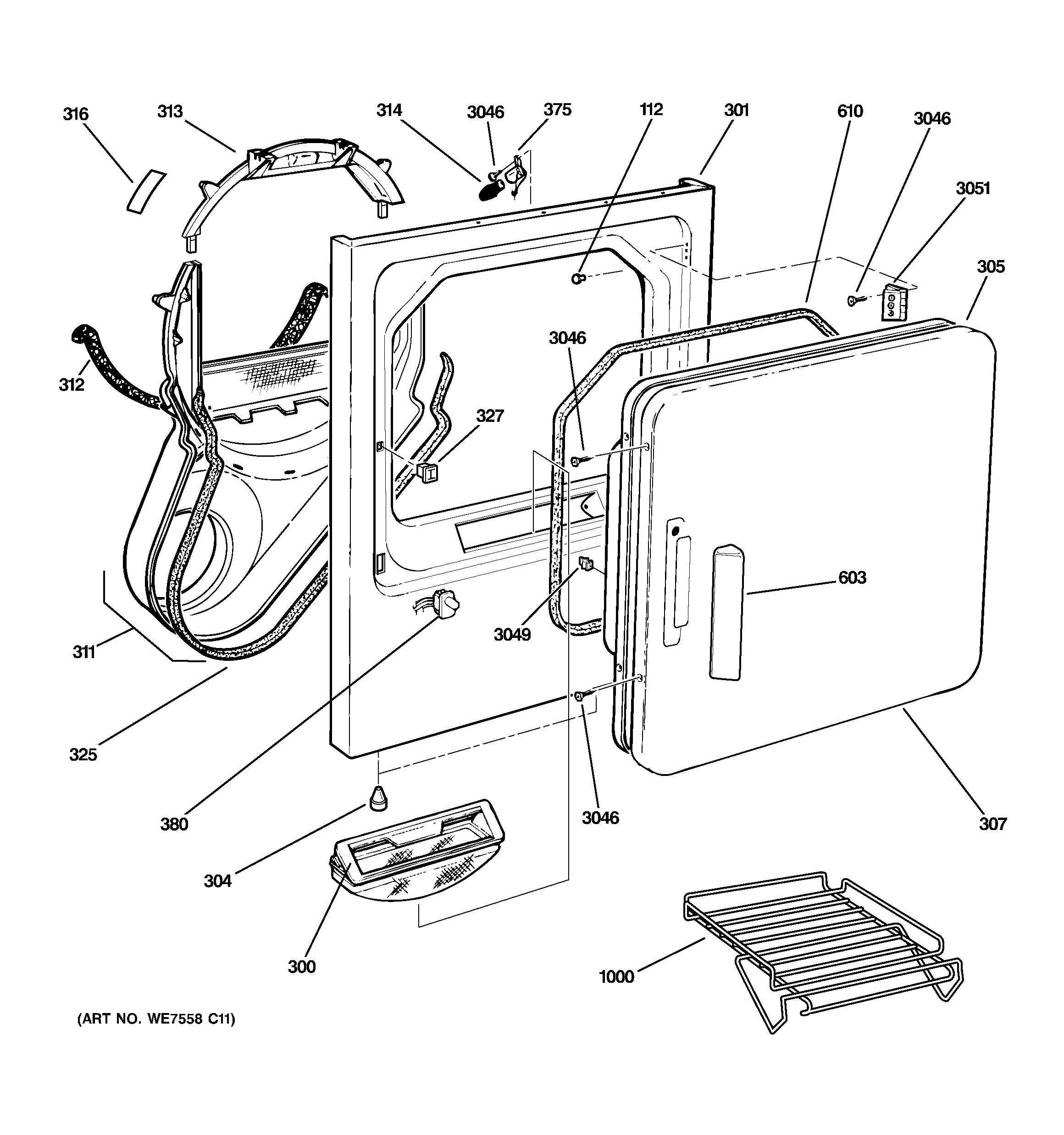

Front panel & door diagram

Slide drum

Part #WE01M0333

The manufacturer no longer makes this part, and there's no substitute part

Slide Drum WE1M481
#316

Front panel & door diagram

Slide drum

Part #WE1M481

The manufacturer no longer makes this part, and there's no substitute part

Drum Bearing WE03M0020
#313

Front panel & door diagram

Drum bearing

Part #WE03M0020

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE03M0020. Substitute parts can look different from the original.
BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Felt WE09M0015
#312

Front panel & door diagram

Felt

Part #WE09M0015

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE09M0015. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Idler Pulley WE12M0008
#216

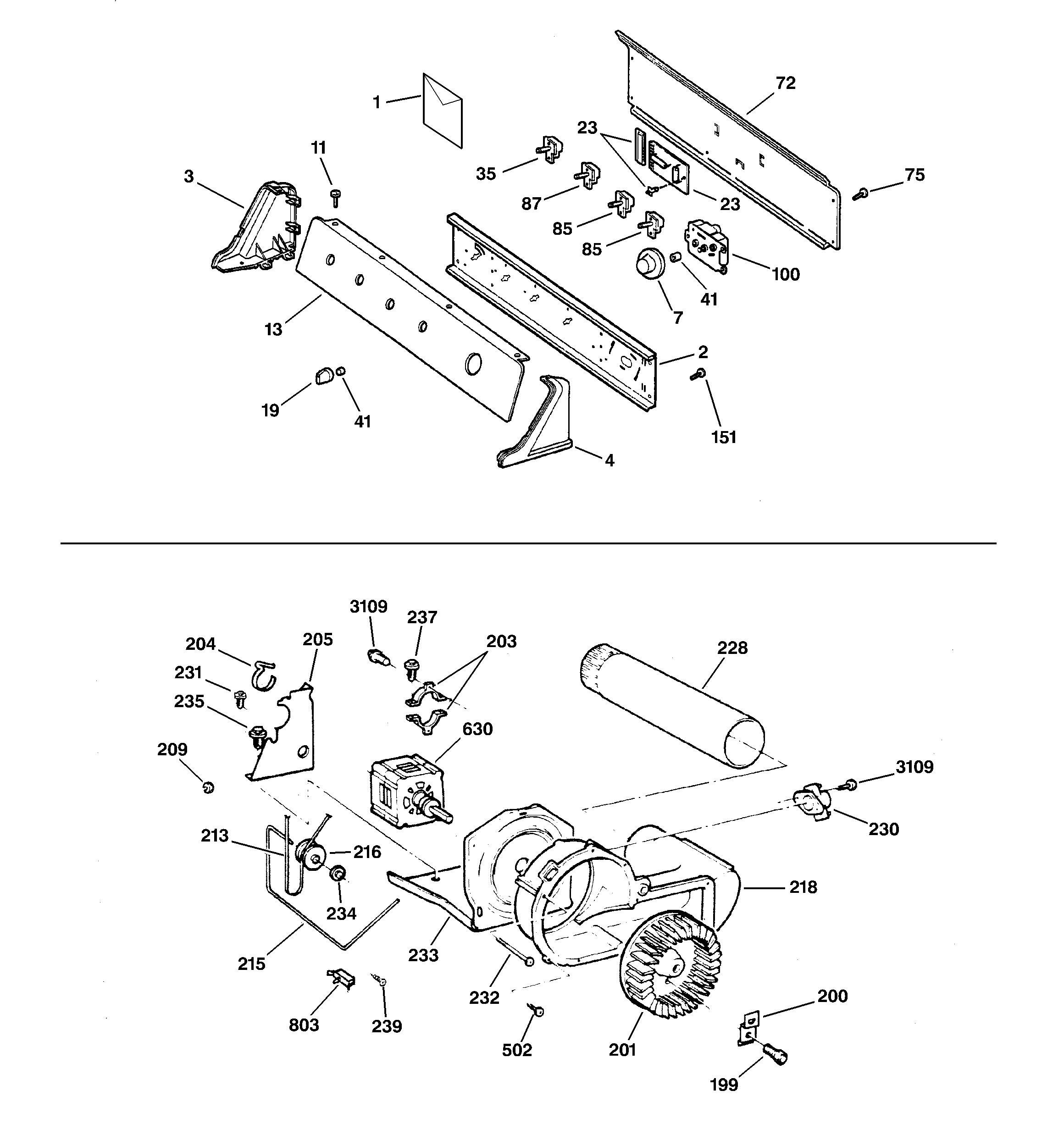

Backsplash, blower & motor assembly diagram

Idler pulley

Part #WE12M0008

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M0008. Substitute parts can look different from the original.
BEST SELLER
$25.35 |
19% OFF Phone Price : $31.35
In Stock
Shft-brkt As WE03X0039
#508

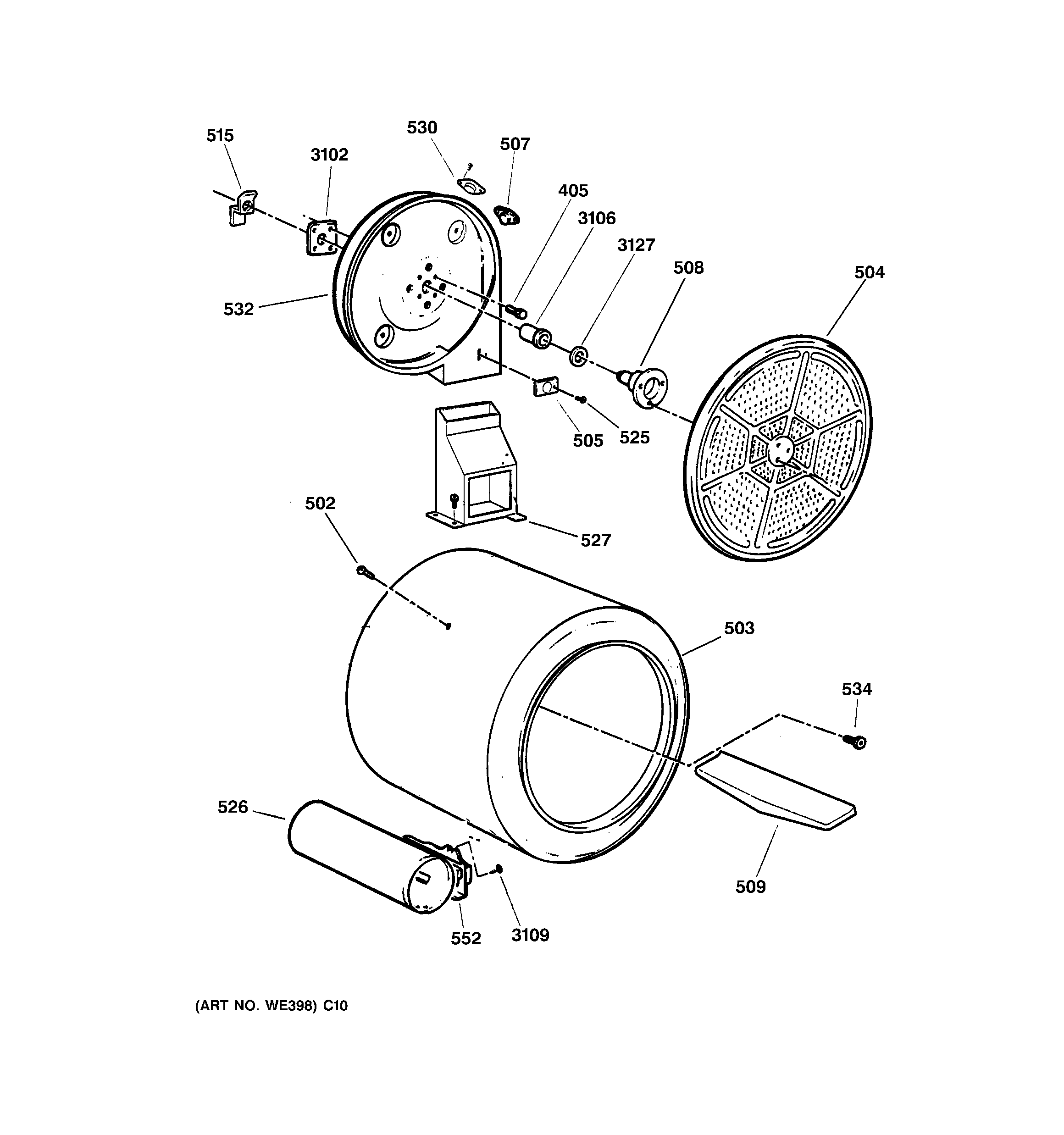

Drum diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Bearing Retainer WE01M0300
#3102

Drum diagram

Bearing retainer

Part #WE01M0300

Replaced by #WE1M300

?
Manufacturer substitution
This part replaces WE01M0300. Substitute parts can look different from the original.
BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Gasket WE01M0376
#325

Front panel & door diagram

Gasket

Part #WE01M0376

Replaced by #WE1M825

?
Manufacturer substitution
This part replaces WE01M0376. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.96 |
13% OFF Phone Price : $7.96
In Stock
