GE
Dishwasher

Model # GDF511PGM5BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDF511PGM5BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

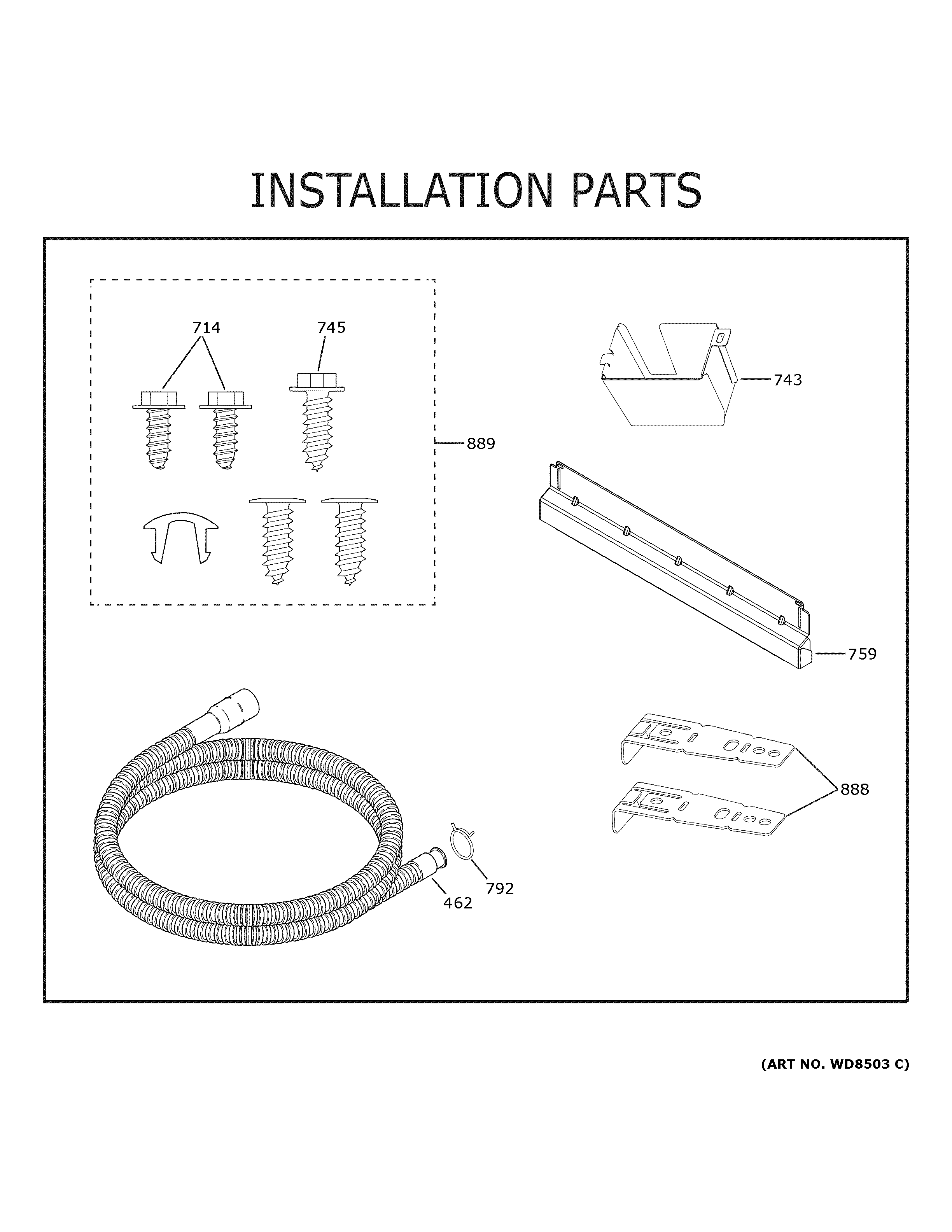

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Dishwasher Pressure Sensor WD21X25468
#333

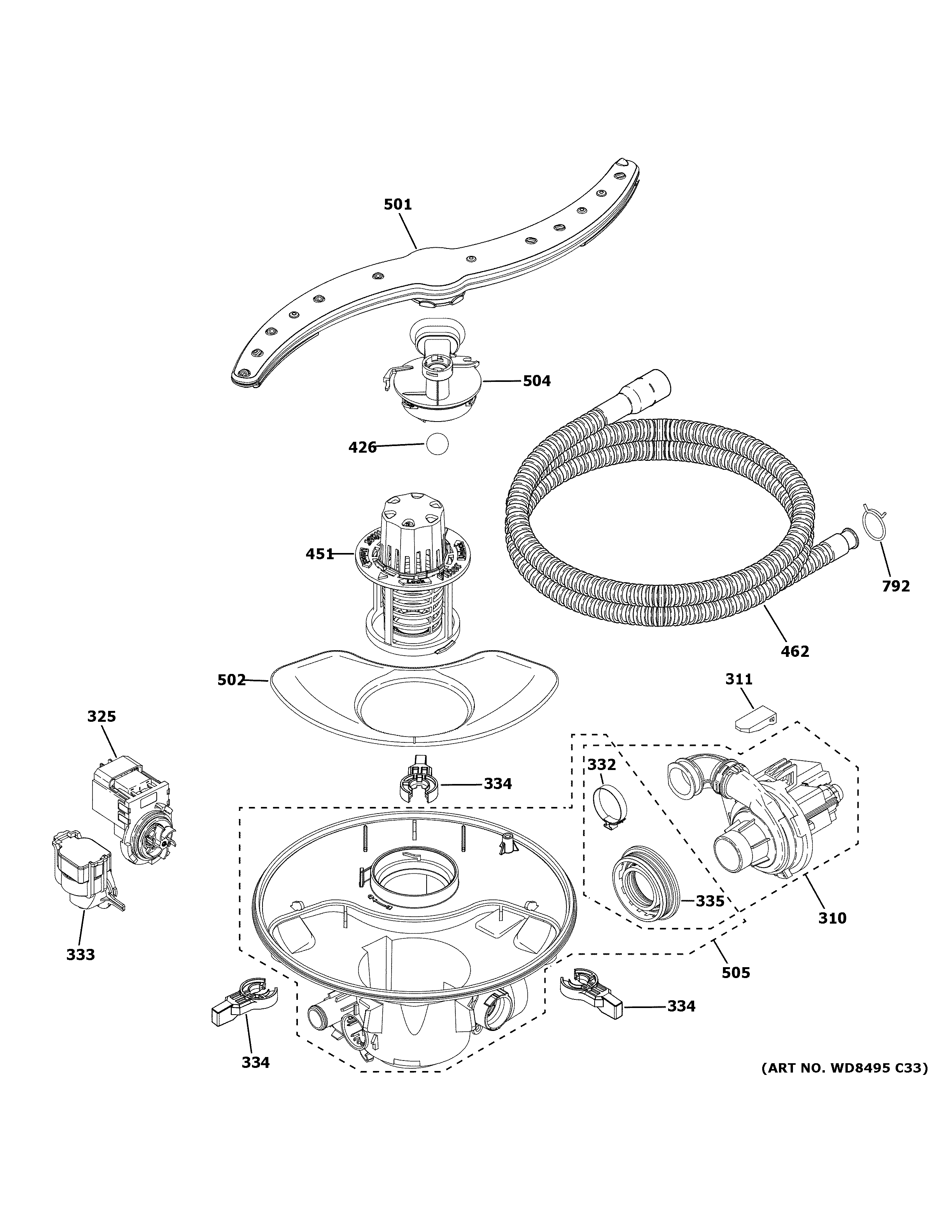

Motor, sump & filter assembly diagram

Dishwasher pressure sensor

Part #WD21X25468

BEST SELLER
$29.24 |
17% OFF Phone Price : $35.24
In Stock
Dishwasher Spray Arm, Lower WD22X26621
#501

Motor, sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X26621

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X26621. Substitute parts can look different from the original.
BEST SELLER
$21.27 |
22% OFF Phone Price : $27.27
In Stock
Dishwasher Drain Pump (replaces Wd19x26143, Wd19x31178) WD19X25461
#325

Motor, sump & filter assembly diagram

Dishwasher drain pump (replaces wd19x26143, wd19x31178)

Part #WD19X25461

BEST SELLER
$48.46 |
11% OFF Phone Price : $54.46
In Stock
Dishwasher Door Latch Lock WD21X10490
#803

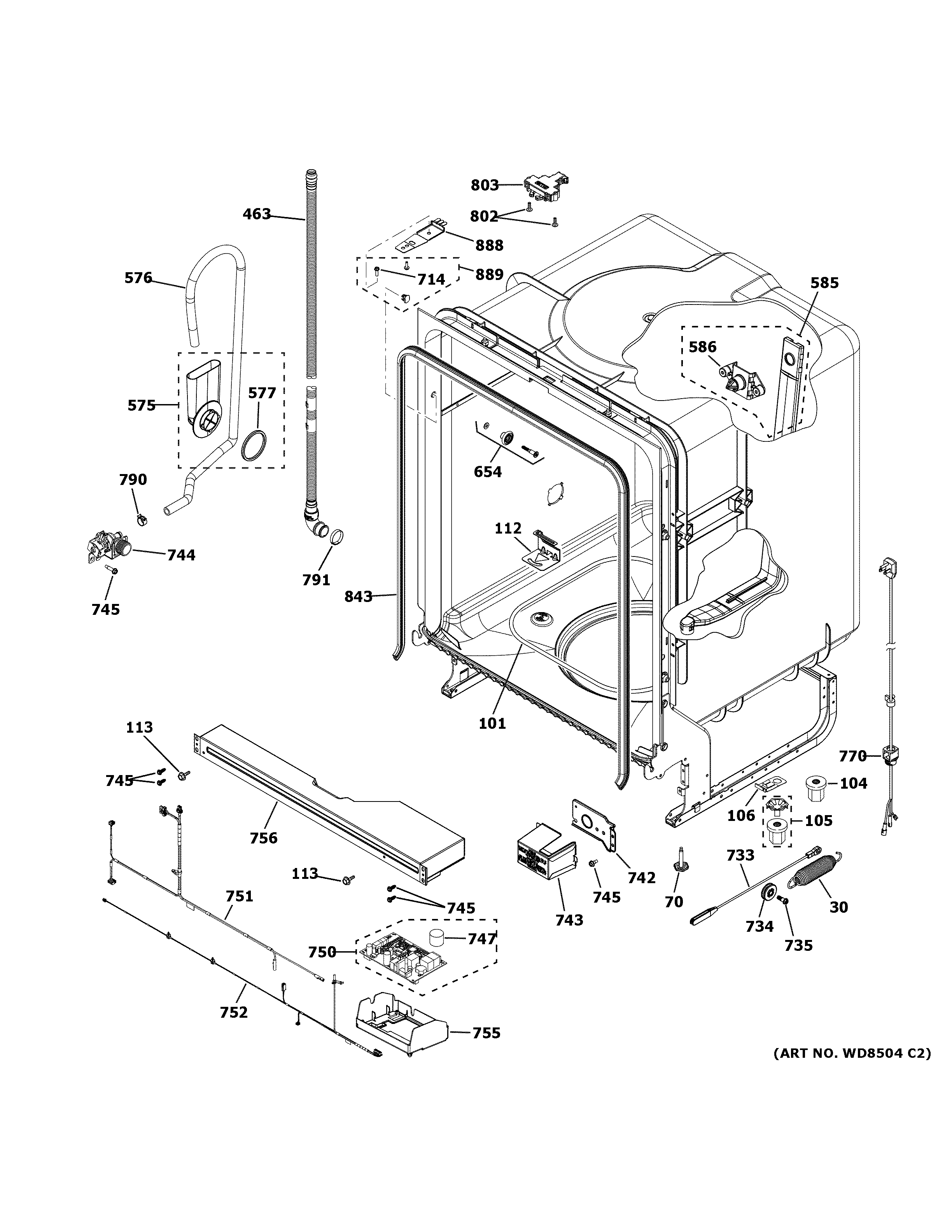

Body parts diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$28.66 |
17% OFF Phone Price : $34.66
In Stock
Dishwasher Heating Element WD05X24385
#101

Body parts diagram

Dishwasher heating element

Part #WD05X24385

Replaced by #WD05X30298

?
Manufacturer substitution
This part replaces WD05X24385. Substitute parts can look different from the original.
BEST SELLER
$48.16 |
11% OFF Phone Price : $54.16
In Stock
Dishwasher Dishrack, Lower WD28X24396
#701

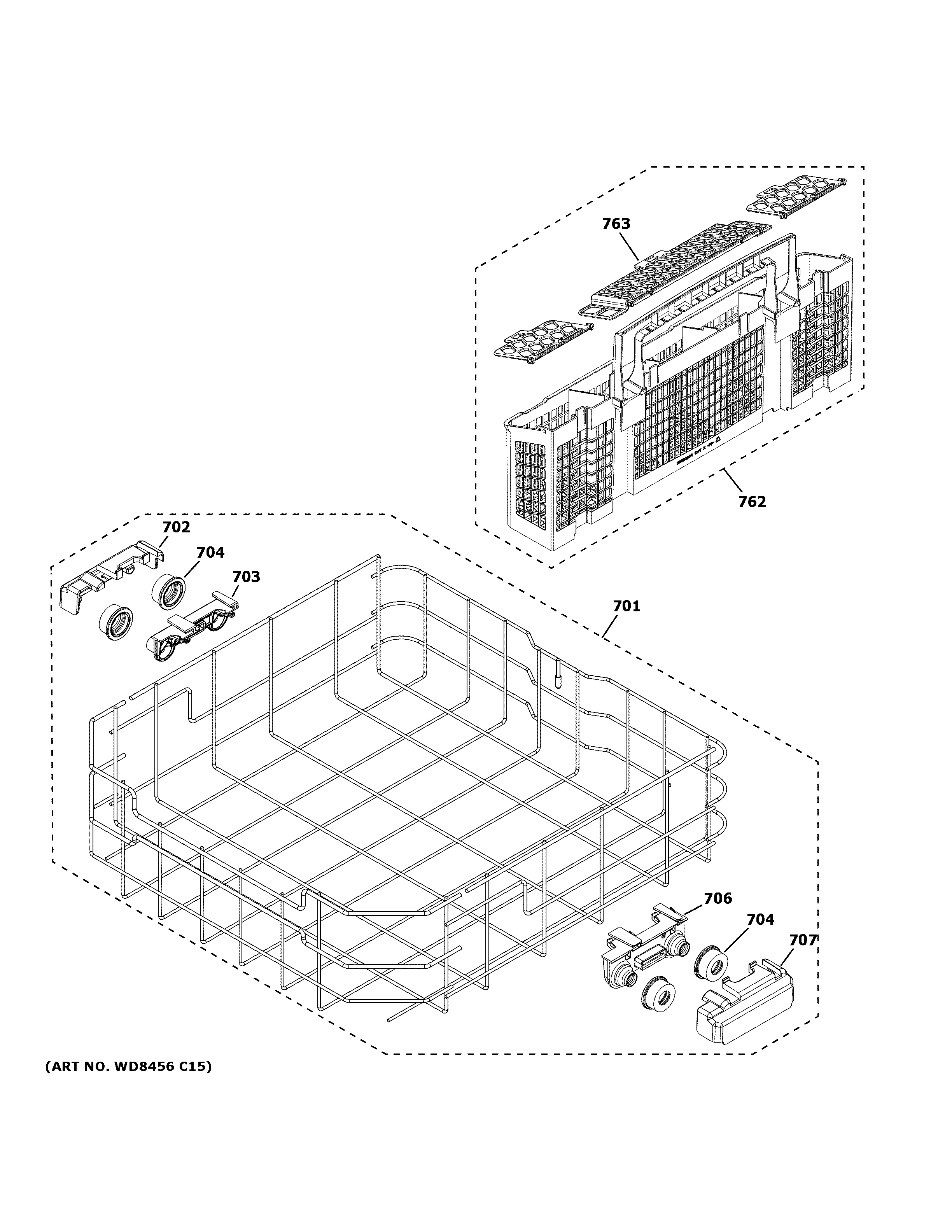

Lower rack assembly diagram

Dishwasher dishrack, lower

Part #WD28X24396

Replaced by #WD28X26099

?
Manufacturer substitution
This part replaces WD28X24396. Substitute parts can look different from the original.
BEST SELLER
$79.49 |
7% OFF Phone Price : $85.49
In Stock
Dishwasher Tub Gasket WD08X22094
#843

Body parts diagram

Dishwasher tub gasket

Part #WD08X22094

Replaced by #WD08X23476

?
Manufacturer substitution
This part replaces WD08X22094. Substitute parts can look different from the original.
BEST SELLER
$22.81 |
21% OFF Phone Price : $28.81
In Stock
Dishwasher Water Inlet Valve (replaces Wd15x32009) WD15X26078
#744

Body parts diagram

Dishwasher water inlet valve (replaces wd15x32009)

Part #WD15X26078

BEST SELLER
$24.33 |
20% OFF Phone Price : $30.33
In Stock
Dishwasher Detergent Dispenser WD12X24058
#811

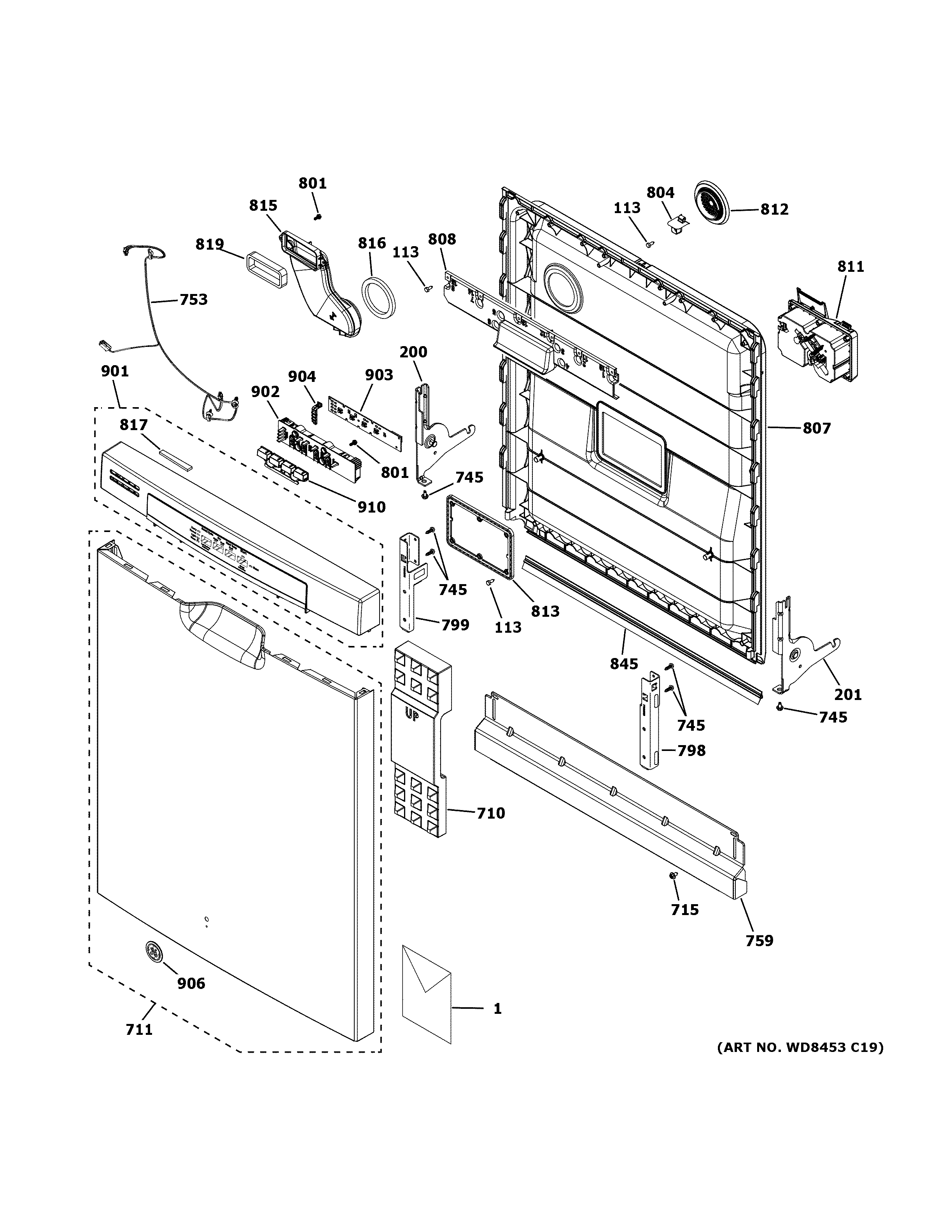

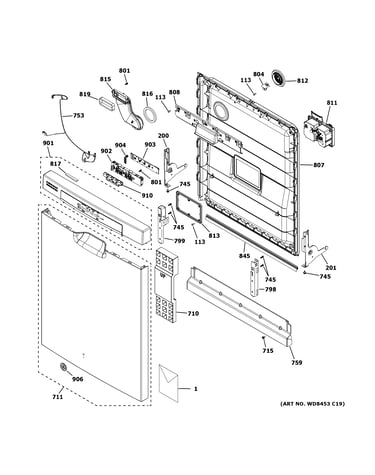

Escutcheon & door assembly diagram

Dishwasher detergent dispenser

Part #WD12X24058

Replaced by #WD12X32798

?
Manufacturer substitution
This part replaces WD12X24058. Substitute parts can look different from the original.
BEST SELLER
$38.62
In Stock
Coated Upper Rack Assembly WD28X24397
#615

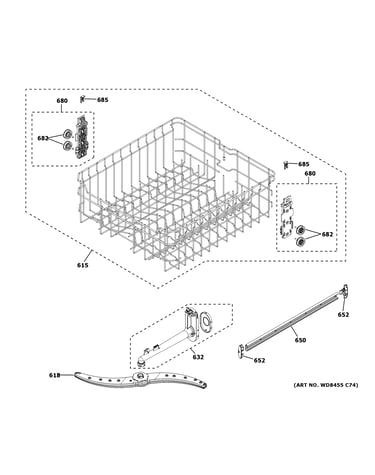

Upper rack assembly diagram

Coated upper rack assembly

Part #WD28X24397

Replaced by #WD28X30219

?
Manufacturer substitution
This part replaces WD28X24397. Substitute parts can look different from the original.
BEST SELLER
$88.60 |
6% OFF Phone Price : $94.60
In Stock
