Model # 12632563 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 12632563 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Craftsman Neck 022-0130
#26

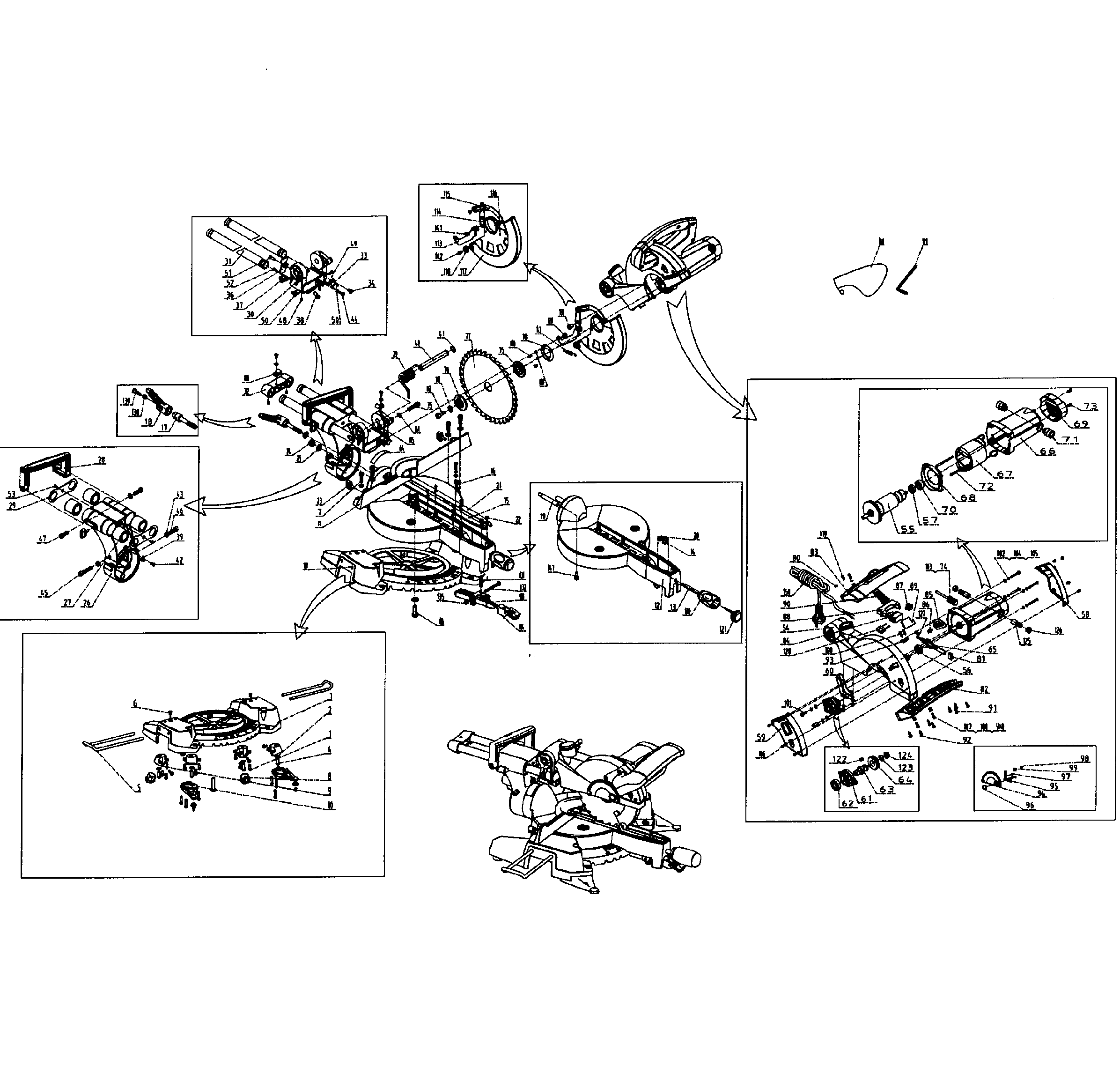

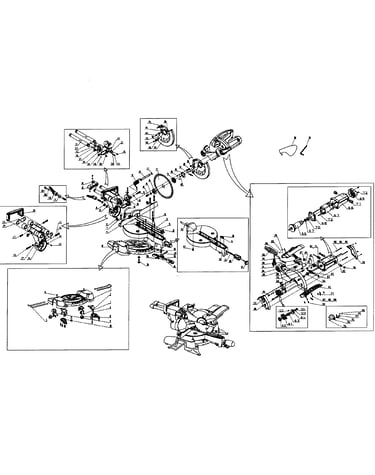

Miter saw diagram

Craftsman neck

Part #022-0130

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Arbor Shaft 022-0171
#63

Miter saw diagram

Craftsman arbor shaft

Part #022-0171

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Switch Button 022-0200
#88

Miter saw diagram

Craftsman switch button

Part #022-0200

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Holder Cover 022-0240
#126

Miter saw diagram

Craftsman holder cover

Part #022-0240

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Open Cirli 022-0147
#41

Miter saw diagram

Craftsman open cirli

Part #022-0147

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Locking Screw 022-0116
#13

Miter saw diagram

Craftsman locking screw

Part #022-0116

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring Washer 022-0222
#109

Miter saw diagram

Craftsman spring washer

Part #022-0222

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Middl Scrw 022-0244
#130

Miter saw diagram

Craftsman middl scrw

Part #022-0244

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 022-0139
#34

Miter saw diagram

Craftsman screw

Part #022-0139

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Transformer 022-0201
#89

Miter saw diagram

Craftsman transformer

Part #022-0201

The manufacturer no longer makes this part, and there's no substitute part
