Model # GFWS1705H1DG Official GE washer

Here are the diagrams and repair parts for Official GE GFWS1705H1DG washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Washer Shock Absorber WH01X20826
#253

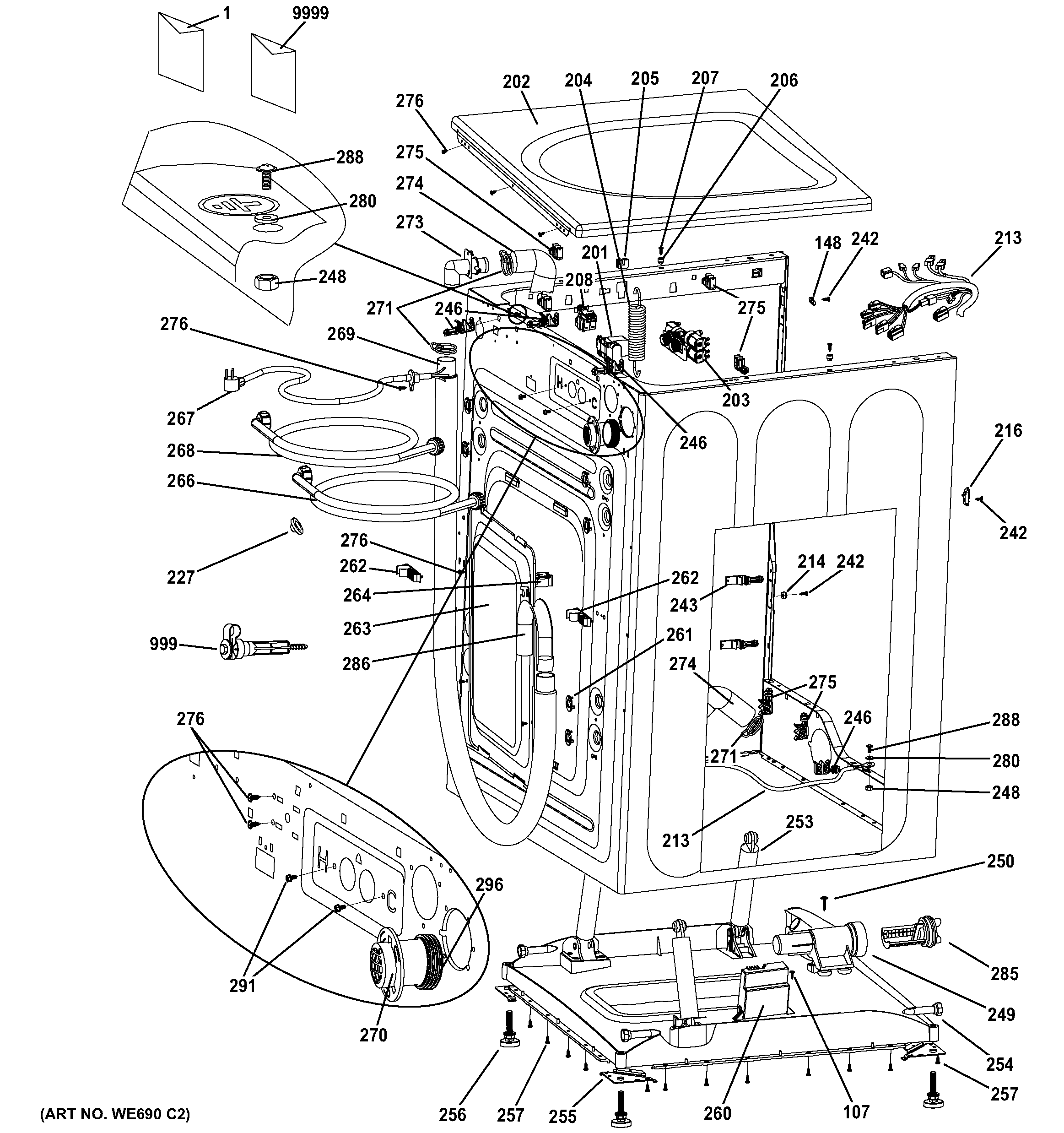

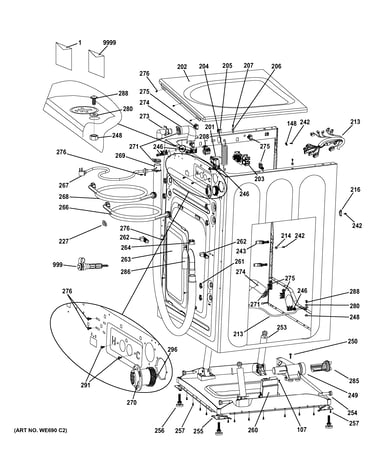

Cabinet & top panel diagram

Washer shock absorber

Part #WH01X20826

BEST SELLER
$73.93 |
8% OFF Phone Price : $79.93
In Stock
Pump WH23X20825
#249

Cabinet & top panel diagram

Pump

Part #WH23X20825

Replaced by #WH11X34740

?
Manufacturer substitution
This part replaces WH23X20825. Substitute parts can look different from the original.
BEST SELLER
$103.89
In Stock
Washer Dispenser Actuator (replaces Wh43x10031) WH43X10059
#140

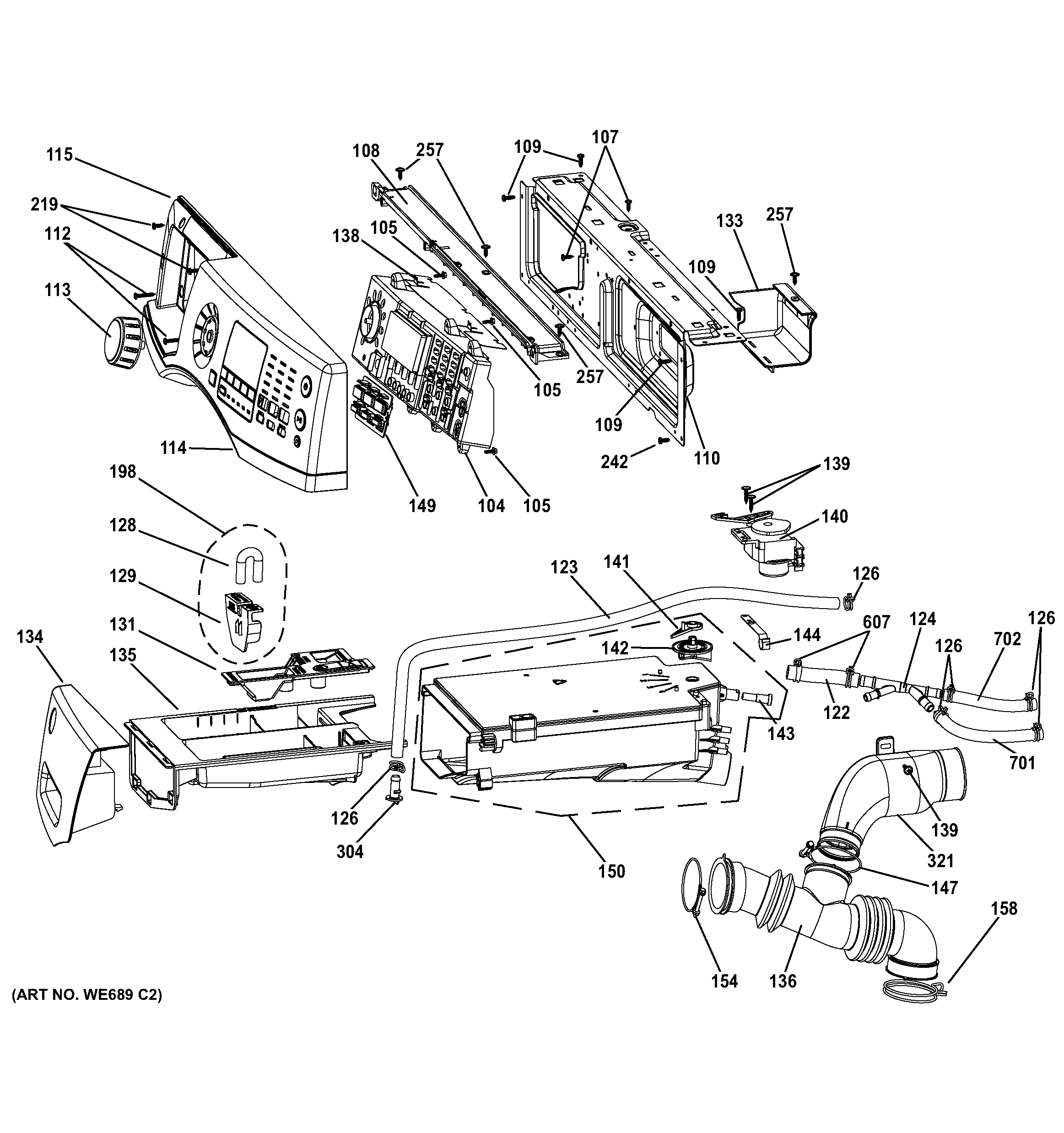

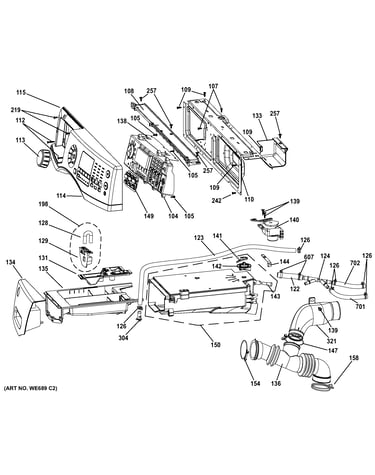

Controls & dispenser diagram

Washer dispenser actuator (replaces wh43x10031)

Part #WH43X10059

$129.55 |
8% OFF Phone Price : $141.55
In Stock
Washer Door Lock Strike WH01X20823
#223

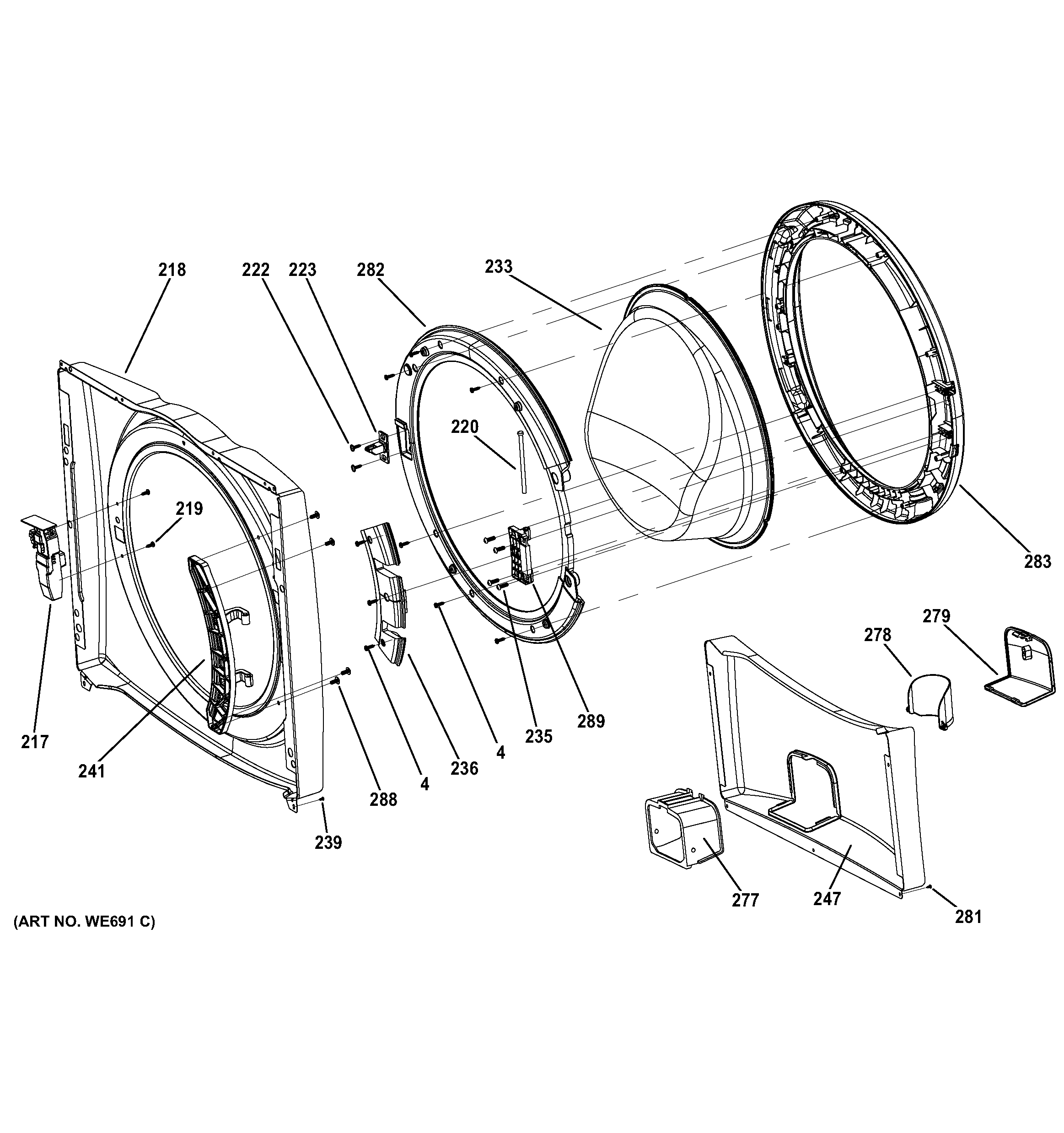

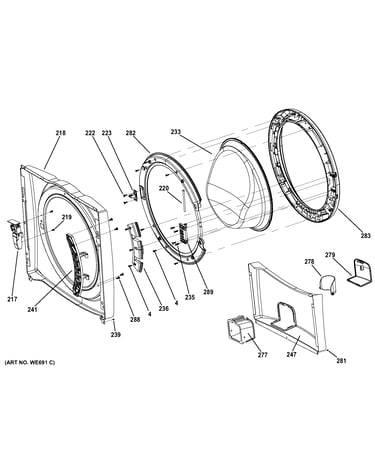

Front panel & door diagram

Washer door lock strike

Part #WH01X20823

This item is not returnable
$16.04 |
11% OFF Phone Price : $18.04
In Stock
Washer Drive Pulley Kit WH07X10022
#322

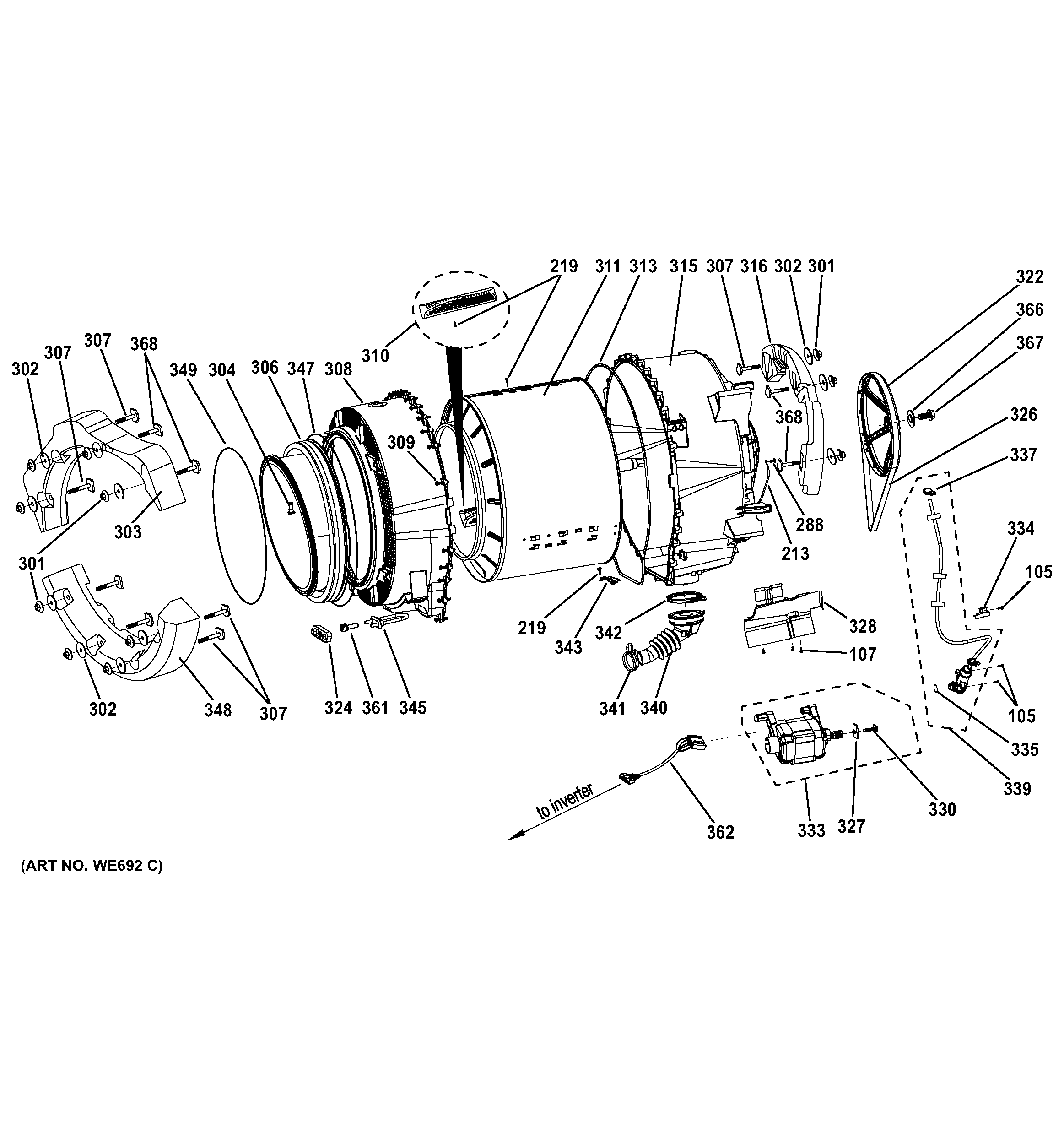

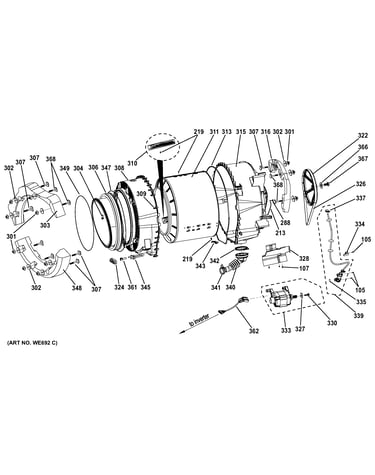

Tub & motor diagram

Washer drive pulley kit

Part #WH07X10022

$100.93 |
11% OFF Phone Price : $112.93
In Stock
Washer Water-level Pressure Switch WH12X20898
#208

Cabinet & top panel diagram

Washer water-level pressure switch

Part #WH12X20898

$51.96 |
10% OFF Phone Price : $57.96
In Stock
Washer Door Boot Spring Clamp WH08X10056
#349

Tub & motor diagram

Washer door boot spring clamp

Part #WH08X10056

$33.71 |
15% OFF Phone Price : $39.71
In Stock
Washer Door Boot Spring Clamp, Inner WH08X10055
#347

Tub & motor diagram

Washer door boot spring clamp, inner

Part #WH08X10055

$50.52 |
11% OFF Phone Price : $56.52
In Stock
Washer Door Hinge Block WH02X20920
#289

Front panel & door diagram

Washer door hinge block

Part #WH02X20920

$25.82 |
19% OFF Phone Price : $31.82
In Stock
Washer Tub Seal WH08X10054
#313

Tub & motor diagram

Washer tub seal

Part #WH08X10054

$30.99 |
16% OFF Phone Price : $36.99
In Stock
