Front-Engine Lawn Tractor

Model # 917289450 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917289450 tractor, as well as links to manuals and error code tables, if available.

By Schematic
By Part

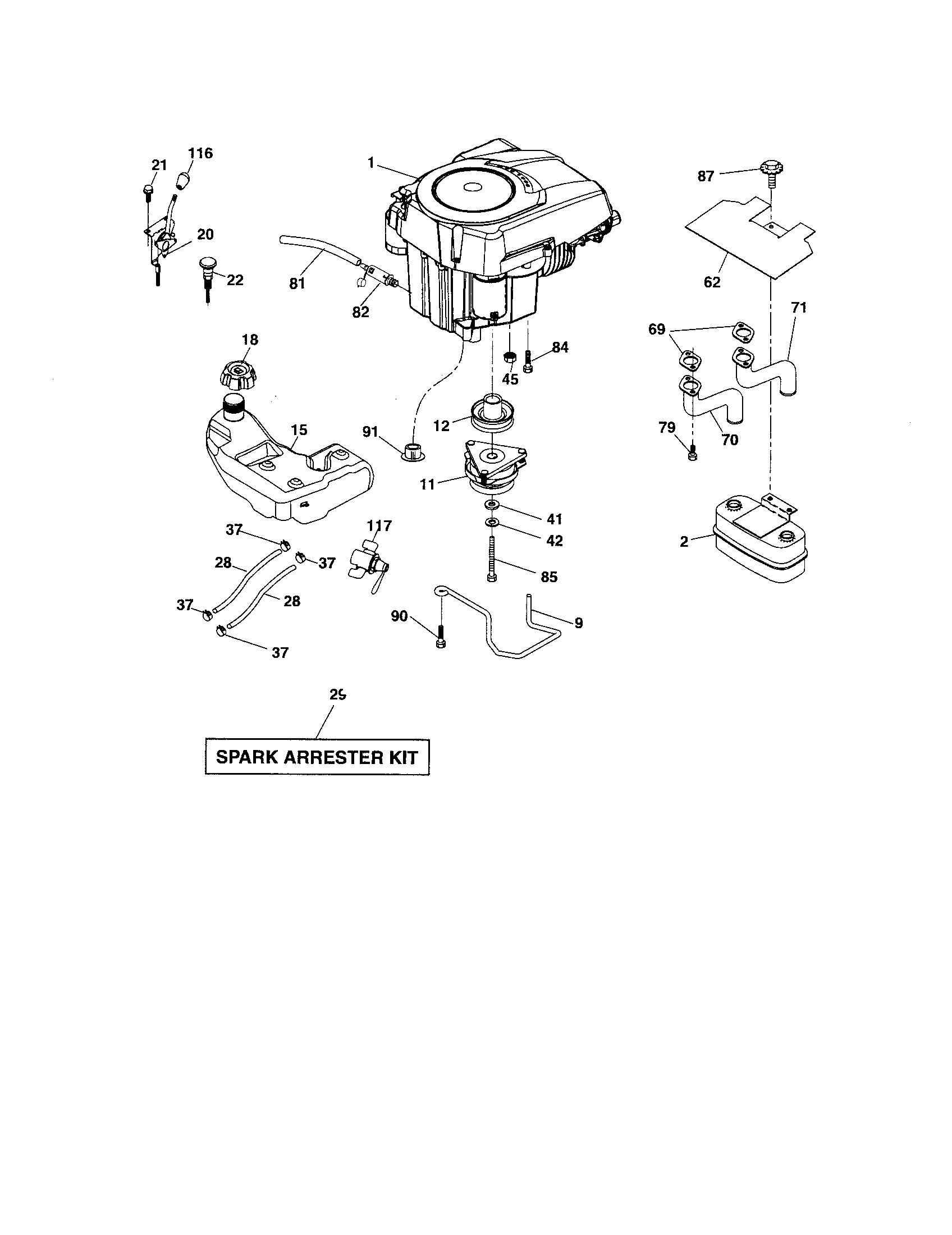

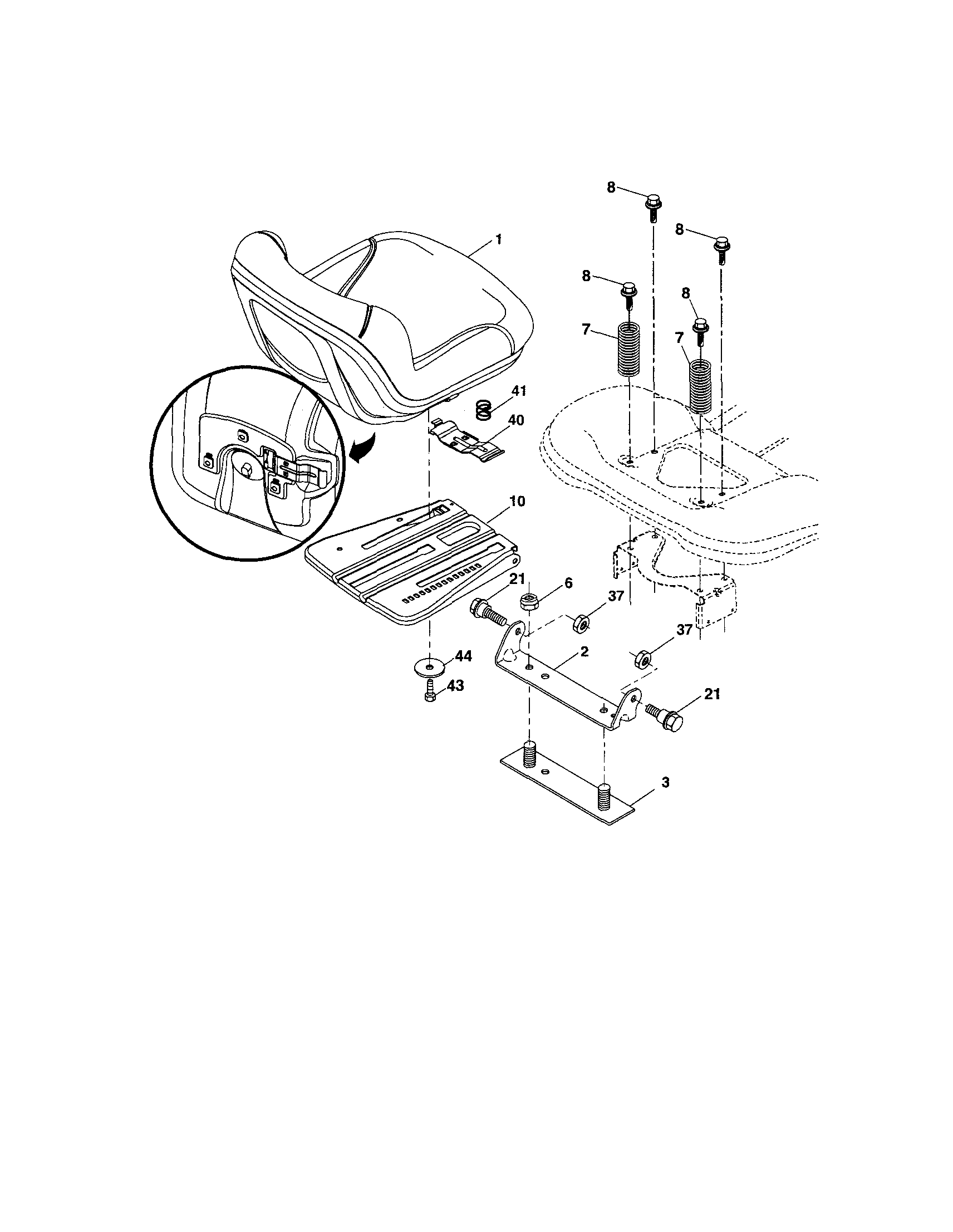

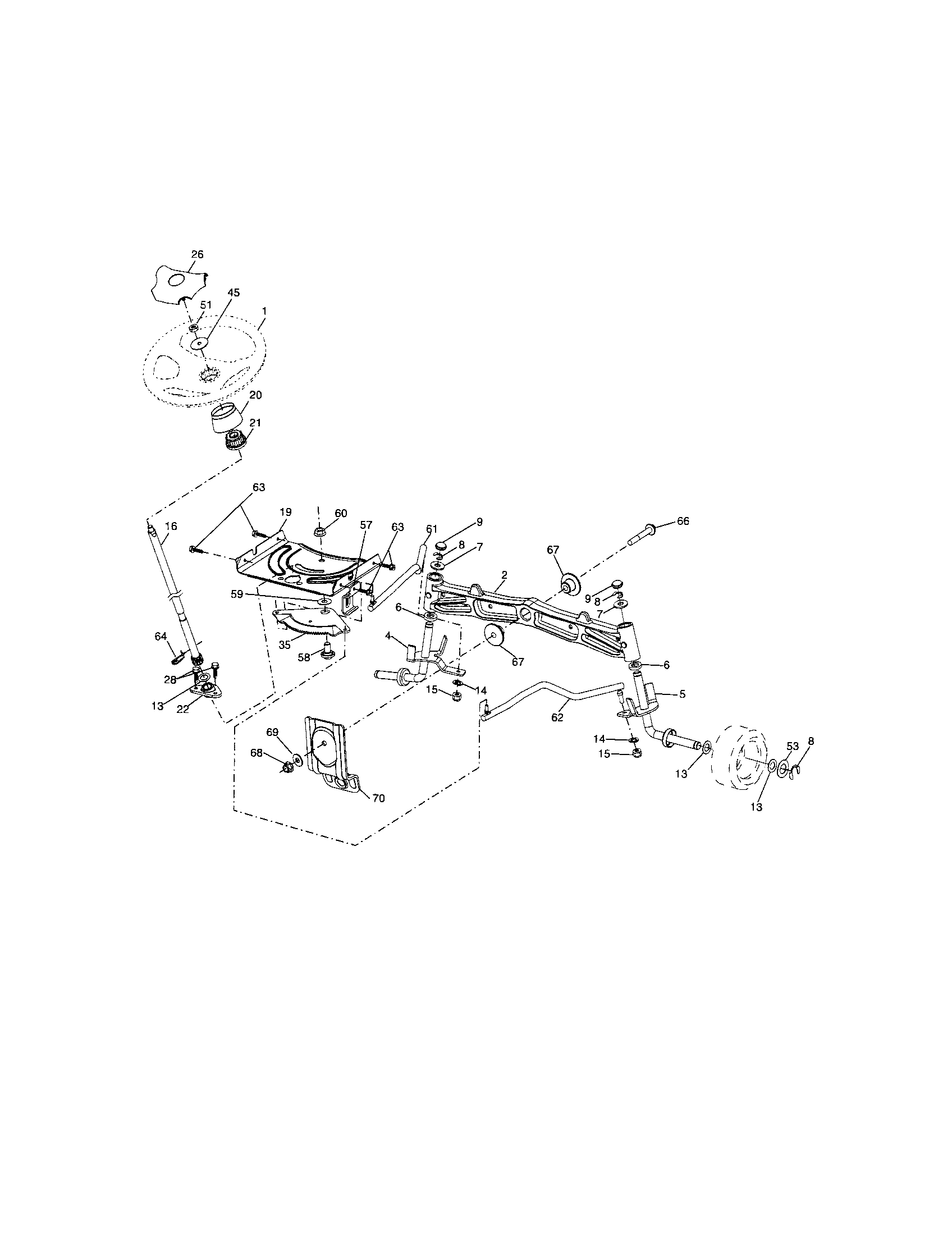

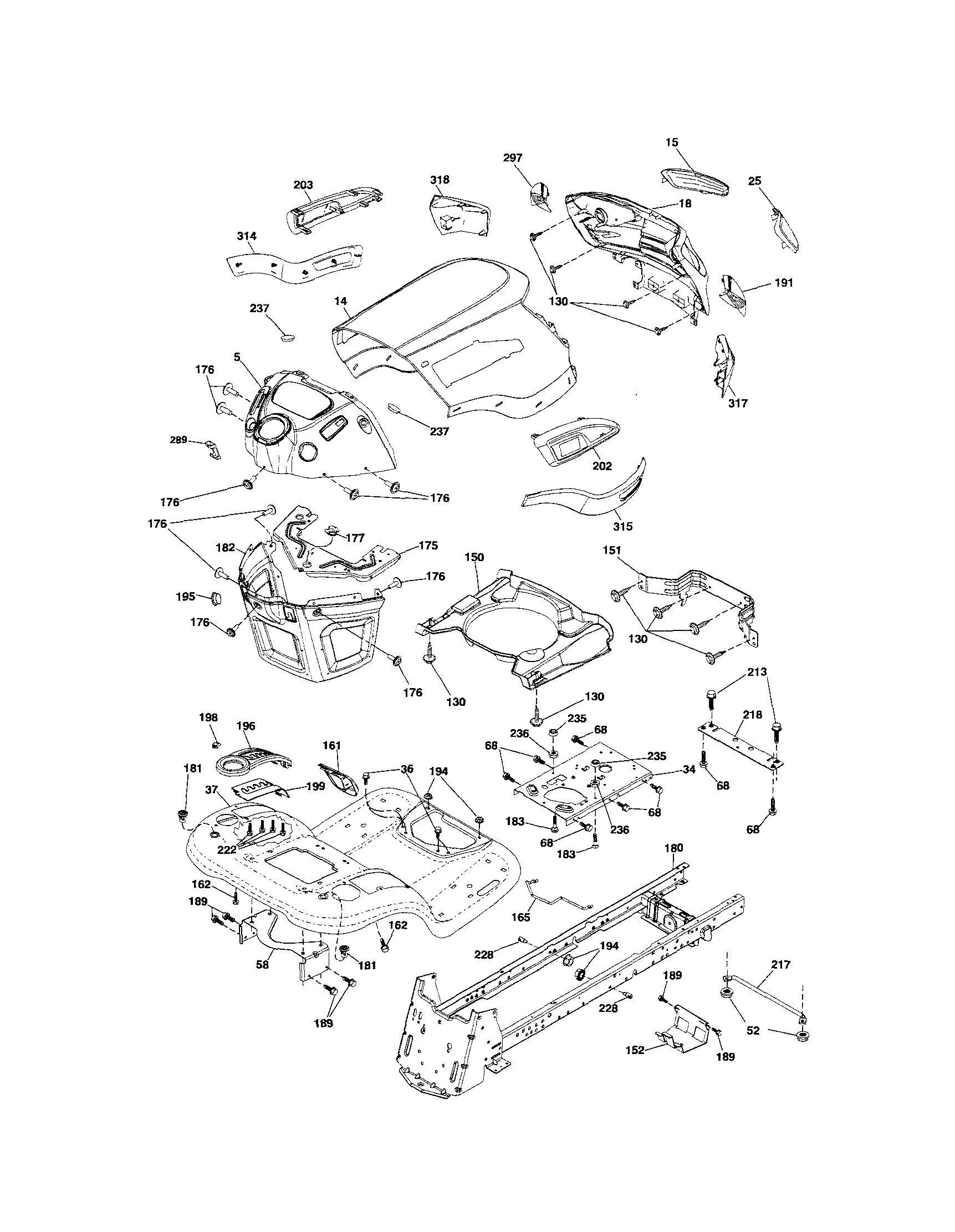

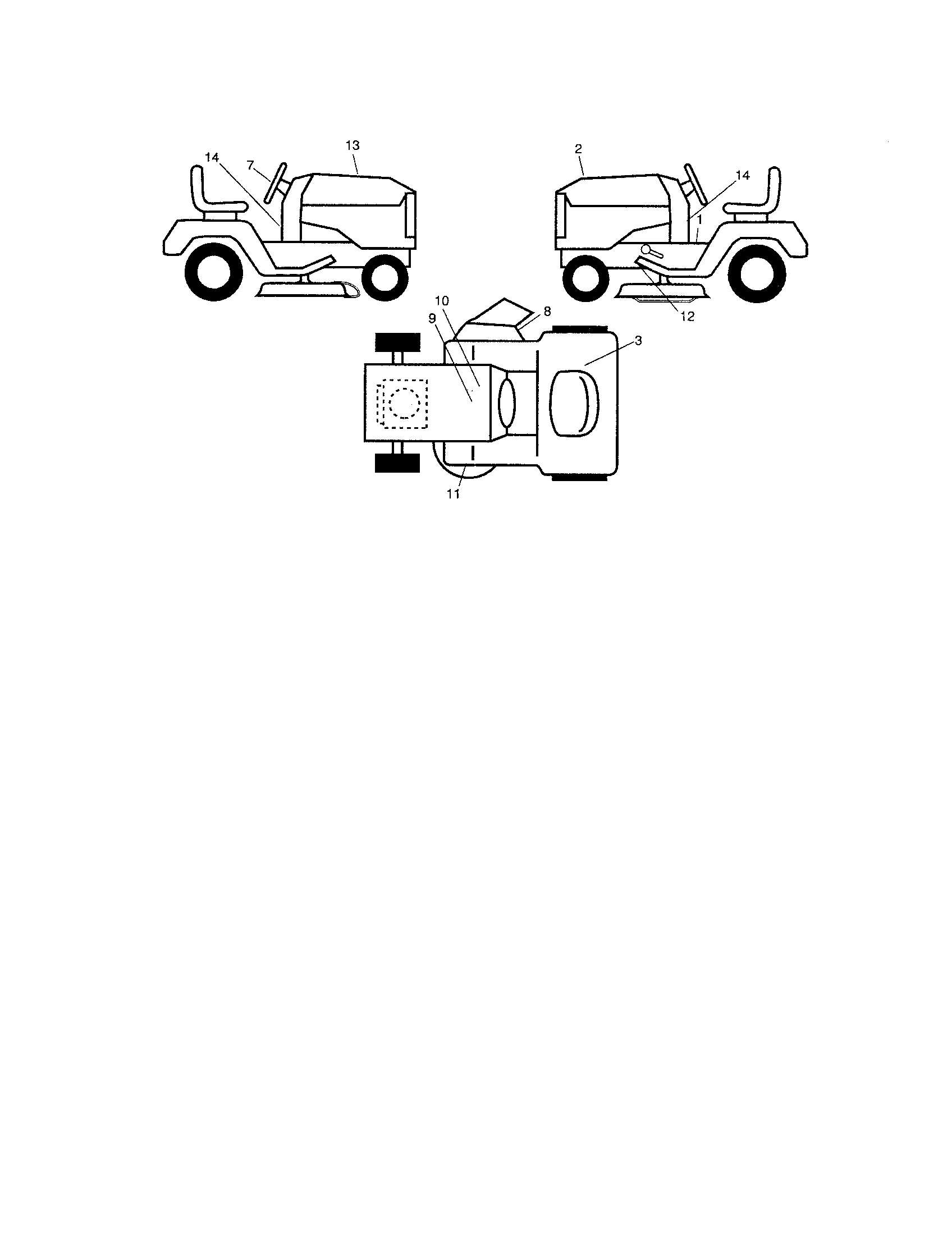

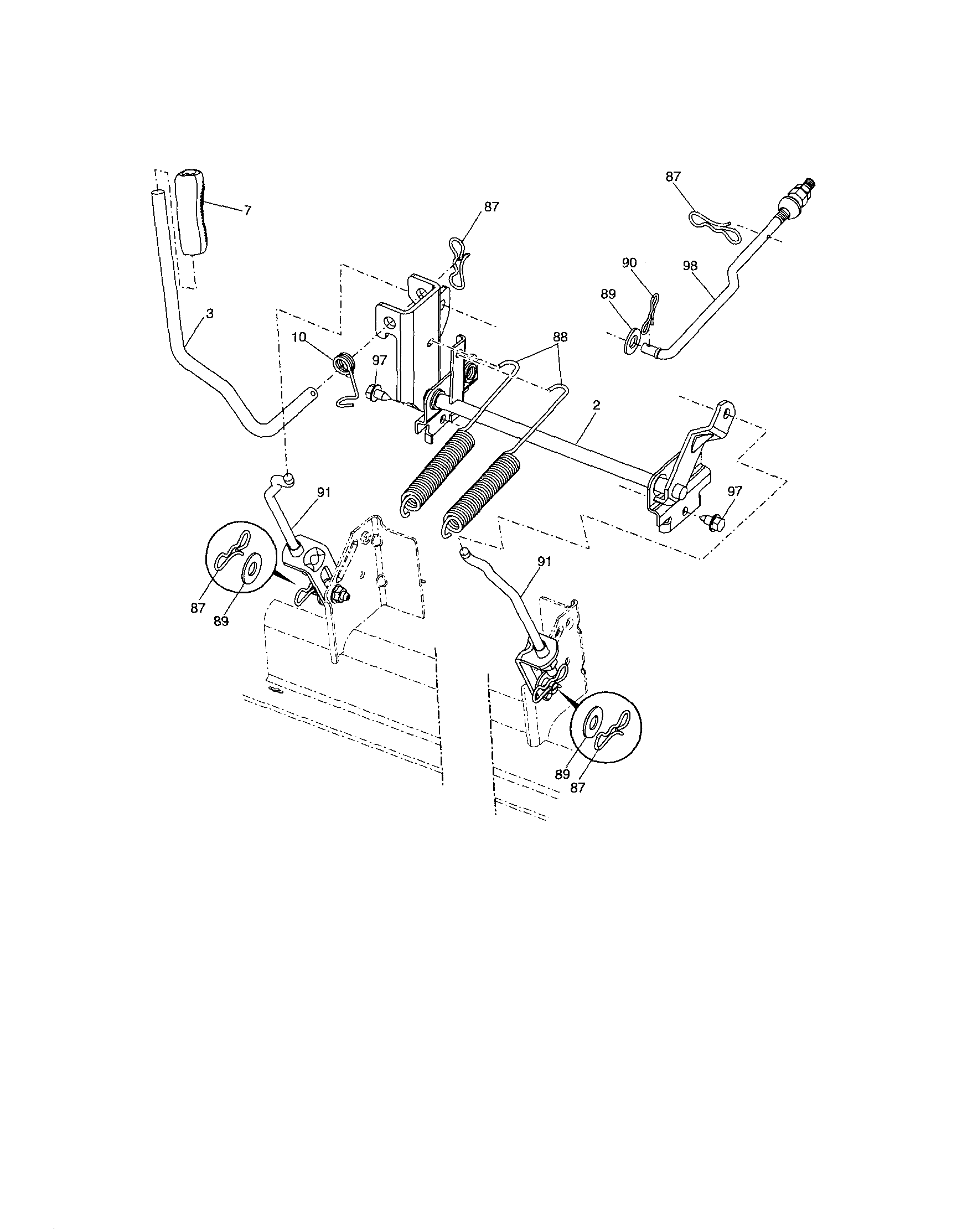

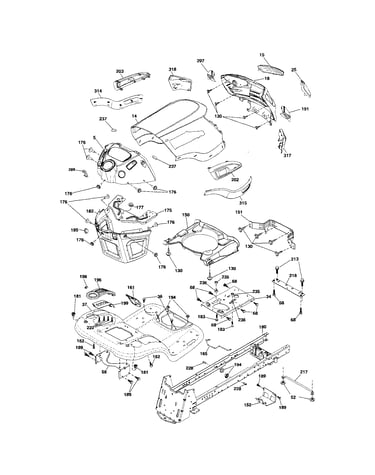

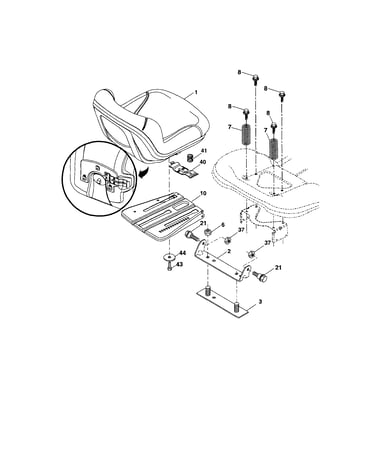

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for917289450 Riding Mowers & Tractors

  • Lawn Tractor Mandrel Housing 187281
    #14

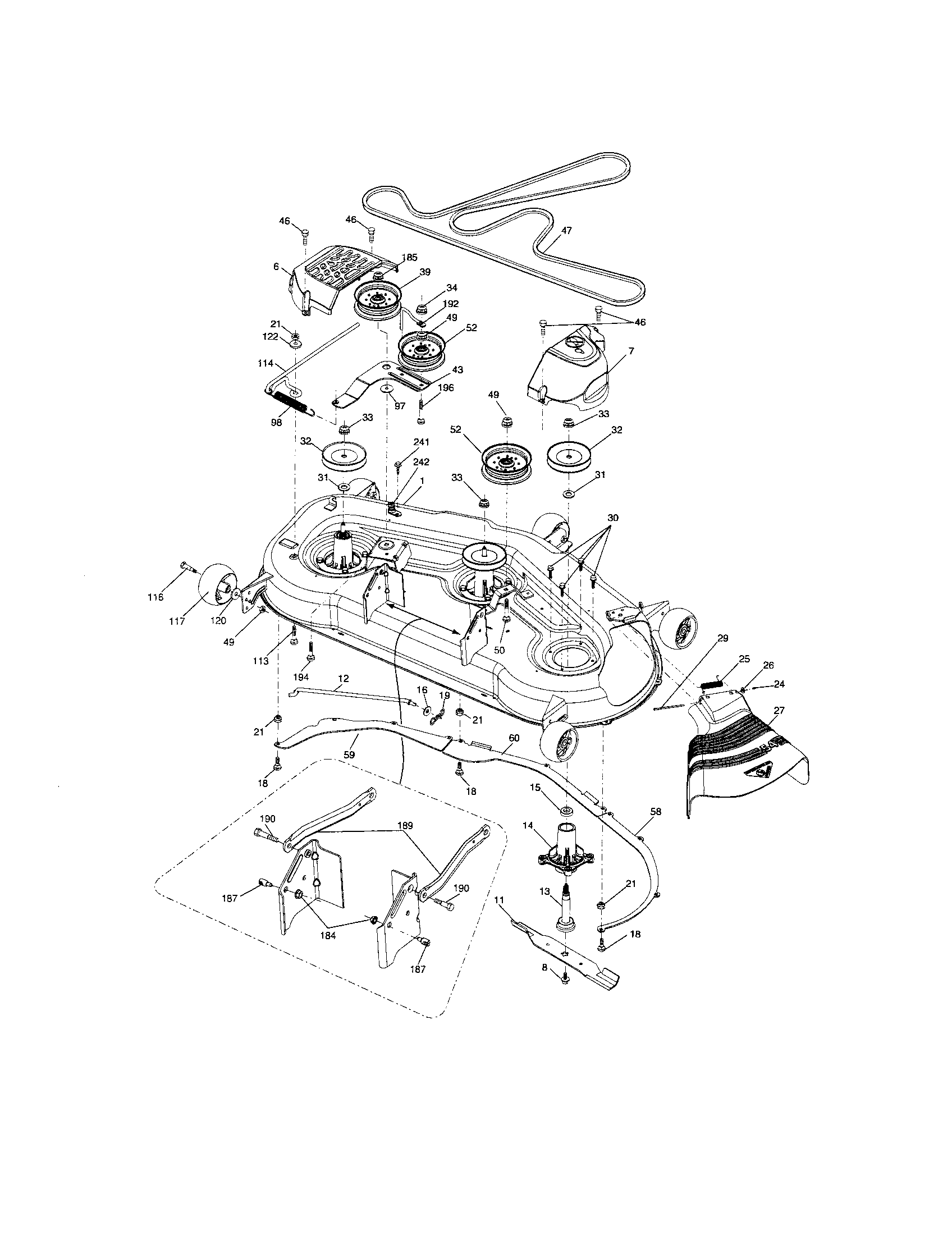

    Mower deck diagram

    Lawn tractor mandrel housing

    Part #187281

    Replaced by #587819701

    ?
    Manufacturer substitution
    This part replaces 187281. Substitute parts can look different from the original.
    BEST SELLER
    $54.98
    10% OFF Phone Price : $60.98
    In Stock
  • Lawn Tractor Ground Drive Or Blade Drive Belt, 1/2 X 92-2/5-in 130969
    #56

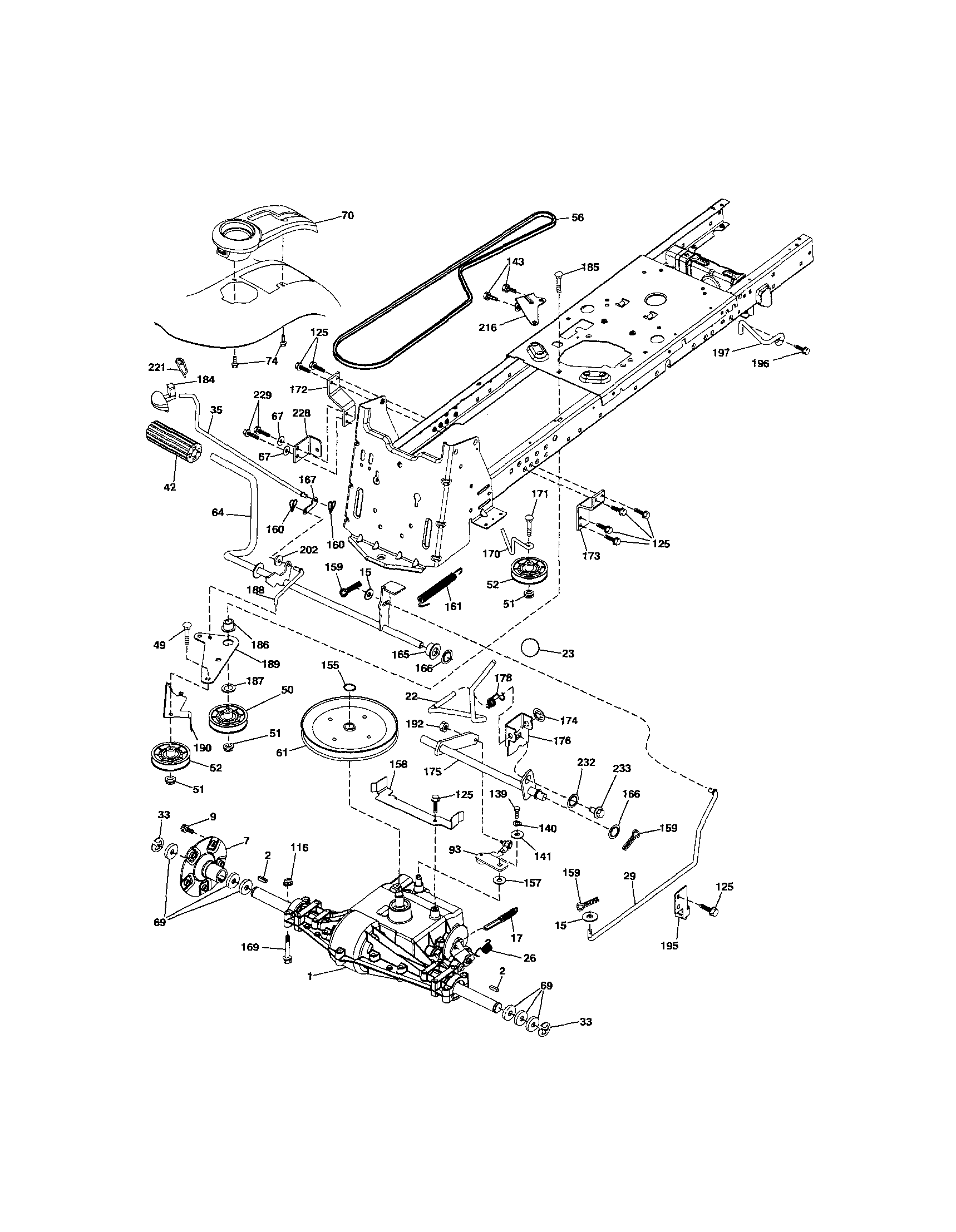

    Groud drive diagram

    Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in

    Part #130969

    Replaced by #592855201

    ?
    Manufacturer substitution
    This part replaces 130969. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable

    Get free shipping with Automatic Reorder

    $29.68
    17% OFF Phone Price : $35.68
    In Stock
  • Lawn Tractor Axle Cap 104757X428
    #8

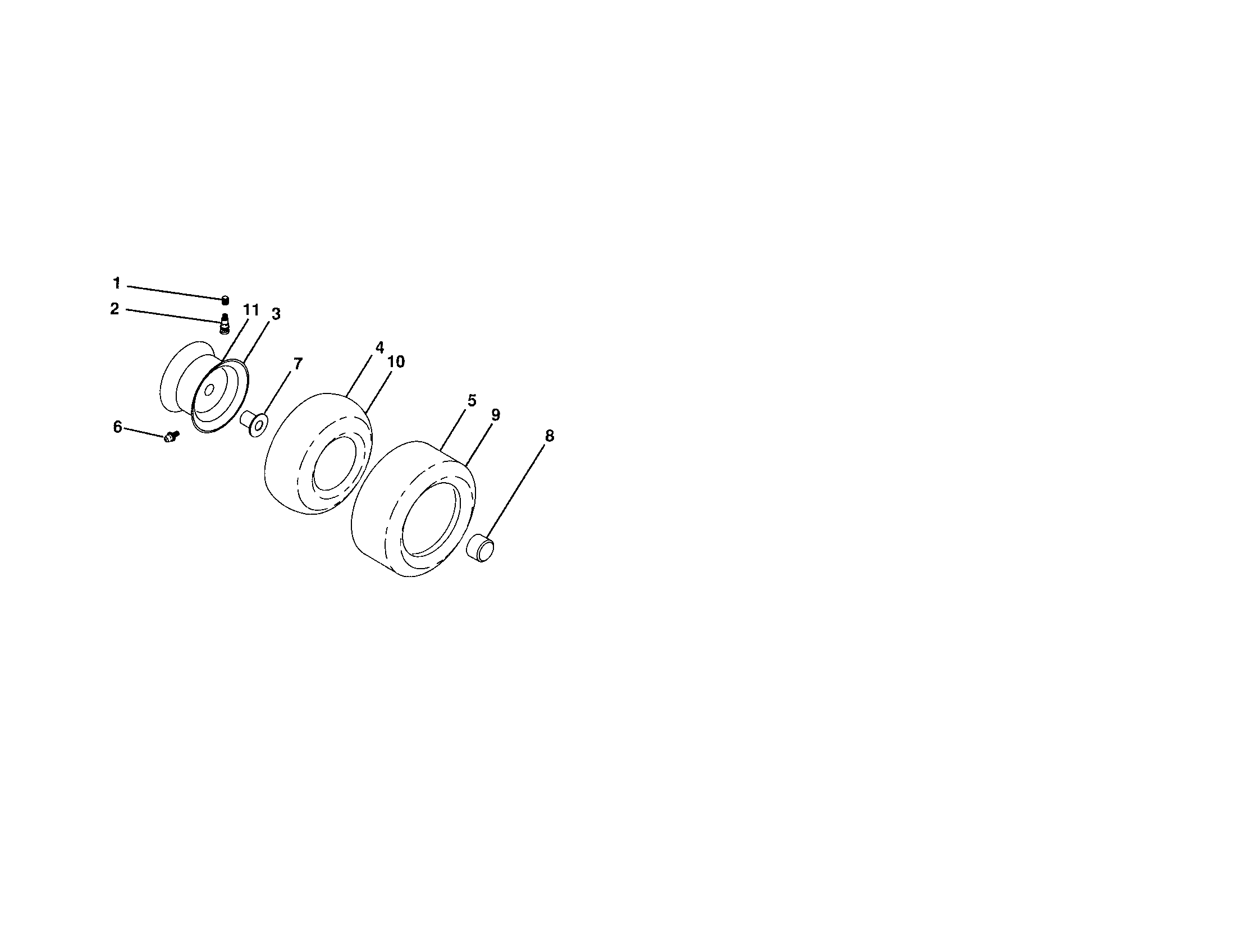

    Wheels and tires diagram

    Lawn tractor axle cap

    Part #104757X428

    Replaced by #532104757

    ?
    Manufacturer substitution
    This part replaces 104757X428. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $5.93
    14% OFF Phone Price : $6.93
    In Stock
  • Lawn Tractor Blade Drive Belt, 5/8 X 148-5/8-in 196103
    #47

    Mower deck diagram

    Lawn tractor blade drive belt, 5/8 x 148-5/8-in

    Part #196103

    Replaced by #587686701

    ?
    Manufacturer substitution
    This part replaces 196103. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    $59.55
    9% OFF Phone Price : $65.55
    In Stock
  • Lock Nut 73900600
    Lock nut

    Part #73900600

    Replaced by #532409149

    ?
    Manufacturer substitution
    This part replaces 73900600. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.29
    14% OFF Phone Price : $7.29
    In Stock
  • Lawn Tractor Bolt 173984
    #30

    Mower deck diagram

    Lawn tractor bolt

    Part #173984

    Replaced by #584953901

    ?
    Manufacturer substitution
    This part replaces 173984. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Lawn Tractor Starter Solenoid 192507
    #43

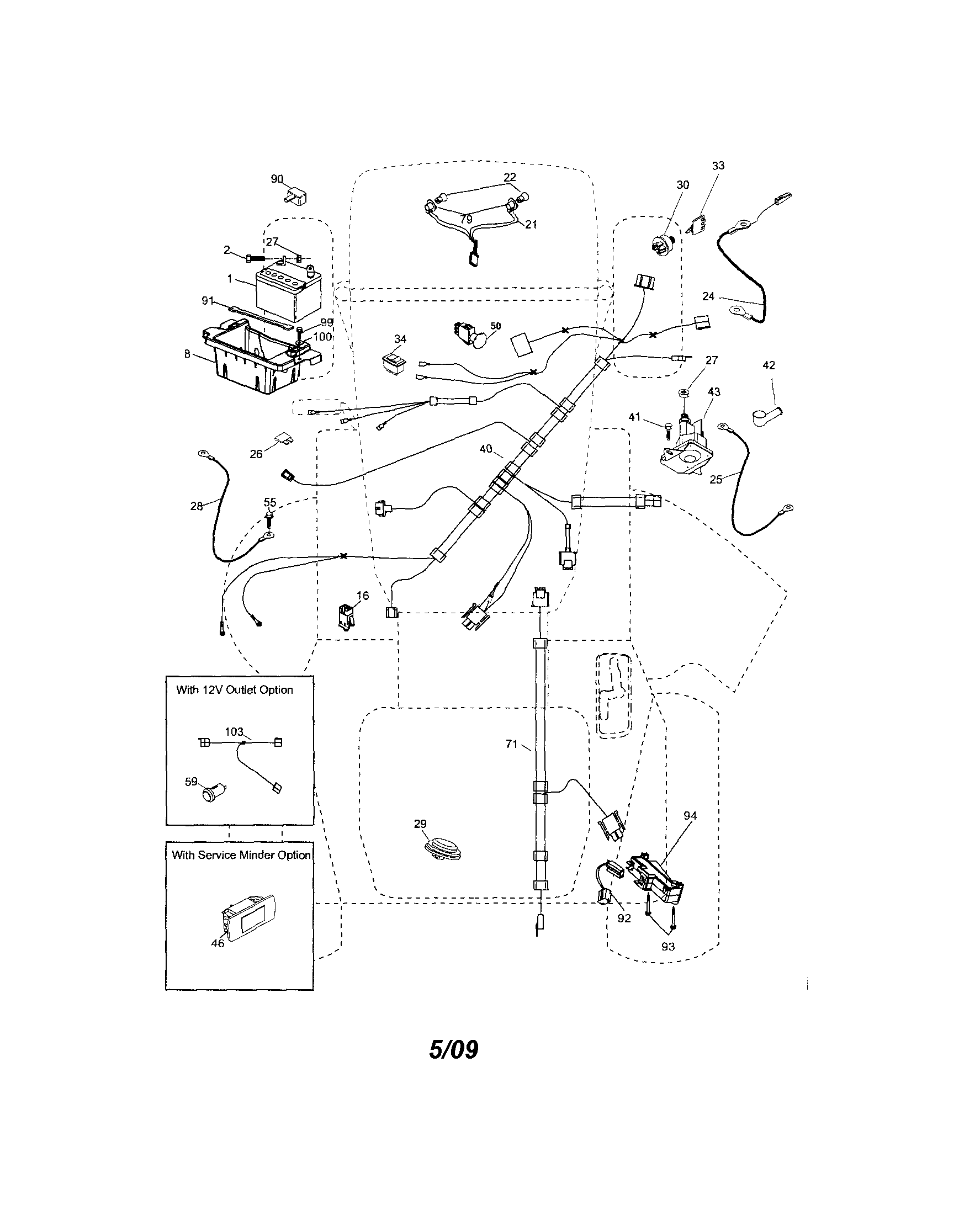

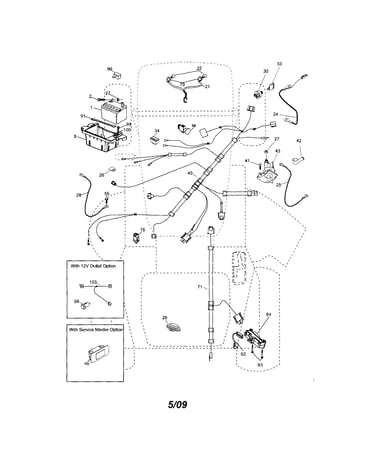

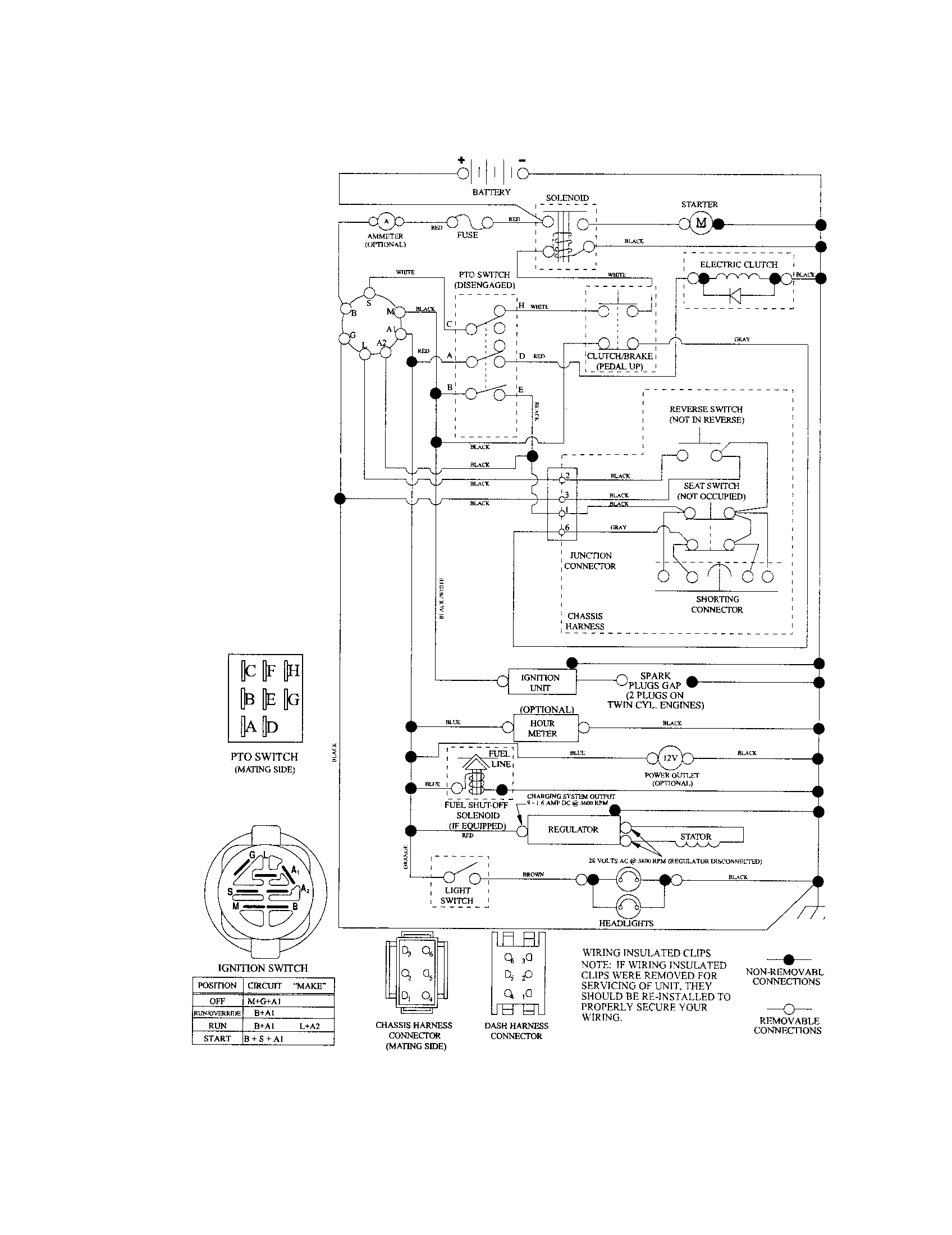

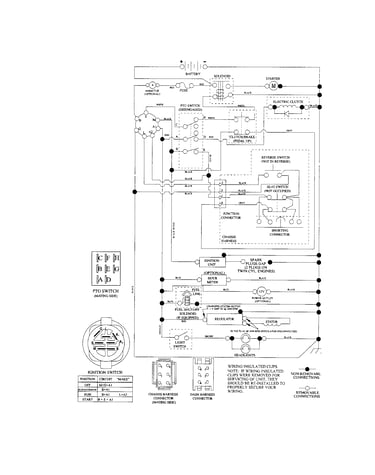

    Electrical diagram

    Lawn tractor starter solenoid

    Part #192507

    Replaced by #582042802

    ?
    Manufacturer substitution
    This part replaces 192507. Substitute parts can look different from the original.
    BEST SELLER
    $30.77
    16% OFF Phone Price : $36.77
    In Stock
  • Lawn Tractor Ignition Switch 193350
    #30

    Electrical diagram

    Lawn tractor ignition switch

    Part #193350

    Replaced by #532193350

    ?
    Manufacturer substitution
    This part replaces 193350. Substitute parts can look different from the original.
    BEST SELLER
    $30.64
    16% OFF Phone Price : $36.64
    In Stock
  • Switch.pto 174652
    #50

    Electrical diagram

    Switch.pto

    Part #174652

    Replaced by #582107601

    ?
    Manufacturer substitution
    This part replaces 174652. Substitute parts can look different from the original.
    BEST SELLER
    $35.58
    14% OFF Phone Price : $41.58
    In Stock
  • Lawn Tractor Shoulder Bolt 193406
    #116

    Mower deck diagram

    Lawn tractor shoulder bolt

    Part #193406

    Replaced by #596434404

    ?
    Manufacturer substitution
    This part replaces 193406. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.20
    12% OFF Phone Price : $8.20
    In Stock
