Model # 91193512010 Official Kenmore 30" electric range
Here are the diagrams and repair parts for Official Kenmore 91193512010 30" electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
91193512010 Ranges
#257

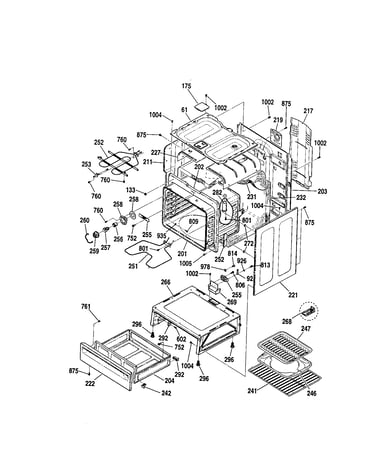

Body diagram
Range oven light bulb
Part #WX12X1510
Replaced by #40A15
?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
$16.73 |
11% OFF Phone Price : $18.73
In Stock

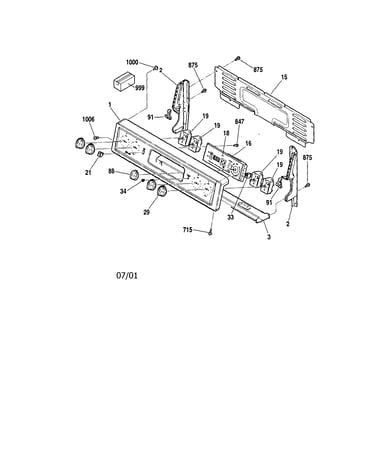

#19
Backguard diagram
G.e. range surface element control switch
Part #WB24T10025
$37.60 |
14% OFF Phone Price : $43.60
In Stock
#251
Body diagram
G.e. range bake element
Part #WB44T10010
$81.35 |
7% OFF Phone Price : $87.35
In Stock
#19A
Backguard diagram
Range surface element control switch, 1,500-watt
Part #WB24T10029
$46.34 |
11% OFF Phone Price : $52.34
In Stock
#60
Maintop diagram
Range drip pan (replaces wb32x10014)
Part #WB31T10011
$15.22 |
12% OFF Phone Price : $17.22
In Stock
#59
Maintop diagram
G.e. range drip pan (chrome) (replaces wb32t10008, wb32x10015)
Part #WB31T10010
$17.16 |
10% OFF Phone Price : $19.16
In Stock
#252
Body diagram
Range broil element (replaces wb44t10034)
Part #WB44T10009
$78.60 |
7% OFF Phone Price : $84.60
In Stock
#111
Door diagram
Range oven door gasket
Part #WB04T10001
Replaced by #WB04T10086
?
Manufacturer substitution
This part replaces WB04T10001. Substitute parts can look different from the original.
$47.14 |
11% OFF Phone Price : $53.14
In Stock
#256
Body diagram
Range light socket
Part #WB08T10004
Replaced by #WB08T10026
?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock

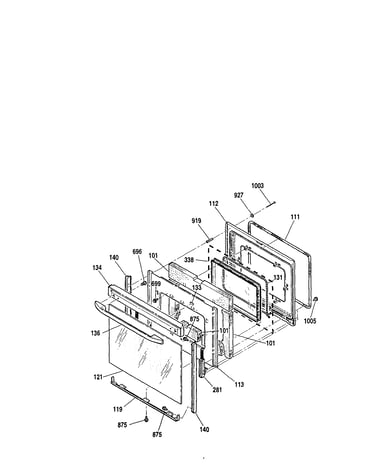

#119A
Door diagram
Door
Part #WB07T10098
Replaced by #WB07X42948
?
Manufacturer substitution
This part replaces WB07T10098. Substitute parts can look different from the original.
$42.09
In Stock
