Water Pump

Model # 390251181 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251181 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Pump Body Gasket J20-18
#7

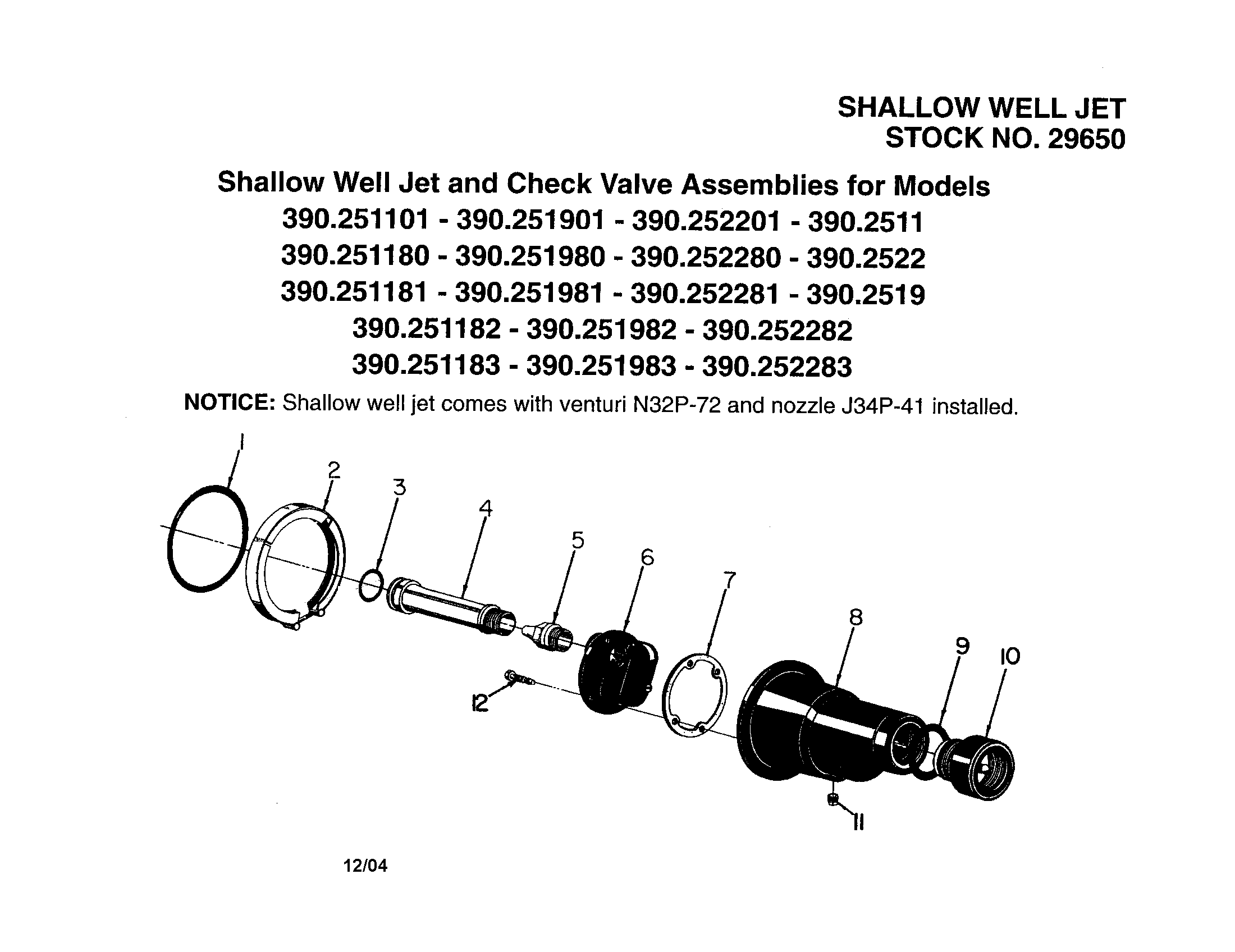

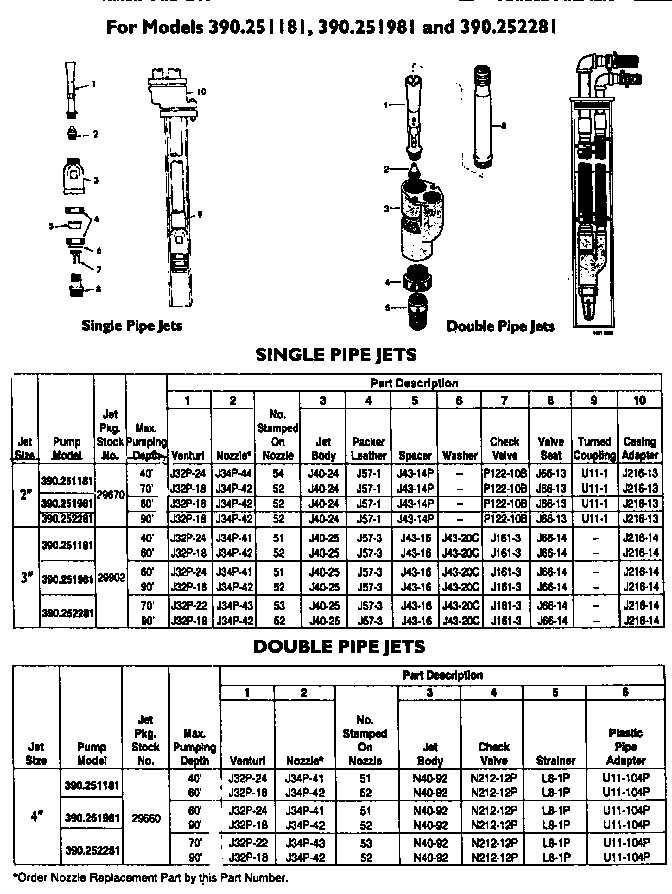

Shallow well jet&check valve asm diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
Back Order
Pump Pressure Switch Tube U37-673P
#13

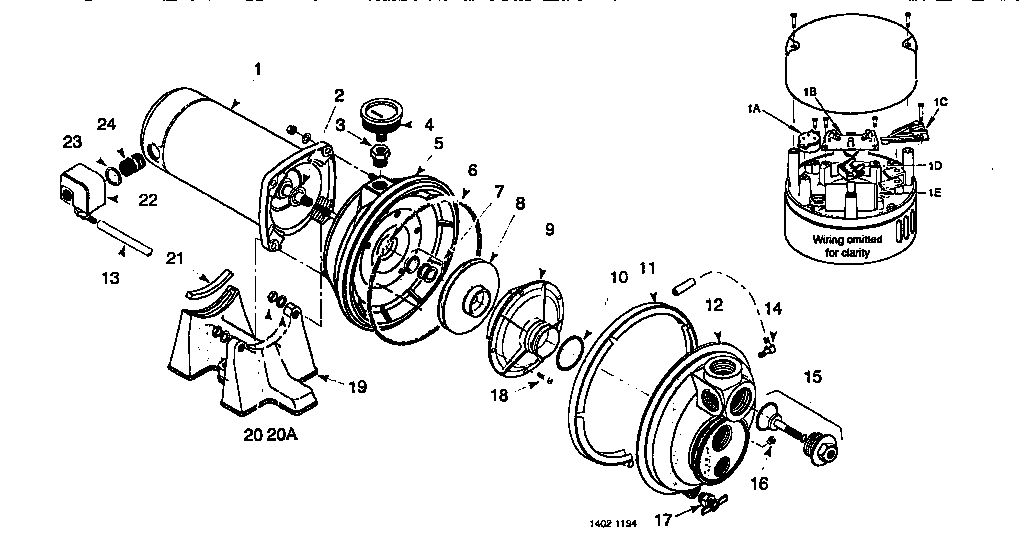

Motor and pump assembly diagram

Pump pressure switch tube

Part #U37-673P

This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
Back Order
Shaft Seal 2784
#7

Motor and pump assembly diagram

Shaft seal

Part #2784

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces 2784. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Slinger C69-2
#2

Motor and pump assembly diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Pump Hose Fitting, 90-degree U111-212T
#14

Motor and pump assembly diagram

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Kenmore Nipple U37-116GP
Kenmore nipple

Part #U37-116GP

$33.03
In Stock
Csng Adptr J51-1ZZP
#6

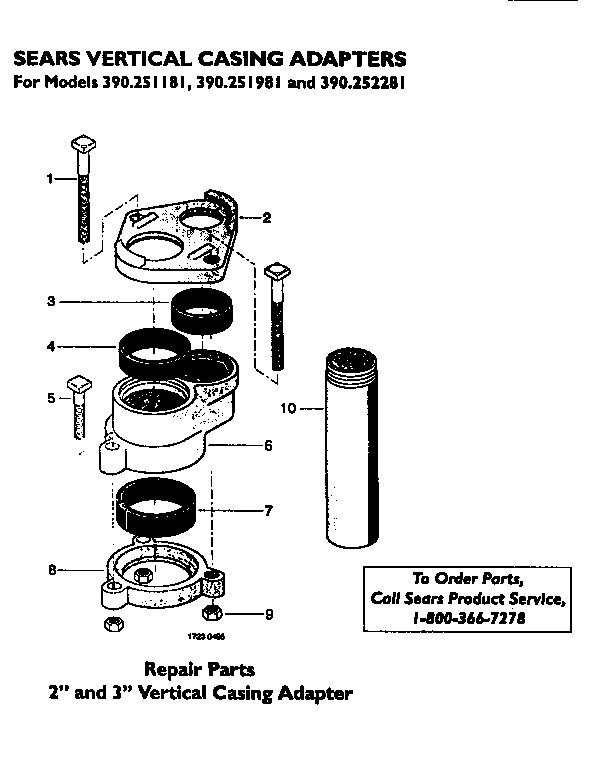

Vertical casing adapters diagram

Csng adptr

Part #J51-1ZZP

$47.68
In Stock
Pump Start Switch Governor U18-128
#1D

Motor and pump assembly diagram

Pump start switch governor

Part #U18-128

$214.50 |
5% OFF Phone Price : $226.50
In Stock
Pump Motor Base C4-42P
#19

Motor and pump assembly diagram

Pump motor base

Part #C4-42P

$118.62
In Stock
Pump Body Jet Insert N40-38P
#8

Shallow well jet&check valve asm diagram

Pump body jet insert

Part #N40-38P

$191.99 |
6% OFF Phone Price : $203.99
In Stock
