Bottom-Mount Refrigerator

Model # LFCS22520S/05 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFCS22520S-05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

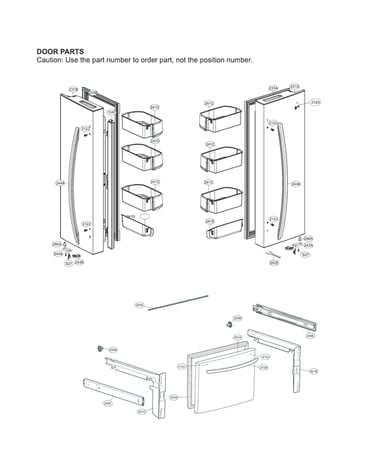

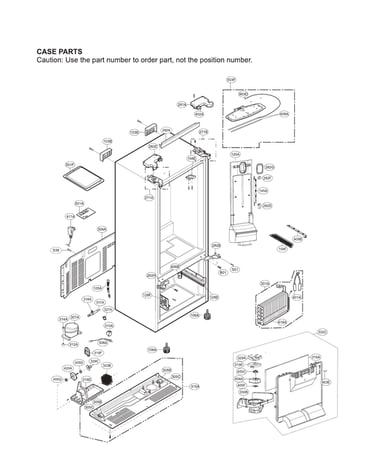

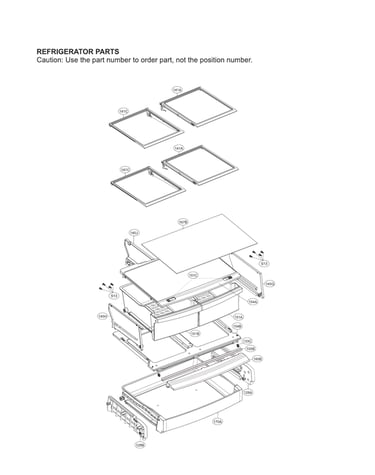

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Lg Refrigerator Compressor TCA37032028

#307A

All parts diagram

Lg refrigerator compressor

Part #TCA37032028

BEST SELLER
$307.79 |
$12.00 OFF Phone Price : $319.79
In Stock
Refrigerator Filter Dryer ADH73590310

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590310

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Lg Kenmore Refrigerator Water Filter (replaces Adq36006113) ADQ36006101

#NI

All parts diagram

Lg kenmore refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Lg Refrigerator Ice Maker Assembly Model Aeq72909603 AEQ72909603

#600A

All parts diagram

Lg refrigerator ice maker assembly model aeq72909603

Part #AEQ72909603

BEST SELLER
$186.32 |
6% OFF Phone Price : $198.32
In Stock
Refrigerator Deli Drawer Front Cover MCR65017001

#160B

All parts diagram

Refrigerator deli drawer front cover

Part #MCR65017001

BEST SELLER
$49.84 |
11% OFF Phone Price : $55.84
In Stock
Lg Refrigerator Water Inlet Valve (replaces Mju62186801) AJU73753101

#619A

All parts diagram

Lg refrigerator water inlet valve (replaces mju62186801)

Part #AJU73753101

BEST SELLER
$90.43 |
6% OFF Phone Price : $96.43
In Stock
Refrigerator Temperature Sensor (replaces 6500jb2002p) 6500JB2002X

#903E

All parts diagram

Refrigerator temperature sensor (replaces 6500jb2002p)

Part #6500JB2002X

BEST SELLER
$20.76 |
22% OFF Phone Price : $26.76
In Stock
Refrigerator Door Stop 4620JJ2009A

#243B

All parts diagram

Refrigerator door stop

Part #4620JJ2009A

BEST SELLER
$11.06 |
15% OFF Phone Price : $13.06
In Stock
Refrigerator Freezer Drawer Slide Rail, Right (replaces 5218ja1012e, 5218ja1012h) 5218JA1010E

#249E

All parts diagram

Refrigerator freezer drawer slide rail, right (replaces 5218ja1012e, 5218ja1012h)

Part #5218JA1010E

BEST SELLER
$92.19 |
6% OFF Phone Price : $98.19
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A

#314A

All parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
