Table Saw

Model # 351228040 Official Craftsman right-tilting arbor saw

Here are the diagrams and repair parts for Official Craftsman 351228040 right-tilting arbor saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

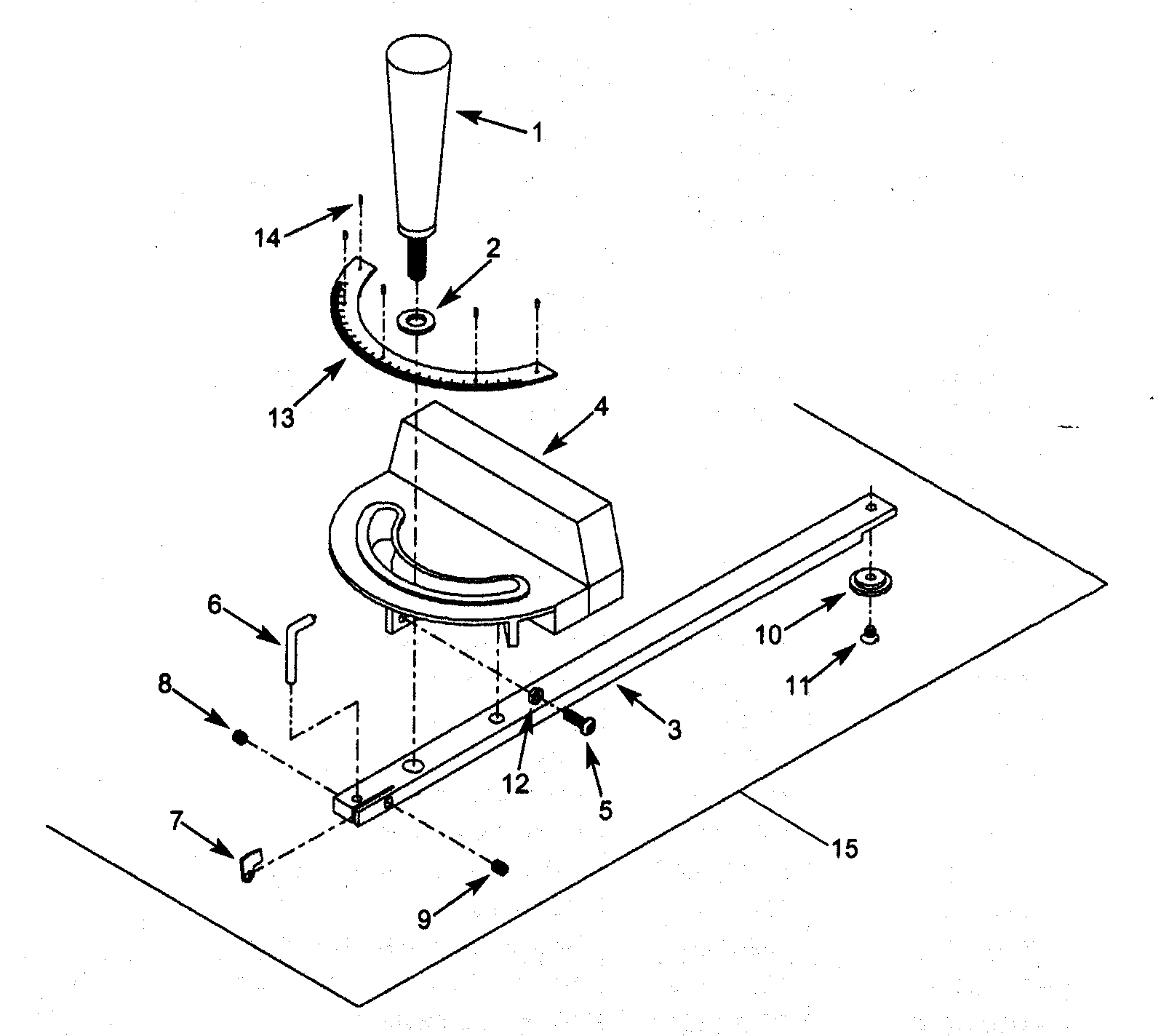

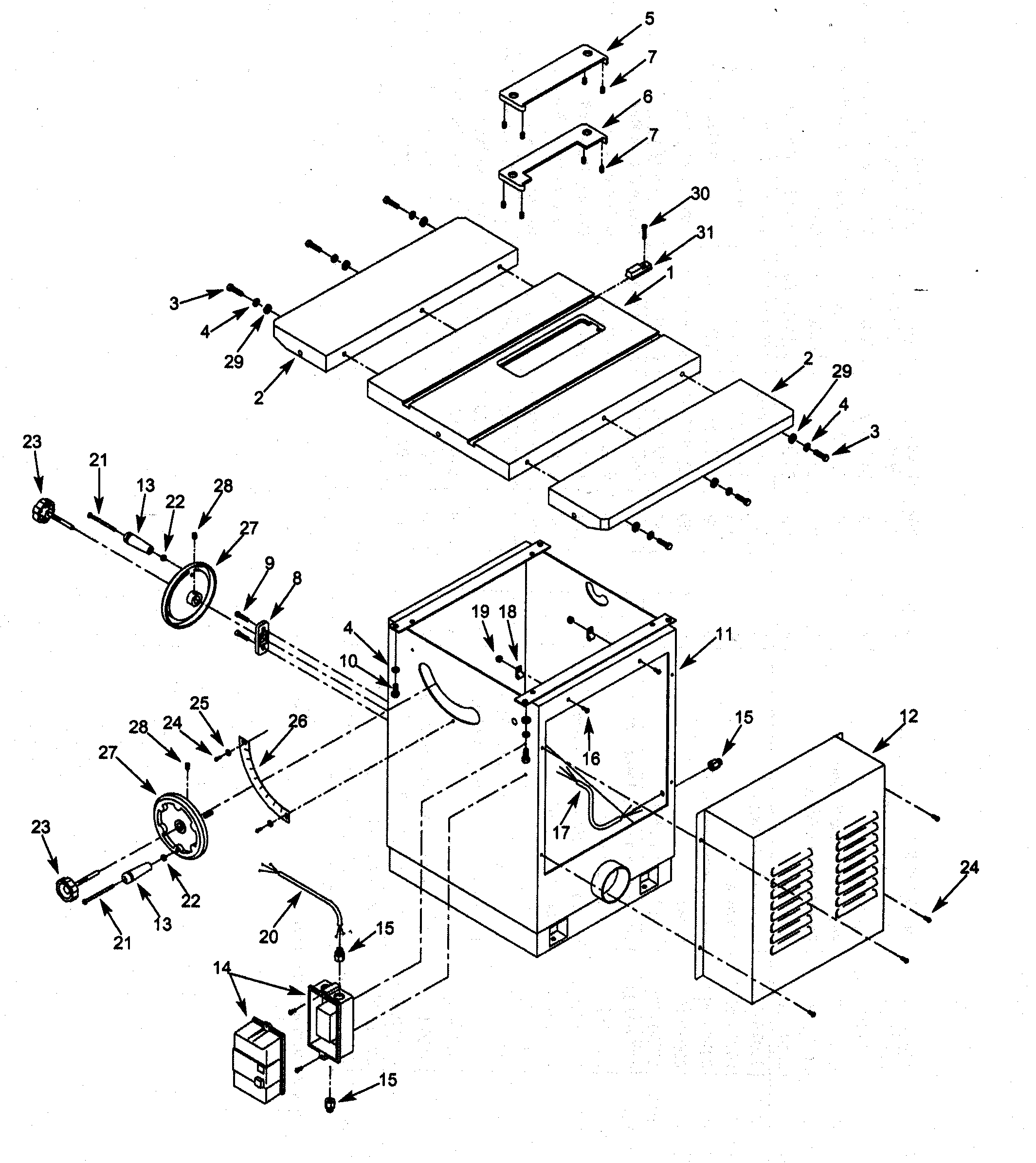

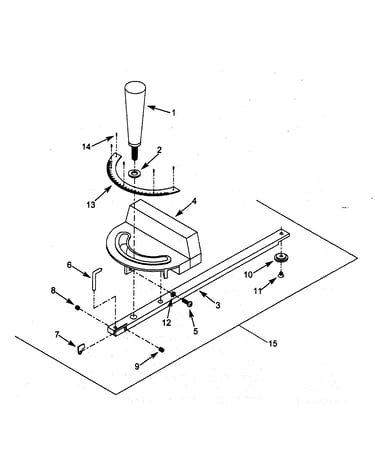

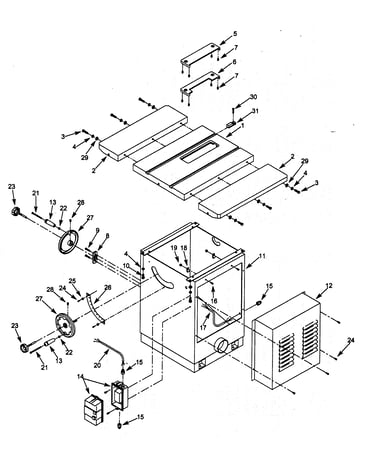

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Spring Pin 05993.00
#11

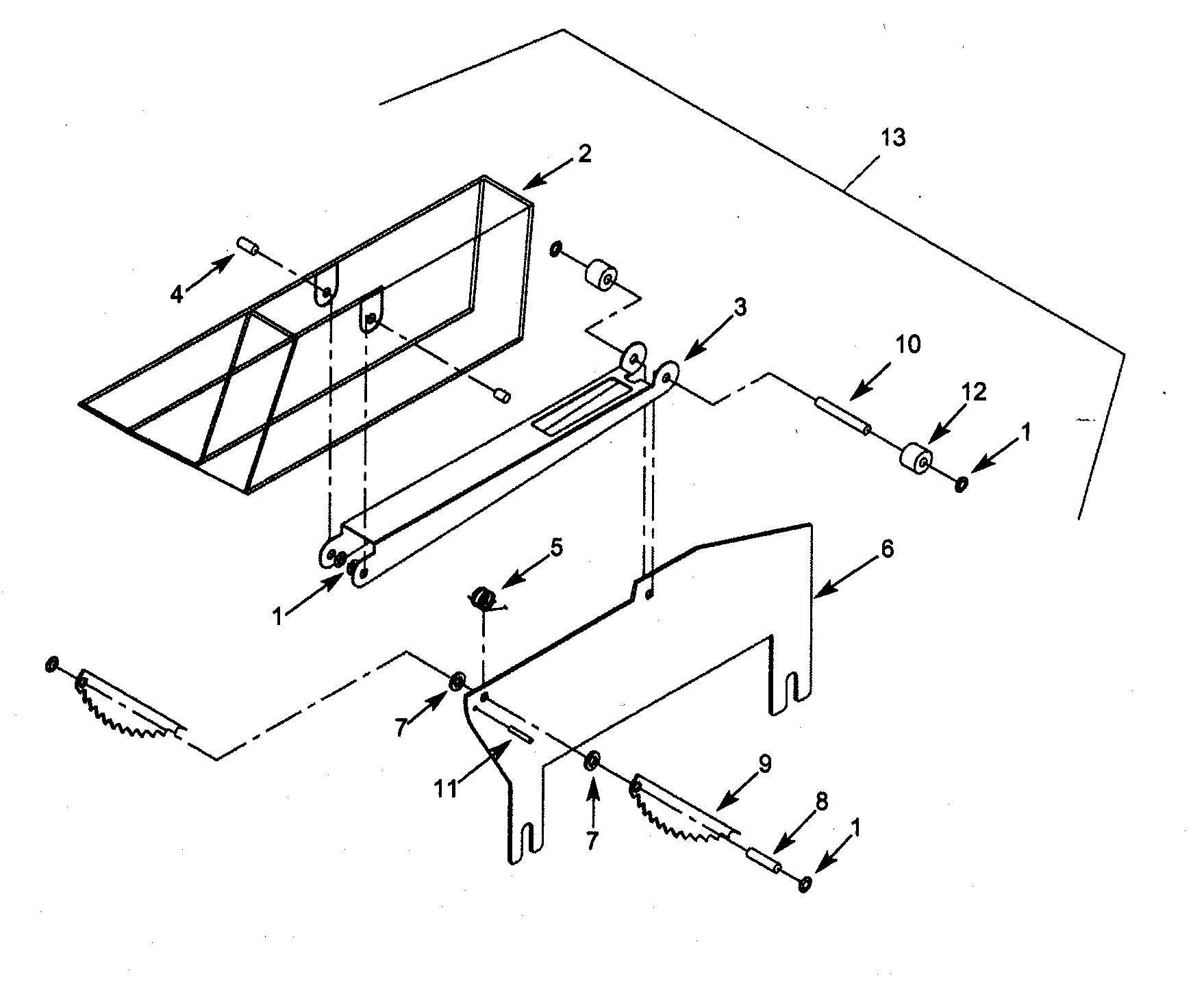

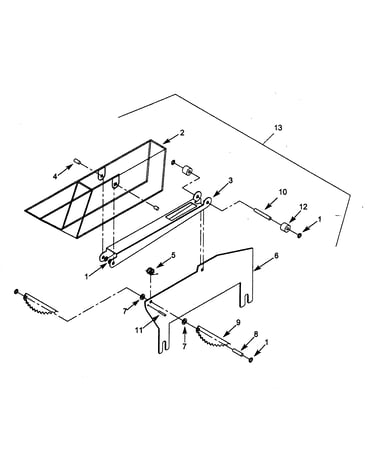

Blade guard diagram

Spring pin

Part #05993.00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 01002.00
#18

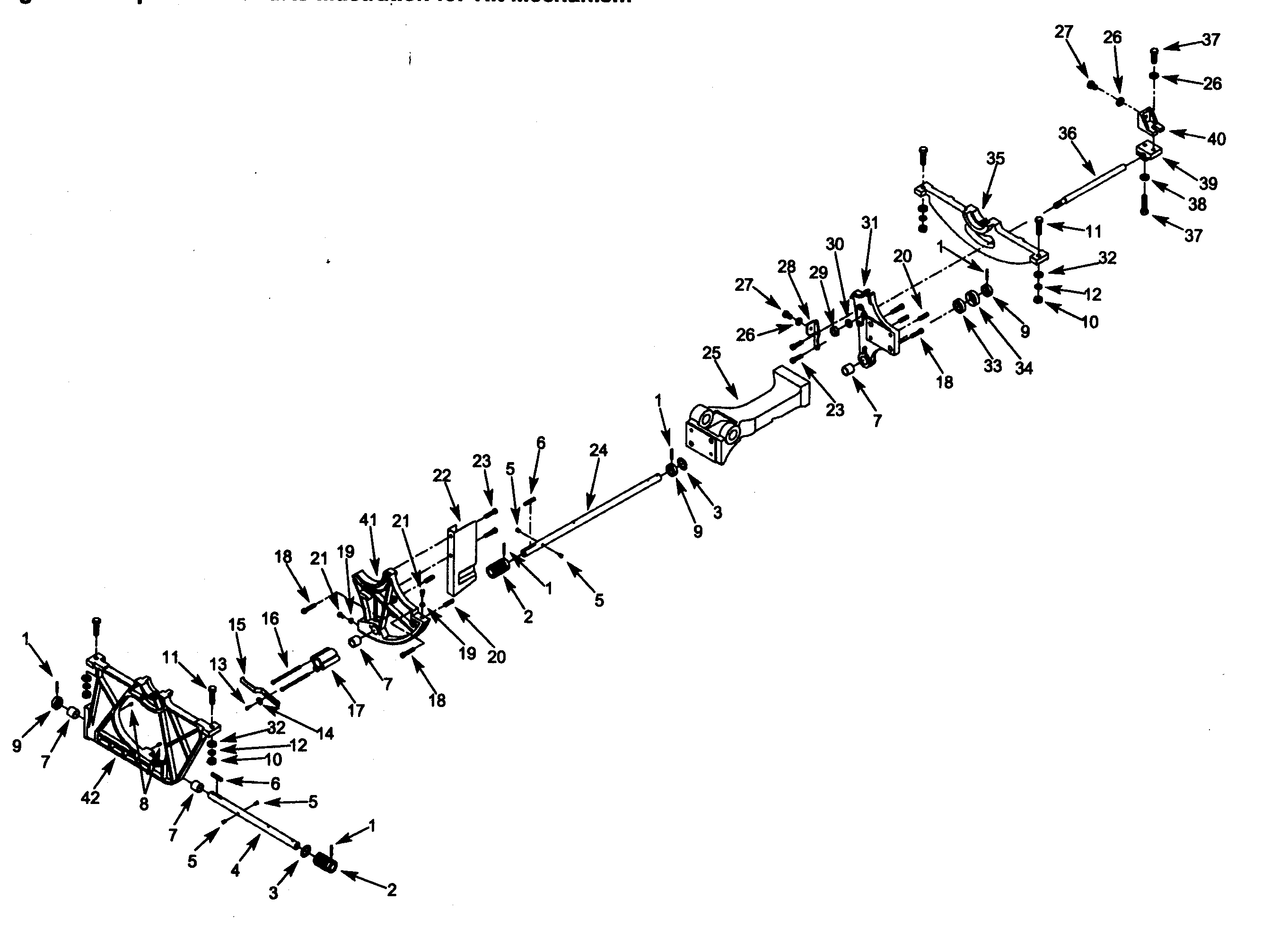

Tilt mechanism diagram

Bolt

Part #01002.00

The manufacturer no longer makes this part, and there's no substitute part

6005ll STD315555
#38

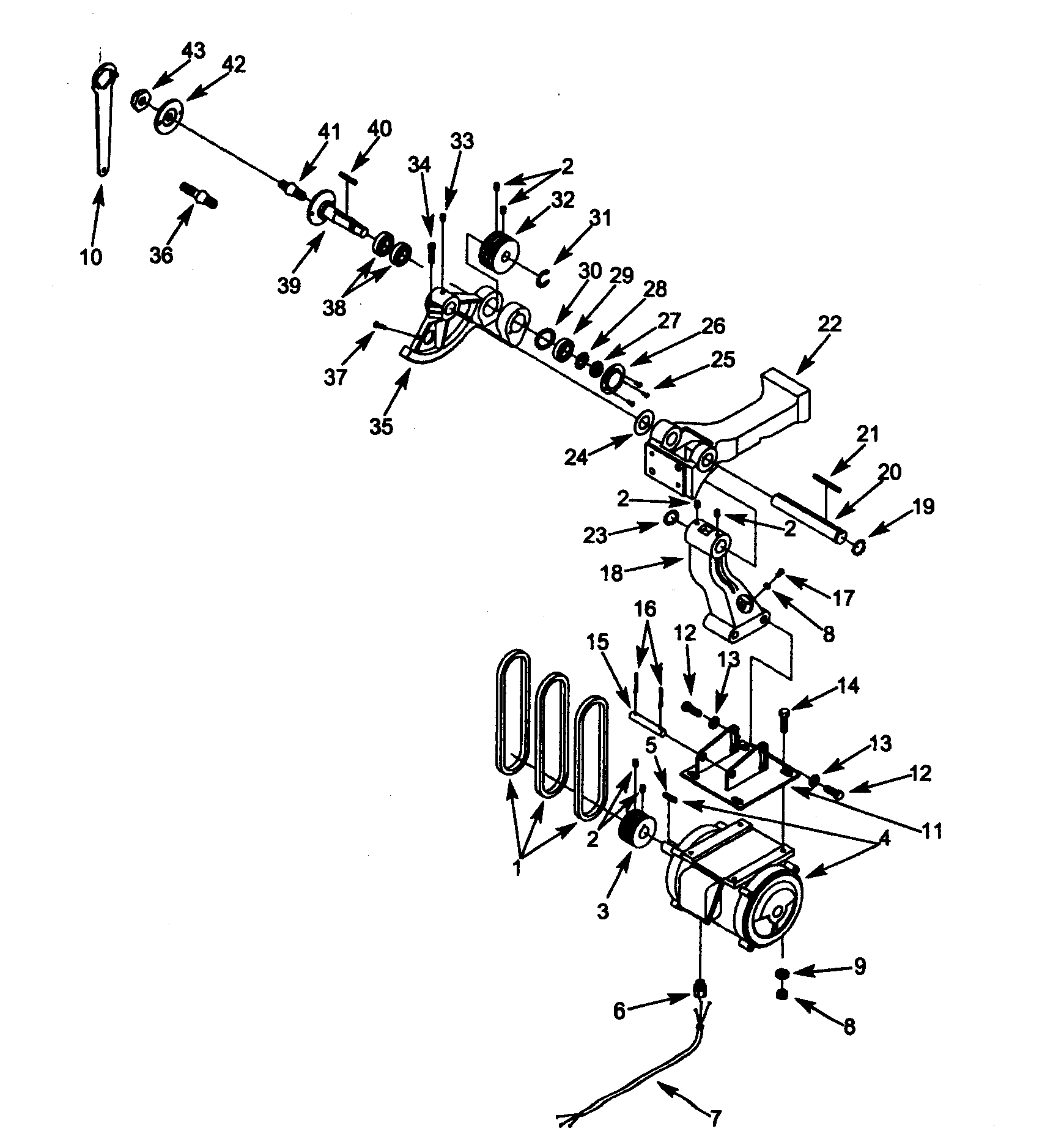

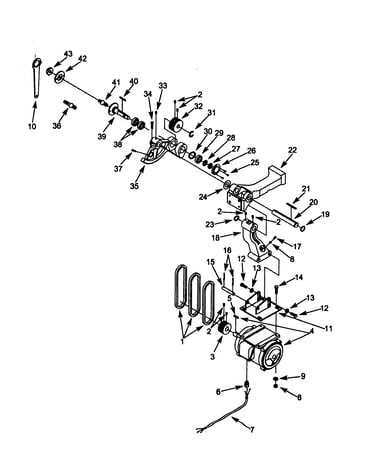

Blade drive diagram

6005ll

Part #STD315555

The manufacturer no longer makes this part, and there's no substitute part

Extension 23164.00
#41

Blade drive diagram

Extension

Part #23164.00

The manufacturer no longer makes this part, and there's no substitute part

Cover 00992.00
#26

Blade drive diagram

Cover

Part #00992.00

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 8-mm STD851008
#26

Tilt mechanism diagram

Flat washer, 8-mm

Part #STD851008

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD840812
#8

Blade drive diagram

Hex nut

Part #STD840812

The manufacturer no longer makes this part, and there's no substitute part

Limit Stud 00972.00
#5

Tilt mechanism diagram

Limit stud

Part #00972.00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 00964.00
#2

Blade drive diagram

Set screw

Part #00964.00

The manufacturer no longer makes this part, and there's no substitute part

Shoe 15953.00
#16

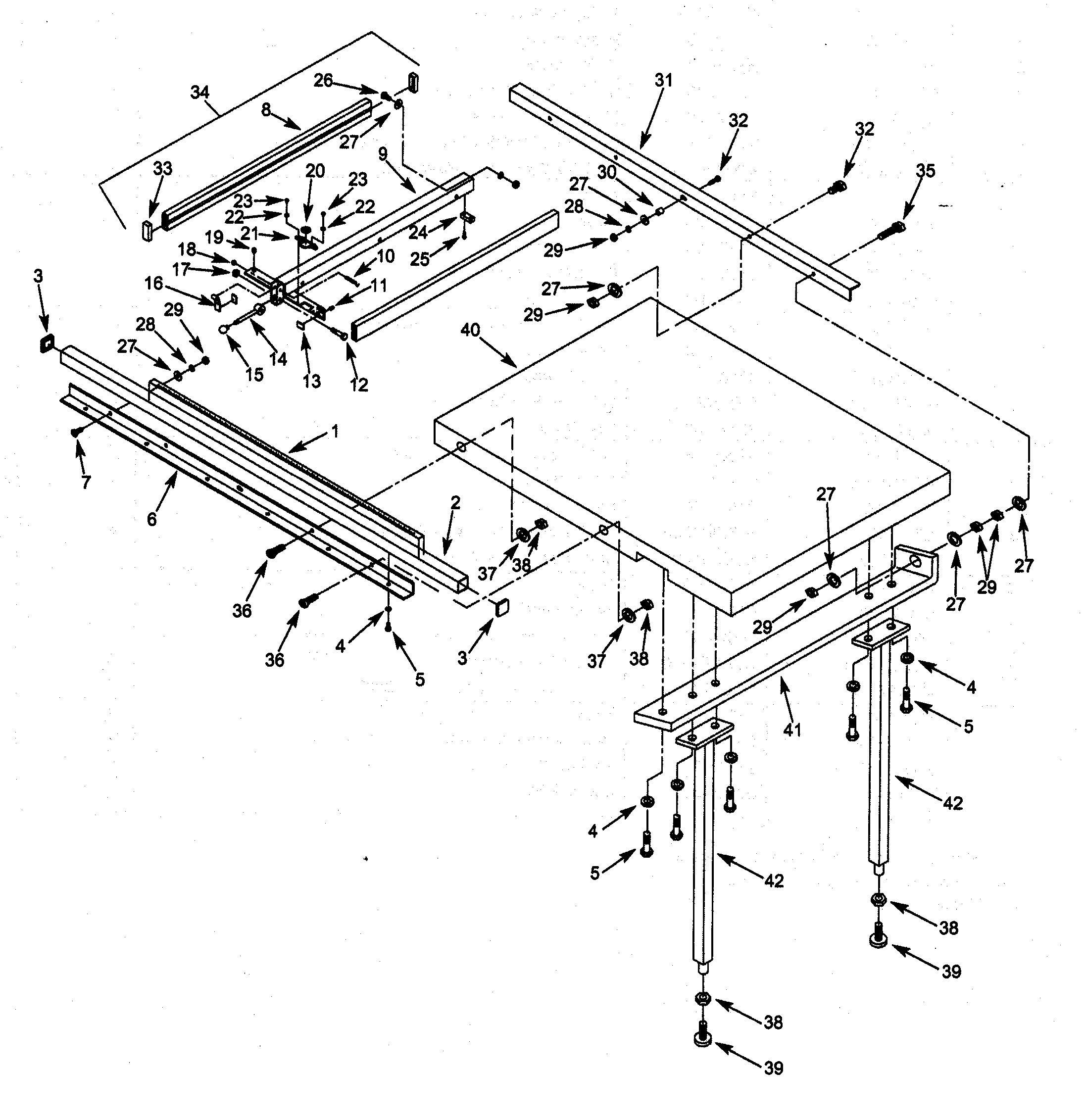

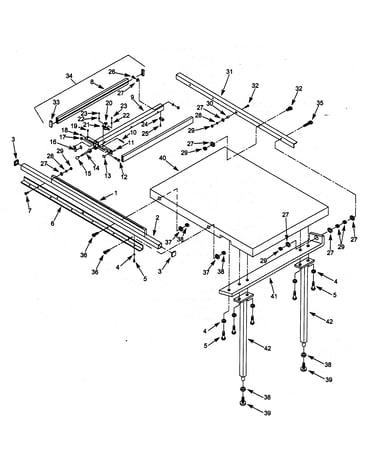

Rip fence diagram

Shoe

Part #15953.00

The manufacturer no longer makes this part, and there's no substitute part
