Maytag
Bottom-Mount Refrigerator

Model # MBF1958XEB1 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MBF1958XEB1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

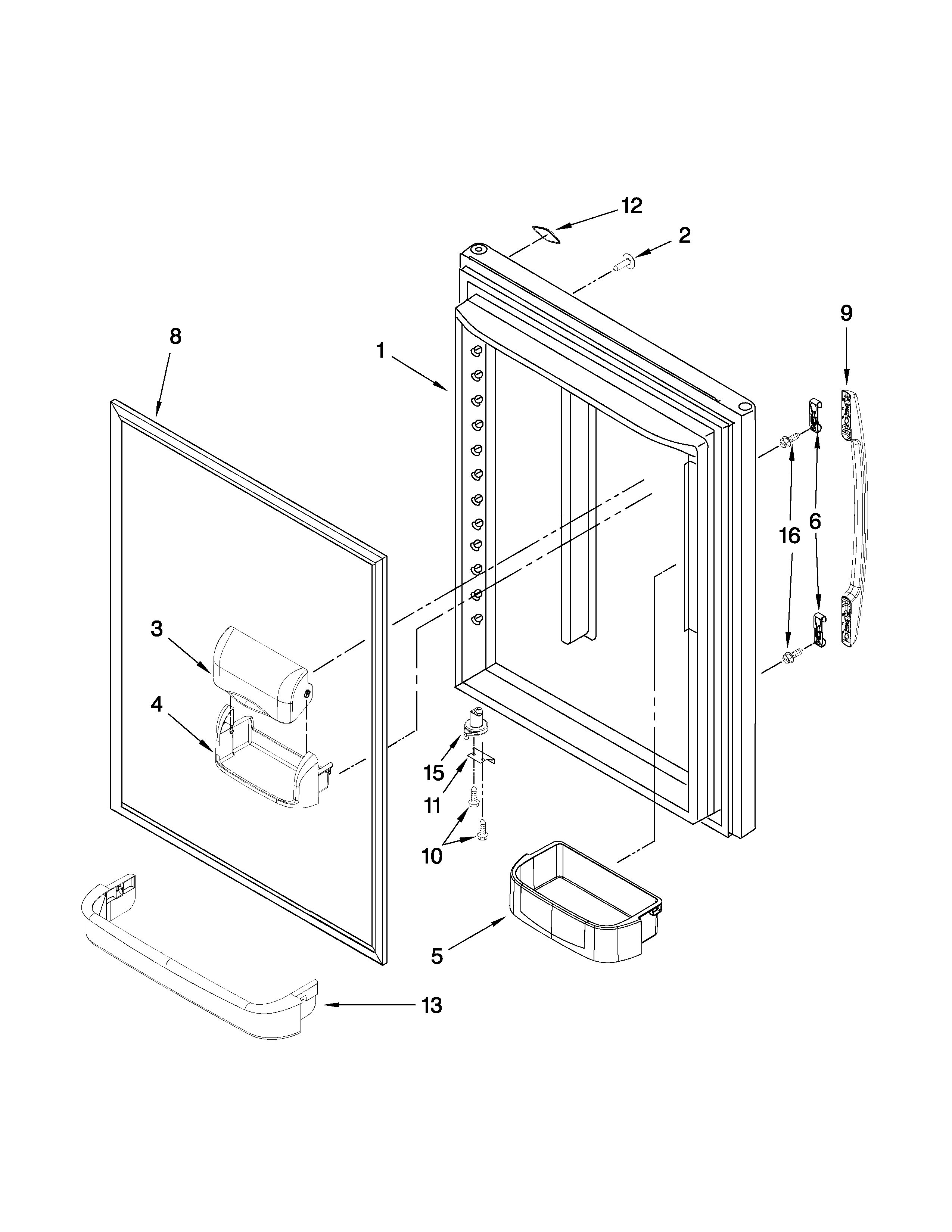

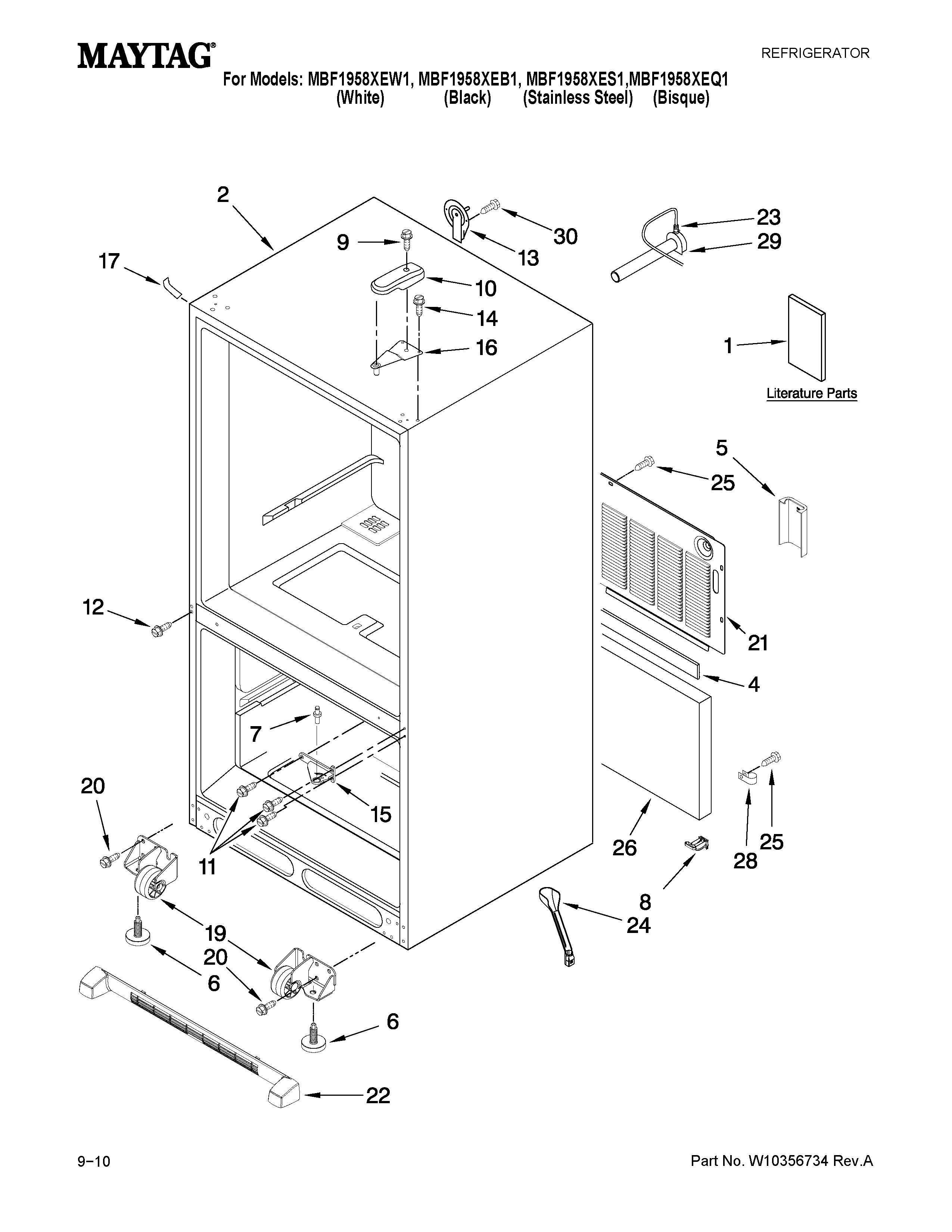

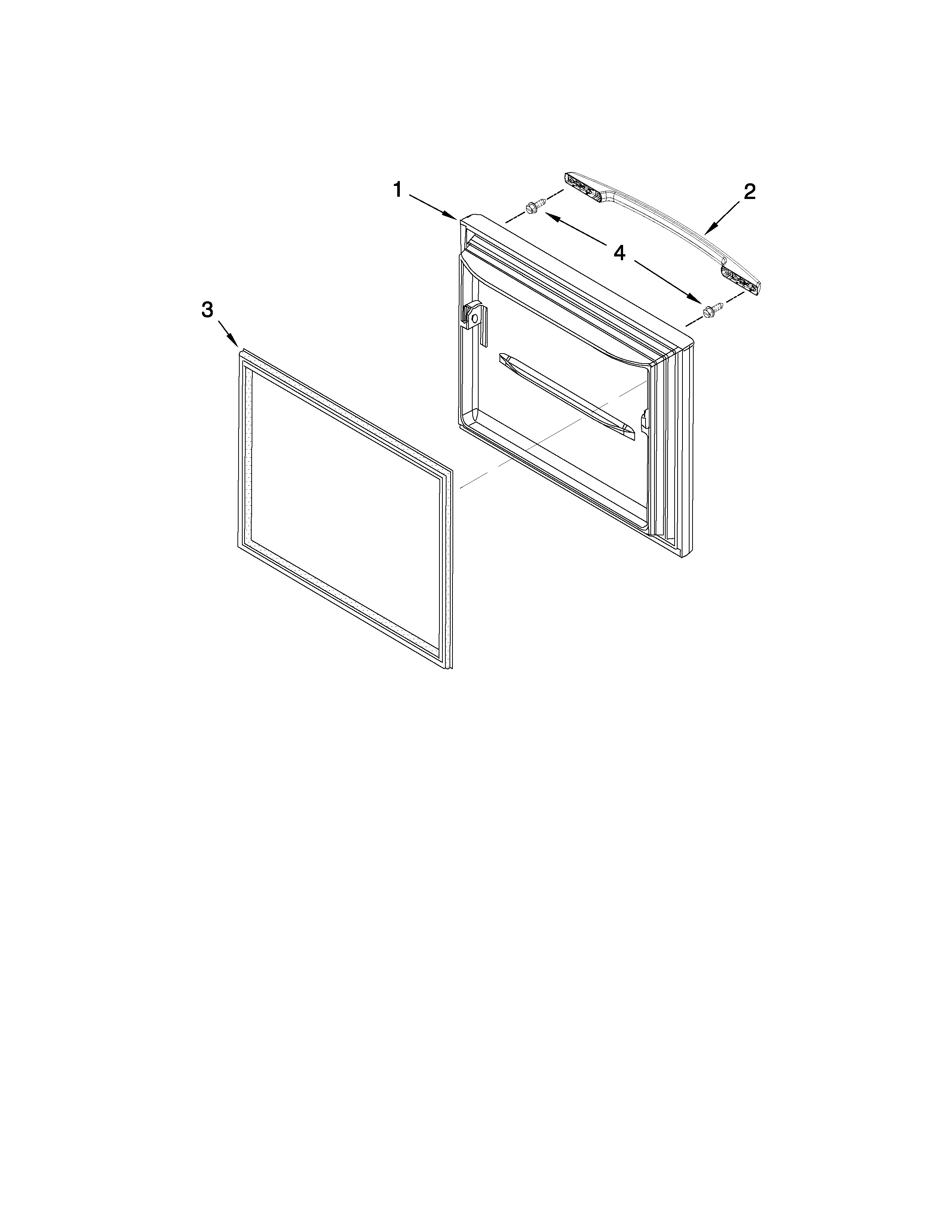

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

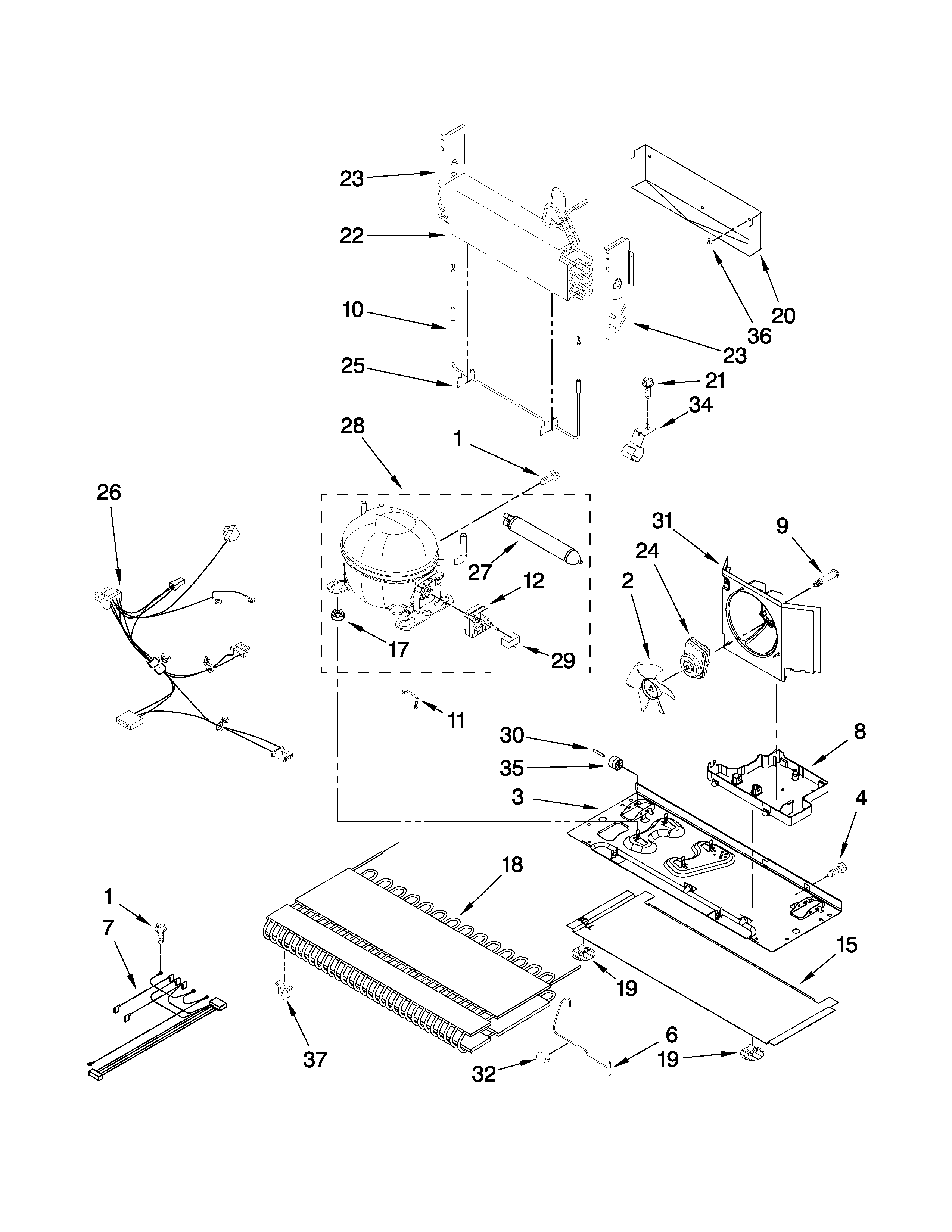

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker W10190978
#100

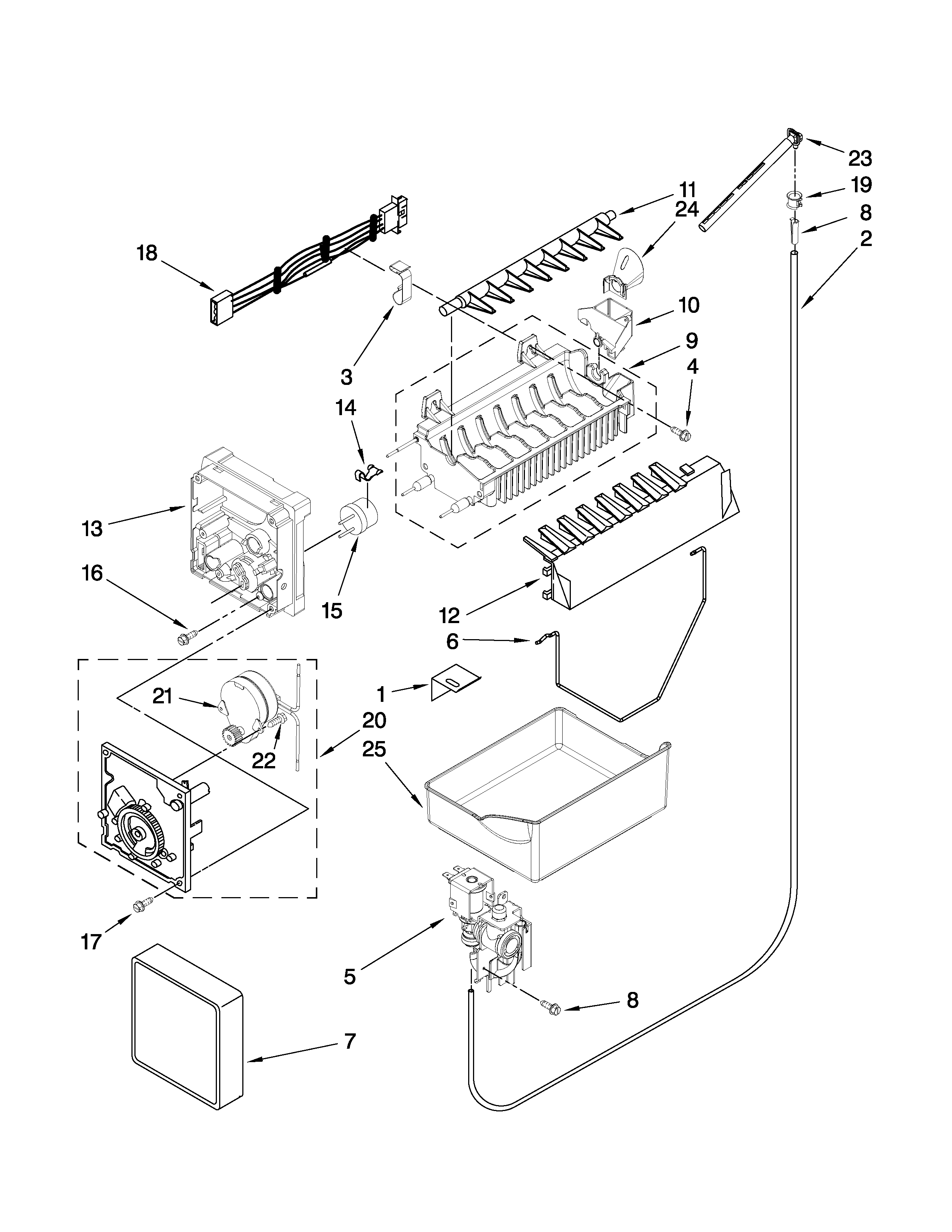

Icemaker parts diagram

Refrigerator ice maker

Part #W10190978

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces W10190978. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Bulb-light 2255743N
Bulb-light

Part #2255743N

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743N. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Switch C3680310V
#6

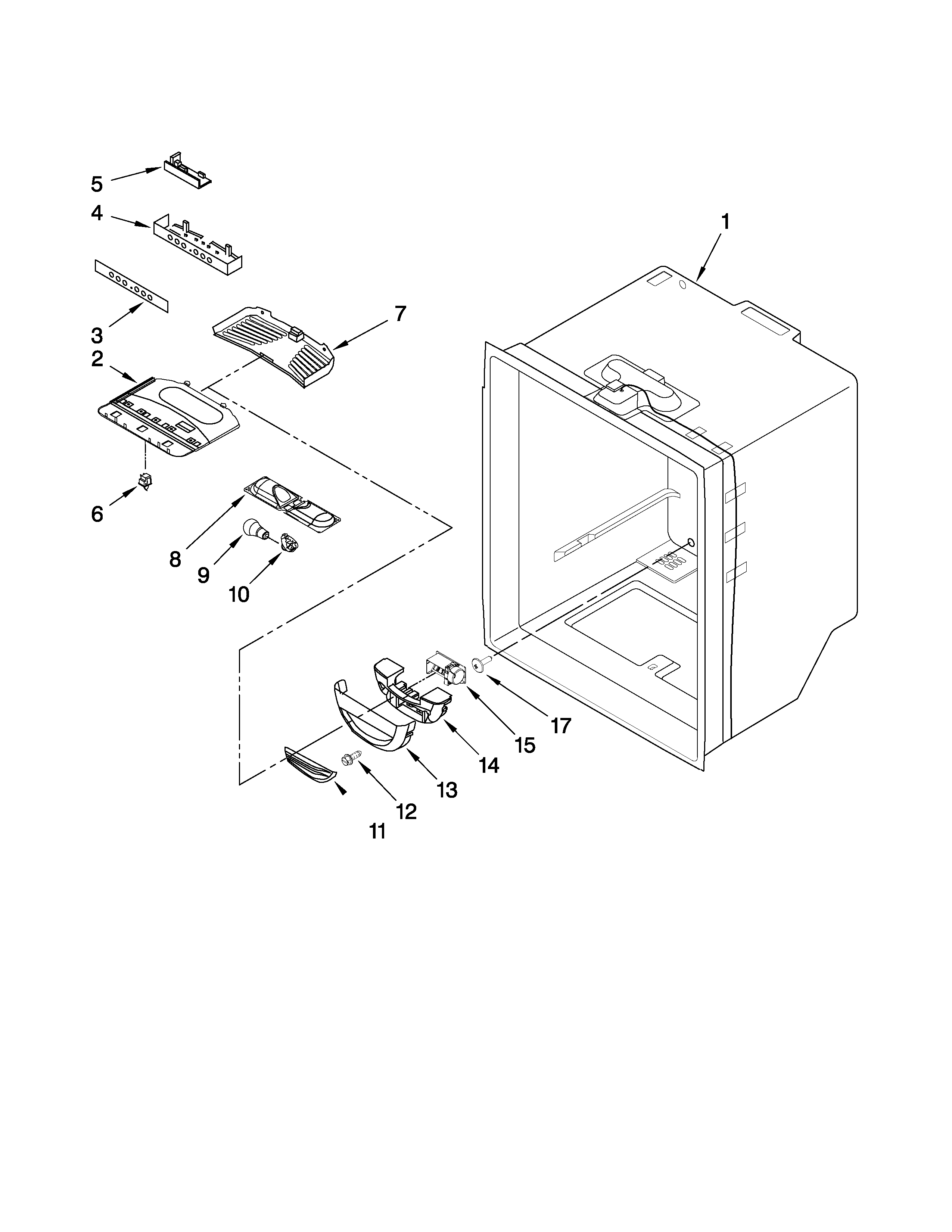

Refrigerator liner parts diagram

Refrigerator switch

Part #C3680310V

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Evaporator Fan Blade 2169142
#24

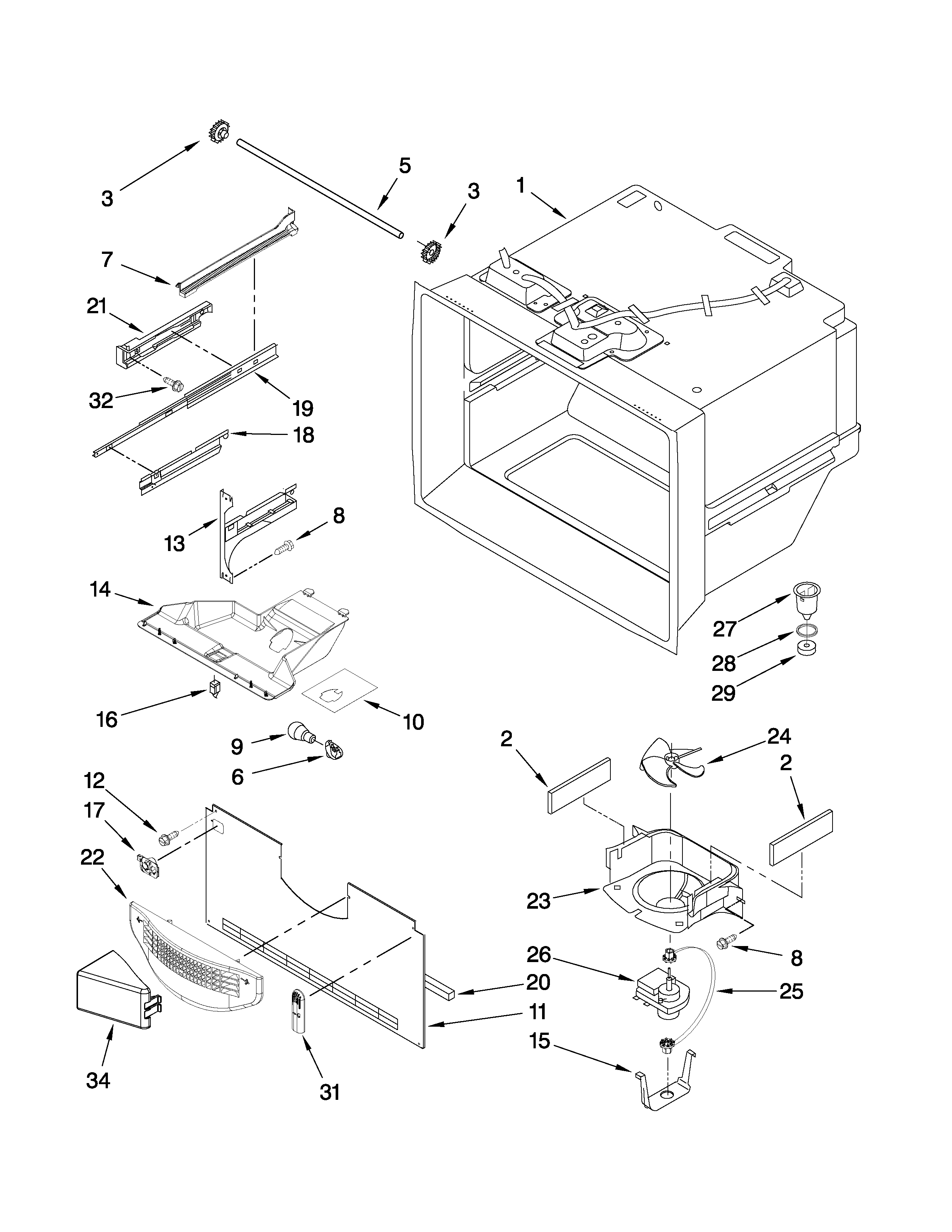

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Refrigerator Compressor W10187125
#28

Unit parts diagram

Refrigerator compressor

Part #W10187125

Replaced by #W10507884

?
Manufacturer substitution
This part replaces W10187125. Substitute parts can look different from the original.
BEST SELLER
$363.60 |
$12.00 OFF Phone Price : $375.60
In Stock
Refrigerator Central Rail 12530701N
#1

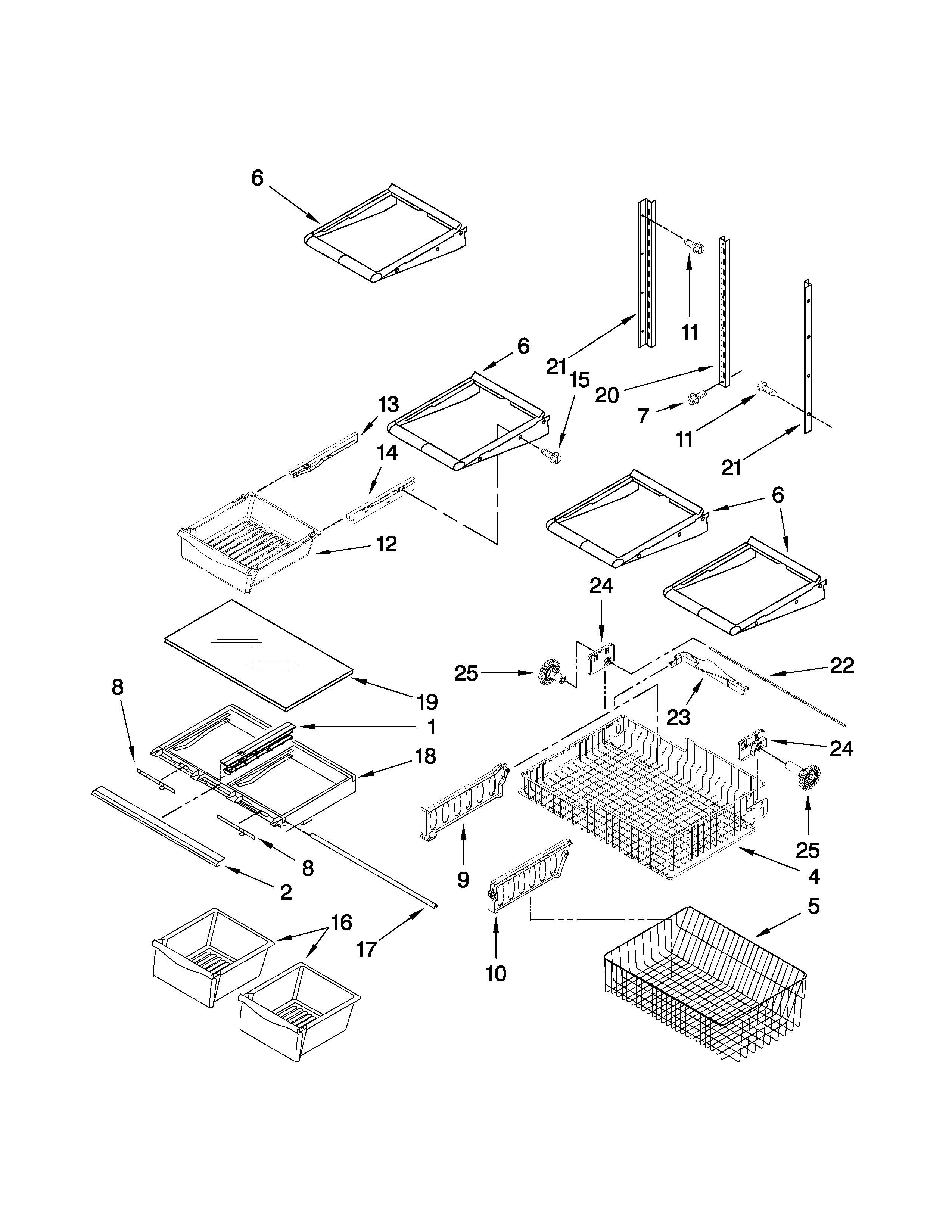

Shelf parts diagram

Refrigerator central rail

Part #12530701N

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 12530701N. Substitute parts can look different from the original.
BEST SELLER
$45.01 |
12% OFF Phone Price : $51.01
In Stock
Light Swit 12466105
#16

Freezer liner parts diagram

Light swit

Part #12466105

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466105. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Evaporator Motor 13062901
#26

Freezer liner parts diagram

Refrigerator evaporator motor

Part #13062901

Replaced by #W11024089

?
Manufacturer substitution
This part replaces 13062901. Substitute parts can look different from the original.
BEST SELLER
$45.28 |
12% OFF Phone Price : $51.28
In Stock
Refrigerator Water Inlet Valve Assembly W10219716
#5

Icemaker parts diagram

Refrigerator water inlet valve assembly

Part #W10219716

Replaced by #WP2315576

?
Manufacturer substitution
This part replaces W10219716. Substitute parts can look different from the original.
BEST SELLER
$47.39 |
11% OFF Phone Price : $53.39
In Stock
