Model # AZ31H15E3CV3 Official GE zoneline air conditioner
Here are the diagrams and repair parts for Official GE AZ31H15E3CV3 zoneline air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AZ31H15E3CV3 Zoneline Air Conditioner
#NI
All parts diagram
Vt rac alumi
Part #31-6013
$97.99
In Stock
#86

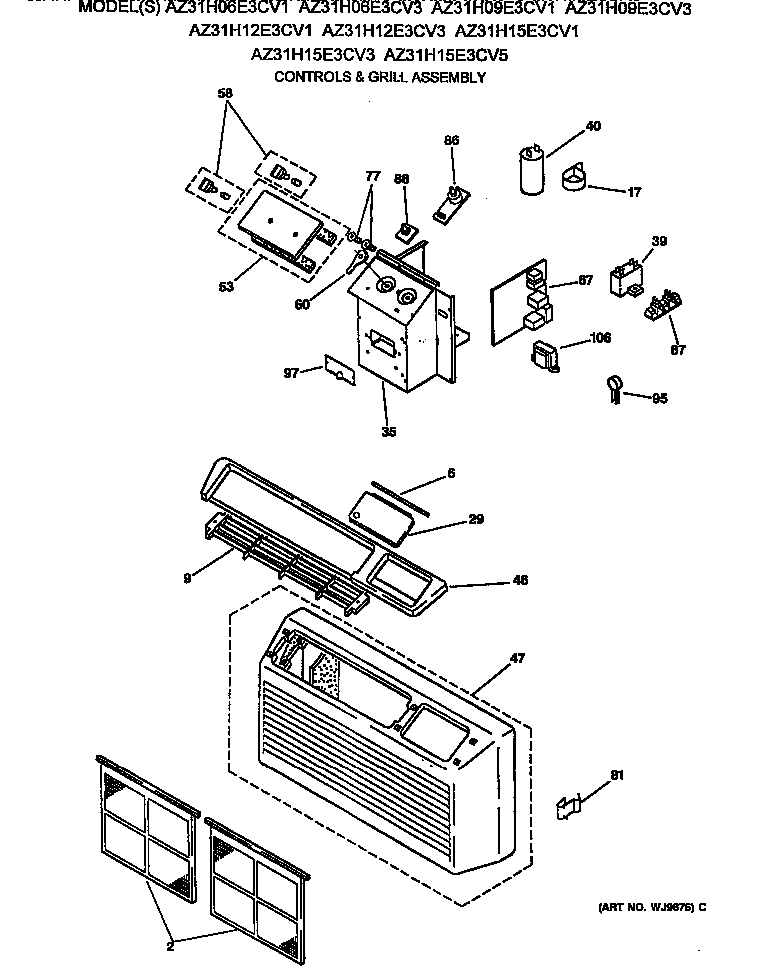

Controls & grill assembly diagram
Room air conditioner rotary switch
Part #WP28X56
$88.34 |
6% OFF Phone Price : $94.34
In Stock
#NI
All parts diagram
Zoneline 210
Part #49-7283
Replaced by #49-7365
?
Manufacturer substitution
This part replaces 49-7283. Substitute parts can look different from the original.
$8.49
In Stock
#38

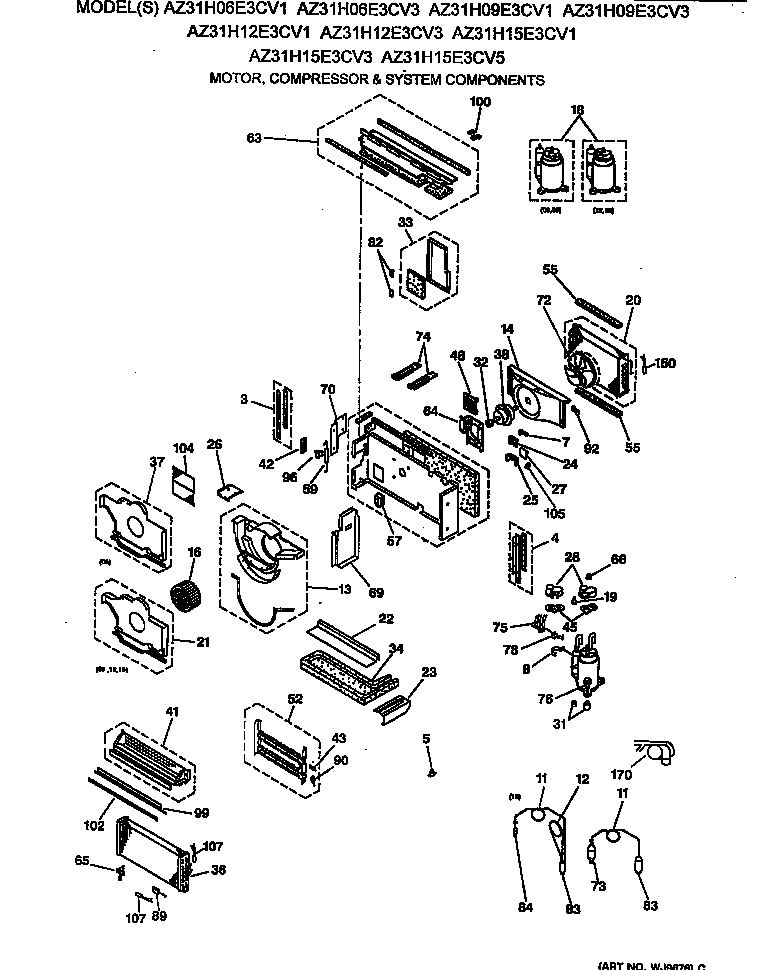

Motor, compressor & system components diagram
Fan motor
Part #WP94X125
The manufacturer no longer makes this part, and there's no substitute part
#18
Motor, compressor & system components diagram
Compres repl
Part #WJ98X1056
The manufacturer no longer makes this part, and there's no substitute part
#73
Motor, compressor & system components diagram
Strainer
Part #WP56X11
The manufacturer no longer makes this part, and there's no substitute part
#65
Motor, compressor & system components diagram
Mtg therm
Part #WP3X20
The manufacturer no longer makes this part, and there's no substitute part
#77
Controls & grill assembly diagram
Should sc
Part #WP1X24
The manufacturer no longer makes this part, and there's no substitute part
#67
Controls & grill assembly diagram
Pcb
Part #WP29X57
The manufacturer no longer makes this part, and there's no substitute part
#40
Controls & grill assembly diagram
Capacitor
Part #WP20X41
The manufacturer no longer makes this part, and there's no substitute part
