Model # MVH340W-P1319507M Official Amana microwave/hood combo
Here are the diagrams and repair parts for Official Amana MVH340W-P1319507M microwave/hood combo, as well as links to manuals and error code tables, if available.

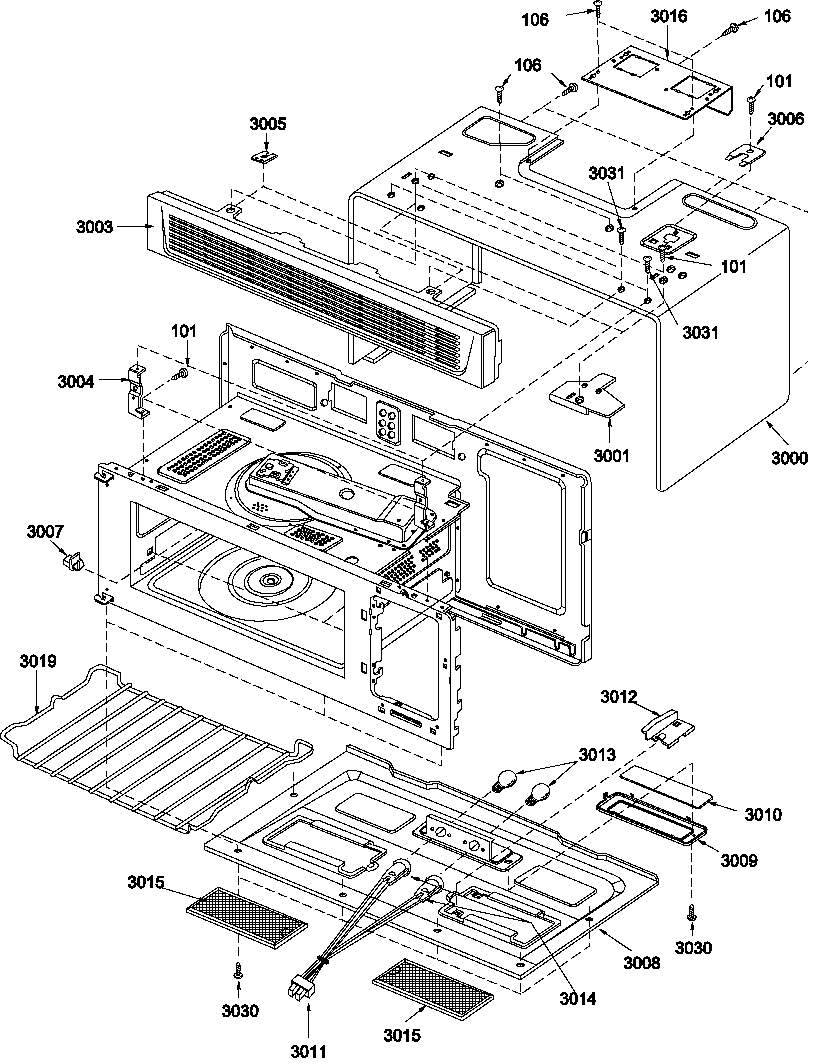

By Schematic
SELECT DIAGRAM
Browse Parts for
MVH340W-P1319507M Microwave/Hood Combo
#5008

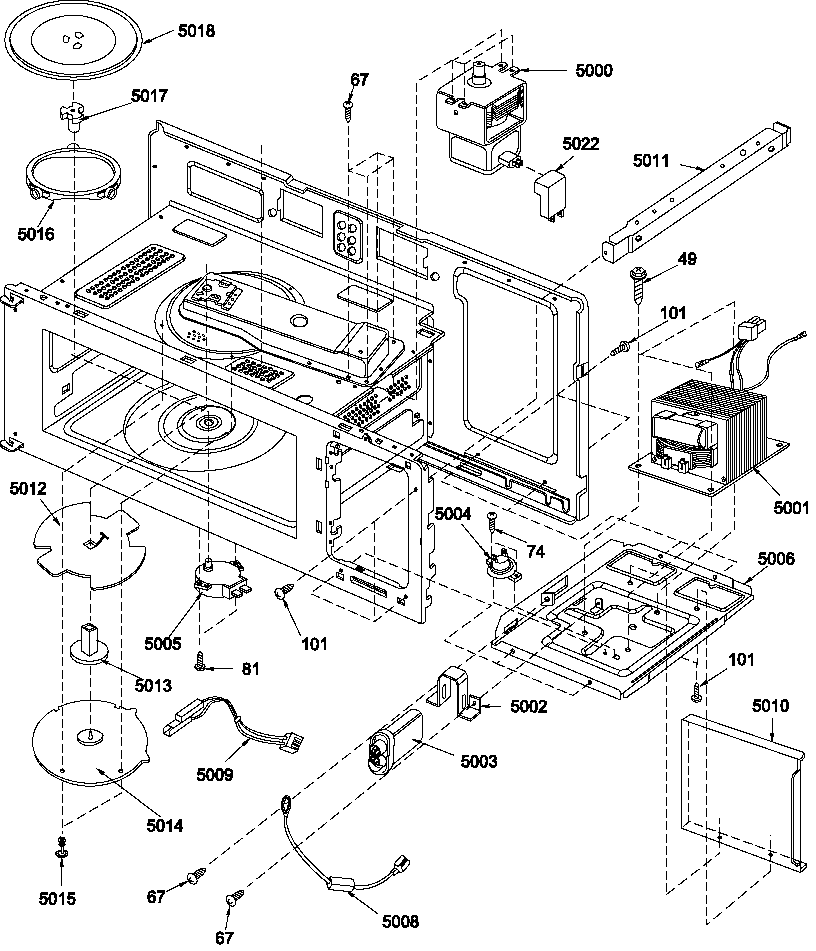

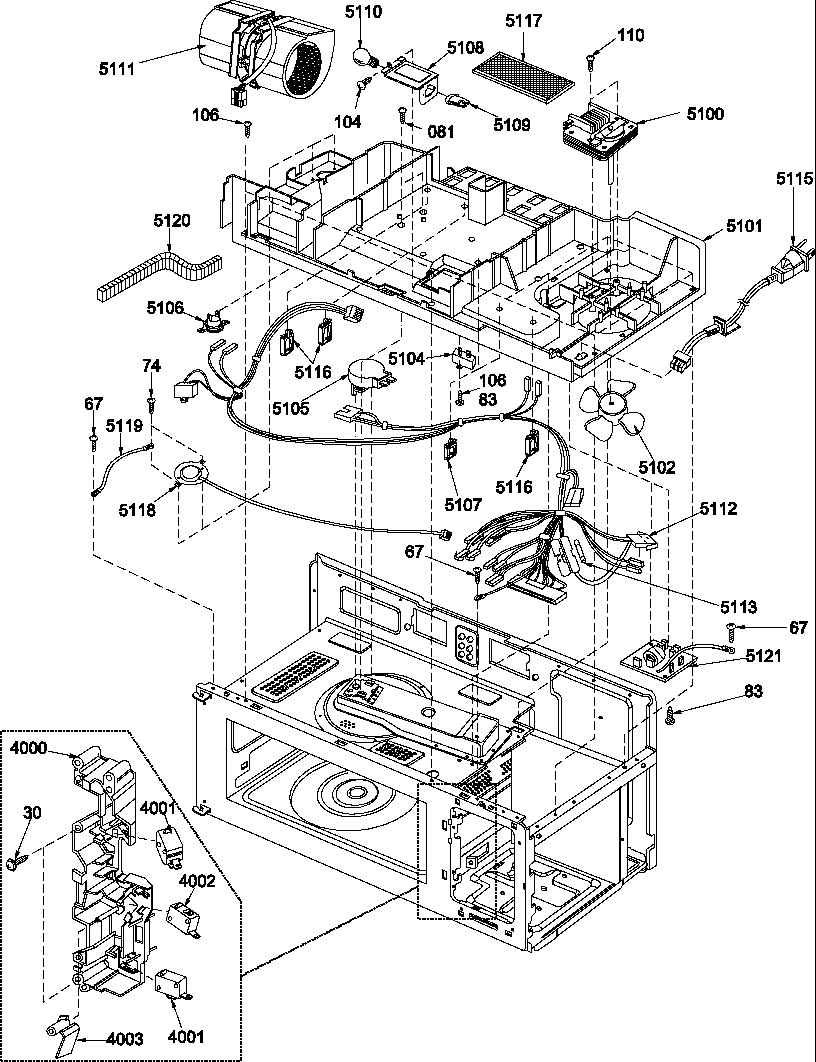

Interior components diagram
Diode
Part #R9800486
Replaced by #WPR9800486
?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
#4001
Interior components diagram
Switch
Part #R0654175
Replaced by #4392027
?
Manufacturer substitution
This part replaces R0654175. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
#5017
Interior components diagram
Shaft
Part #R9800454
Replaced by #WPW10143947
?
Manufacturer substitution
This part replaces R9800454. Substitute parts can look different from the original.
This item is not returnable
$11.78 |
15% OFF Phone Price : $13.78
In Stock
#1002

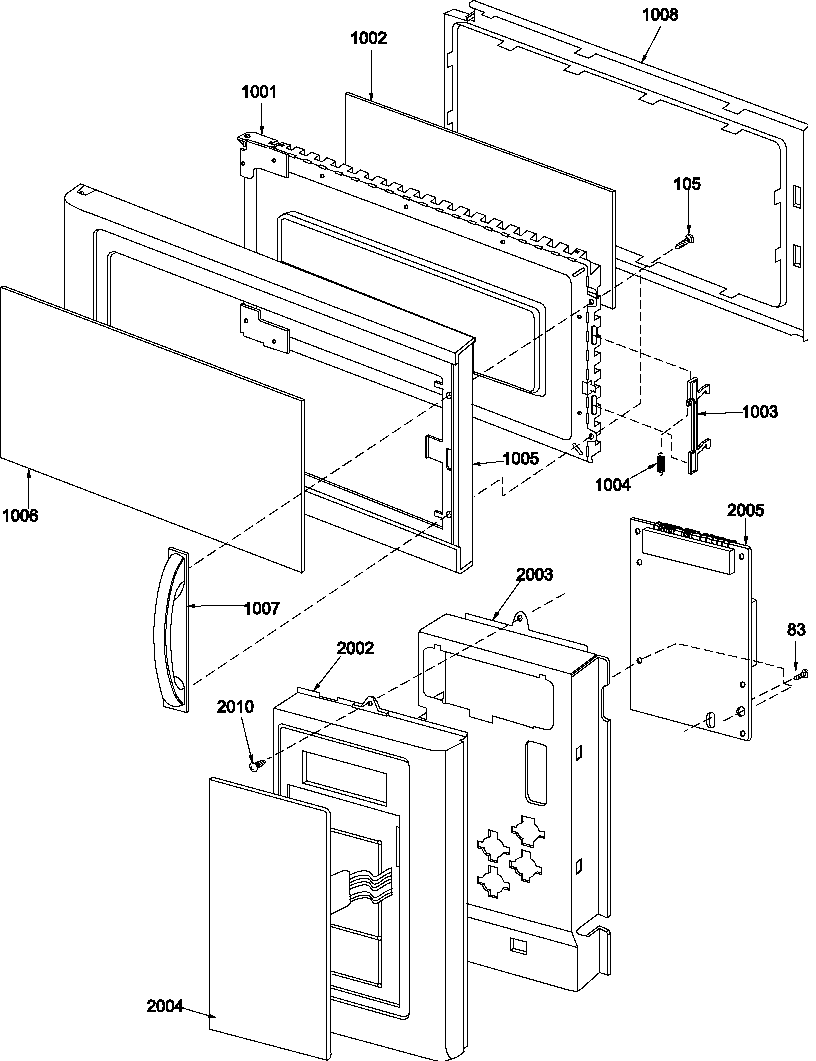

Door & control panel diagram
Tape
Part #R9800272
Replaced by #WPW10146437
?
Manufacturer substitution
This part replaces R9800272. Substitute parts can look different from the original.
$30.69 |
16% OFF Phone Price : $36.69
In Stock
#5022
Interior components diagram
Filter
Part #R9800442
Replaced by #4359624
?
Manufacturer substitution
This part replaces R9800442. Substitute parts can look different from the original.
$17.87
In Stock
#5015
Interior components diagram
Rivet
Part #R9800452
Replaced by #WP4359508
?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw
Part #R0654038
Replaced by #W11380570
?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
#141

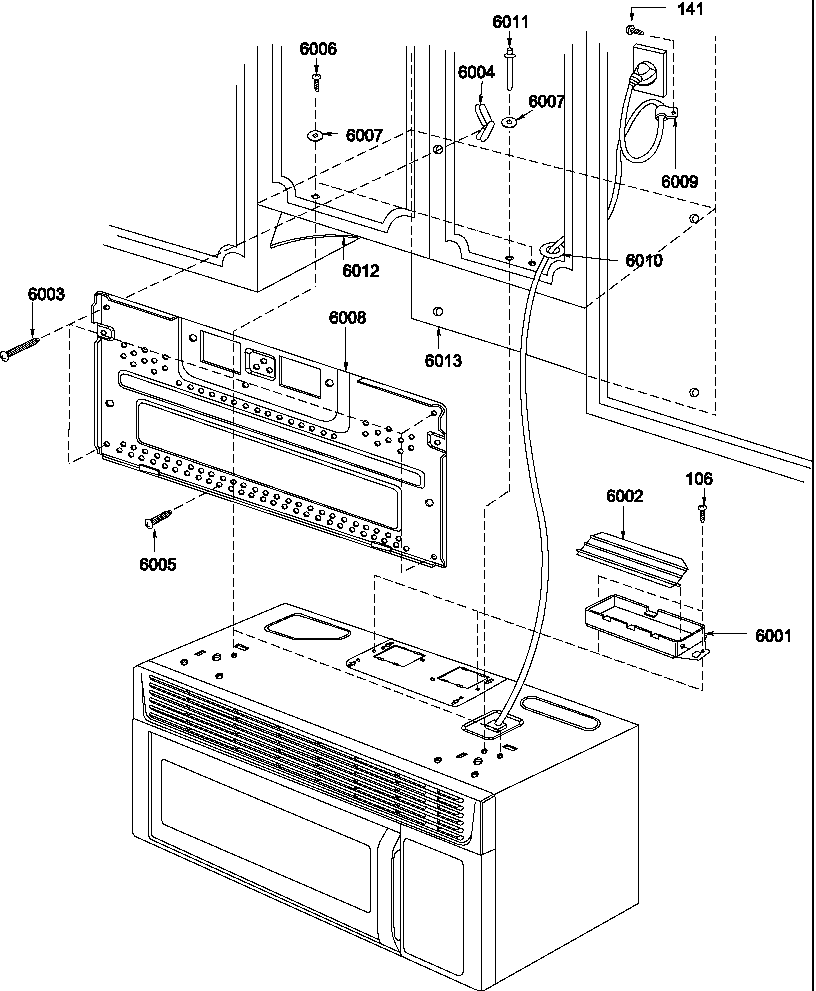

Installation parts diagram
Screw
Part #R9800501
Replaced by #WPY706189
?
Manufacturer substitution
This part replaces R9800501. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#1008
Door & control panel diagram
Base plate
Part #R9800307
Replaced by #R9800306
?
Manufacturer substitution
This part replaces R9800307. Substitute parts can look different from the original.
$34.71
In Stock
#6008
Installation parts diagram
Plate
Part #R9800490
The manufacturer no longer makes this part, and there's no substitute part
