GE
Side-By-Side Refrigerator

Model # ESH22JFXKBB Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE ESH22JFXKBB refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

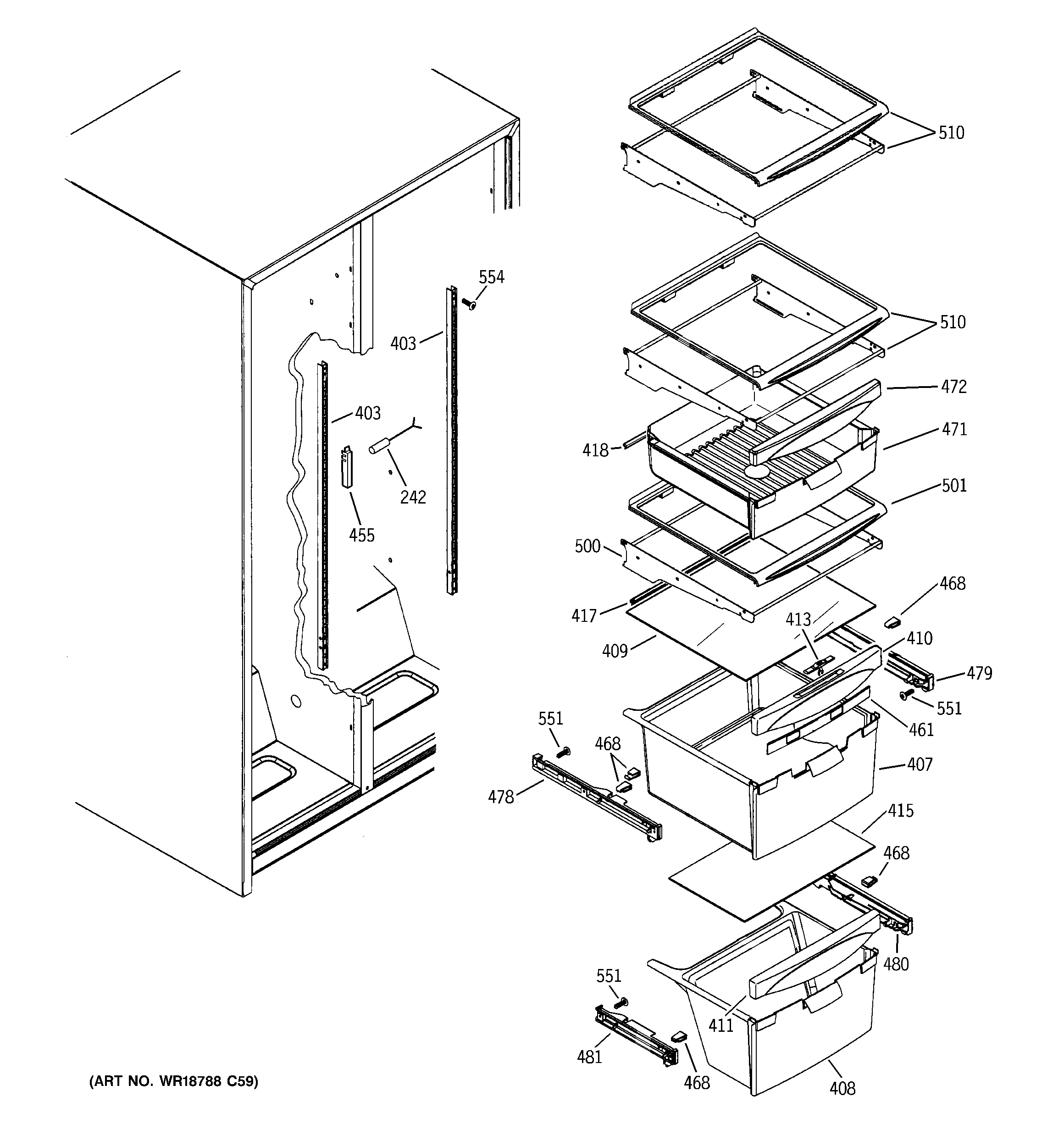

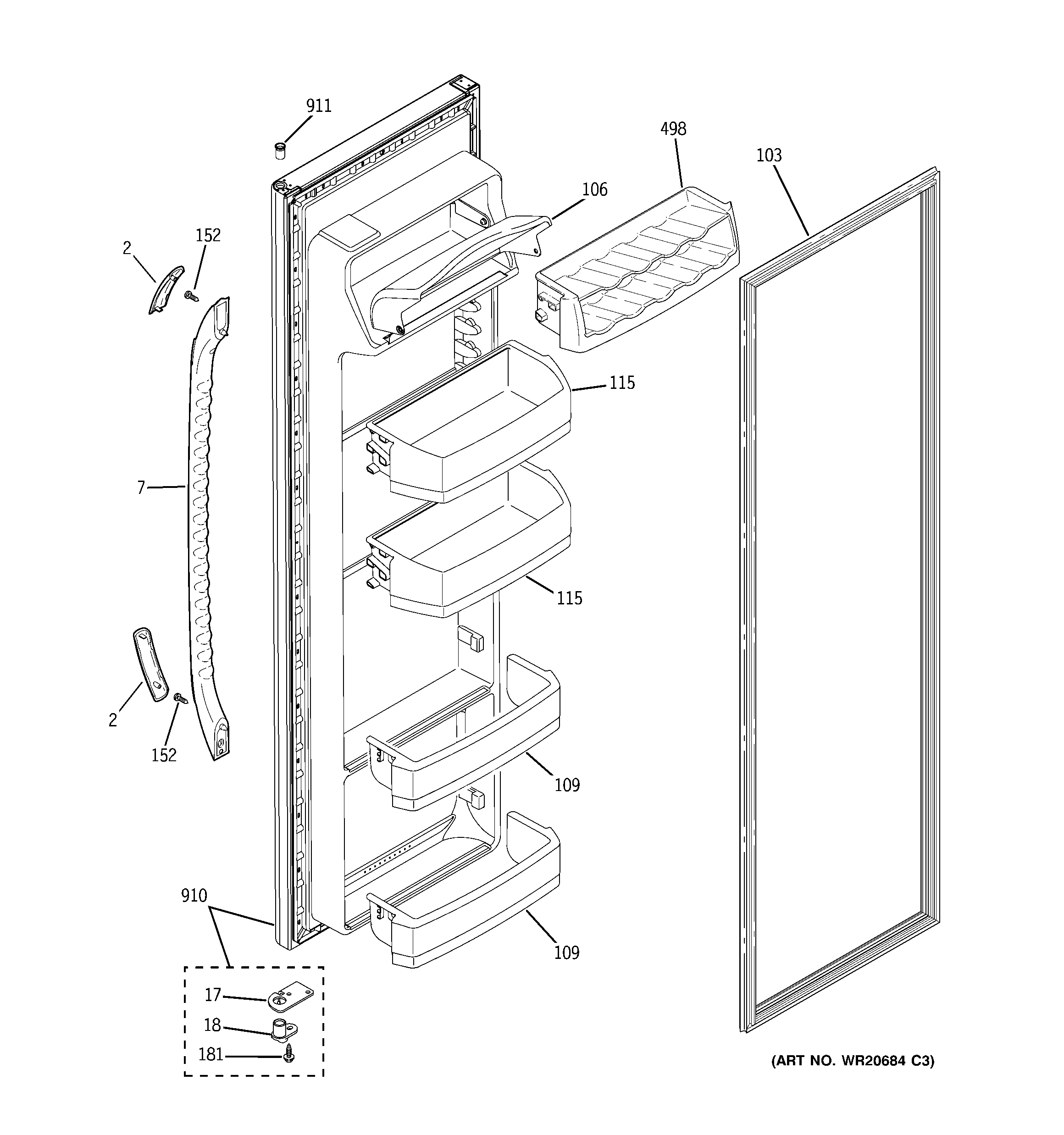

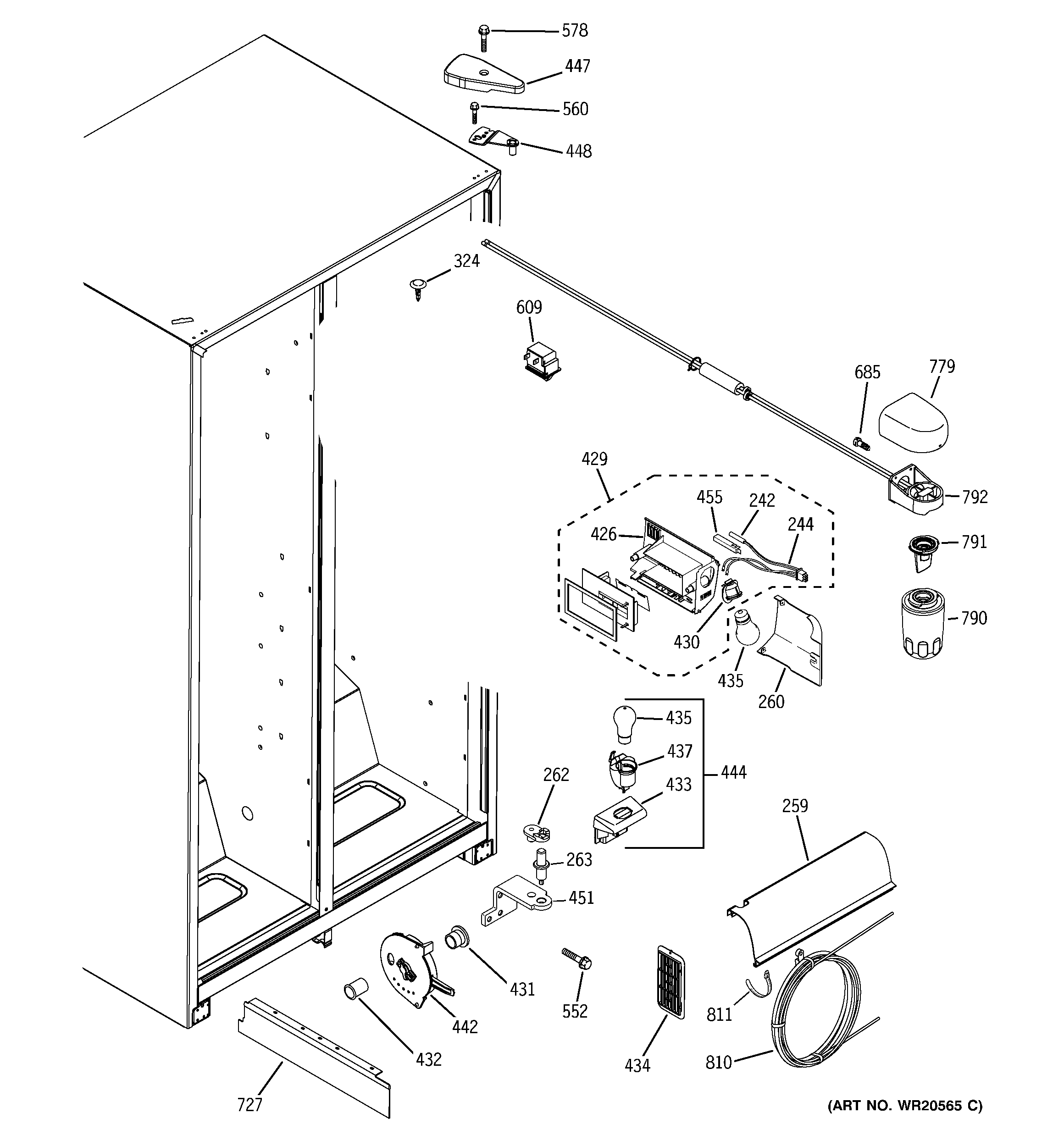

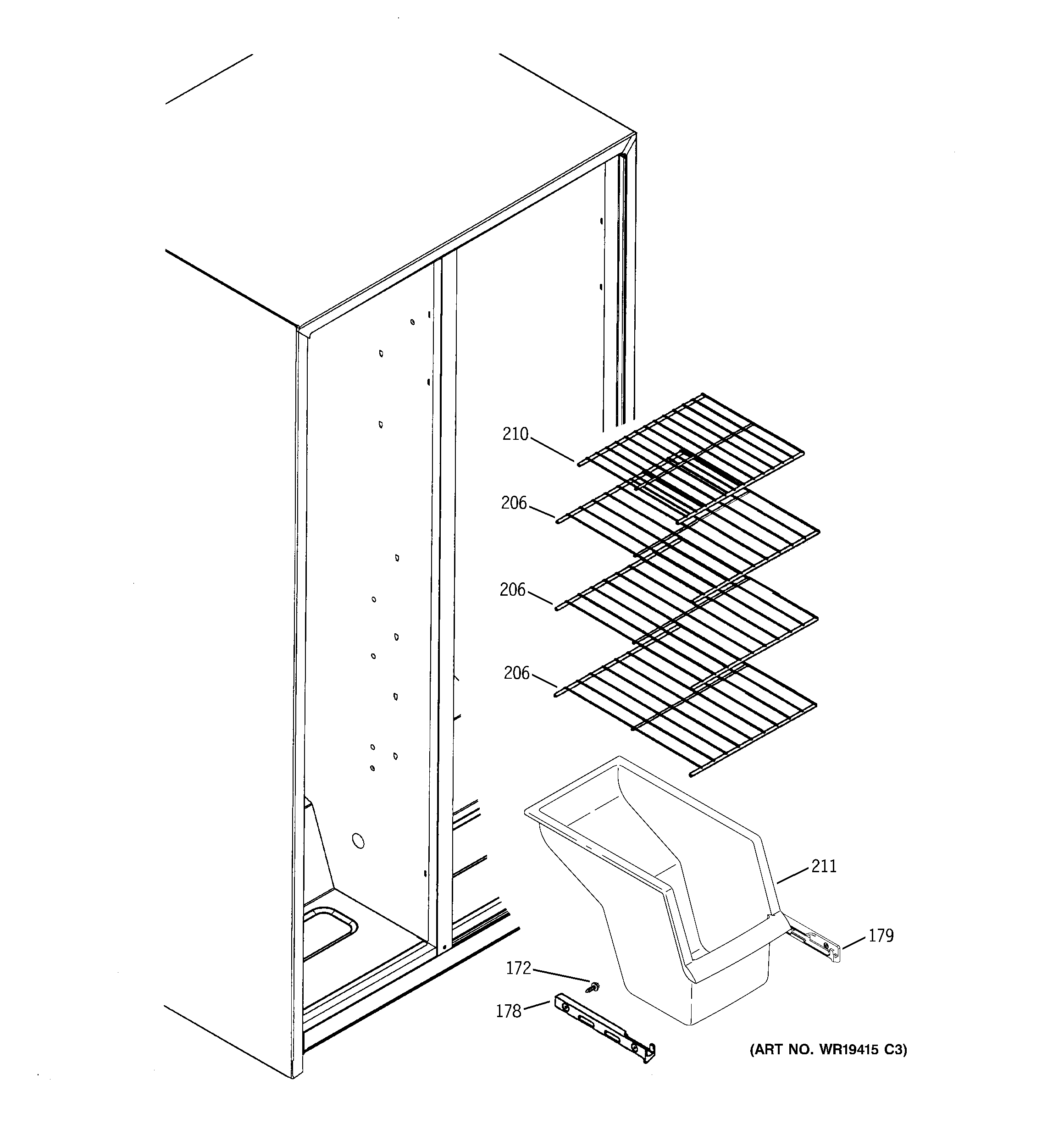

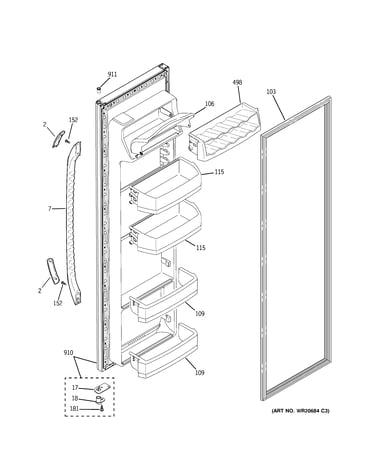

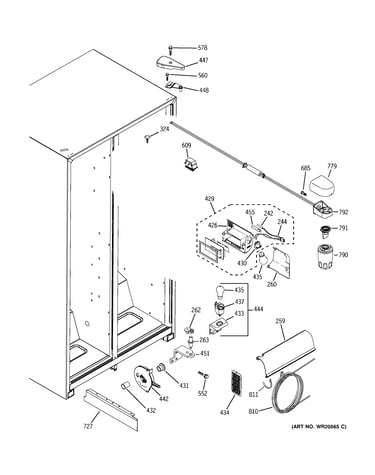

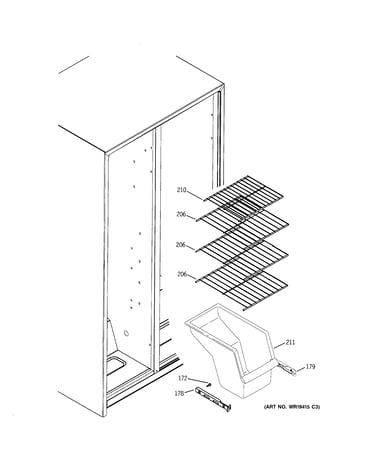

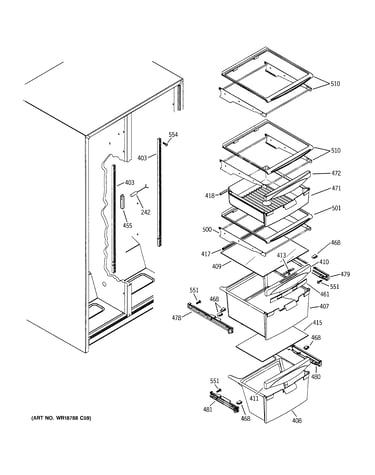

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Refrigerator Temperature Sensor WR55X10736
Refrigerator temperature sensor

Part #WR55X10736

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10736. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10737
#243

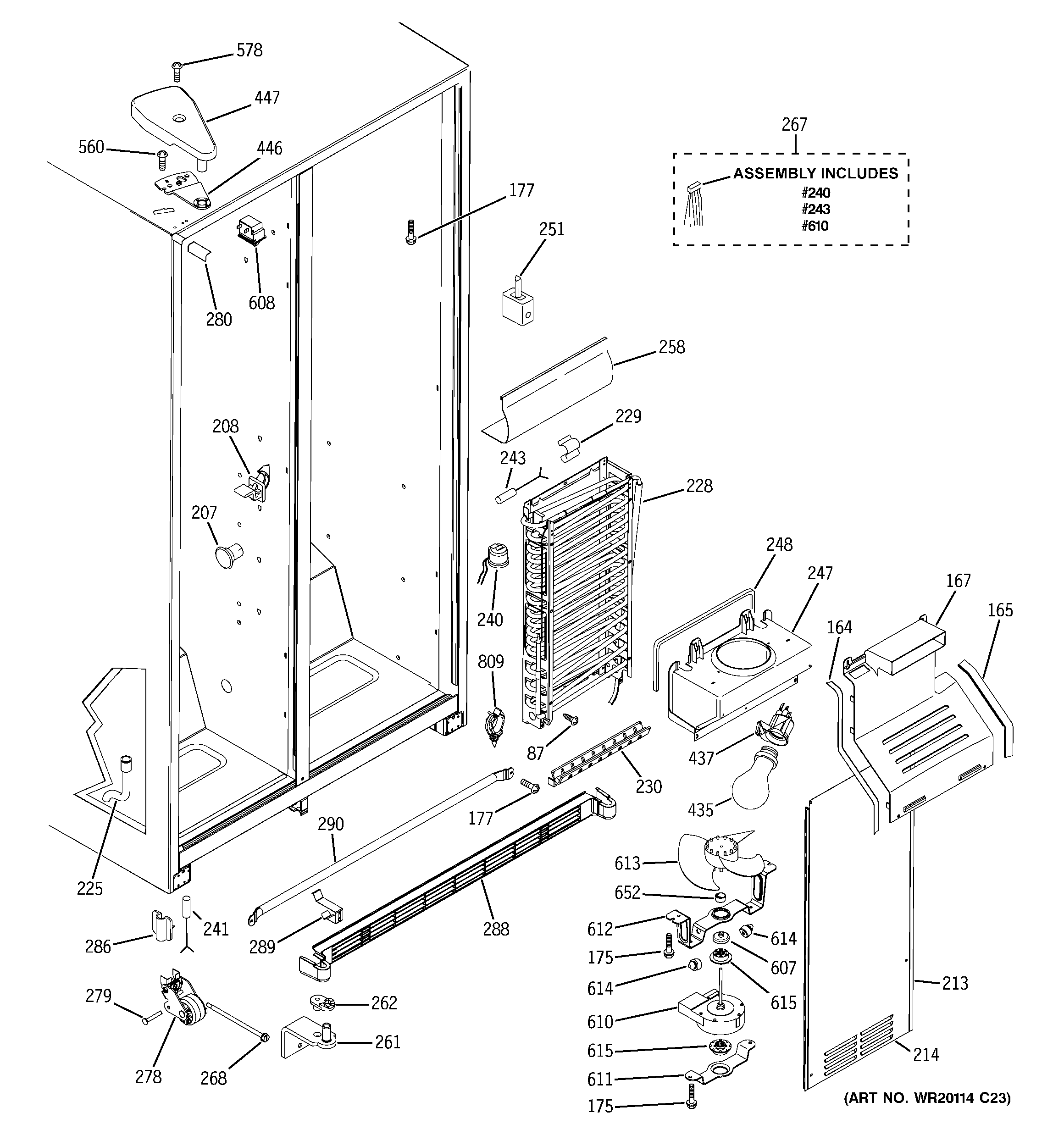

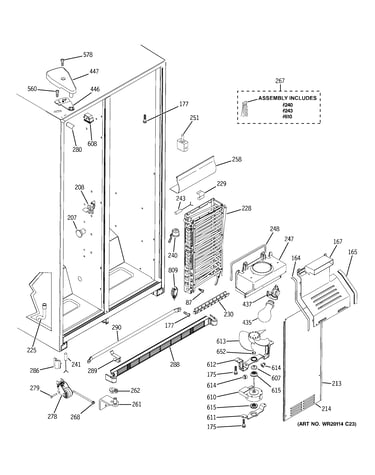

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10737

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10737. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10735
#241

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10735

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10735. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Cover WR29X10080
#821

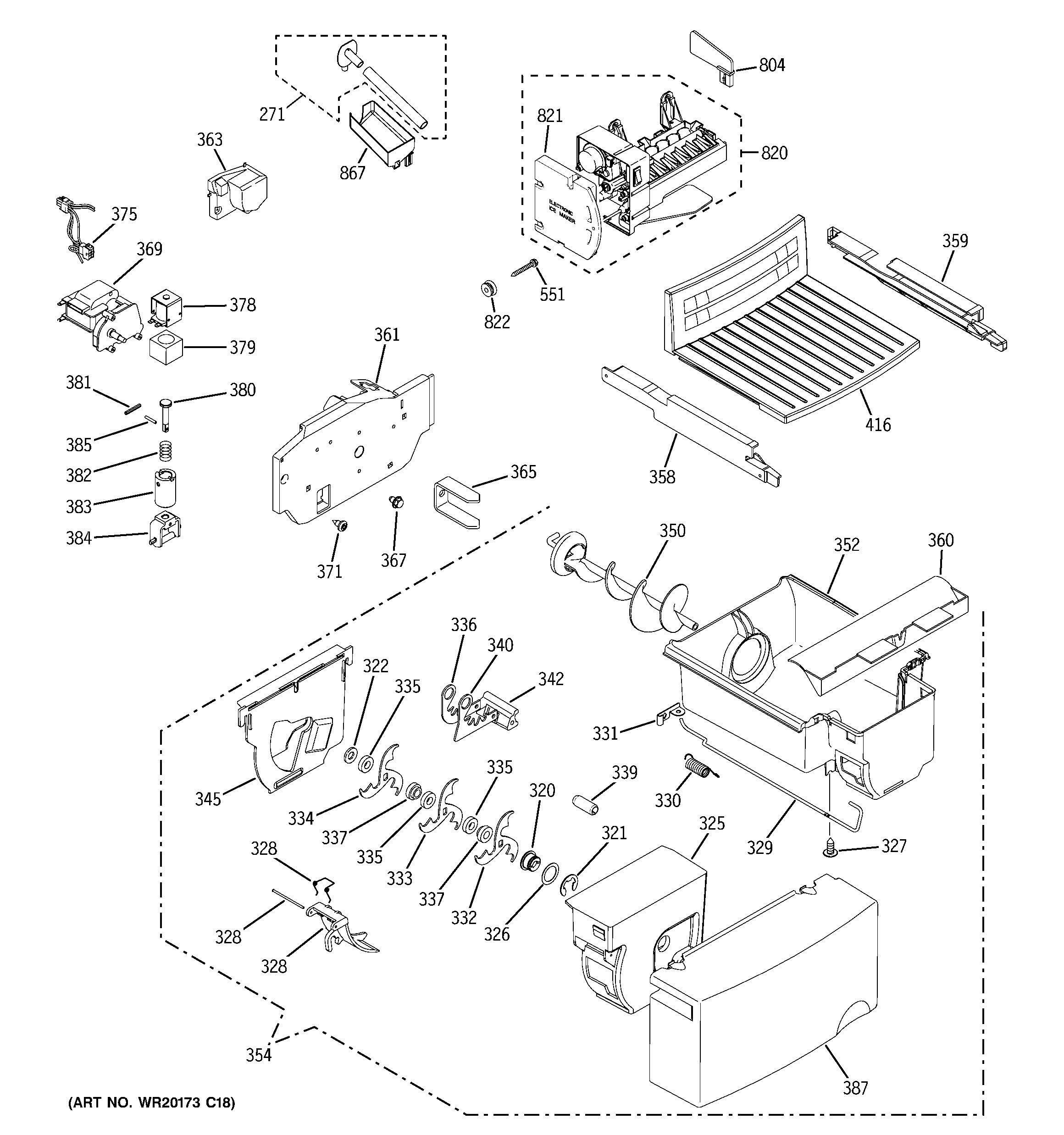

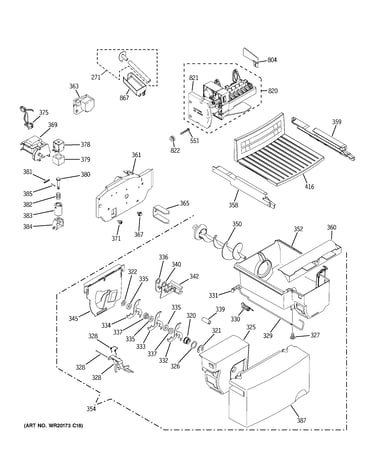

Ice maker & dispenser diagram

Refrigerator cover

Part #WR29X10080

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X10080. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Filter Dryer WR86X96
#740

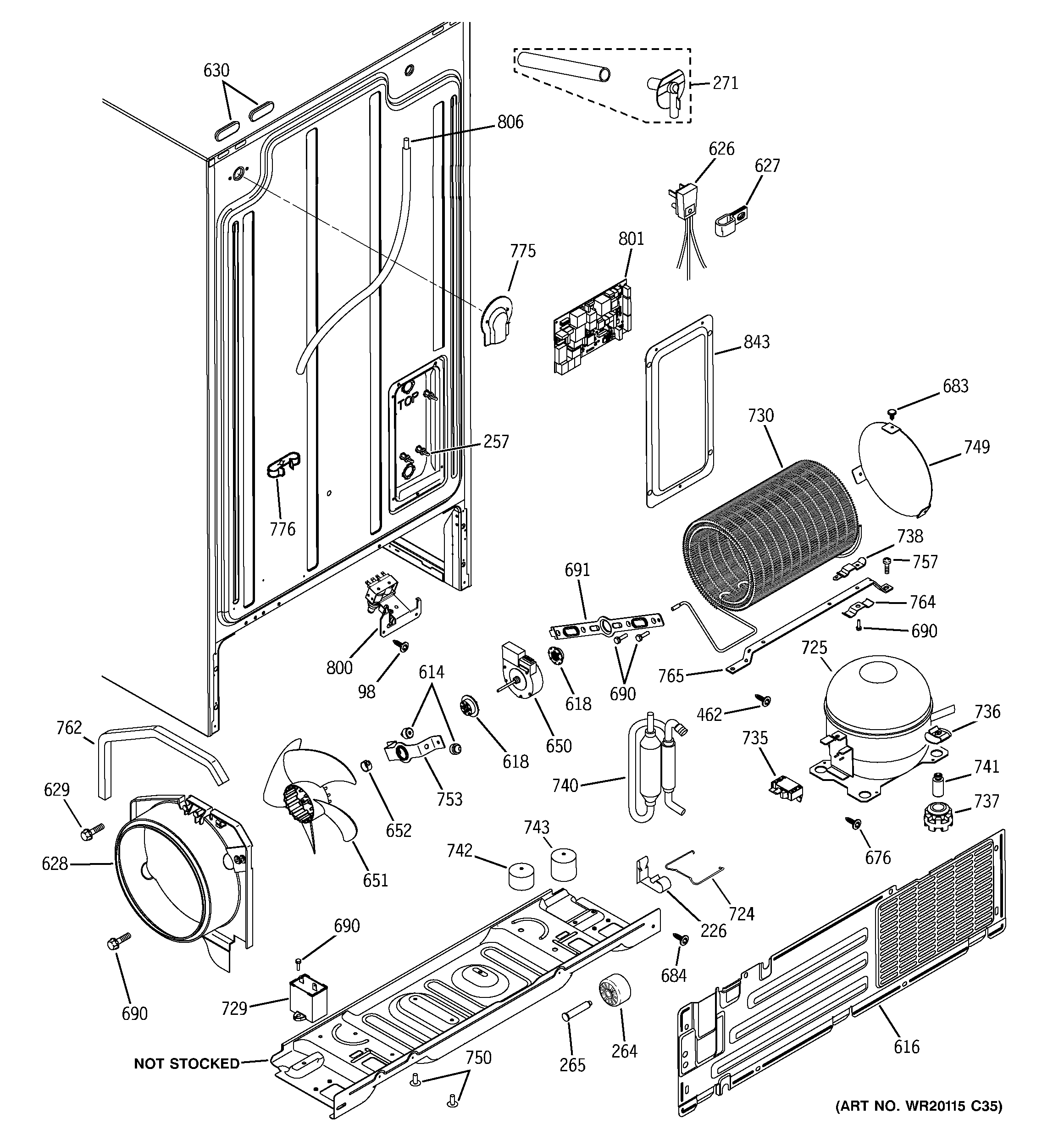

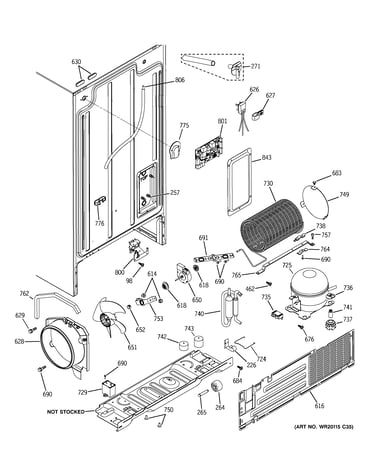

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Water Valve WR57X10040
#800

Sealed system & mother board diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$64.94 |
9% OFF Was : $71.36
In Stock
Combo Device WR08X10111
#735

Sealed system & mother board diagram

Combo device

Part #WR08X10111

Replaced by #WR07X10131

?
Manufacturer substitution
This part replaces WR08X10111. Substitute parts can look different from the original.
BEST SELLER
$39.05 |
13% OFF Phone Price : $45.05
In Stock
Rca Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
#36

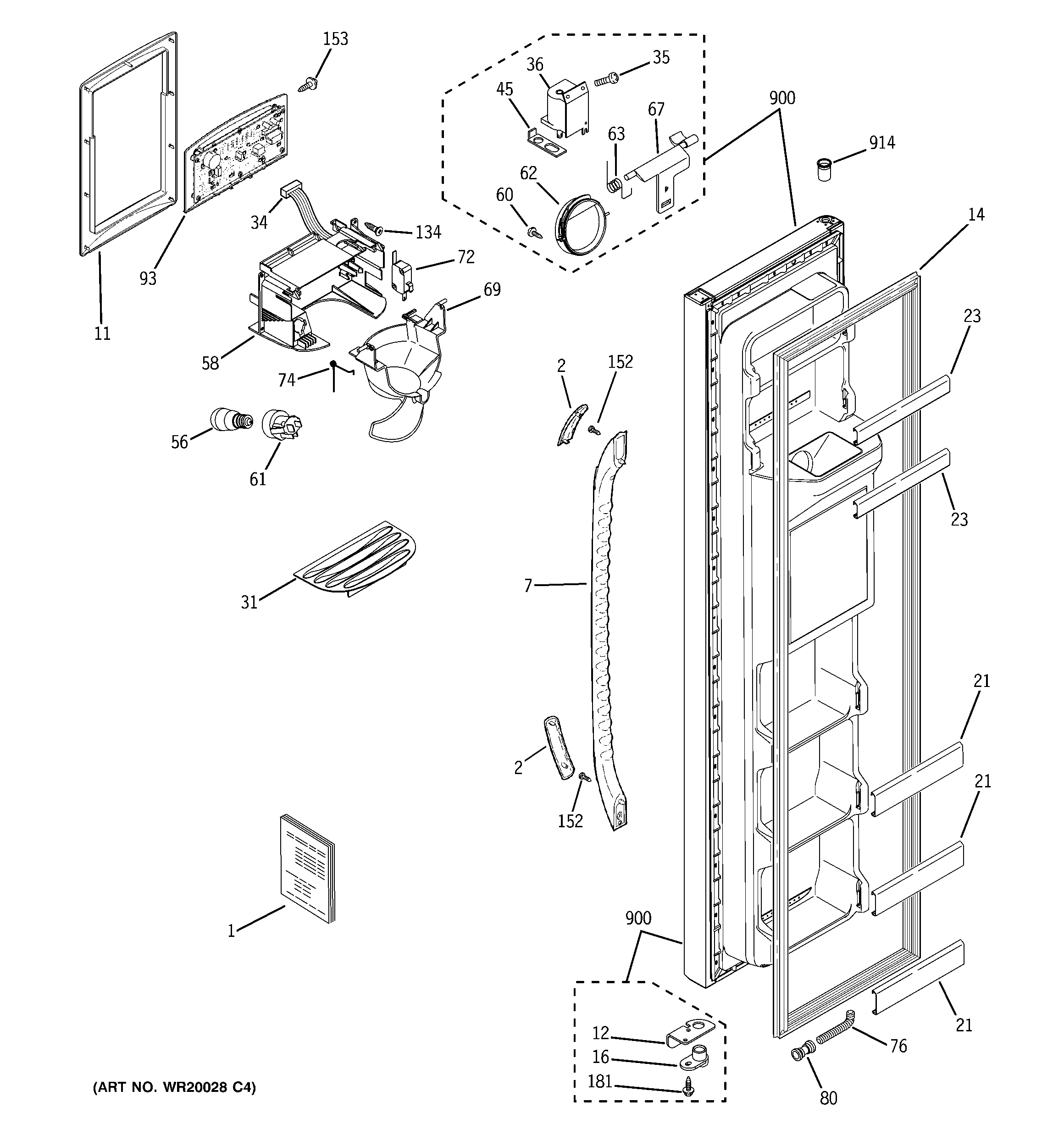

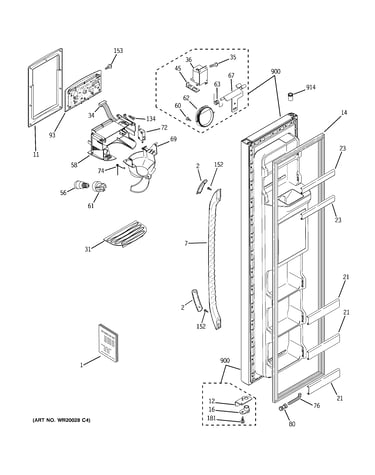

Freezer door diagram

Rca refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
