Model # 5KSB1585GOB0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB1585GOB0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Blender Jar Assembly W10514321
#2

Attachment parts diagram

Blender jar assembly

Part #W10514321

Replaced by #WPW10514321

?
Manufacturer substitution
This part replaces W10514321. Substitute parts can look different from the original.
$80.63
7% OFF Phone Price : $86.63
In Stock
Blender Base (black) W10497274
#11

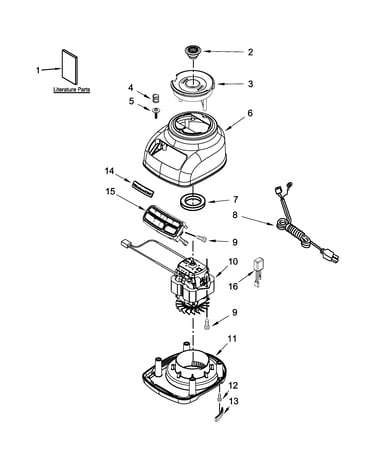

Unit parts diagram

Blender base (black)

Part #W10497274

In Stock
Housing-pain W10646510
#6D

Unit parts diagram

Housing-pain

Part #W10646510

In Stock
Housing-pain W10646511
#6A

Unit parts diagram

Housing-pain

Part #W10646511

In Stock
Blender Nameplate W10514169
#14

Unit parts diagram

Blender nameplate

Part #W10514169

$27.79
18% OFF Phone Price : $33.79
In Stock
Power Cord 9708929
#8A

Unit parts diagram

Power cord

Part #9708929

In Stock
Housing-pain W10709769
#6E

Unit parts diagram

Housing-pain

Part #W10709769

In Stock
Housing-pain W10646521
#6F

Unit parts diagram

Housing-pain

Part #W10646521

In Stock
Assy-almond W10646874
#1B

Attachment parts diagram

Assy-almond

Part #W10646874

In Stock
Power Cord W10452060
#8B

Unit parts diagram

Power cord

Part #W10452060

In Stock
