Gas Range

Model # CGS975SED3SS Official GE gas range

Here are the diagrams and repair parts for Official GE CGS975SED3SS gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forCGS975SED3SS Ranges

  • Oven Igniter WB13K10026
    #218

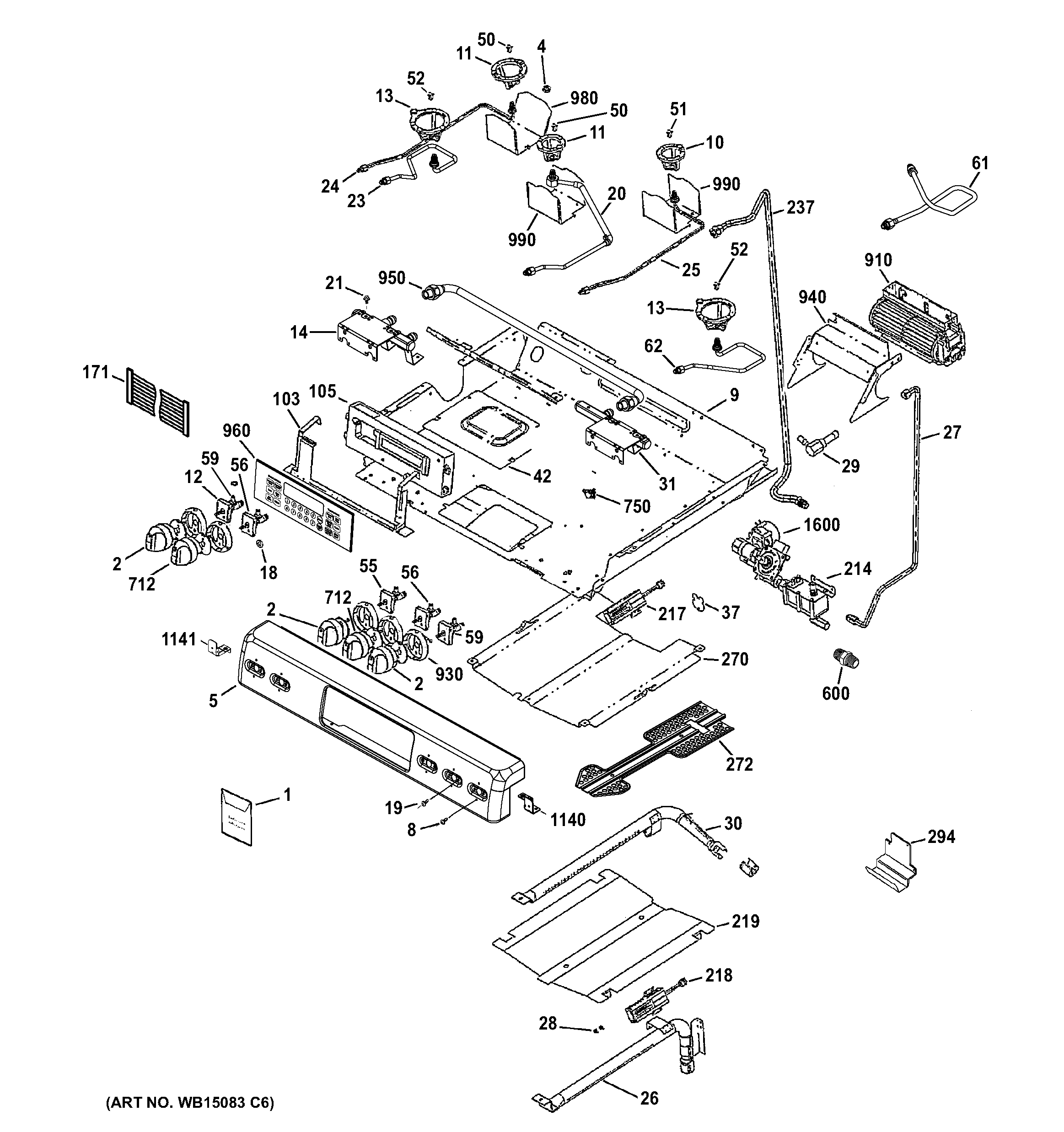

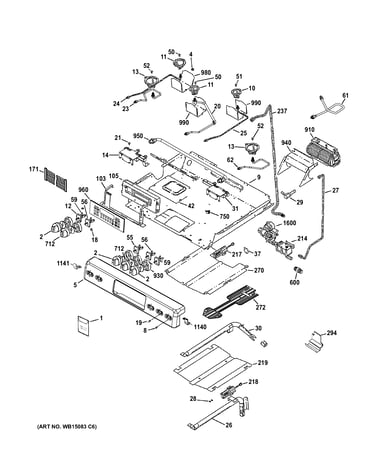

    Control panel, gas & burner parts diagram

    Oven igniter

    Part #WB13K10026

    Replaced by #WB13K21

    ?
    Manufacturer substitution
    This part replaces WB13K10026. Substitute parts can look different from the original.
    BEST SELLER
    $49.65
    11% OFF Phone Price : $55.65
    In Stock
  • Range Surface Burner Cap WB28K10222
    #152

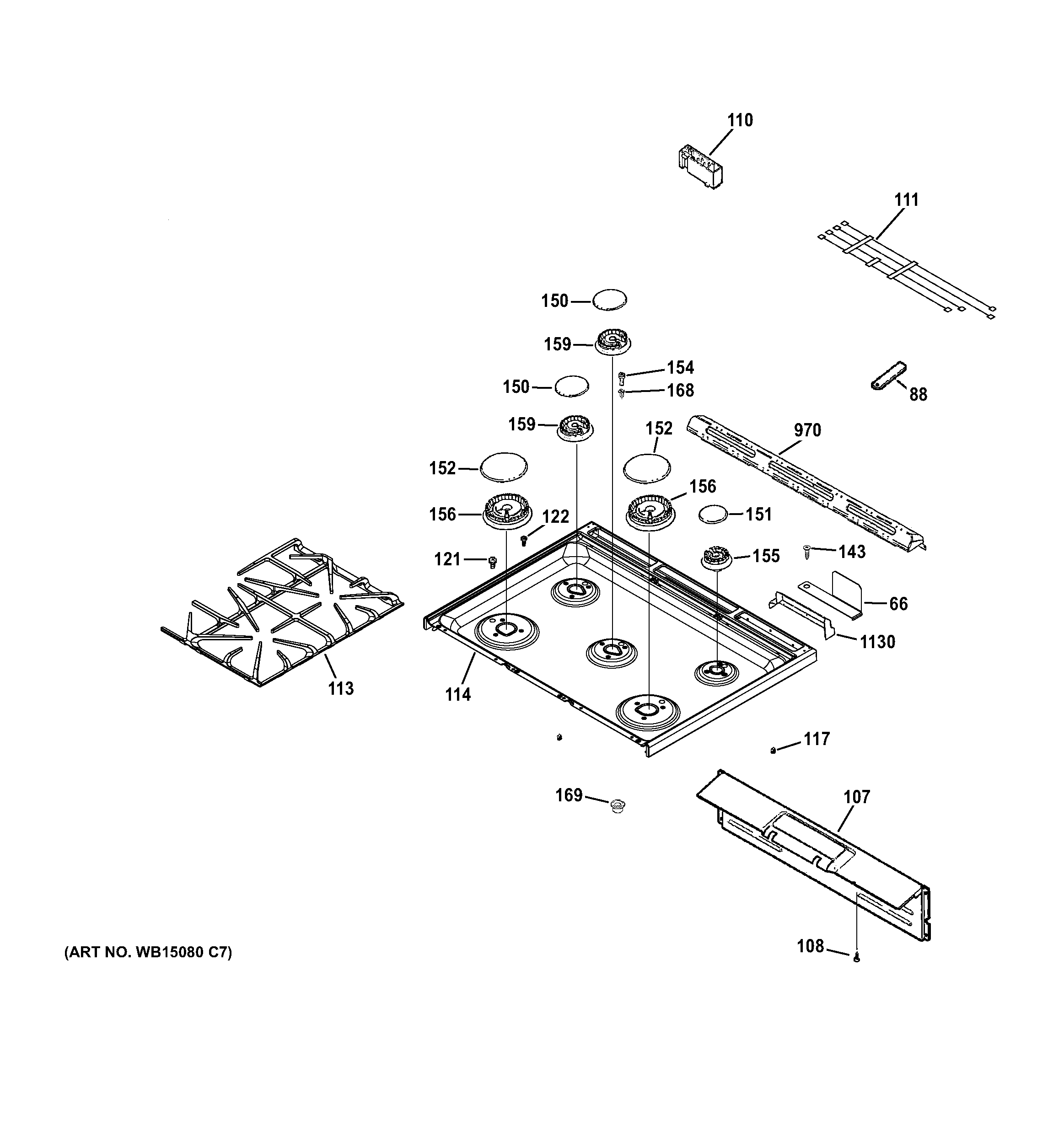

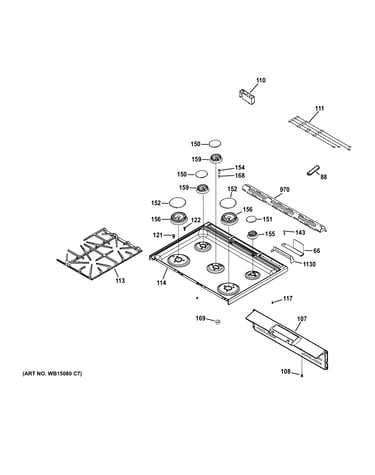

    Cooktop diagram

    Range surface burner cap

    Part #WB28K10222

    BEST SELLER
    $32.52
    16% OFF Phone Price : $38.52
    In Stock
  • Range Surface Burner Cap WB29K10023
    #150

    Cooktop diagram

    Range surface burner cap

    Part #WB29K10023

    BEST SELLER
    $22.76
    21% OFF Phone Price : $28.76
    In Stock
  • Range Spark Module WB13K10033
    #110

    Cooktop diagram

    Range spark module

    Part #WB13K10033

    Replaced by #WB13X26360

    ?
    Manufacturer substitution
    This part replaces WB13K10033. Substitute parts can look different from the original.
    BEST SELLER
    $63.56
    9% OFF Phone Price : $69.56
    In Stock
  • Range Oven Temperature Sensor WB20K10027
    #43

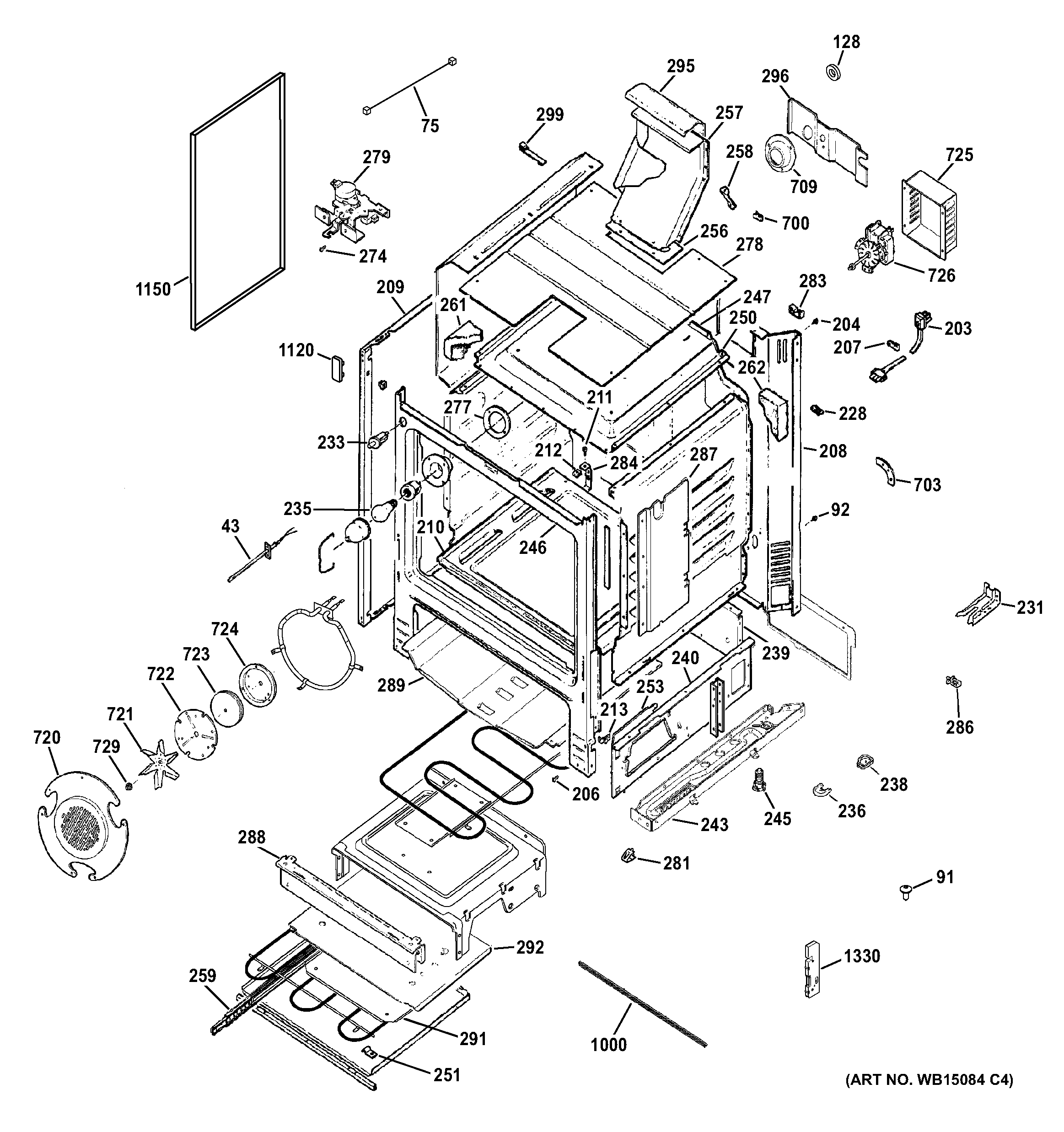

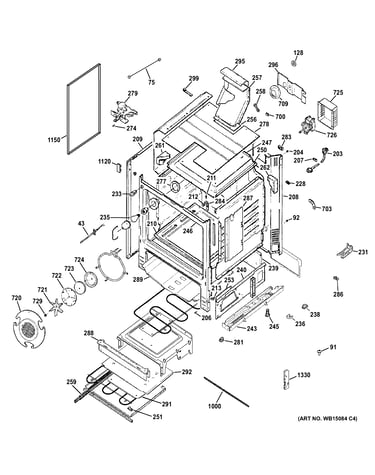

    Body parts diagram

    Range oven temperature sensor

    Part #WB20K10027

    BEST SELLER
    $28.96
    17% OFF Phone Price : $34.96
    In Stock
  • Range Oven Burner Igniter WB13K10020
    #240

    Body parts diagram

    Range oven burner igniter

    Part #WB13K10020

    Replaced by #WB13X25261

    ?
    Manufacturer substitution
    This part replaces WB13K10020. Substitute parts can look different from the original.
    BEST SELLER
    $76.74
    7% OFF Phone Price : $82.74
    In Stock
  • Hex Washer Head Screw WB01K0050
    #28

    Control panel, gas & burner parts diagram

    Hex washer head screw

    Part #WB01K0050

    Replaced by #WB1X1293

    ?
    Manufacturer substitution
    This part replaces WB01K0050. Substitute parts can look different from the original.
    This item is not returnable
    $8.70
    10% OFF Phone Price : $9.70
    In Stock
  • Range Surface Burner Cap WB29K10022
    #151

    Cooktop diagram

    Range surface burner cap

    Part #WB29K10022

    $17.07
    10% OFF Phone Price : $19.07
    In Stock
  • Cooking Appliance Screw, #10-32 WB01T10008
    #91

    Body parts diagram

    Cooking appliance screw, #10-32

    Part #WB01T10008

    This item is not returnable
    $9.89
    9% OFF Phone Price : $10.89
    In Stock
  • Cooktop Burner Bracket WB02K10360
    #10

    Control panel, gas & burner parts diagram

    Cooktop burner bracket

    Part #WB02K10360

    This item is not returnable
    $17.23
    10% OFF Phone Price : $19.23
    In Stock
