Kenmore Elite
Bottom-Mount Refrigerator

Model # 79574102811 Official Kenmore Elite bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79574102811 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

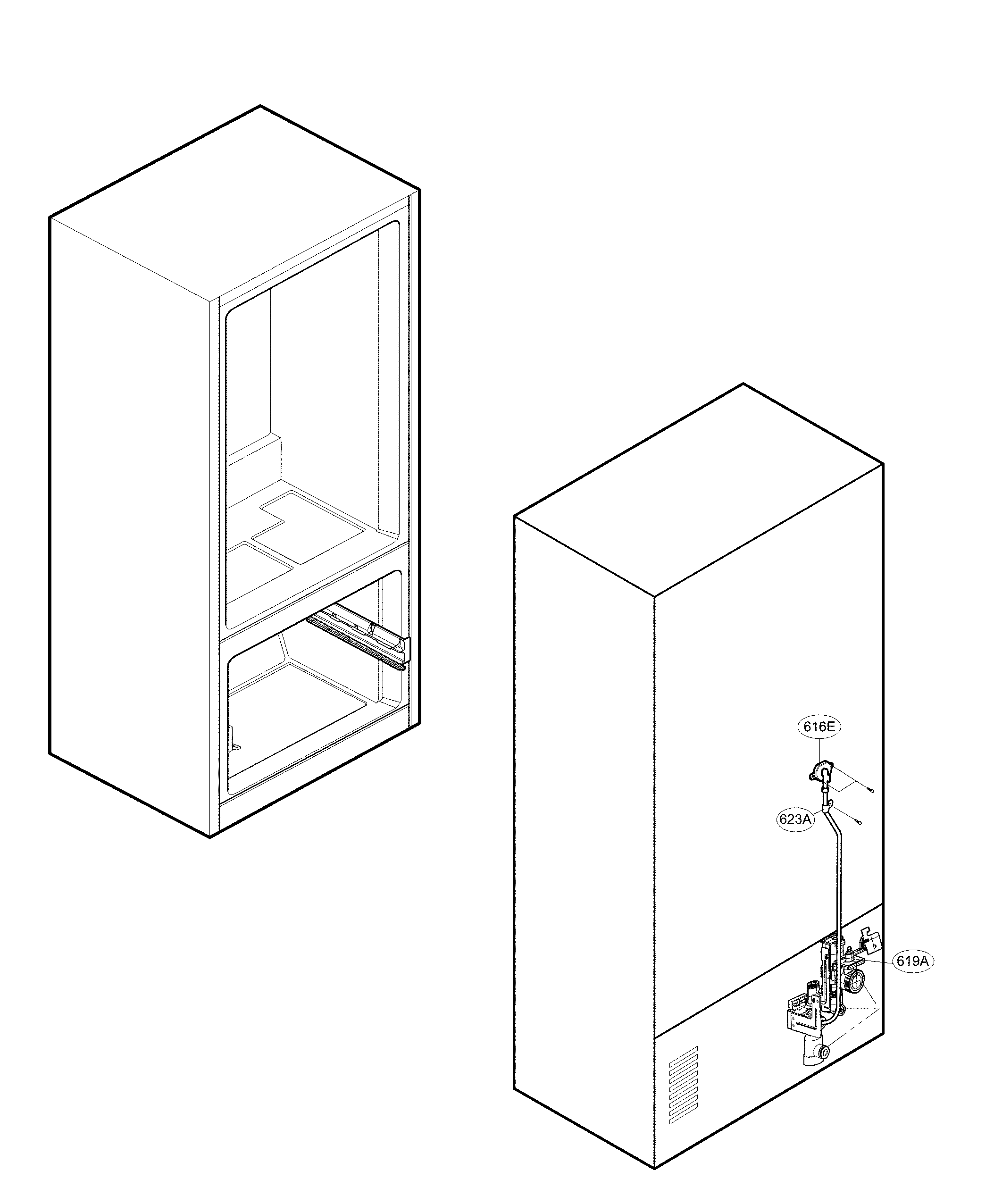

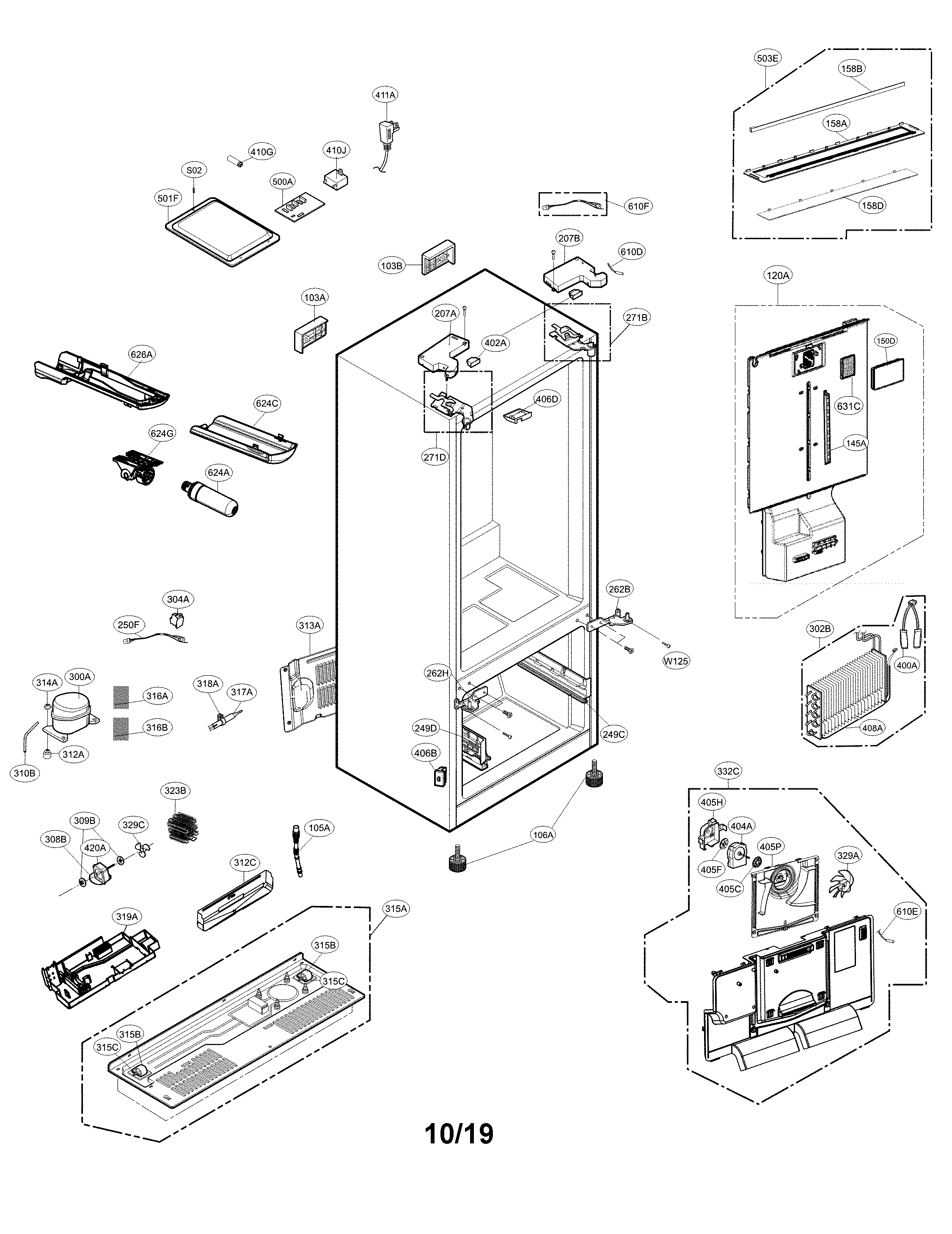

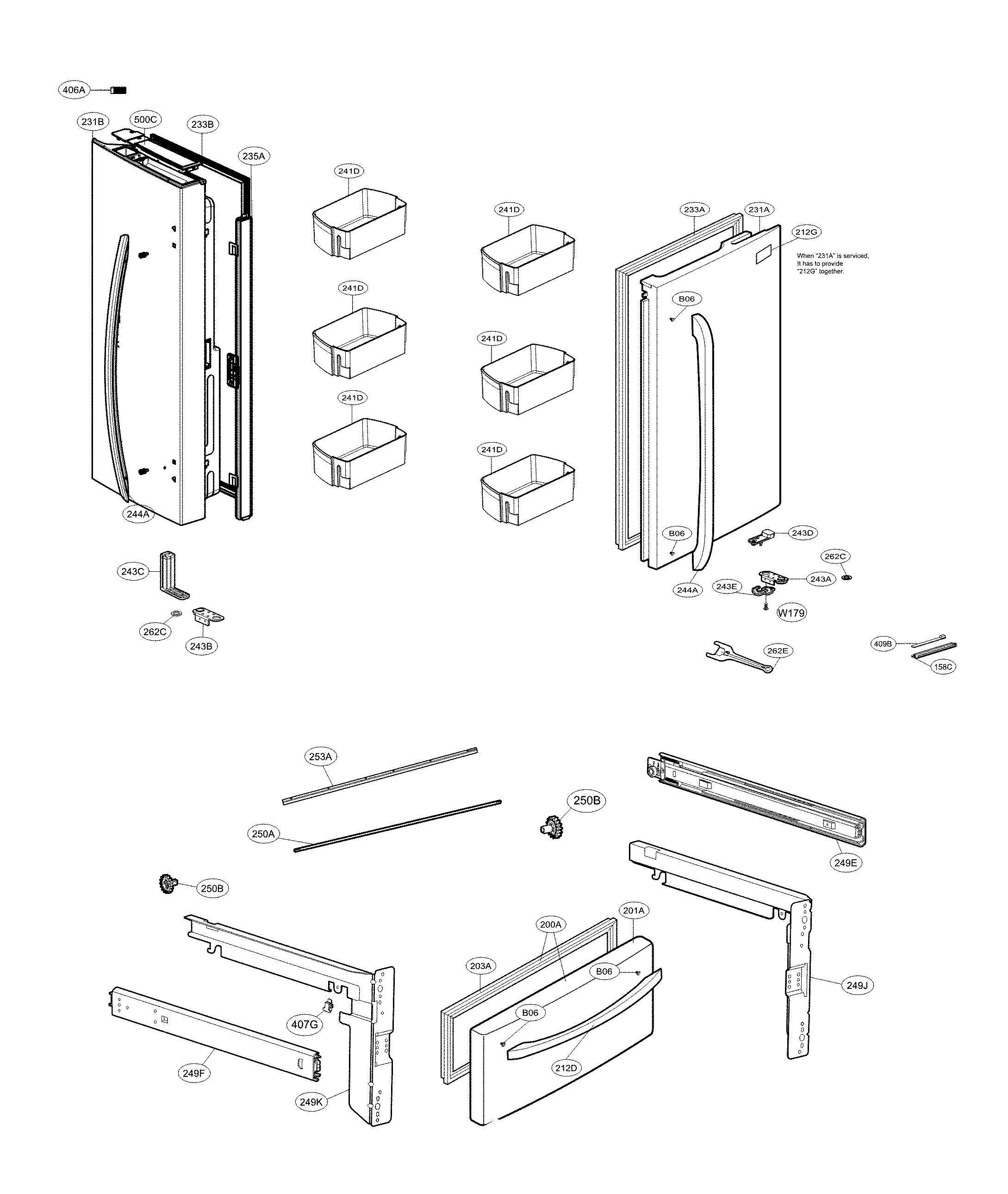

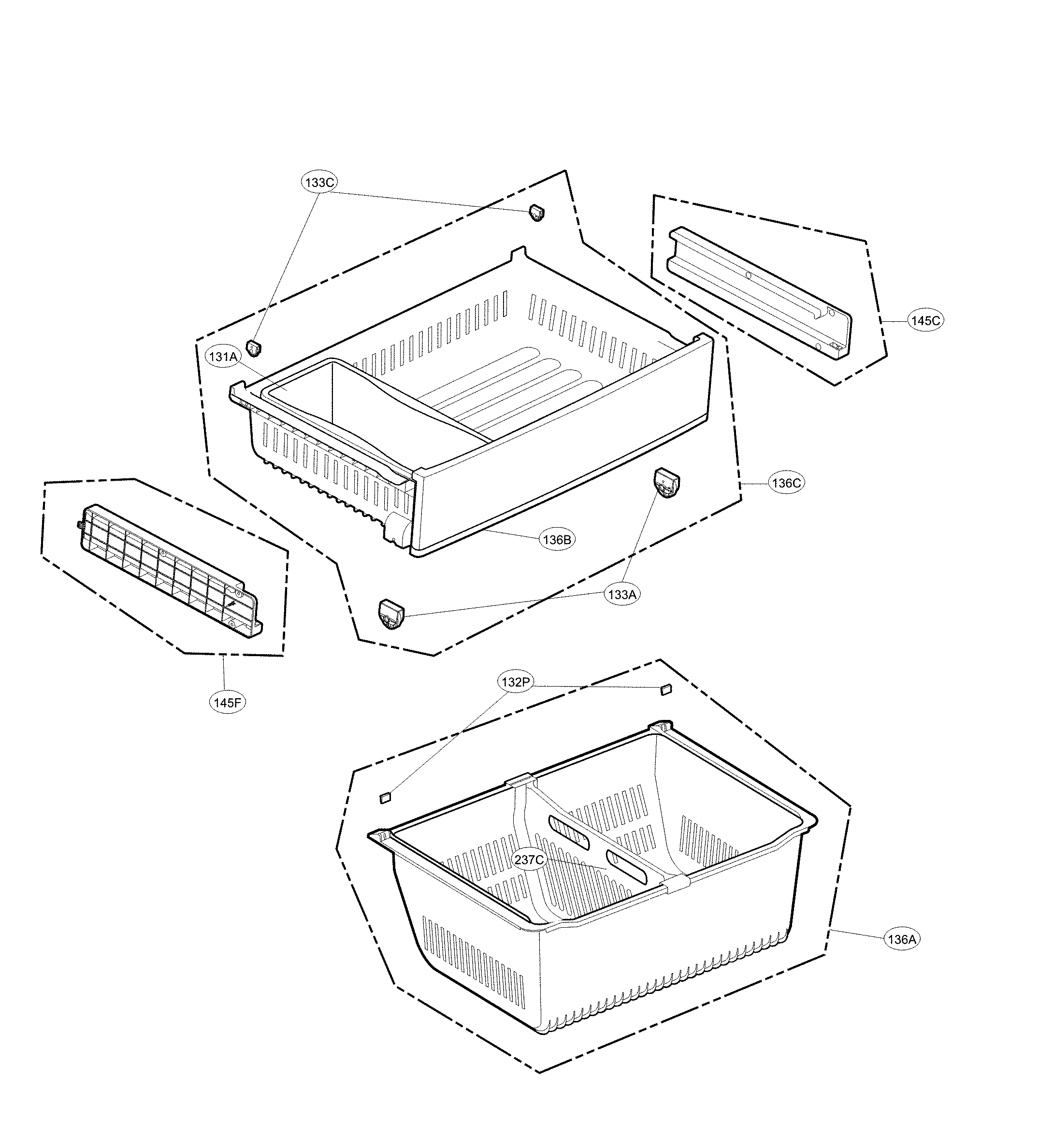

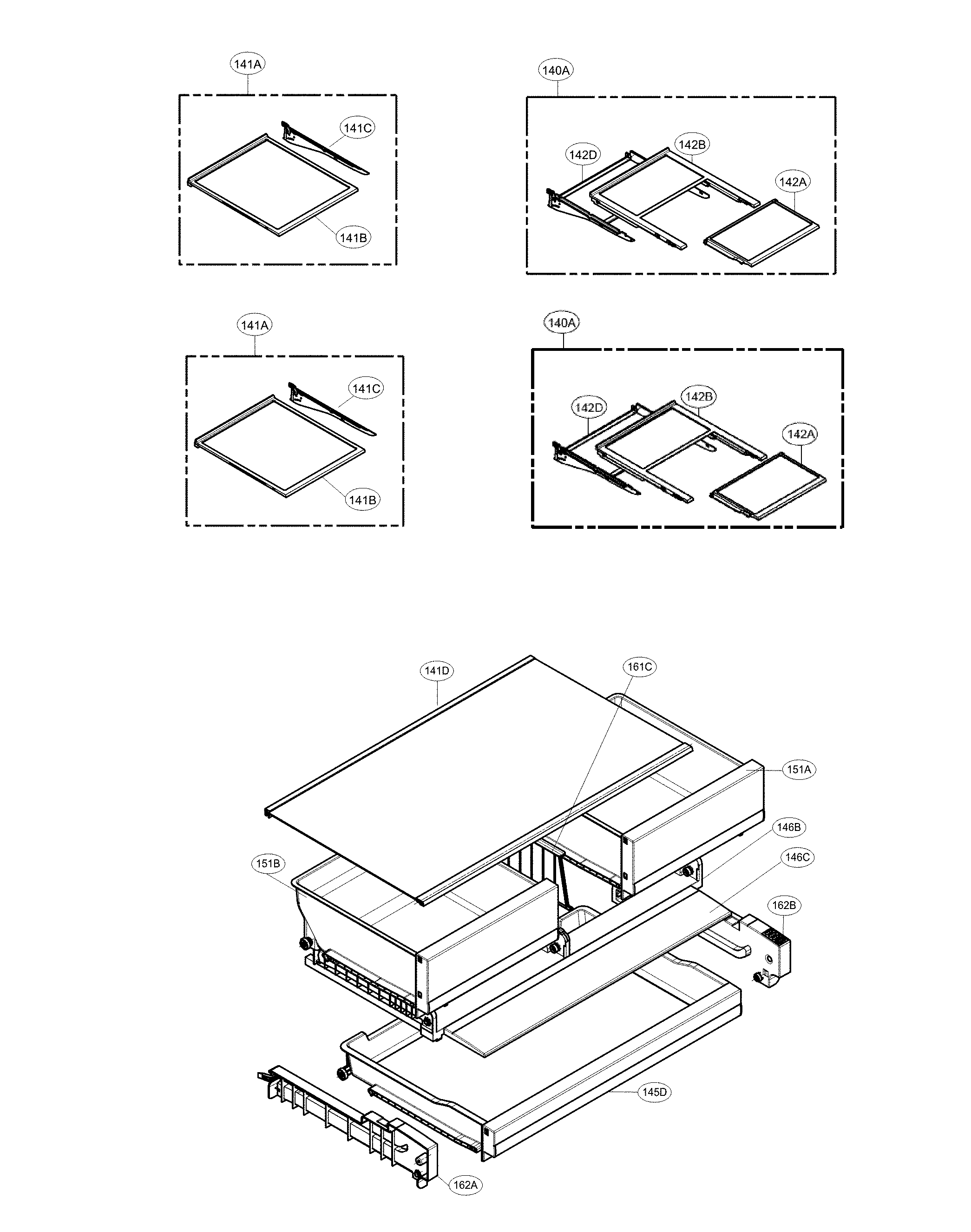

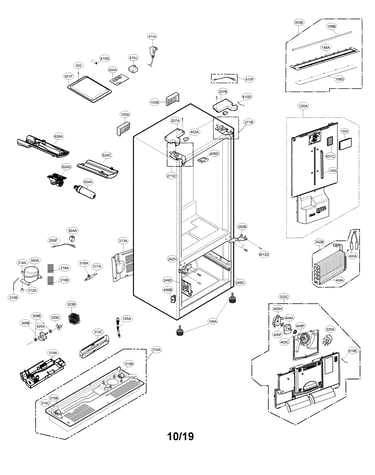

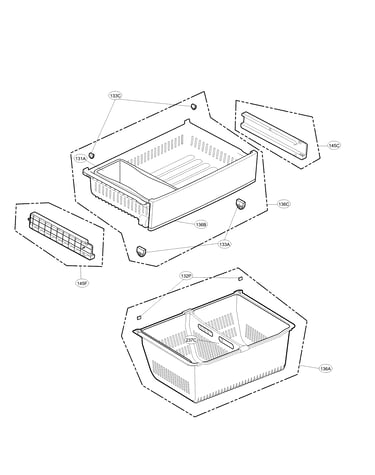

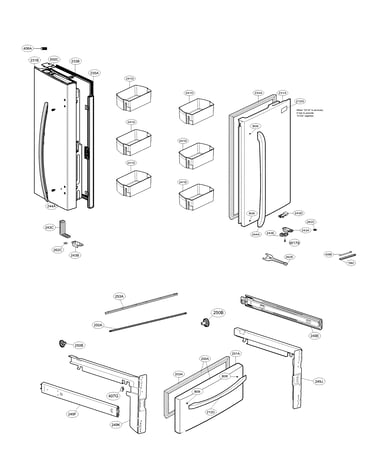

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Refrigerator Air Filter ADQ73214404

#631C

All parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Genuine Kenmore Refrigerator Water Filter 9980 ADQ74793502

#624A

All parts diagram

Genuine kenmore refrigerator water filter 9980

Part #ADQ74793502

Replaced by #AGF80300805

?
Manufacturer substitution
This part replaces ADQ74793502. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.98
In Stock
Ice Maker Assembly (aeq72909602) - Refrigerator Ice Maker Part By Lg (replaces Aeq72909601) AEQ72909602

#600F

All parts diagram

Ice maker assembly (aeq72909602) - refrigerator ice maker part by lg (replaces aeq72909601)

Part #AEQ72909602

BEST SELLER
$94.29 |
6% OFF Phone Price : $100.29
In Stock
Refrigerator Filter Dryer ADH73590303

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590303

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Condenser Assembly,wire ACG73645007

#323B

All parts diagram

Condenser assembly,wire

Part #ACG73645007

BEST SELLER
$148.94
In Stock
Refrigerator Evaporator Fan Motor (replaces Eau63923606) EAU63923603

#404A

All parts diagram

Refrigerator evaporator fan motor (replaces eau63923606)

Part #EAU63923603

BEST SELLER
$62.19 |
9% OFF Phone Price : $68.19
In Stock
Refrigerator Temperature Sensor (replaces 6500jb2002p) 6500JB2002X

#610E

All parts diagram

Refrigerator temperature sensor (replaces 6500jb2002p)

Part #6500JB2002X

BEST SELLER
$20.76 |
22% OFF Phone Price : $26.76
In Stock
Refrigerator Door Hinge, Center (replaces Aeh36821911) AEH36821908

#243C

All parts diagram

Refrigerator door hinge, center (replaces aeh36821911)

Part #AEH36821908

BEST SELLER
$57.49 |
9% OFF Phone Price : $63.49
In Stock
Refrigerator Door Stop 4620JJ2009A

#243E

All parts diagram

Refrigerator door stop

Part #4620JJ2009A

BEST SELLER
$11.06 |
15% OFF Phone Price : $13.06
In Stock
Refrigerator Evaporator Assembly ADL73762007

#302B

All parts diagram

Refrigerator evaporator assembly

Part #ADL73762007

BEST SELLER
$152.75 |
7% OFF Phone Price : $164.75
In Stock
