Model # CSG5010AAD Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag CSG5010AAD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Burner Switch 7403P190-60
#17

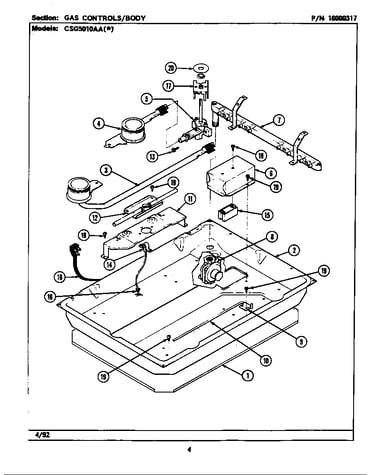

Gas controls/body diagram

Burner switch

Part #7403P190-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P190-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Screw (wht) 7101P261-60
#8

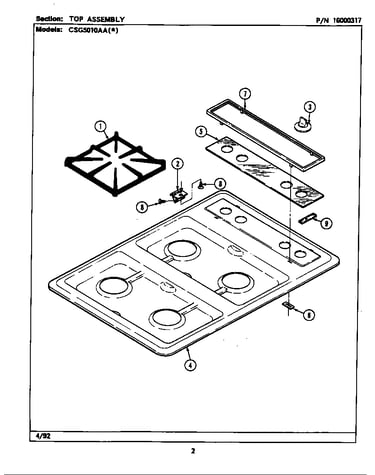

Top assembly diagram

Screw (wht)

Part #7101P261-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P261-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P059-60
#19

Gas controls/body diagram

Screw

Part #7101P059-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P059-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Bushing, Sna 8007P003-60
#16

Gas controls/body diagram

Bushing, sna

Part #8007P003-60

The manufacturer no longer makes this part, and there's no substitute part

Hinge 7106P017-60
#2

Top assembly diagram

Hinge

Part #7106P017-60

The manufacturer no longer makes this part, and there's no substitute part

Push O Clip 7112P076-60
#6

Top assembly diagram

Push o clip

Part #7112P076-60

The manufacturer no longer makes this part, and there's no substitute part

Grate (black) 2003W023-00
#1

Top assembly diagram

Grate (black)

Part #2003W023-00

The manufacturer no longer makes this part, and there's no substitute part

Top, Main (s 2001W076-30
#4B

Top assembly diagram

Top, main (s

Part #2001W076-30

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 7402P013-60
#18

Gas controls/body diagram

Power cord

Part #7402P013-60

The manufacturer no longer makes this part, and there's no substitute part

Control Trim 7720P124-60
#7

Top assembly diagram

Control trim

Part #7720P124-60

The manufacturer no longer makes this part, and there's no substitute part
