Model # FAH08EN1T2 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH08EN1T2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

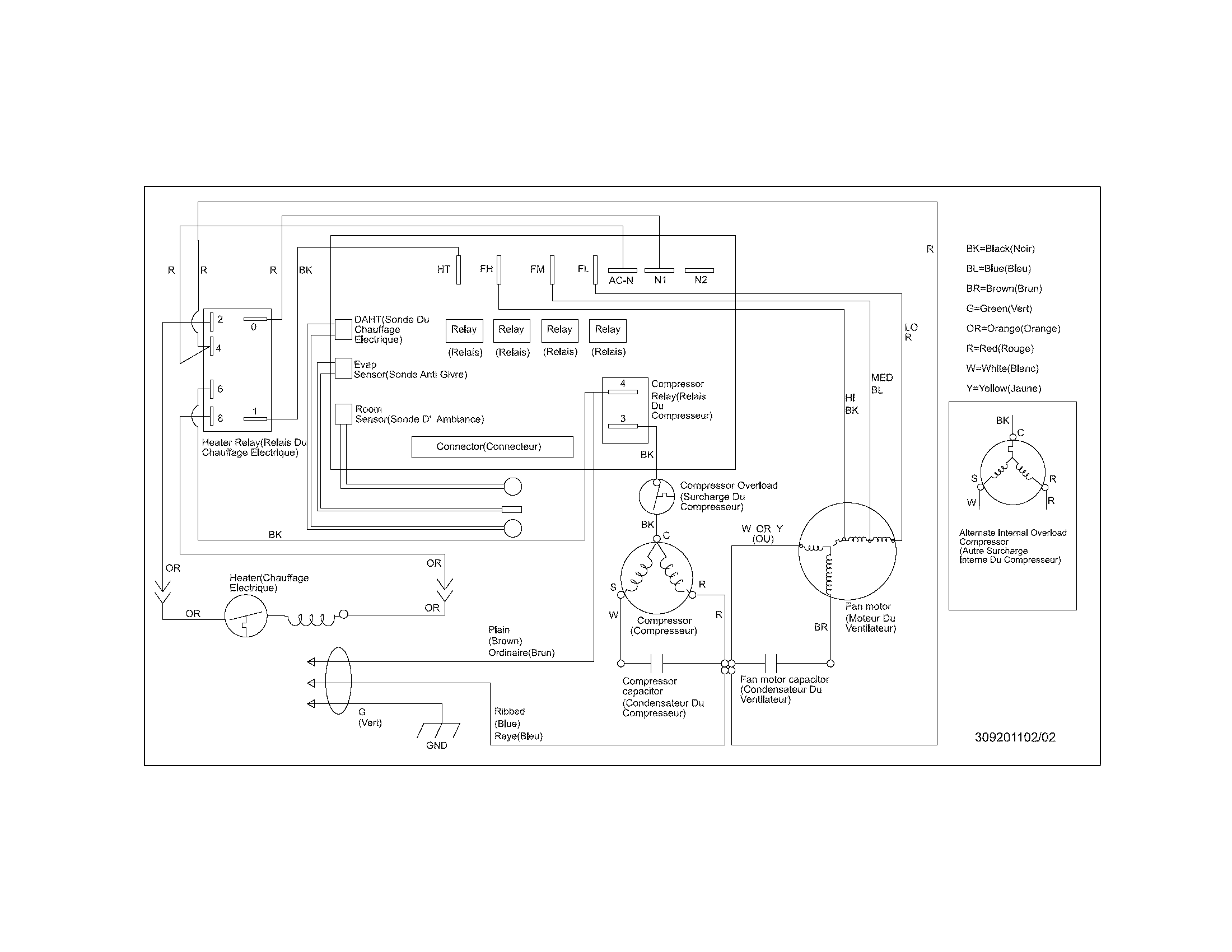

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Clamp 309906801
#45

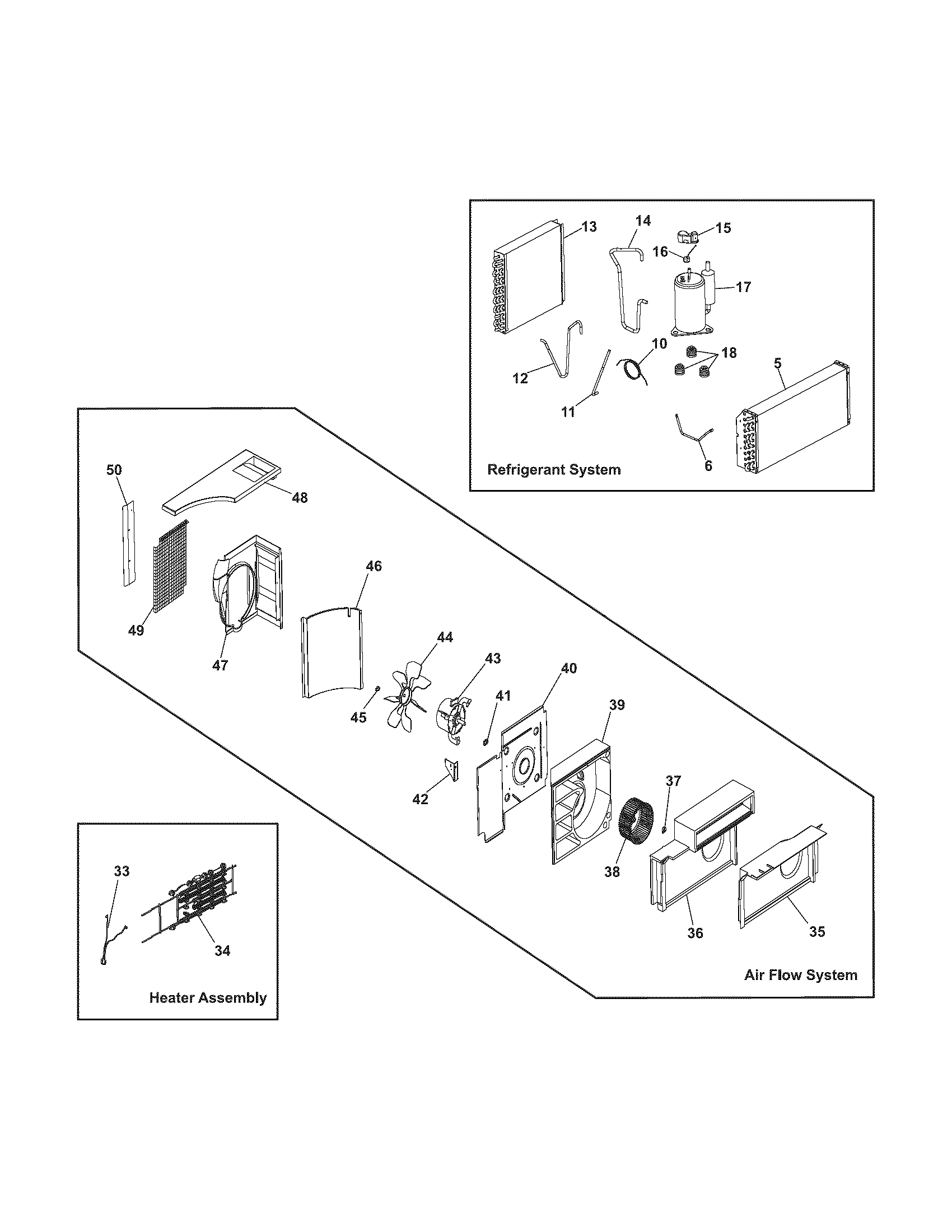

Cooling & air flow systems diagram

Clamp

Part #309906801

Replaced by #327150301

?
Manufacturer substitution
This part replaces 309906801. Substitute parts can look different from the original.
This item is not returnable
$2.93
In Stock
Condenser 309641901
#13

Cooling & air flow systems diagram

Condenser

Part #309641901

The manufacturer no longer makes this part, and there's no substitute part

Electrical H 309201702
#26

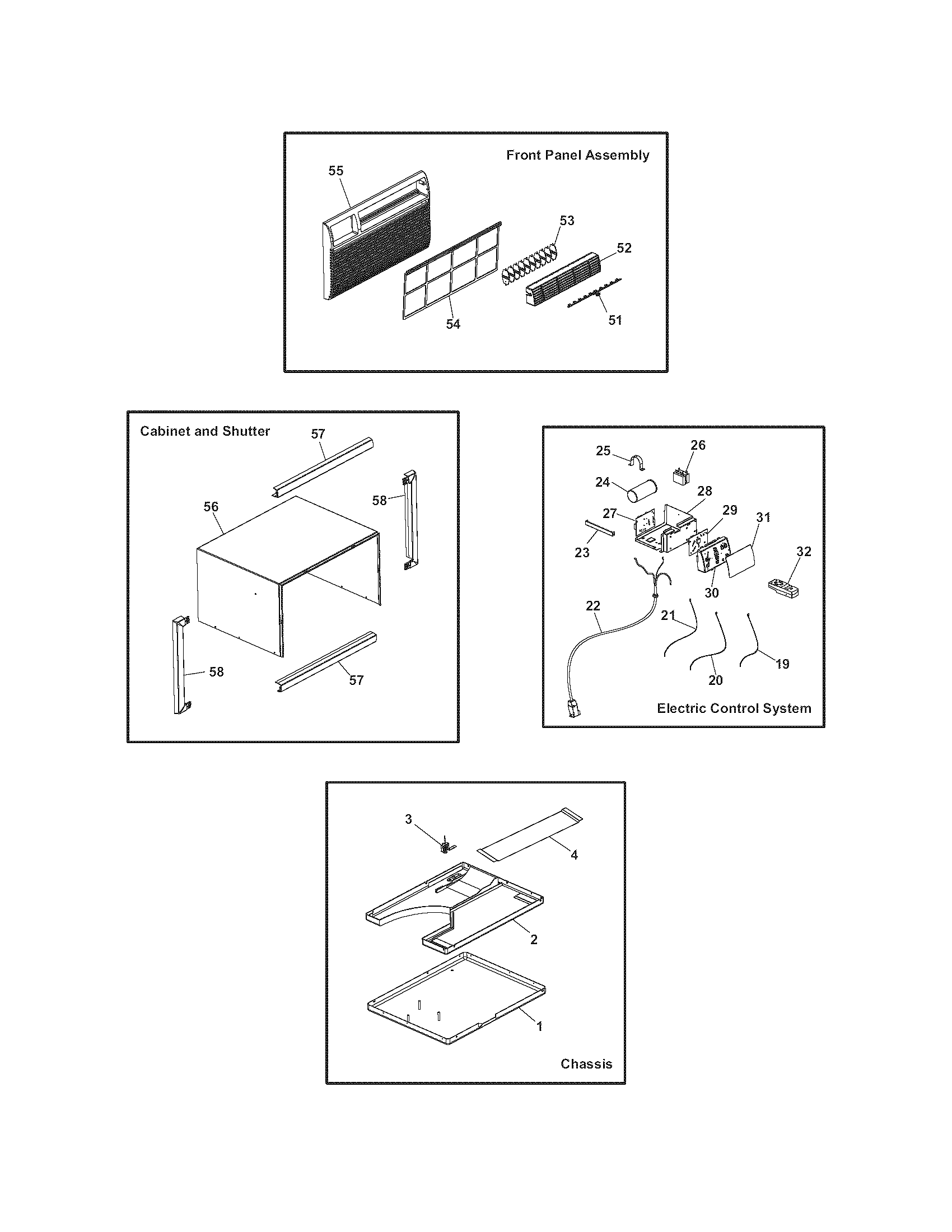

Cabinet/front/controls diagram

Electrical h

Part #309201702

The manufacturer no longer makes this part, and there's no substitute part

Input Board 309201301
#29

Cabinet/front/controls diagram

Input board

Part #309201301

The manufacturer no longer makes this part, and there's no substitute part

Base 309632007
#1

Cabinet/front/controls diagram

Base

Part #309632007

The manufacturer no longer makes this part, and there's no substitute part

#wrapper-u-b 309627504
#56

Cabinet/front/controls diagram

#wrapper-u-b

Part #309627504

The manufacturer no longer makes this part, and there's no substitute part

Trim Frme/tb 309628604
#58

Cabinet/front/controls diagram

Trim frme/tb

Part #309628604

The manufacturer no longer makes this part, and there's no substitute part

Sensor,therm 309201601
#21

Cabinet/front/controls diagram

Sensor,therm

Part #309201601

The manufacturer no longer makes this part, and there's no substitute part

Scroll Plate 309625501
#36

Cooling & air flow systems diagram

Scroll plate

Part #309625501

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 309343129
#22

Cabinet/front/controls diagram

Power cord

Part #309343129

The manufacturer no longer makes this part, and there's no substitute part
