Maytag
Upright Freezer

Model # CFU1535GRW Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag CFU1535GRW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

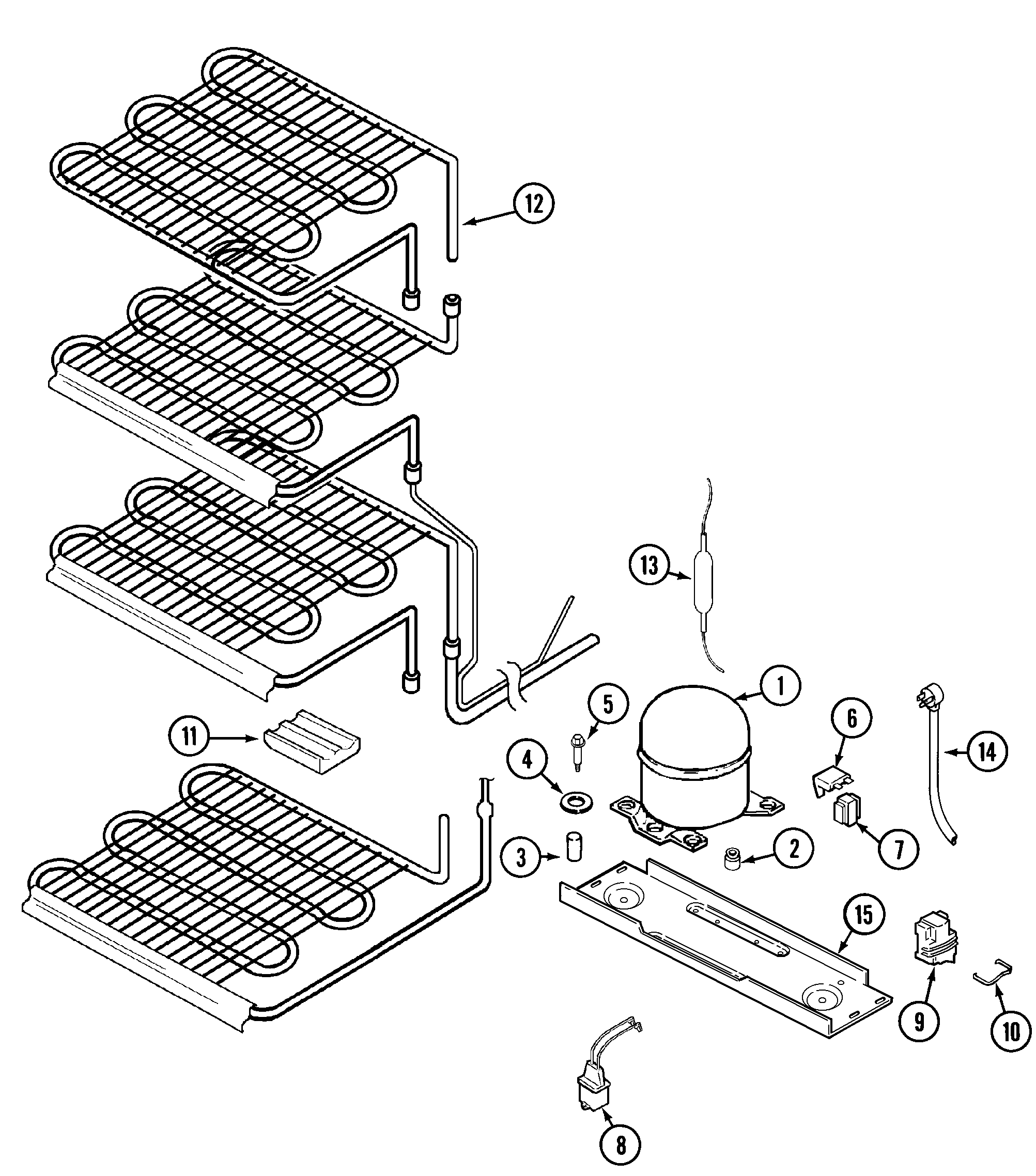

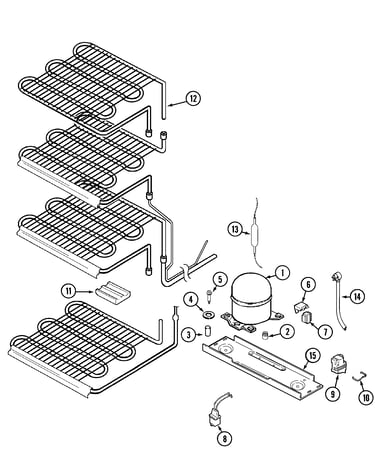

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Compressor 68001435
#1

Unit compartment & system diagram

Compressor

Part #68001435

Replaced by #W10309989

?
Manufacturer substitution
This part replaces 68001435. Substitute parts can look different from the original.
BEST SELLER
$502.83 |
$12.00 OFF Phone Price : $514.83
In Stock
Screw (1 1/4 68001196
#2C

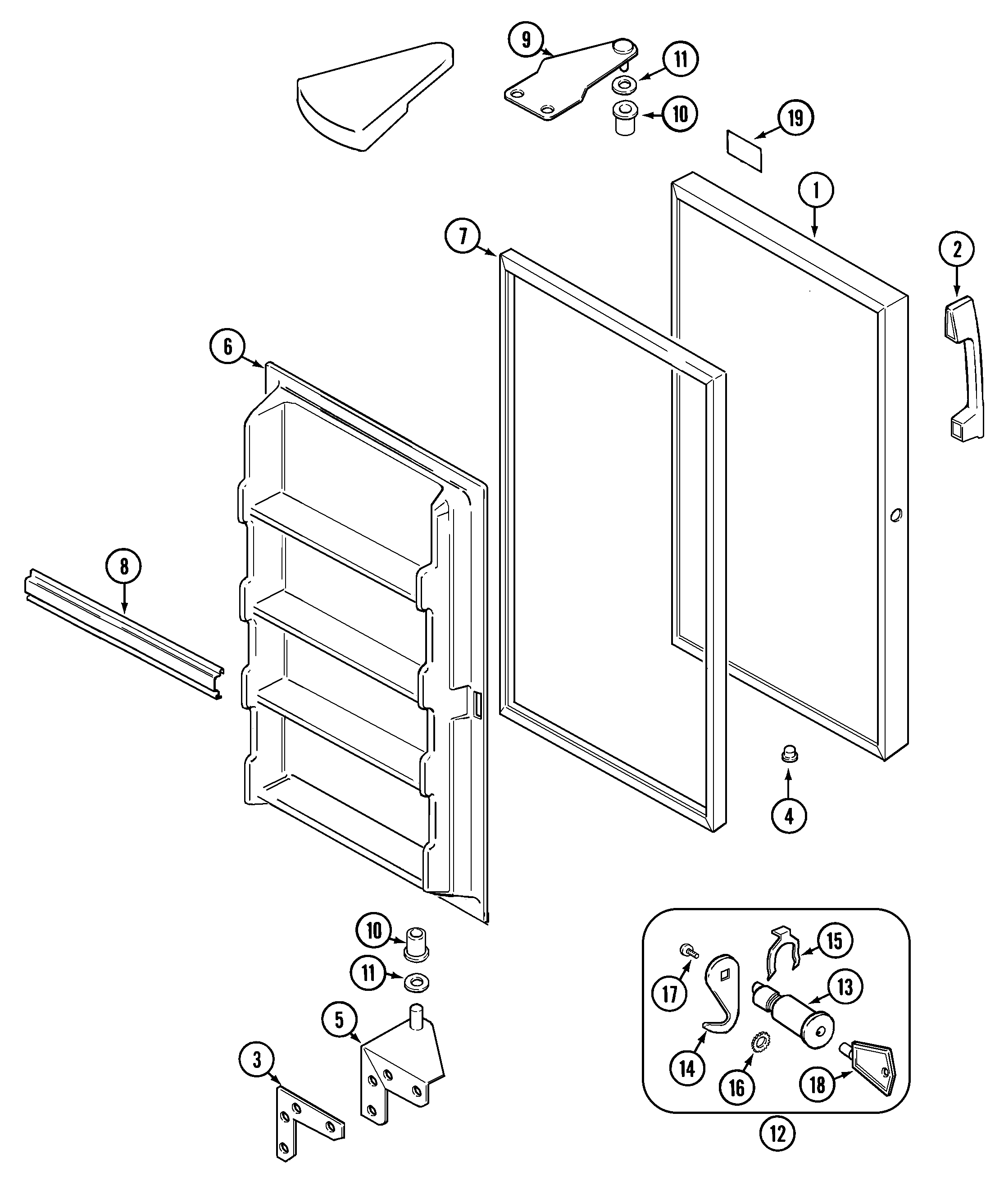

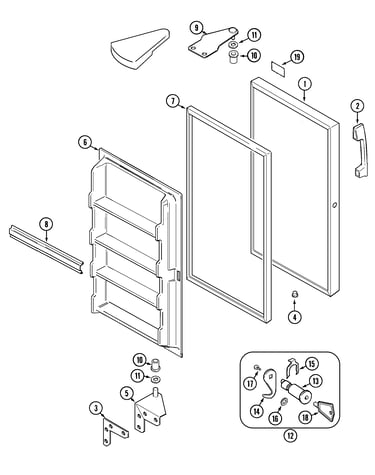

Door diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tubing Control 68001066
#2

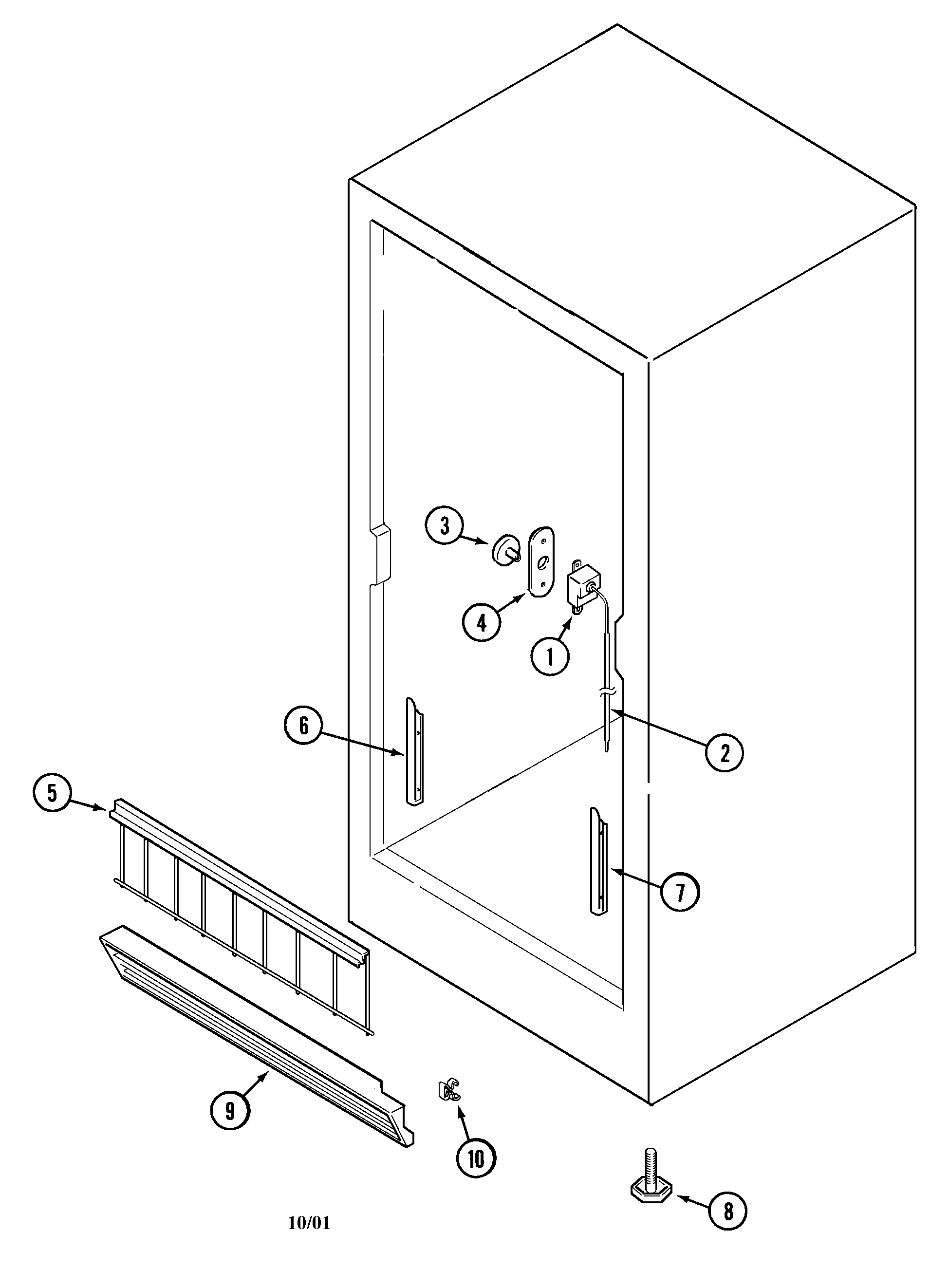

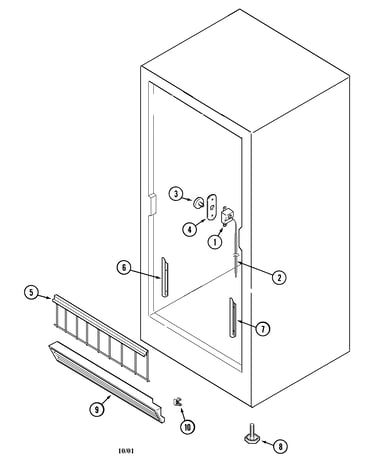

Freezer compartment diagram

Tubing control

Part #68001066

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001066. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Support, Fen 68001067
#6

Freezer compartment diagram

Support, fen

Part #68001067

Replaced by #4-80576-202

?
Manufacturer substitution
This part replaces 68001067. Substitute parts can look different from the original.
This item is not returnable
$16.15 |
11% OFF Phone Price : $18.15
In Stock
Control Plate 68001064
#4

Freezer compartment diagram

Control plate

Part #68001064

Replaced by #1-81154

?
Manufacturer substitution
This part replaces 68001064. Substitute parts can look different from the original.
$10.44
In Stock
Kit Liner Screw 68001124
#6A

Door diagram

Kit liner screw

Part #68001124

Replaced by #4390598

?
Manufacturer substitution
This part replaces 68001124. Substitute parts can look different from the original.
$12.49
In Stock
Liner Kit (i 68001379
#6

Door diagram

Liner kit (i

Part #68001379

Replaced by #WP4390870

?
Manufacturer substitution
This part replaces 68001379. Substitute parts can look different from the original.
$227.14 |
5% OFF Phone Price : $239.14
In Stock
Lock 68001125
#12

Door diagram

Lock

Part #68001125

Replaced by #4357145

?
Manufacturer substitution
This part replaces 68001125. Substitute parts can look different from the original.
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Run Capacitor 09100156
#8

Unit compartment & system diagram

Run capacitor

Part #09100156

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 09100156. Substitute parts can look different from the original.
$52.20 |
10% OFF Phone Price : $58.20
In Stock
