Model # 12233492411 Official Kenmore outdoor grill

Here are the diagrams and repair parts for Official Kenmore 12233492411 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Swivel 05001574A0
#43

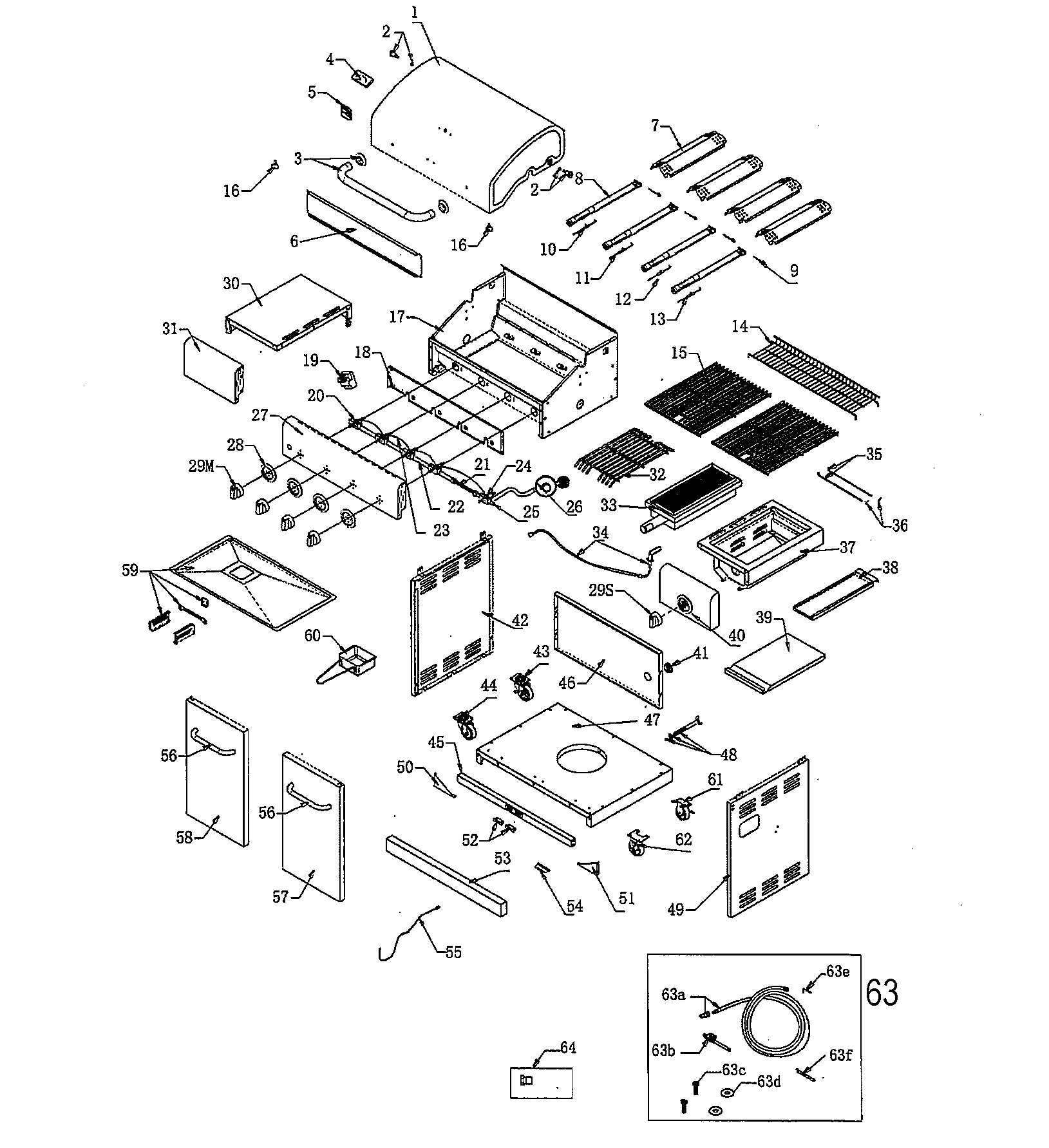

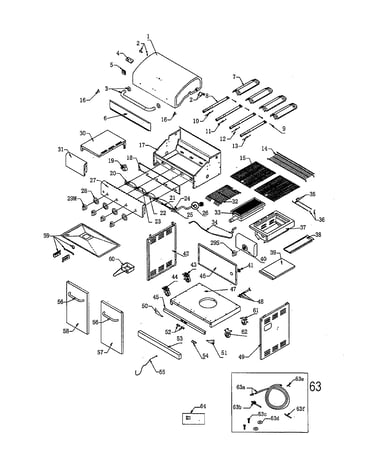

Gas grill diagram

Swivel

Part #05001574A0

The manufacturer no longer makes this part, and there's no substitute part

Main Lid 0127384000AP
#1

Gas grill diagram

Main lid

Part #0127384000AP

The manufacturer no longer makes this part, and there's no substitute part

Trim Pice 20003257A0
#53

Gas grill diagram

Trim pice

Part #20003257A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Caster Wheel 05000734A0
#62

Gas grill diagram

Gas grill caster wheel

Part #05000734A0

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Rear Panel Grommet 17000006A0
#41

Gas grill diagram

Gas grill rear panel grommet

Part #17000006A0

The manufacturer no longer makes this part, and there's no substitute part

Back Panel 0151416000AP
#46

Gas grill diagram

Back panel

Part #0151416000AP

The manufacturer no longer makes this part, and there's no substitute part

Orifice 2006416000AP
#64

Gas grill diagram

Orifice

Part #2006416000AP

The manufacturer no longer makes this part, and there's no substitute part

Caster W/b 05001585A0
#61

Gas grill diagram

Caster w/b

Part #05001585A0

The manufacturer no longer makes this part, and there's no substitute part

Cntrl Panl 0151021002AS
#27

Gas grill diagram

Cntrl panl

Part #0151021002AS

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Temperature Gauge 05001264A0
#4

Gas grill diagram

Gas grill temperature gauge

Part #05001264A0

The manufacturer no longer makes this part, and there's no substitute part
