Model # PV-GS55P Official Panasonic digital video camcorder

Here are the diagrams and repair parts for Official Panasonic PV-GS55P digital video camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Pcb Assembly VEP001D6A
#P7

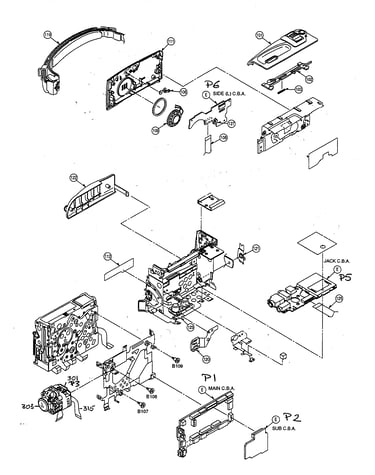

Frame/casing assy 2 diagram

Pcb assembly

Part #VEP001D6A

The manufacturer no longer makes this part, and there's no substitute part

Hood Strap VGQ7304
#409

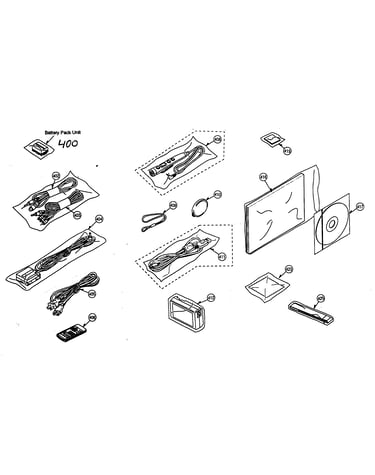

Accessory diagram

Hood strap

Part #VGQ7304

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Lcd Case VYK1D93
#211

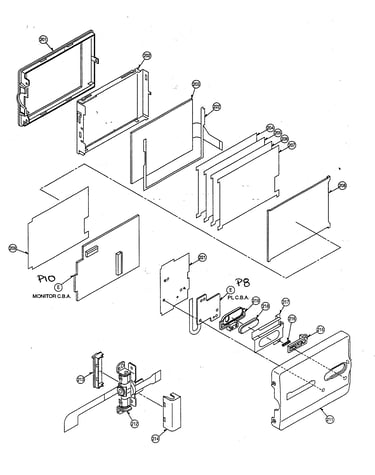

Lcd assy diagram

Panasonic lcd case

Part #VYK1D93

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb Assembly VEP03G59A
#P2

Frame/casing assy 2 diagram

Panasonic pcb assembly

Part #VEP03G59A

The manufacturer no longer makes this part, and there's no substitute part

Fuse K5H4021A0004
#NI

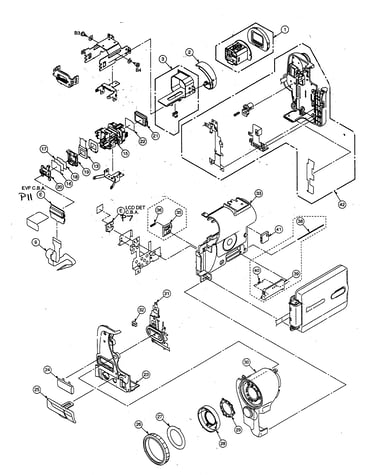

Frame/casing assy 1 diagram

Fuse

Part #K5H4021A0004

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Pcb Assembly VEP03G58F
#P1

Frame/casing assy 2 diagram

Panasonic pcb assembly

Part #VEP03G58F

The manufacturer no longer makes this part, and there's no substitute part

Nameplate VGH4644
#27

Frame/casing assy 1 diagram

Nameplate

Part #VGH4644

The manufacturer no longer makes this part, and there's no substitute part

Cd-rom VFF0231-S
#417

Accessory diagram

Cd-rom

Part #VFF0231-S

The manufacturer no longer makes this part, and there's no substitute part

Mic Net U VYK1D21
#24

Frame/casing assy 1 diagram

Mic net u

Part #VYK1D21

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly VEP001D3A
#P5

Frame/casing assy 2 diagram

Pcb assembly

Part #VEP001D3A

The manufacturer no longer makes this part, and there's no substitute part
