Model # MAV2755AJW Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MAV2755AJW washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

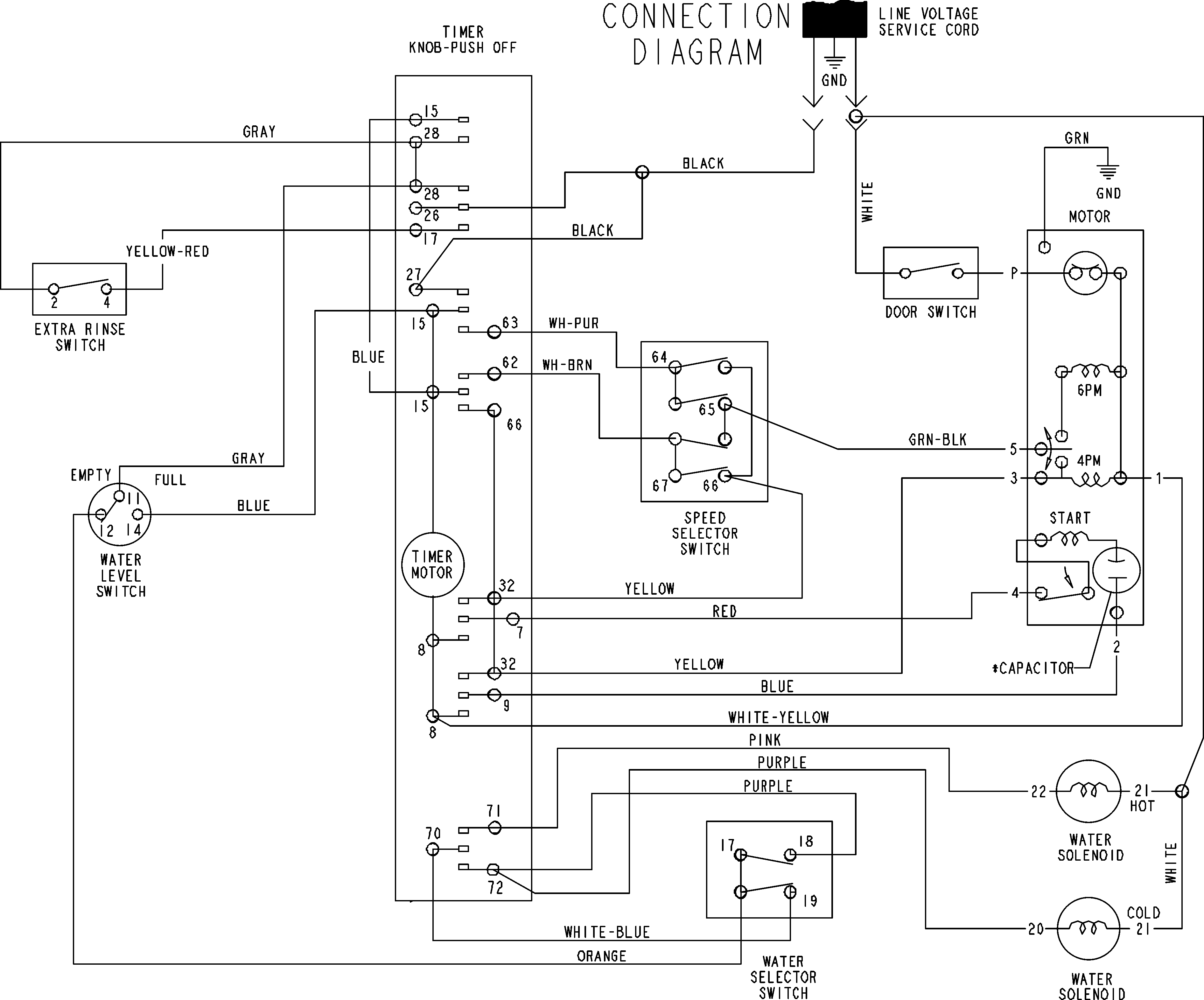

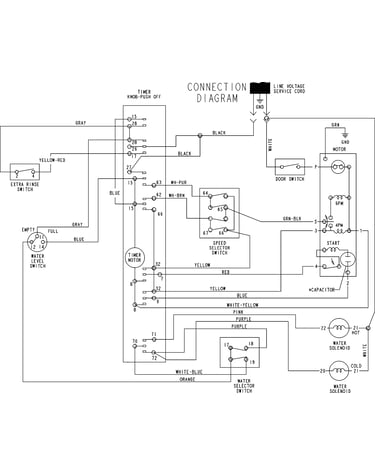

SELECT DIAGRAM
Browse Parts for
MAV2755AJW Washer
#1

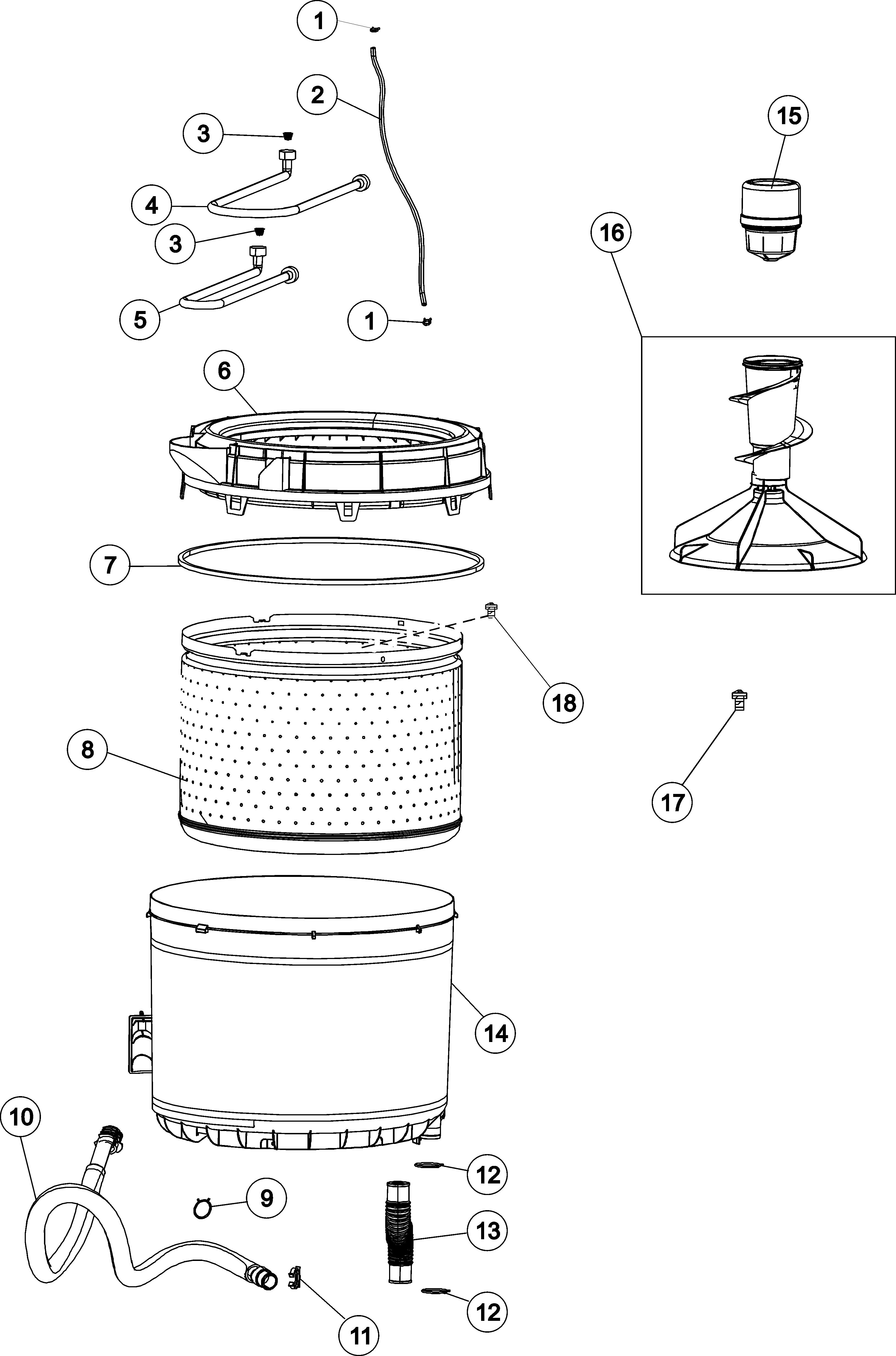

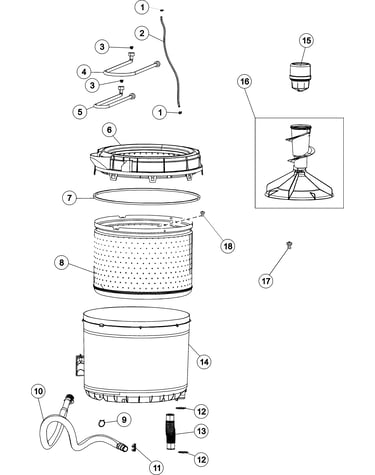

Inner - outer tub diagram
Clamp, pressure switch hose
Part #25-7796
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#16

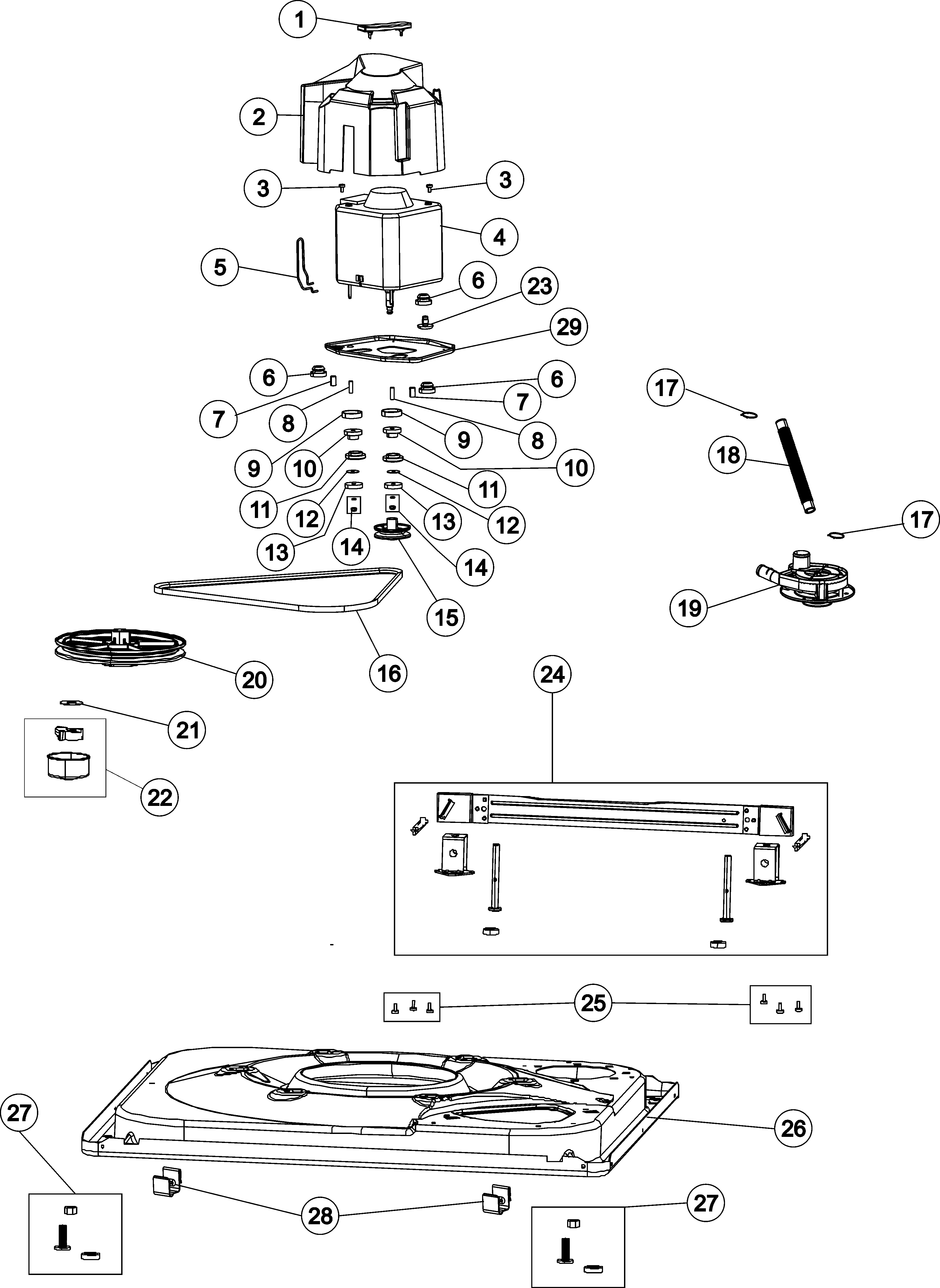

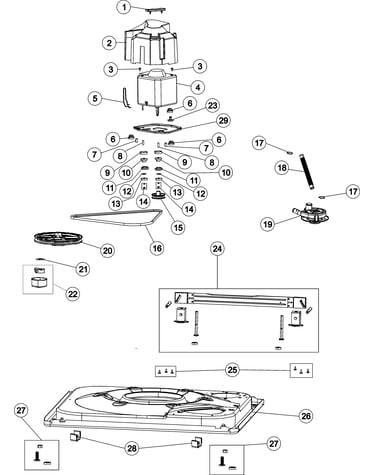

Base & motor diagram
Washer drive belt
Part #21352320
Replaced by #WP21352320
?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
$15.14 |
12% OFF Phone Price : $17.14
In Stock
#15
Base & motor diagram
Pulley
Part #22004297
Replaced by #WP21001950
?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
$128.85 |
9% OFF Phone Price : $140.85
In Stock
#5
Inner - outer tub diagram
Inlet hose
Part #33-7891
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#18

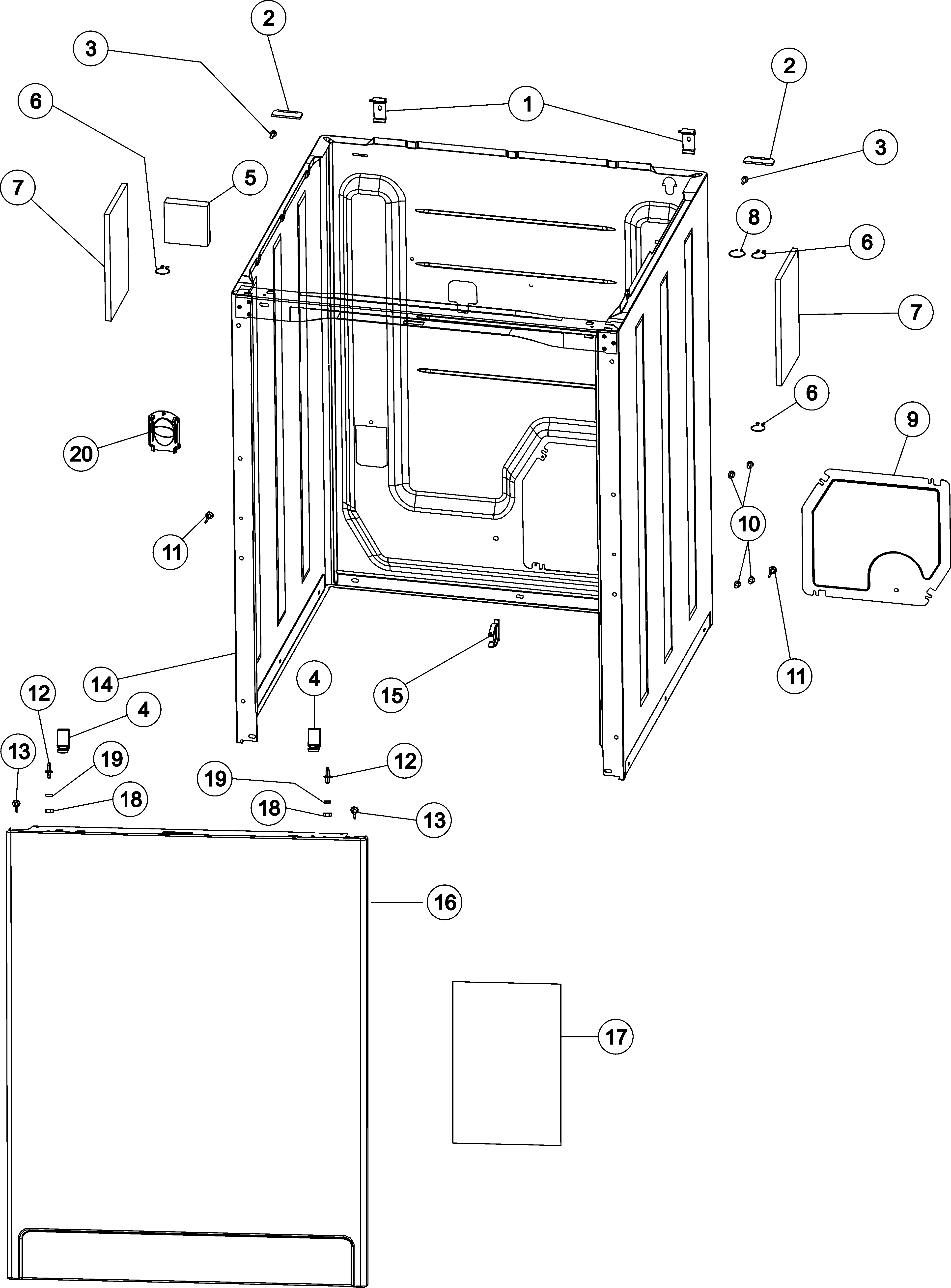

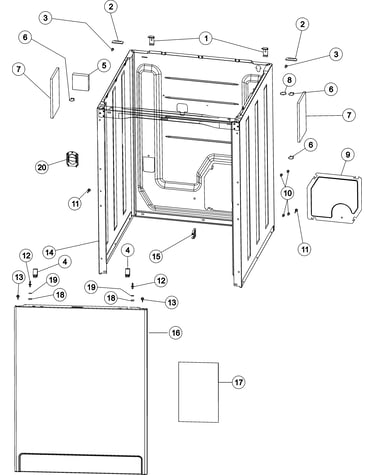

Cabinet & front panel diagram
Locator nut
Part #25-0224
Replaced by #WP3400029
?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#40

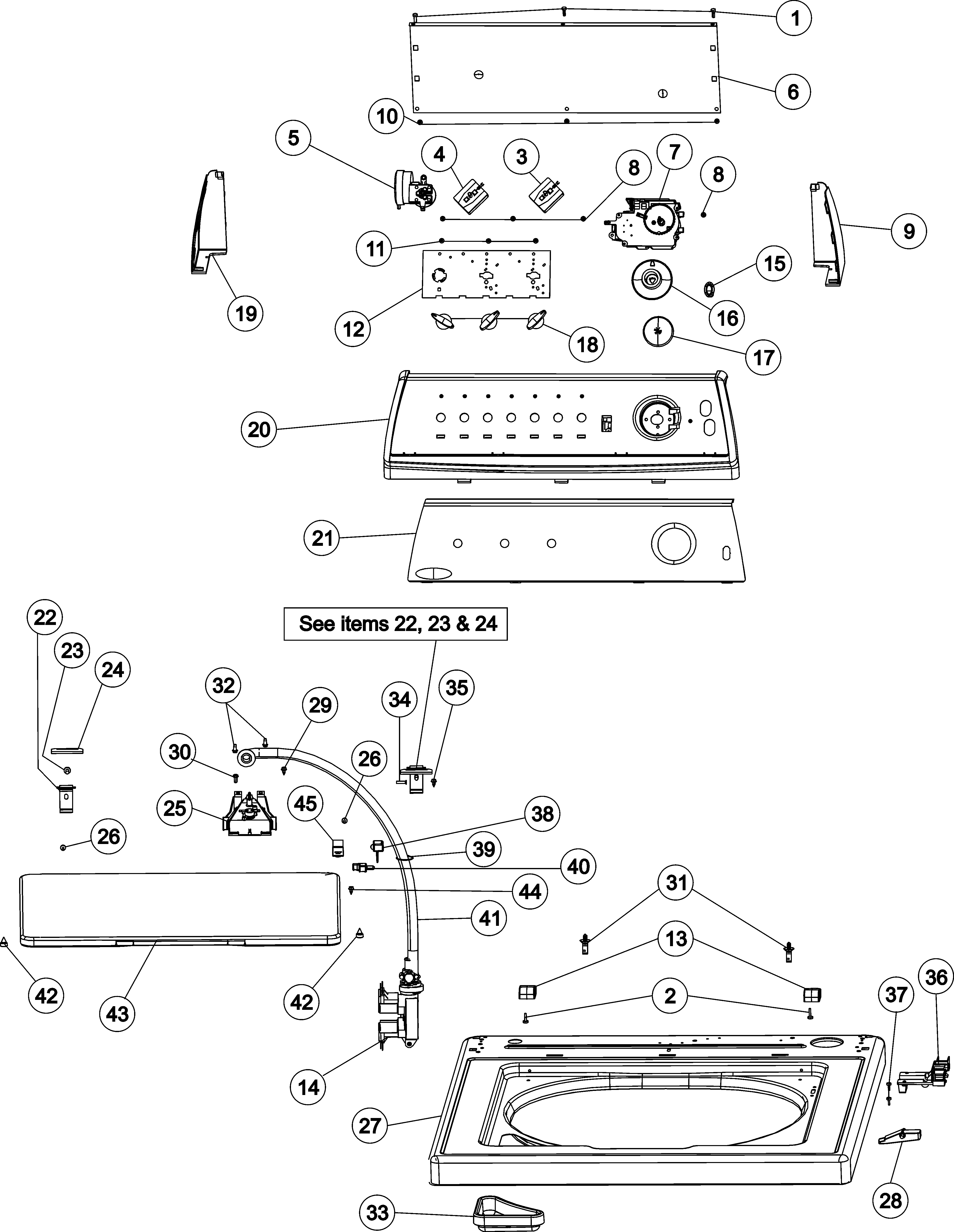

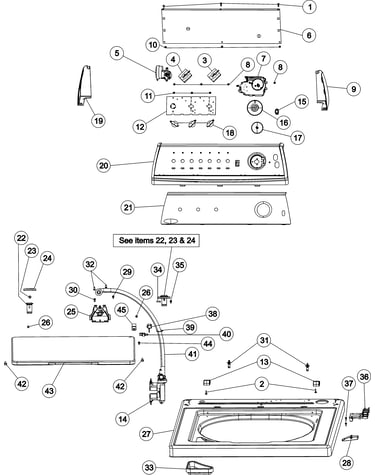

Control panel & top diagram
Washer lid hinge pin
Part #35-2045
Replaced by #WP35-2045
?
Manufacturer substitution
This part replaces 35-2045. Substitute parts can look different from the original.
$16.71 |
11% OFF Phone Price : $18.71
In Stock
#14

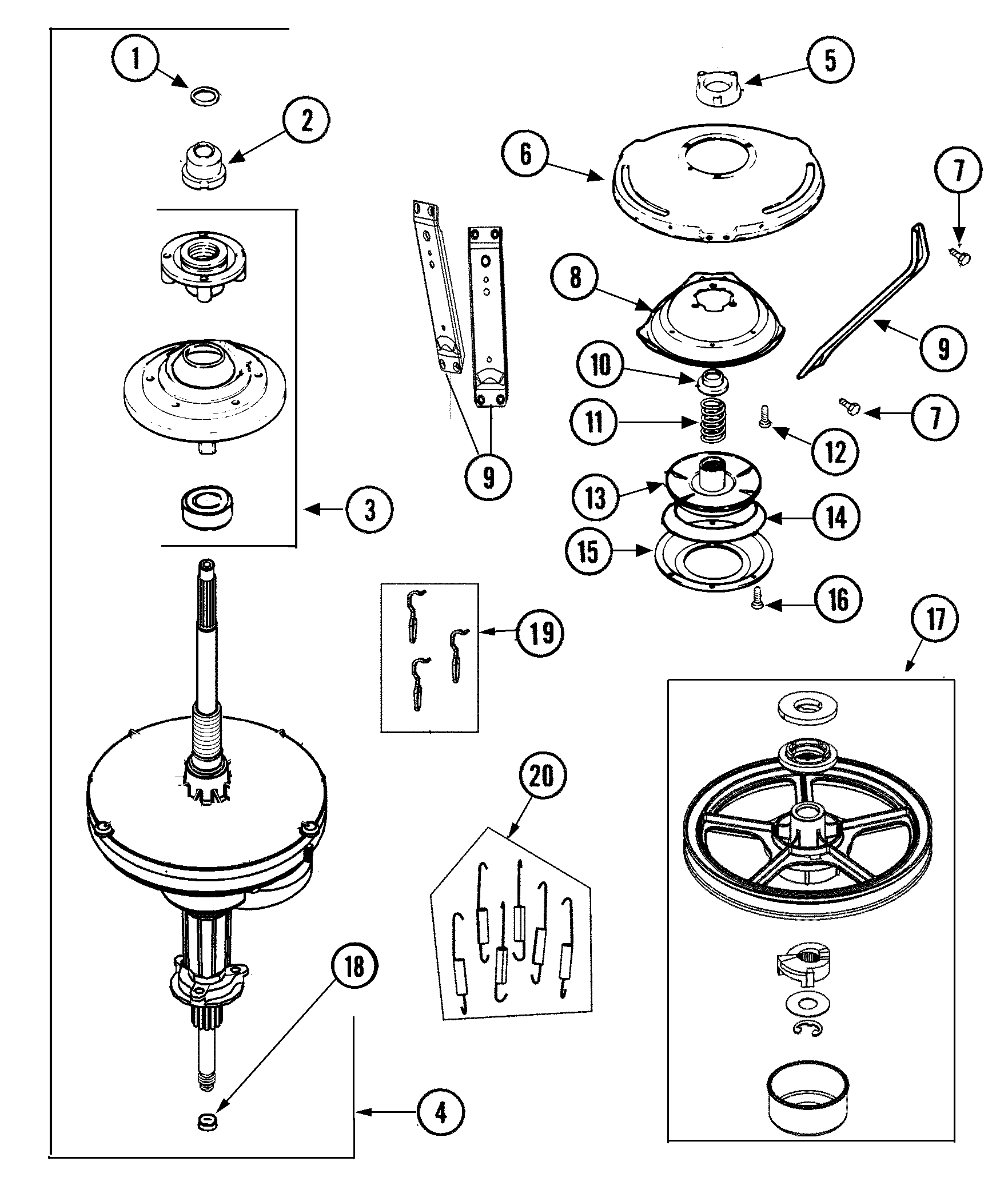

Transmission diagram
Washer snubber ring
Part #21002026
Replaced by #WP21002026
?
Manufacturer substitution
This part replaces 21002026. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
#20
Transmission diagram
Spring kit
Part #21002065
The manufacturer no longer makes this part, and there's no substitute part
Washer tub-to-pump hose
Part #21001915
Replaced by #WP21001915
?
Manufacturer substitution
This part replaces 21001915. Substitute parts can look different from the original.
This item is not returnable
$26.09 |
19% OFF Phone Price : $32.09
In Stock
#3
Transmission diagram
Seal hub
Part #21001868
Replaced by #W10219156
?
Manufacturer substitution
This part replaces 21001868. Substitute parts can look different from the original.
$148.42 |
7% OFF Phone Price : $160.42
In Stock
