Model # 7MMVWX655EW1 Official Maytag washing machine

Here are the diagrams and repair parts for Official Maytag 7MMVWX655EW1 washing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

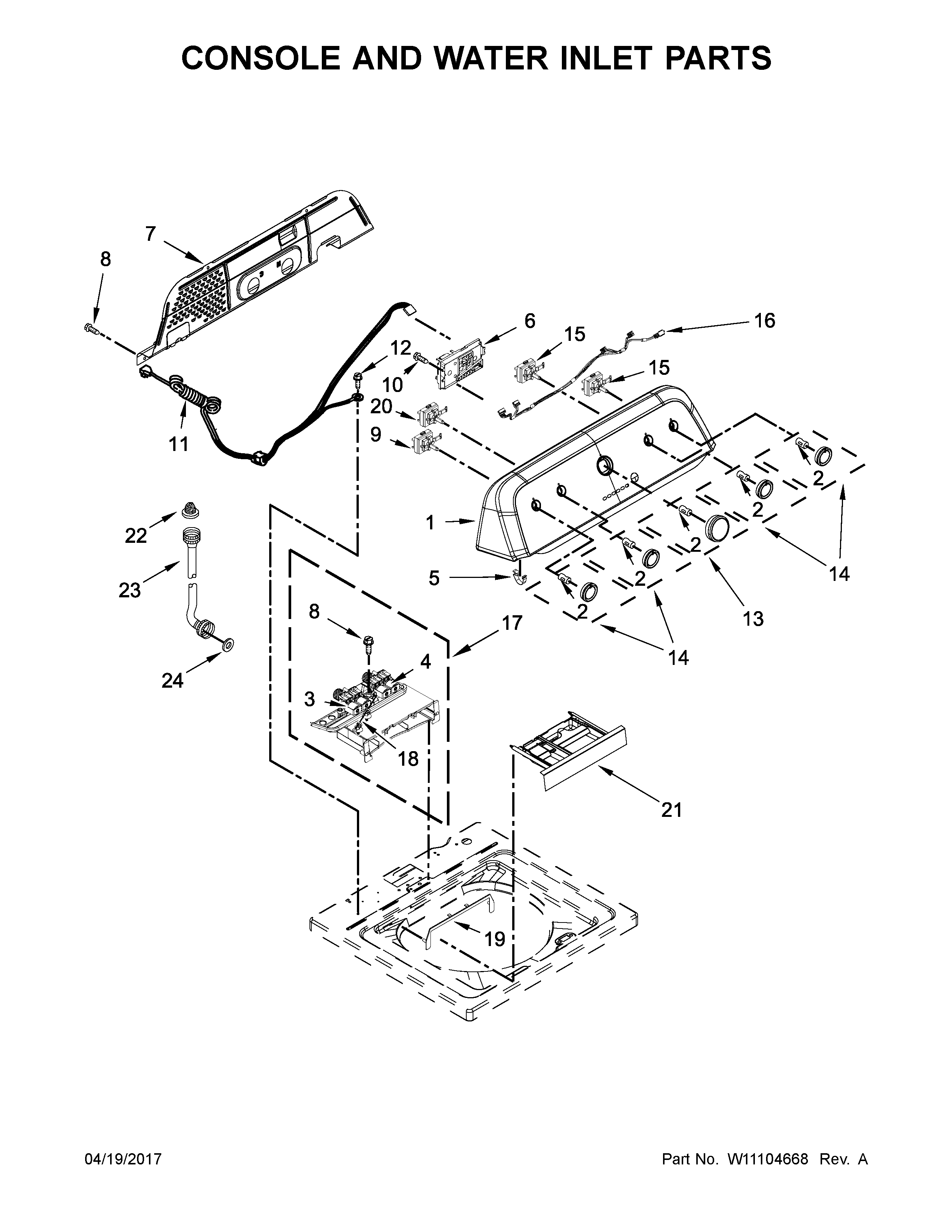

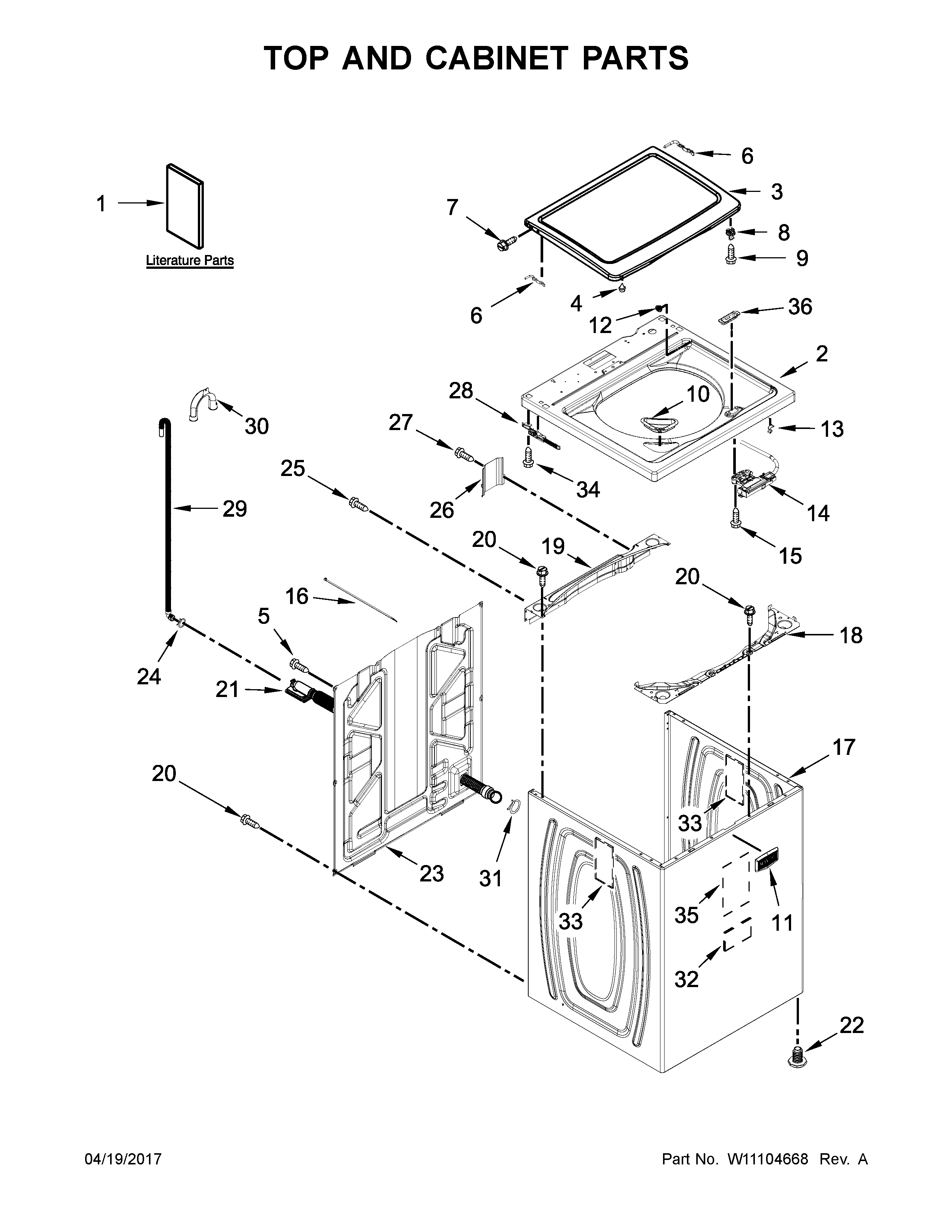

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Whirlpool Washer Drive Pulley (replaces W10006356, W10239973, W10315818, W10536113, W11396423) W10721967
#16

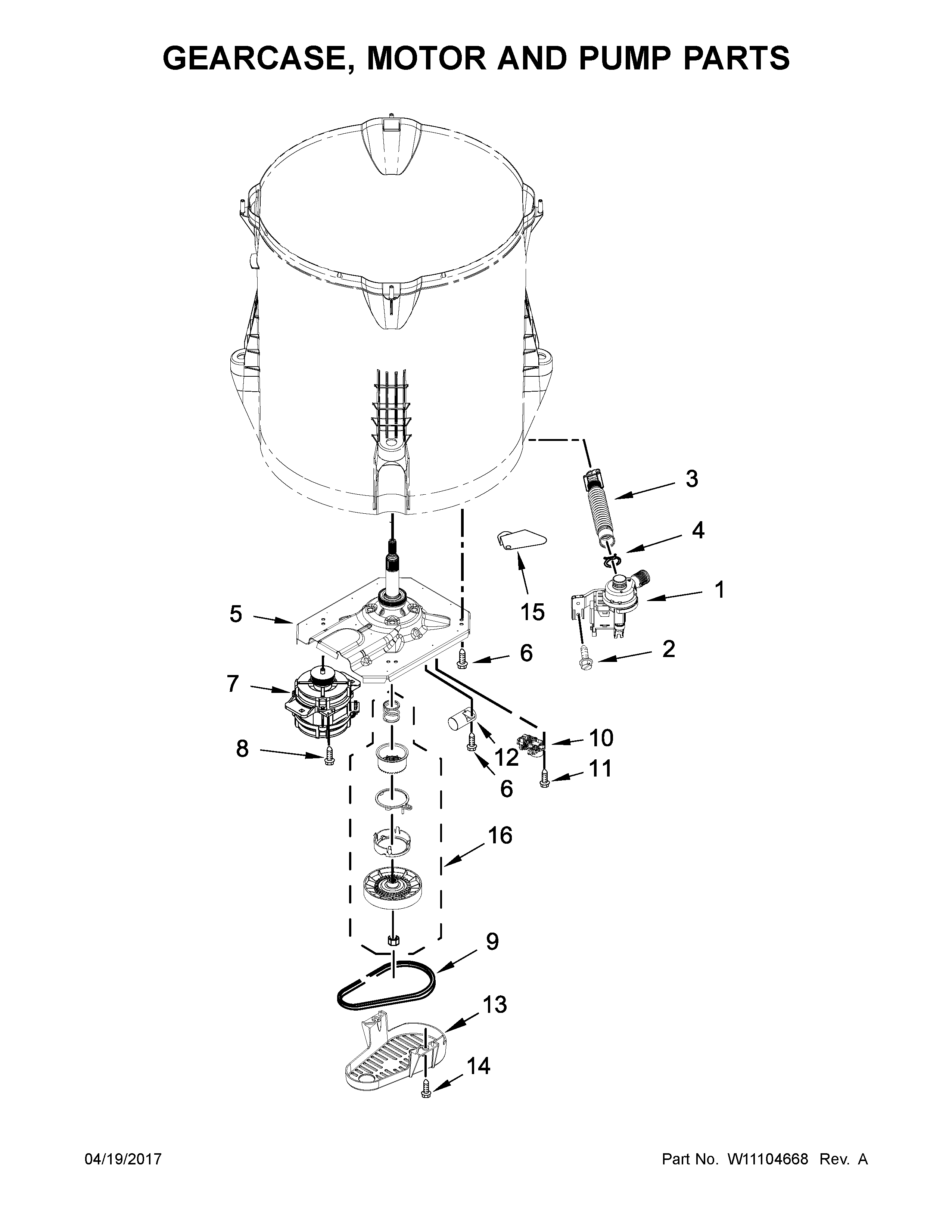

Gearcase, motor and pump parts diagram

Whirlpool washer drive pulley (replaces w10006356, w10239973, w10315818, w10536113, w11396423)

Part #W10721967

BEST SELLER
$59.36 |
9% OFF Phone Price : $65.36
In Stock
Washer Actuator W10815026
#10

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10815026

Replaced by #W10913953

?
Manufacturer substitution
This part replaces W10815026. Substitute parts can look different from the original.
BEST SELLER
$50.58 |
11% OFF Phone Price : $56.58
In Stock
Driveblock - W10396887
#8

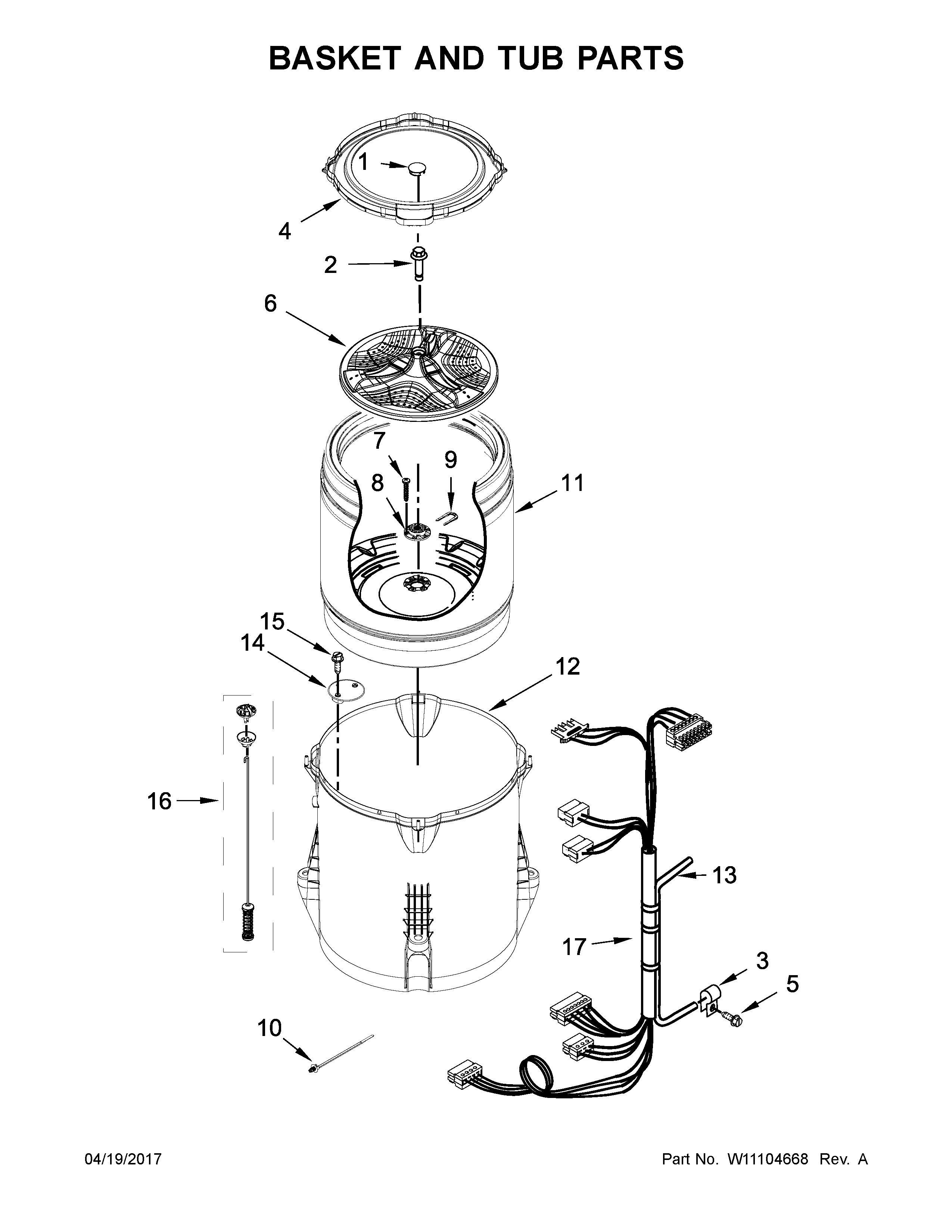

Basket and tub parts diagram

Driveblock -

Part #W10396887

Replaced by #W10528947

?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
BEST SELLER
$34.22 |
15% OFF Phone Price : $40.22
In Stock
Washer Drive Belt W10006384
#9

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$27.45 |
18% OFF Phone Price : $33.45
In Stock
Main Support W10006481
#5

Gearcase, motor and pump parts diagram

Main support

Part #W10006481

Replaced by #W11454734

?
Manufacturer substitution
This part replaces W10006481. Substitute parts can look different from the original.
BEST SELLER
$172.23 |
7% OFF Phone Price : $184.23
In Stock
Washer Washplate Screw W10625252
#2

Basket and tub parts diagram

Washer washplate screw

Part #W10625252

Replaced by #W10752187

?
Manufacturer substitution
This part replaces W10625252. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.13 |
24% OFF Phone Price : $4.13
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
14% OFF Phone Price : $14.27
In Stock
Washer Run Capacitor W10625046
#12

Gearcase, motor and pump parts diagram

Washer run capacitor

Part #W10625046

Replaced by #W11395618

?
Manufacturer substitution
This part replaces W10625046. Substitute parts can look different from the original.
BEST SELLER
$61.75 |
9% OFF Phone Price : $67.75
In Stock
Basket Assembly W10586077
#11

Basket and tub parts diagram

Basket assembly

Part #W10586077

Replaced by #W10752719

?
Manufacturer substitution
This part replaces W10586077. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$299.88 |
$12.00 OFF Phone Price : $311.88
In Stock
Washer Drain Pump W10581874
#1

Gearcase, motor and pump parts diagram

Washer drain pump

Part #W10581874

Replaced by #WPW10581874

?
Manufacturer substitution
This part replaces W10581874. Substitute parts can look different from the original.
BEST SELLER
$67.75 |
8% OFF Phone Price : $73.75
In Stock
