Model # 625345501 Official Kenmore distiller

Here are the diagrams and repair parts for Official Kenmore 625345501 distiller, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
625345501 Distiller
Kenmore Button 7053567
#17

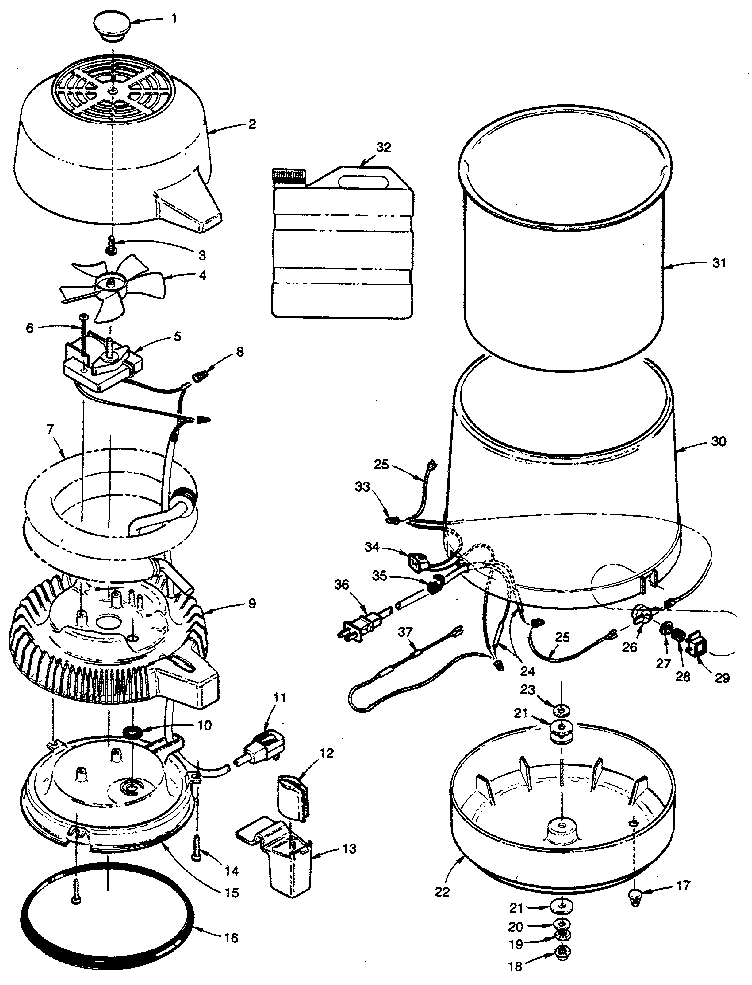

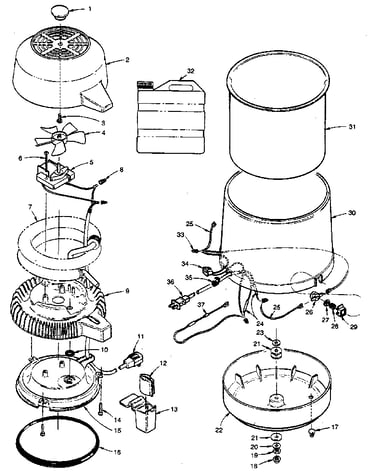

Unit parts diagram

Kenmore button

Part #7053567

This item is not returnable
In Stock
Storage Jug 42-34552
#32

Unit parts diagram

Storage jug

Part #42-34552

Replaced by #3448209

?
Manufacturer substitution
This part replaces 42-34552. Substitute parts can look different from the original.
$55.59
10% OFF Phone Price : $61.59
In Stock
Base 7082508
#22

Unit parts diagram

Base

Part #7082508

Replaced by #7124651

?
Manufacturer substitution
This part replaces 7082508. Substitute parts can look different from the original.
In Stock
Twist-on Wire Connector 501653
#8

Unit parts diagram

Twist-on wire connector

Part #501653

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 501653. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Washer 810037
#23

Unit parts diagram

Washer

Part #810037

Replaced by #0810037

?
Manufacturer substitution
This part replaces 810037. Substitute parts can look different from the original.
In Stock
Broiler Pot 7053486
#31

Unit parts diagram

Broiler pot

Part #7053486

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 7041722
#19

Unit parts diagram

Hex nut

Part #7041722

The manufacturer no longer makes this part, and there's no substitute part

Stran Relief 7033931
#35

Unit parts diagram

Stran relief

Part #7033931

The manufacturer no longer makes this part, and there's no substitute part

Reset Button 7032121
#29

Unit parts diagram

Reset button

Part #7032121

The manufacturer no longer makes this part, and there's no substitute part

Socket 7081984
#34

Unit parts diagram

Socket

Part #7081984

The manufacturer no longer makes this part, and there's no substitute part
