Here are the diagrams and repair parts for Official Kenmore Elite 665133496 drawer dishwasher, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

By Schematic

By Part

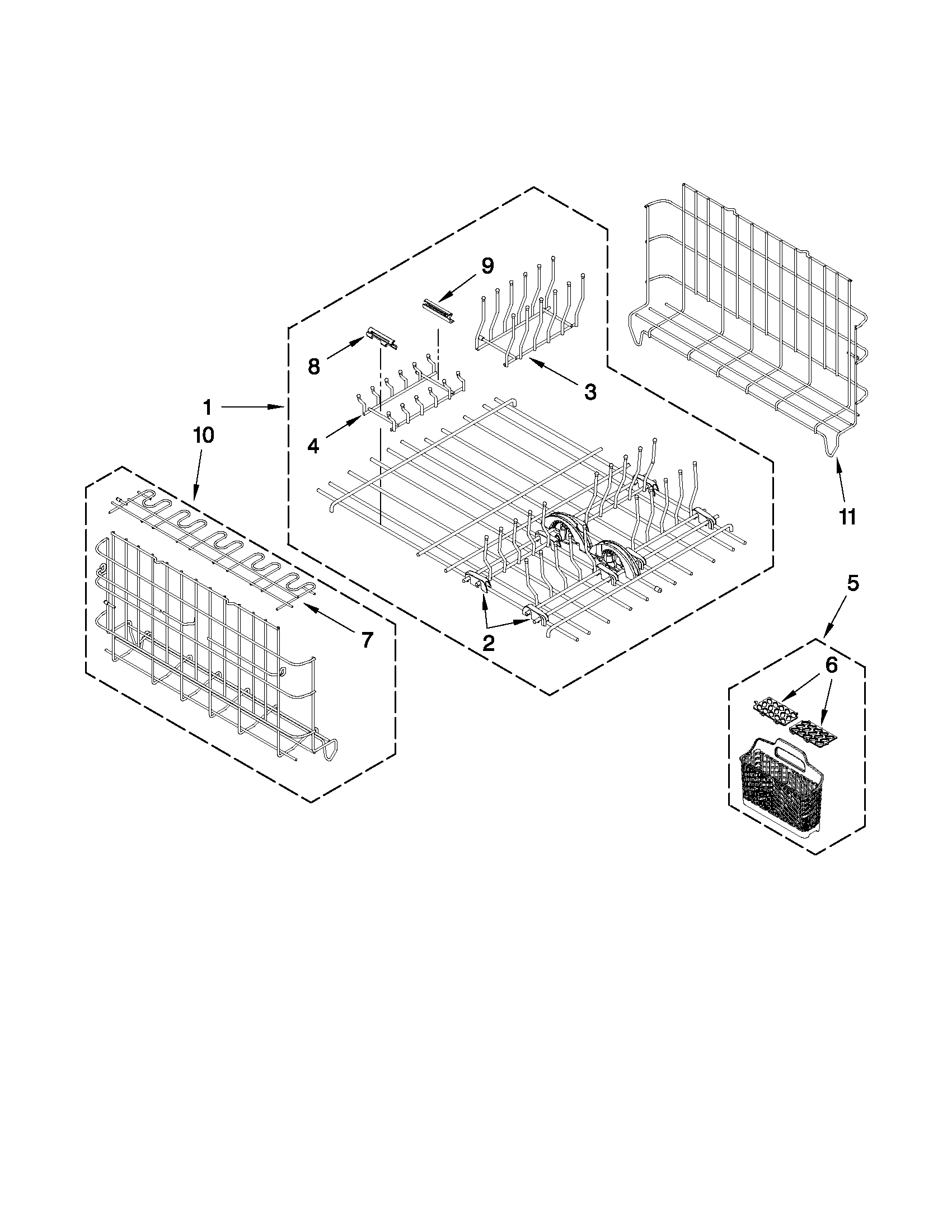

SELECT DIAGRAM

Browse Parts for665133496 Drawer Dishwasher

#36

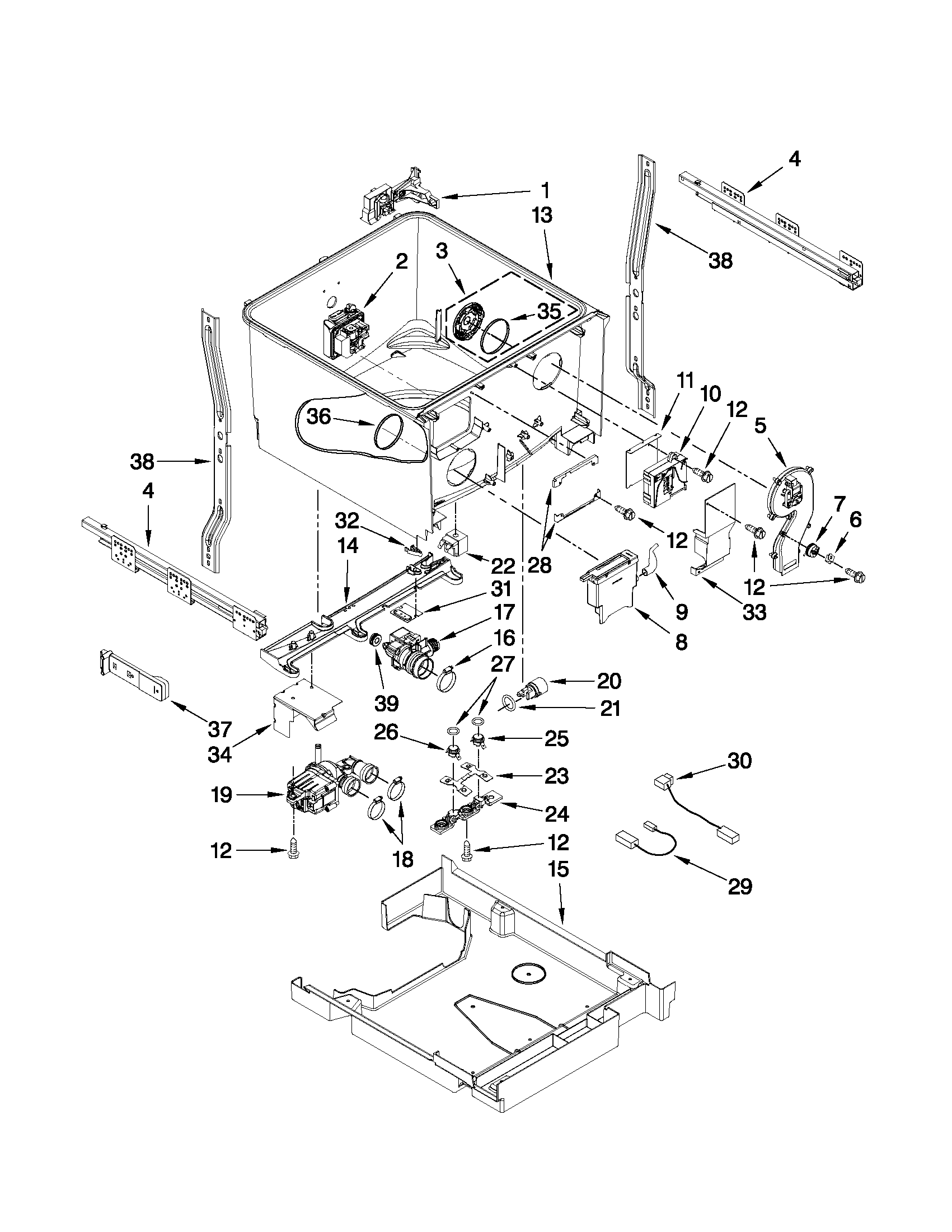

Tub parts diagram
Dishwasher air inlet seal
Part #W10286124
Replaced by #WPW10286124
?
Manufacturer substitution
This part replaces W10286124. Substitute parts can look different from the original.
This item is not returnable
$9.06 |
10% OFF Phone Price : $10.06
In Stock
Qty
#5
Tub parts diagram
Dishwasher vent fan motor assembly
Part #W10155595
Replaced by #WPW10155595
?
Manufacturer substitution
This part replaces W10155595. Substitute parts can look different from the original.
5 (1)
$128.83 |
9% OFF Phone Price : $140.83
In Stock
Qty
#20

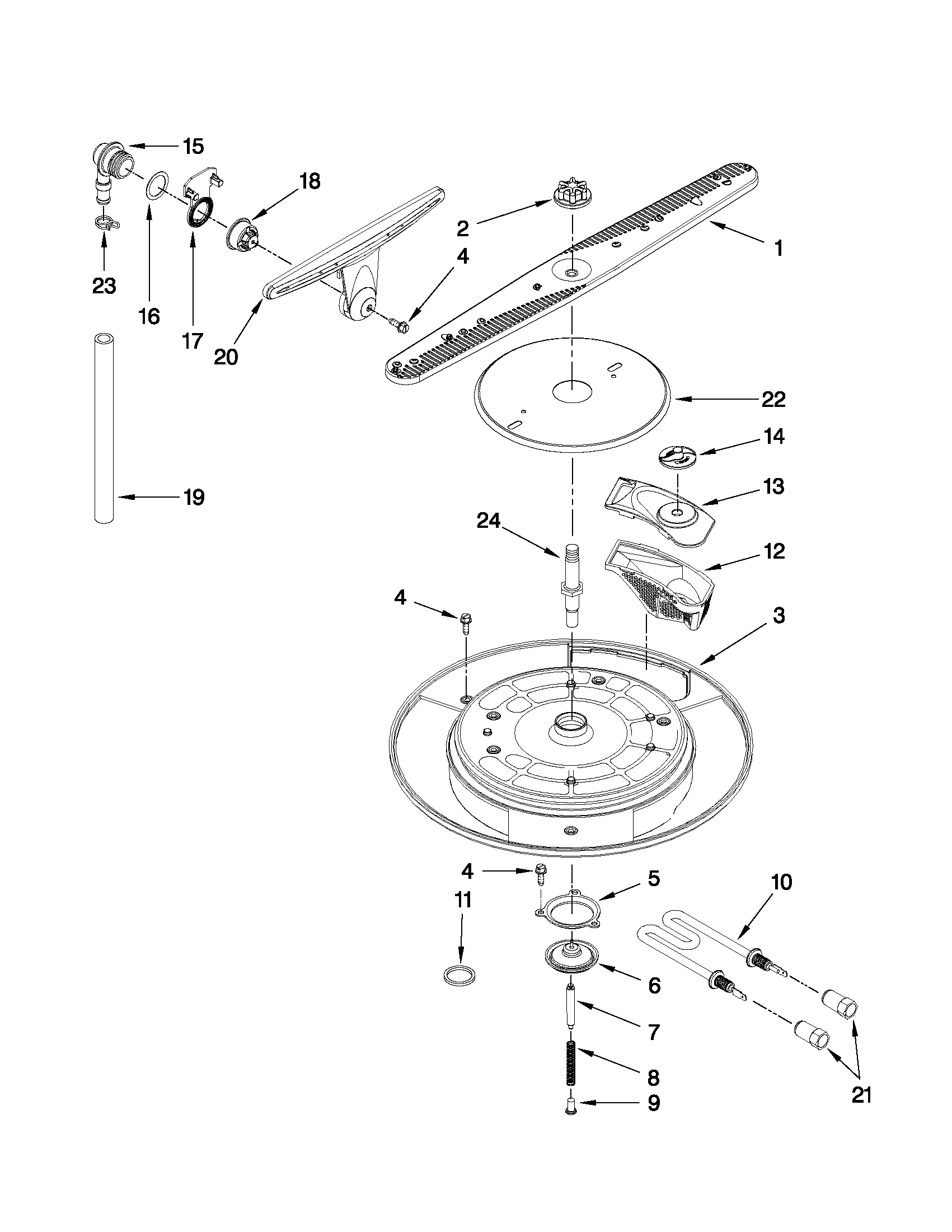

Wash system parts diagram
Dishwasher turbo wash manifold assembly
Part #W10162673
$134.60
In Stock
Qty
#9
Wash system parts diagram
Dishwasher fine drain shaft filter
Part #6-920340
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Qty
#20

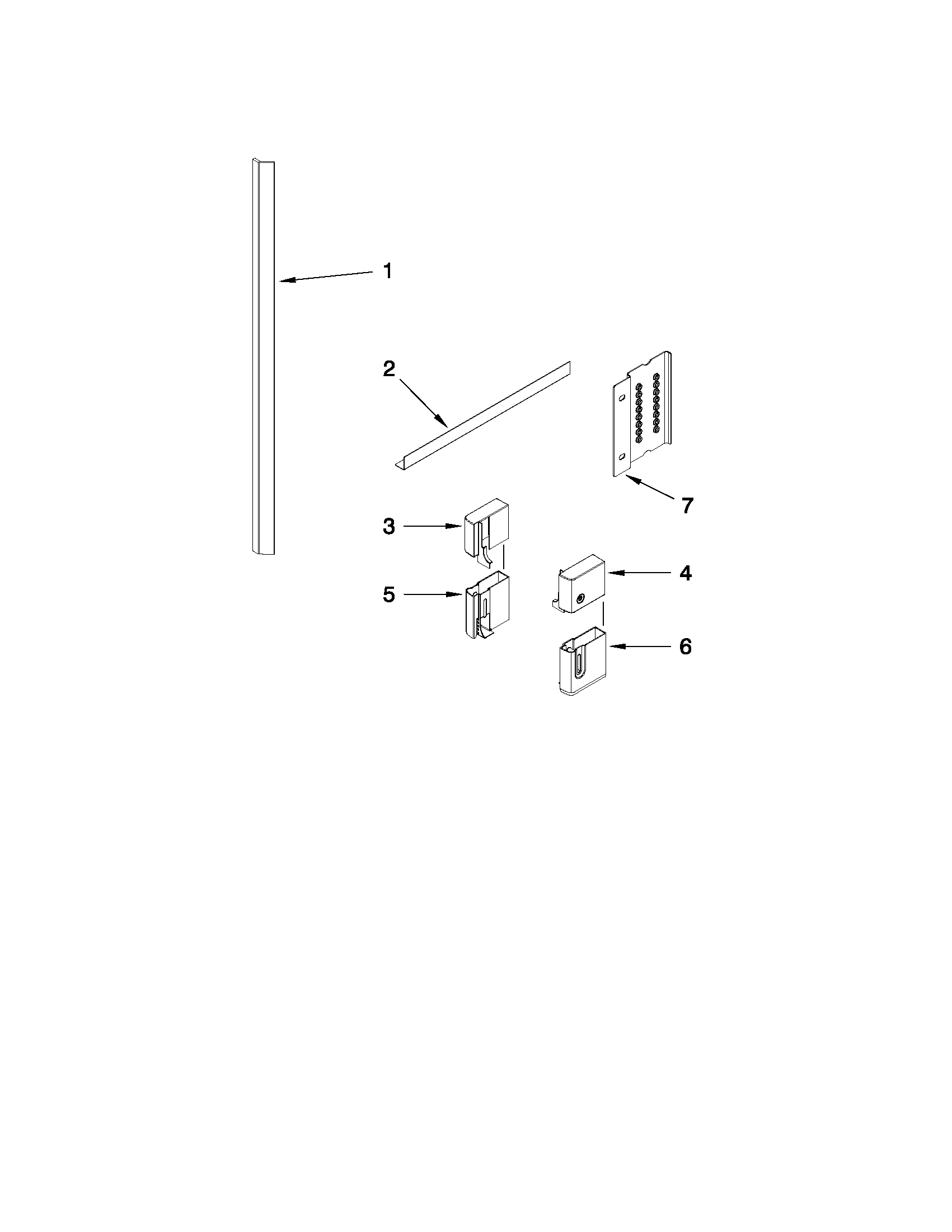

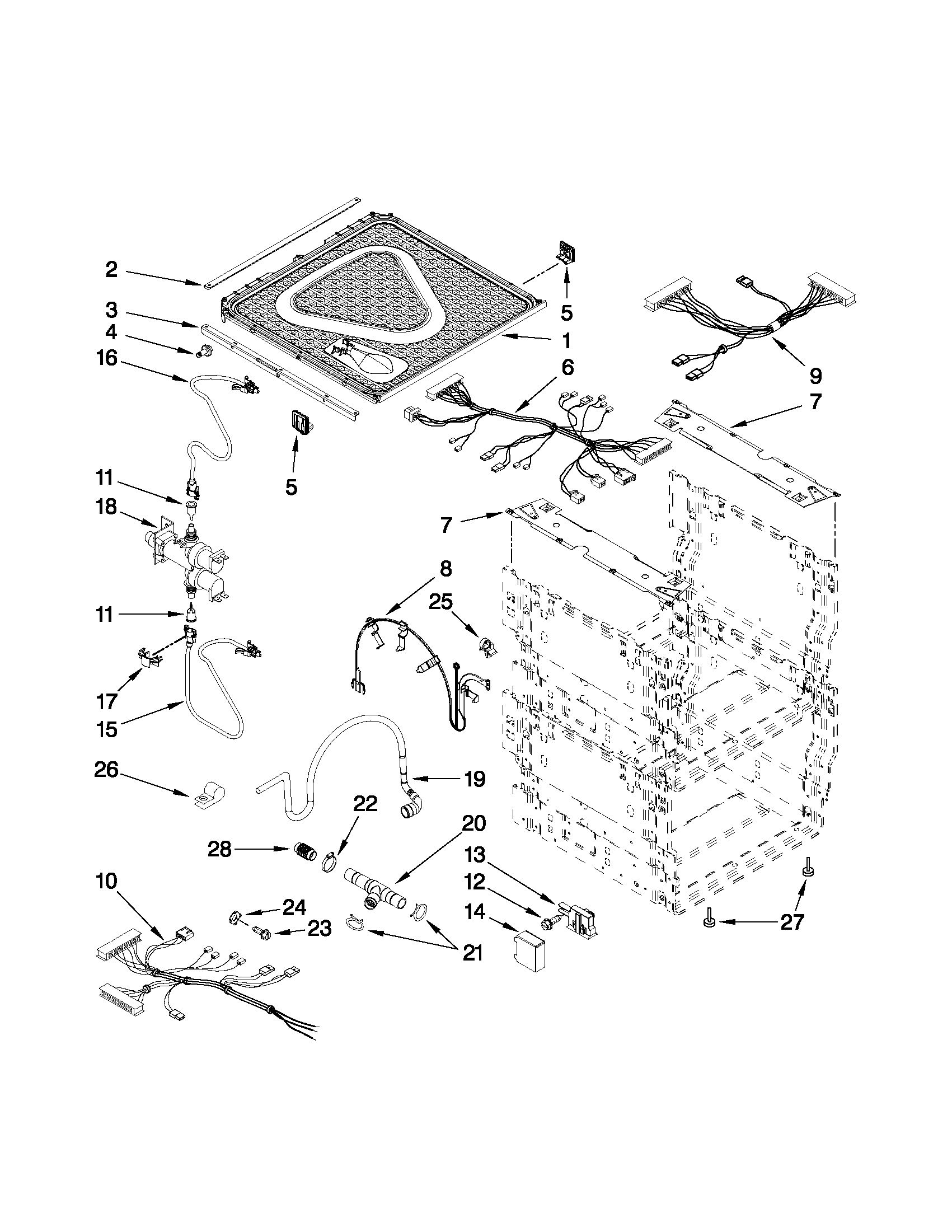

Frame and lid parts diagram
Tube
Part #W10181336
$88.01
In Stock
Qty
#17
Tub parts diagram
Dishwasher drain pump
Part #6-920639
The manufacturer no longer makes this part, and there's no substitute part
#19A
Frame and lid parts diagram
Dishwasher drain hose
Part #W10171148
Replaced by #WPW10171148
?
Manufacturer substitution
This part replaces W10171148. Substitute parts can look different from the original.
$68.36
In Stock
Qty
#18
Frame and lid parts diagram
Inlet valve
Part #W10186746
Replaced by #WPW10186746
?
Manufacturer substitution
This part replaces W10186746. Substitute parts can look different from the original.
$110.67 |
10% OFF Phone Price : $122.67
In Stock
Qty
#32
Tub parts diagram
Catch
Part #6-919545
Replaced by #W10190274
?
Manufacturer substitution
This part replaces 6-919545. Substitute parts can look different from the original.
This item is not returnable
$17.00 |
11% OFF Phone Price : $19.00
In Stock
Qty
#8
Frame and lid parts diagram
Clip
Part #6-920144
Replaced by #WPW10166505
?
Manufacturer substitution
This part replaces 6-920144. Substitute parts can look different from the original.
$22.86
In Stock
Qty
