Whirlpool
Wall Oven/Microwave Combo

Model # RM280PXBB0 Official Whirlpool 30" electric built-in oven with microwave

Here are the diagrams and repair parts for Official Whirlpool RM280PXBB0 30" electric built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

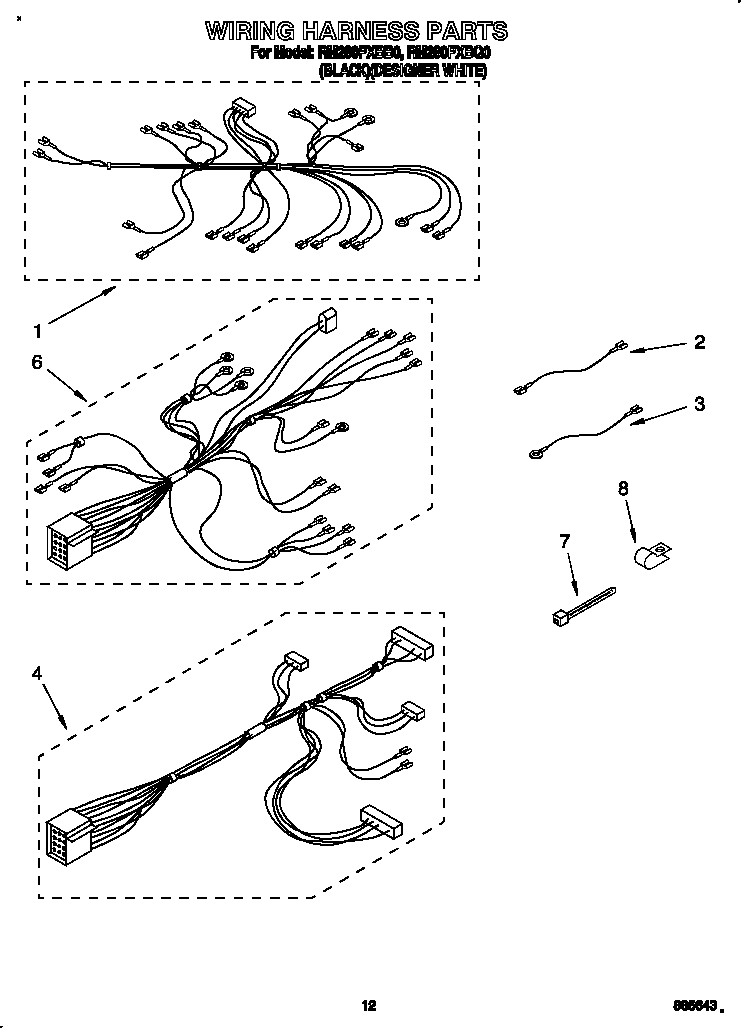

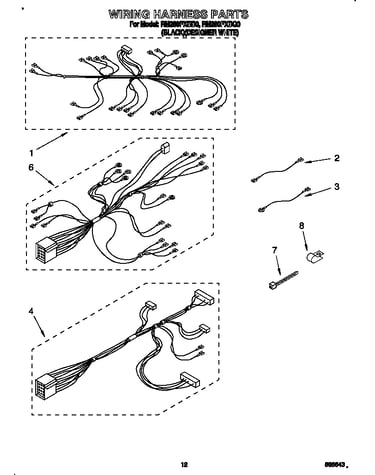

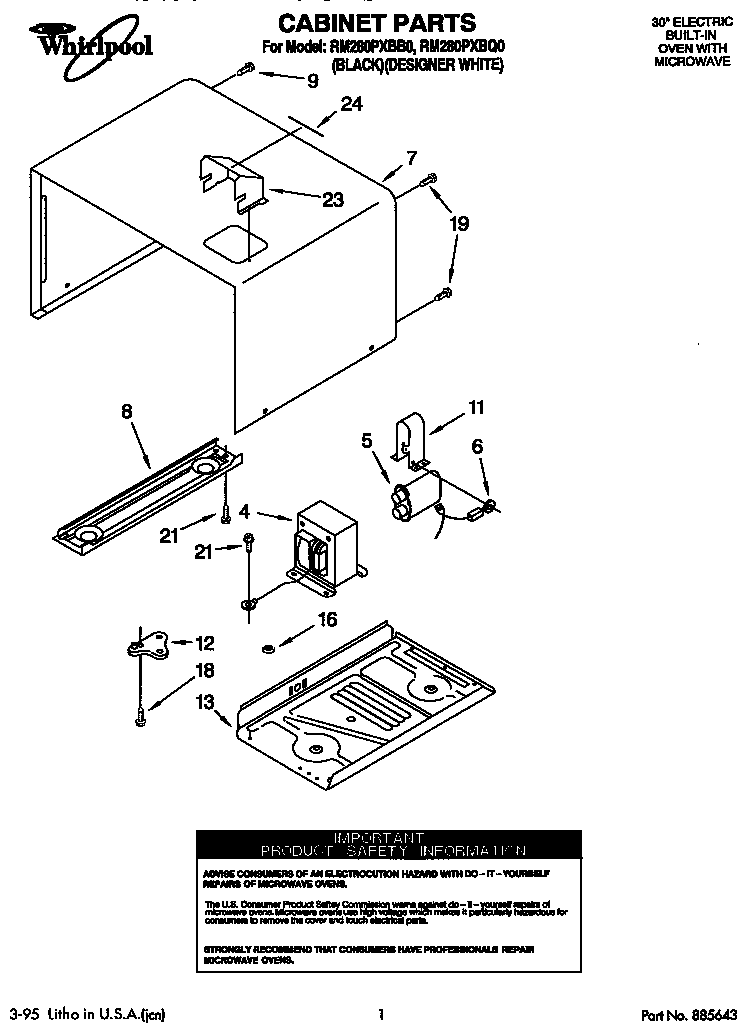

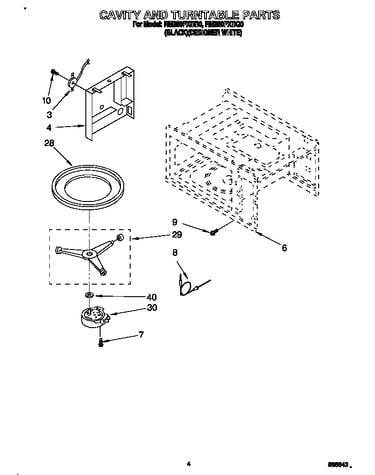

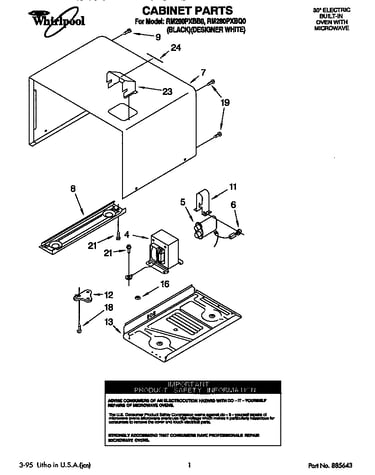

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 238 parts  |
Light Bulb 311255
#41

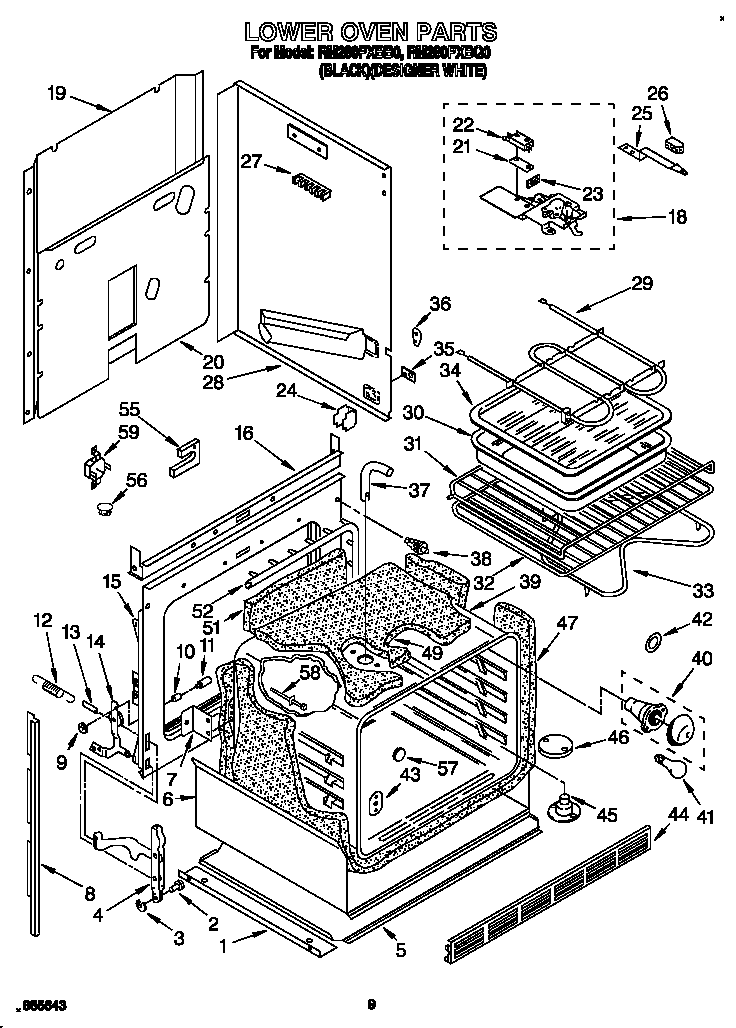

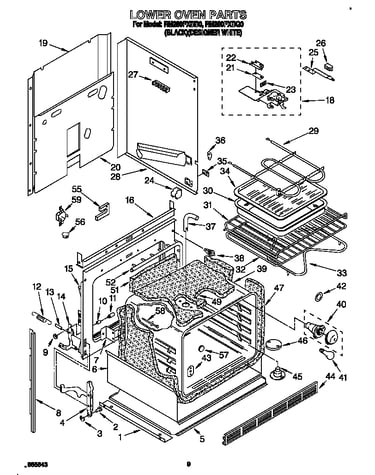

Lower oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Bake Element 661170
#33

Lower oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Bake Element 313827
#33B

Lower oven diagram

Bake element

Part #313827

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 313827. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Range Bake Element 308180
#33A

Lower oven diagram

Range bake element

Part #308180

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 308180. Substitute parts can look different from the original.
BEST SELLER
$44.81 |
12% OFF Phone Price : $50.81
In Stock
Magnetron 4313675
#4

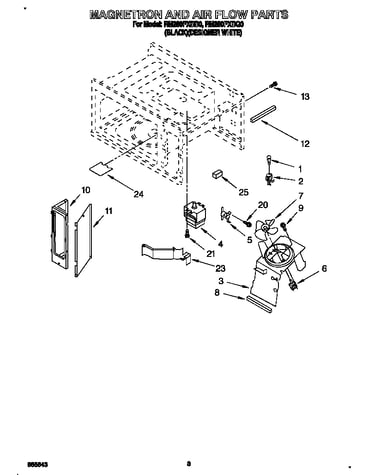

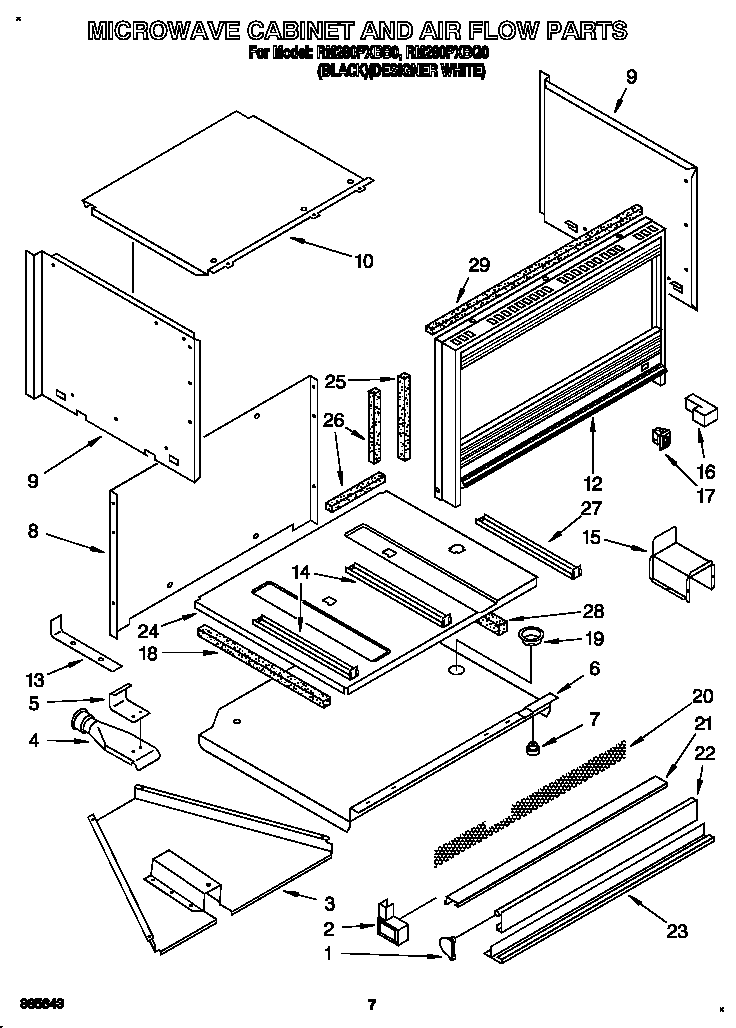

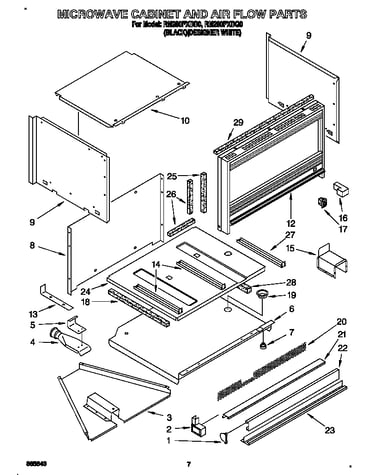

Magnetron and air flow diagram

Magnetron

Part #4313675

The manufacturer no longer makes this part, and there's no substitute part

Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 313638
Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Light 4174873
#1

Magnetron and air flow diagram

Oven light

Part #4174873

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 4174873. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Screw 4174784
#7

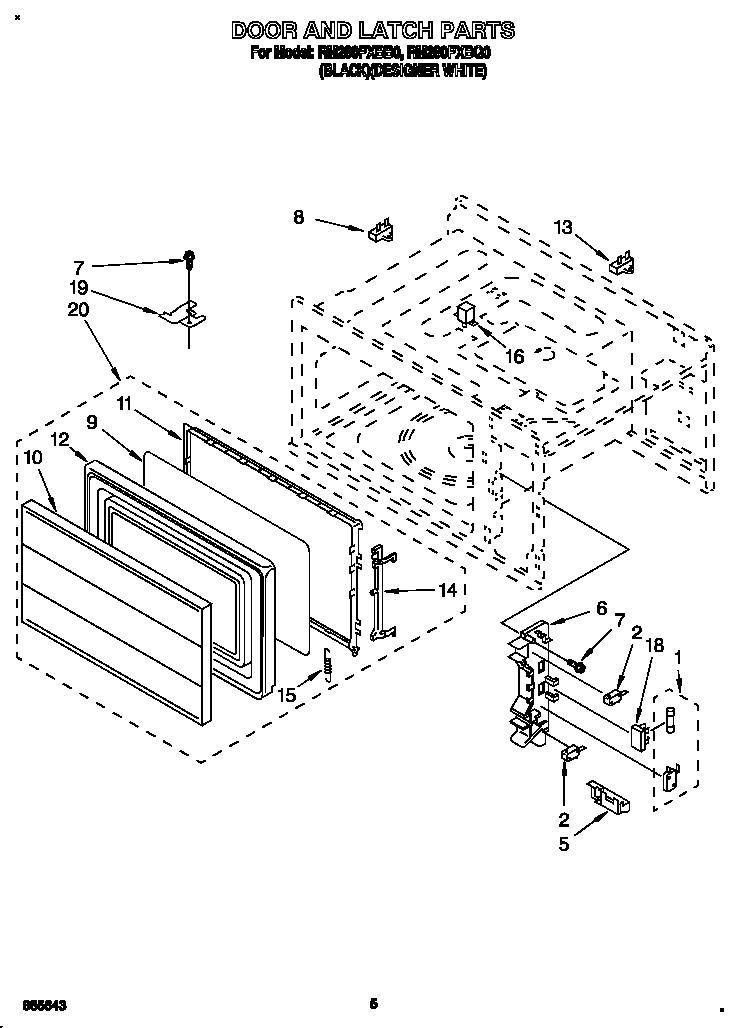

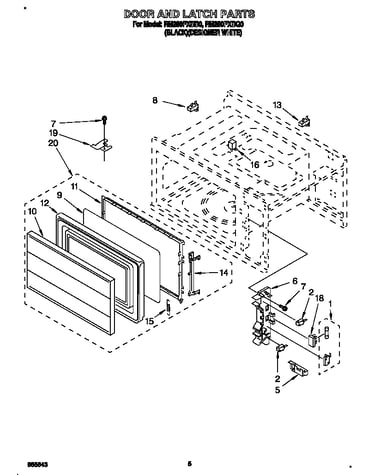

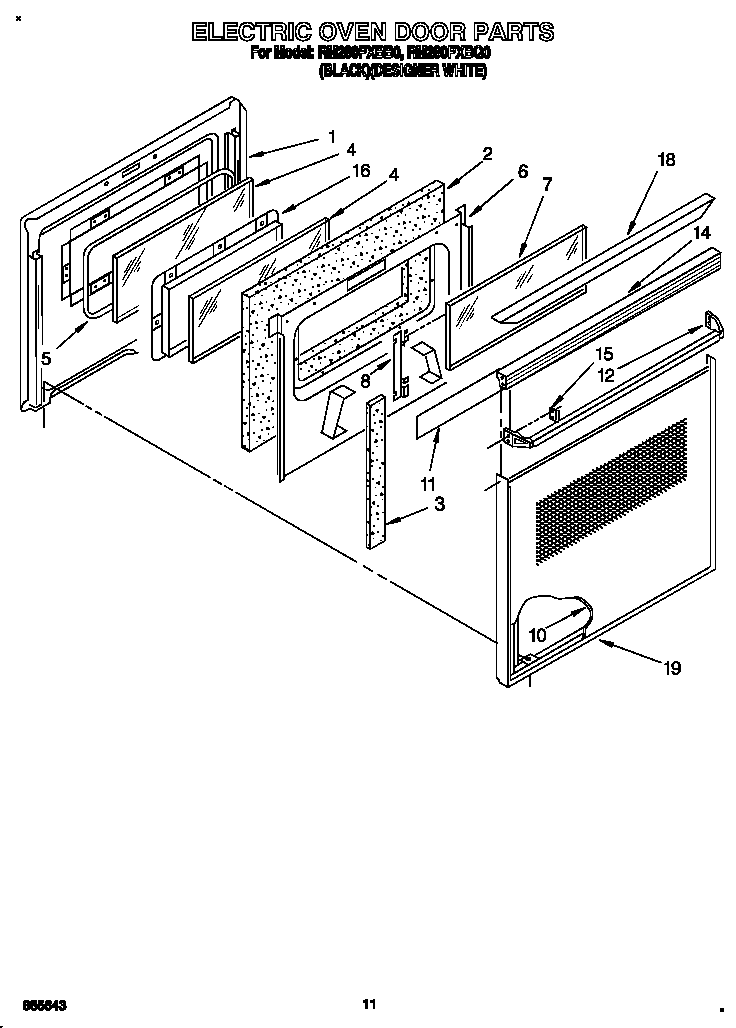

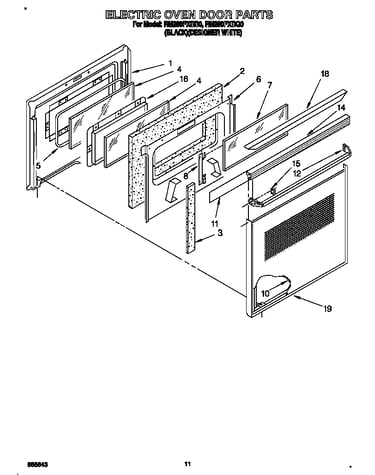

Door and latch diagram

Screw

Part #4174784

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4174784. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Broil Element 660579
#29

Lower oven diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
