Model # JBP58LY2WH Official GE electric range

Here are the diagrams and repair parts for Official GE JBP58LY2WH electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

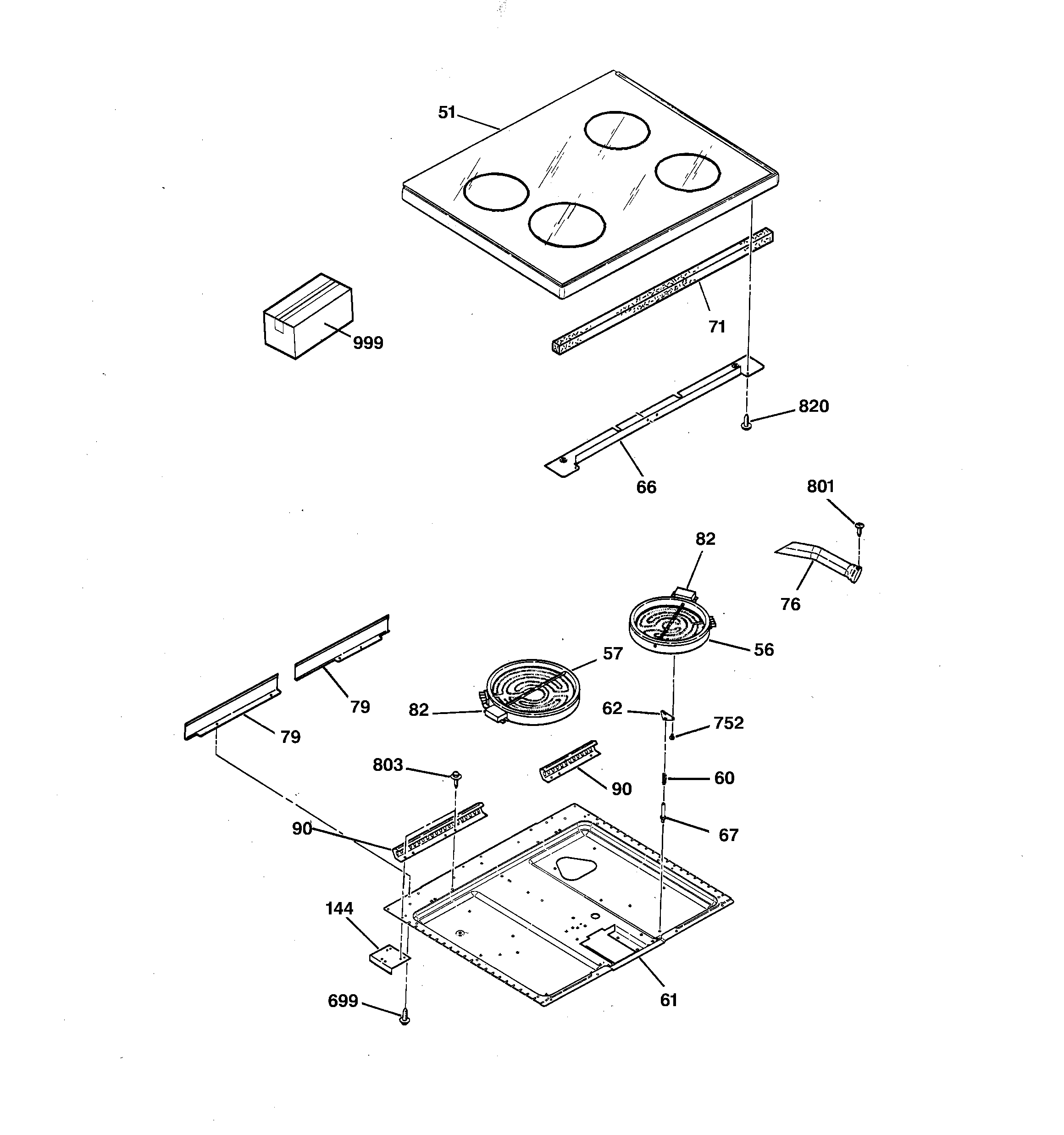

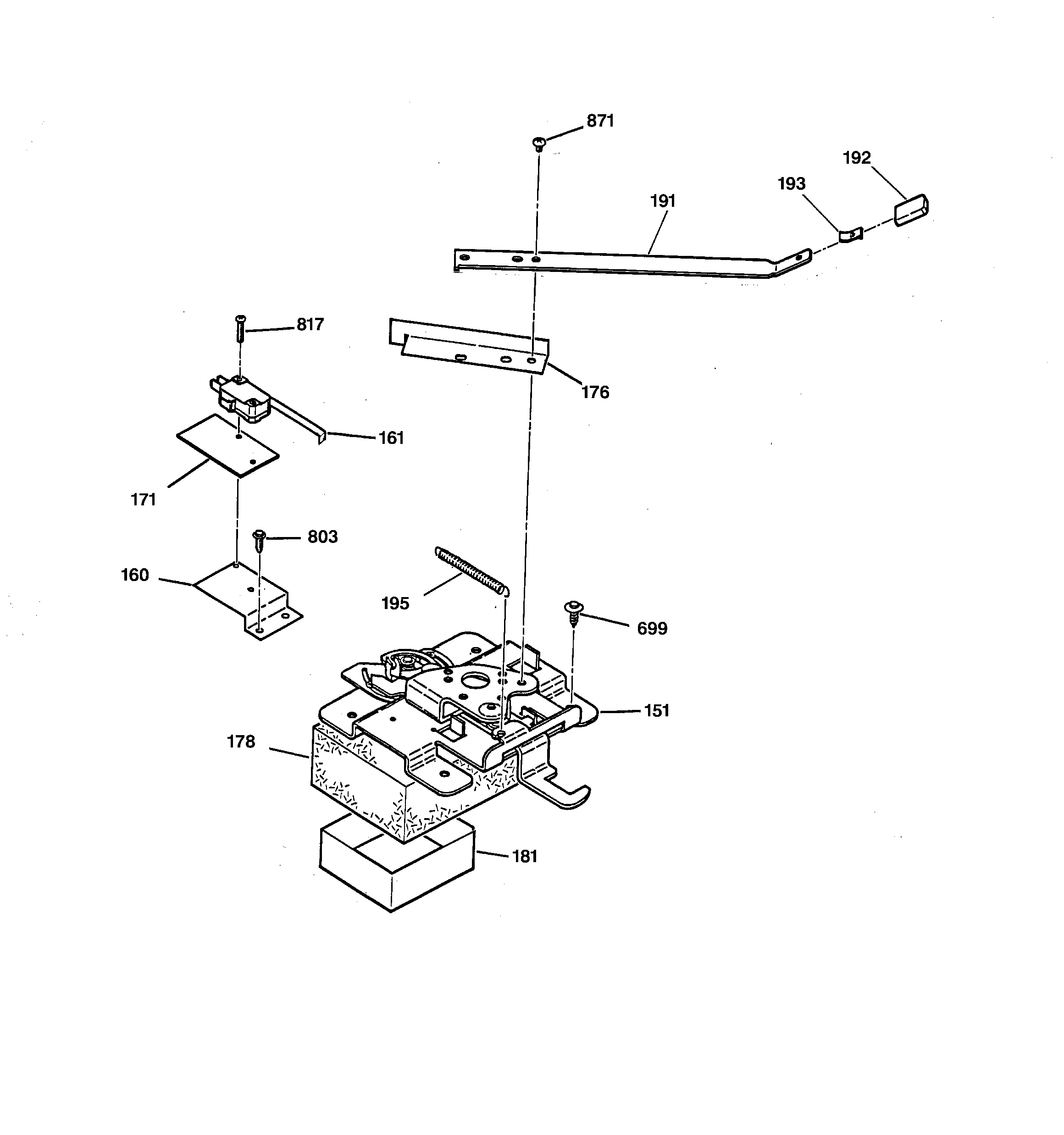

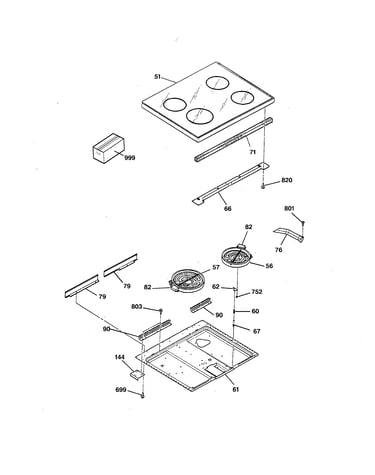

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012
#251

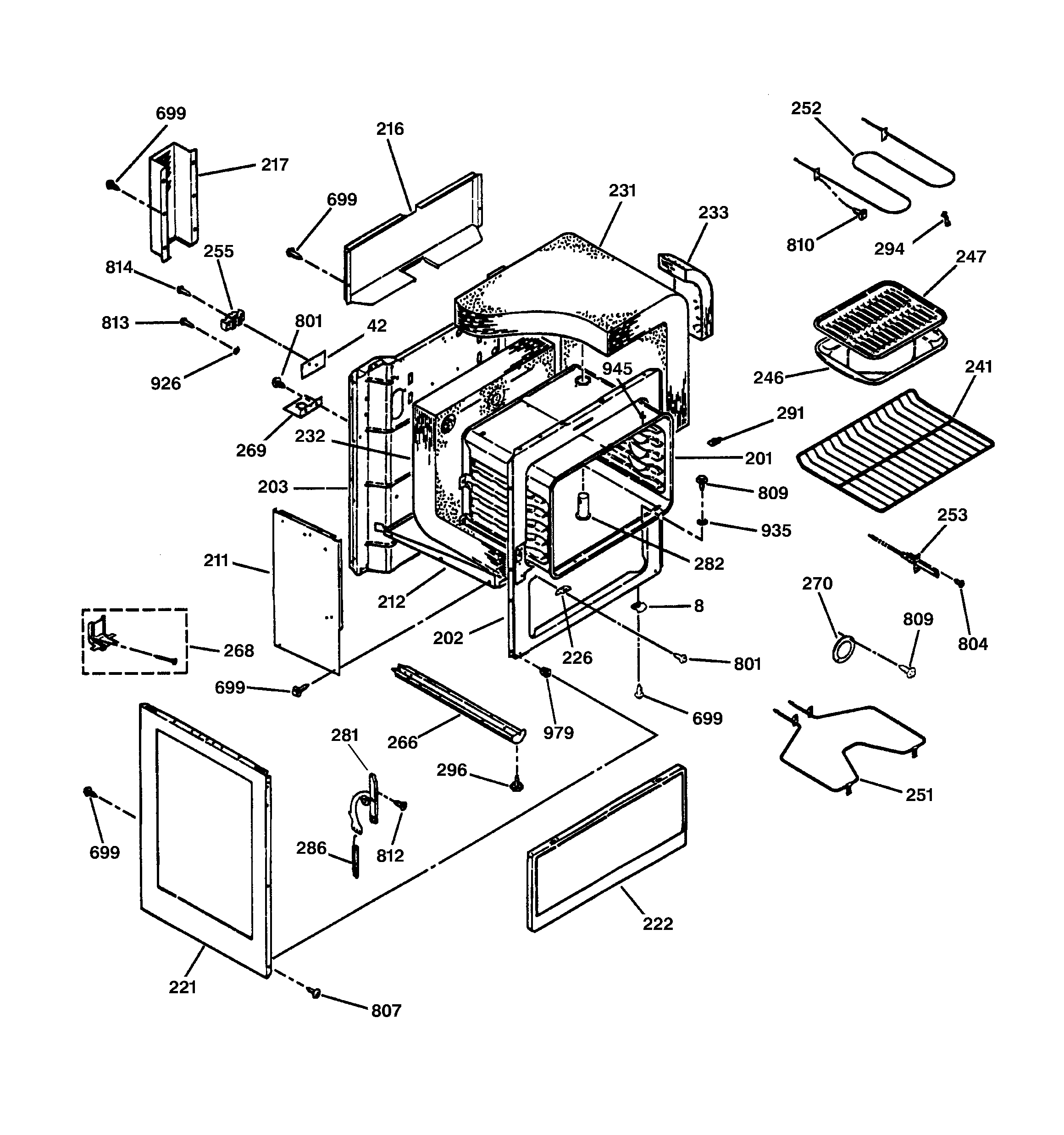

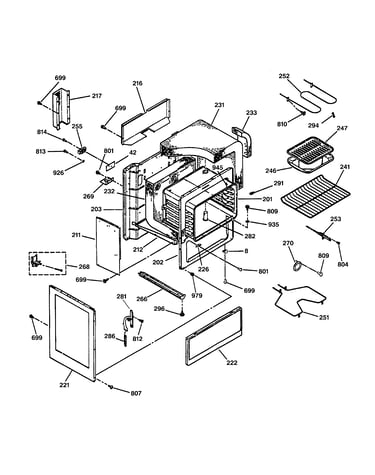

Body parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$44.59 |
12% OFF Phone Price : $50.59
In Stock
Broil Support WB02X9719
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock

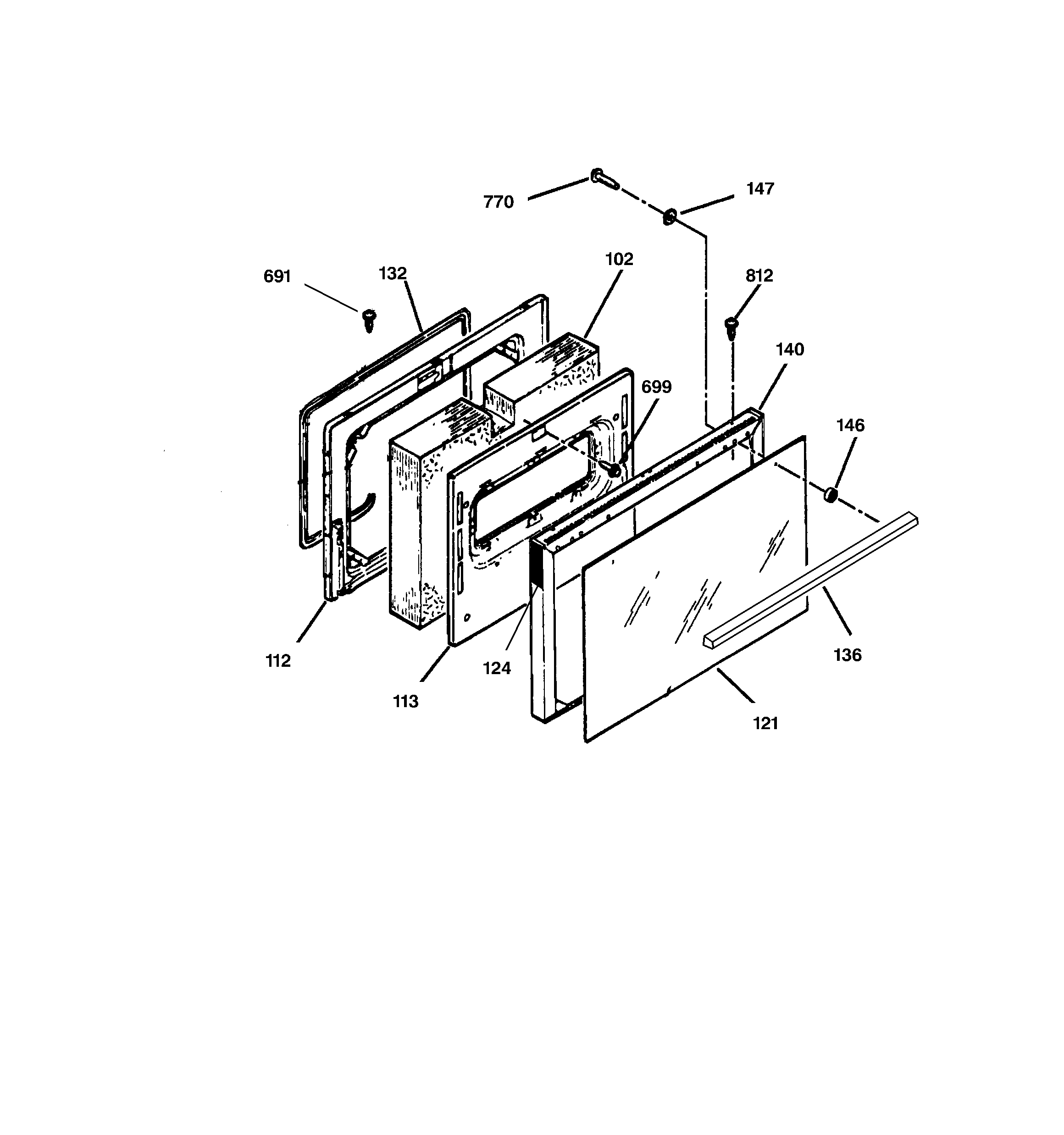

Hinge WB14X0104
#281

Body parts diagram

Hinge

Part #WB14X0104

Replaced by #WB14X104

?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
BEST SELLER
$32.83 |
15% OFF Phone Price : $38.83
In Stock

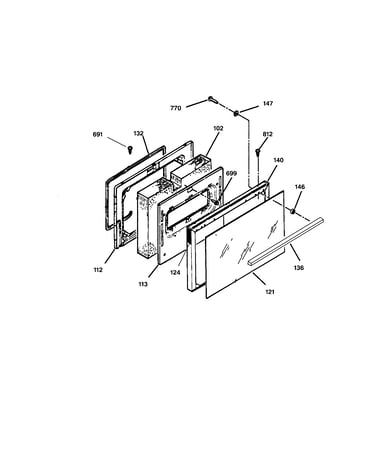

Hinge WB14X0103
#281

Body parts diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Screw WB01K5150
Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5138
#800

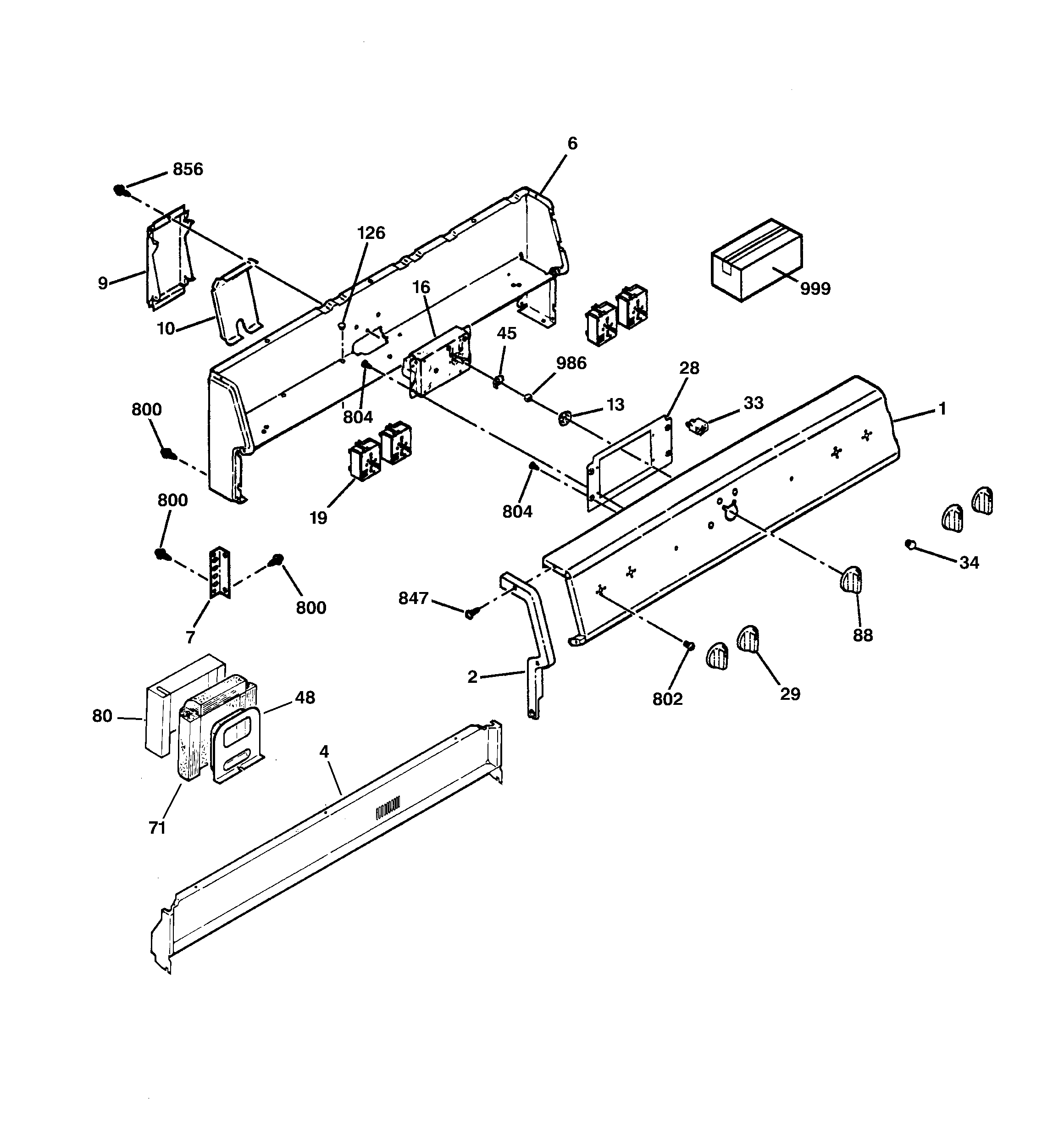

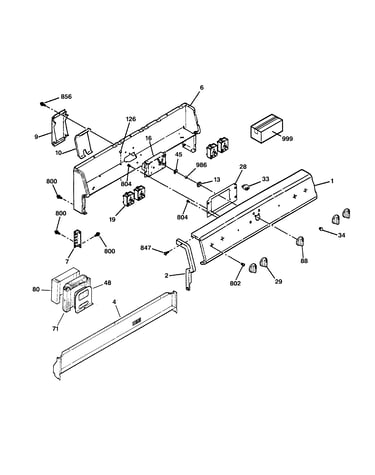

Control panel diagram

Screw

Part #WB01K5138

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5138. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Control WB23M0024
#19

Control panel diagram

Control

Part #WB23M0024

Replaced by #WB23M24

?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06 |
7% OFF Phone Price : $91.06
In Stock
Screw, #10-32 X 17/32-in WB01X1253
#810

Body parts diagram

Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Pan Broil (2 WB48T10006
#246

Body parts diagram

Pan broil (2

Part #WB48T10006

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48T10006. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
